1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your TecTake 801123 Crawley Kitchen Shelf. Please read all instructions carefully before assembly and use to ensure safe and proper functionality. This versatile storage unit is designed for indoor use, offering practical storage solutions for culinary utensils and other household items.
Figure 1: Front view of the assembled TecTake Crawley Kitchen Shelf.
2. Safety Information
WARNING: Max load capacities must not be exceeded. Ensure proper assembly for stability and safety.
- Always follow the assembly instructions precisely.
- Do not overload the shelves. Refer to the 'Specifications' section for individual load capacities.
- Place the shelf on a flat, stable surface to prevent tipping.
- Keep small parts and packaging materials away from children.
- Regularly check all connections and fasteners to ensure they remain tight.
3. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged:
- Kitchen Shelf components (boards, steel frame parts)
- Mounting material (screws, bolts, tools if included)
- Assembly manual (this document or similar)
4. Specifications
| Feature | Detail |
|---|---|
| Overall Dimensions (W x D x H) | Approx. 90 x 40 x 131 cm (35.43"W x 15.75"D x 51.97"H) |
| Top Shelf (width x depth) | Approx. 52 x 20 cm |
| Table Top (width x depth) | Approx. 90 x 38 cm |
| Chipboard Thickness | Approx. 1.5 cm |
| Steel Frame (W x D) | Approx. 2 x 2 cm |
| Top Shelf Load Capacity | 15 kg |
| Table Top Load Capacity | 30 kg |
| Load Capacity per Compartment | 15 kg |
| Load Capacity Grid Tray | 10 kg |
| Weight | Approx. 17.8 kg (37 pounds) |
| Material | Chipboard board, powder coated steel, polyethylene |
| Number of Shelves | 5 |
| Style | Industrial |
| Installation Type | Freestanding |
Figure 2: Detailed dimensions of the kitchen shelf components.
5. Setup and Assembly
The TecTake Crawley Kitchen Shelf is designed for easy and quick assembly. Please follow the step-by-step instructions provided in the separate assembly manual included with your product. Ensure all parts are correctly oriented and fasteners are tightened securely.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Identify all parts by comparing them with the parts list in the assembly manual.
- Assemble the steel frame structure first, ensuring all connections are firm.
- Attach the chipboard shelves to the frame according to the manual's diagrams.
- Install the removable grid tray into its designated slot.
- Adjust the plastic feet to level the shelf on uneven floors.
Figure 3: Adjustable plastic feet for leveling the shelf.
6. Operating and Usage
The Crawley Kitchen Shelf offers multiple storage options for various kitchen and household items.
- Table Top: Use the large table top for appliances, food preparation, or as an additional workspace.
- Top Shelf: The elevated top shelf is suitable for spices, small decorative items, or frequently used utensils.
- Lower Shelves: Four lower shelves are divided into two vertical compartments, providing ample space for pots, pans, dishes, or pantry items.

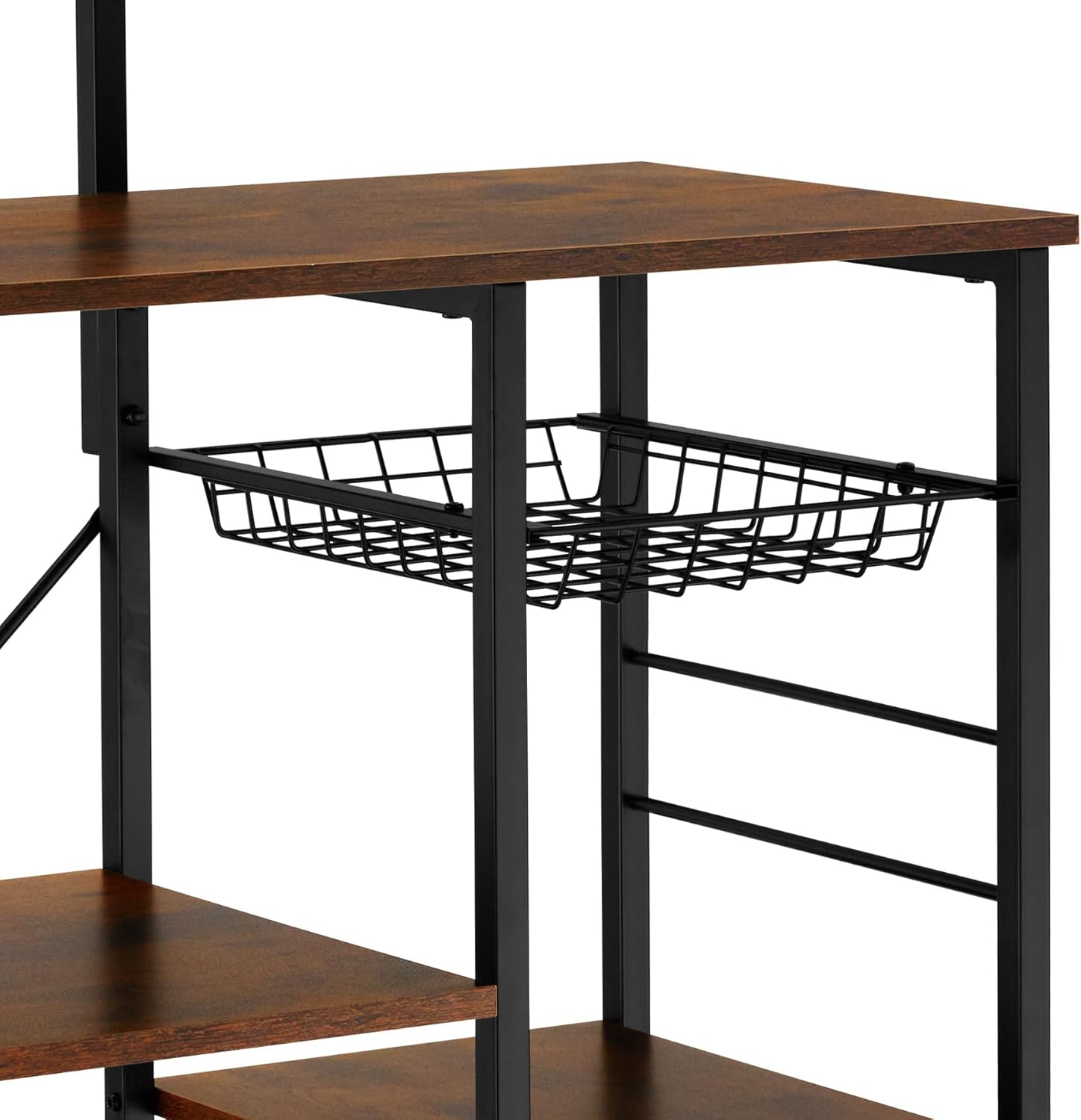

- Removable Grid Tray: A dedicated grid tray is included for convenient storage of smaller items, fruits, or vegetables, and can be easily removed for cleaning or access.
Figure 4: The removable grid tray for flexible storage.
7. Maintenance
To maintain the appearance and longevity of your kitchen shelf, follow these care instructions:
- Cleaning: Wipe with a dry cloth to remove dust and light dirt. For more stubborn marks, use a slightly damp cloth and mild detergent, then dry immediately.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the melamine coating and steel finish.
- Spills: Clean up spills immediately to prevent staining or damage to the wood effect chipboard.
- Inspection: Periodically check all screws and connections and tighten them if necessary to ensure stability.
Figure 5: Detail of the durable wood effect chipboard with protective melamine coating.
8. Troubleshooting
If you encounter any issues with your TecTake Crawley Kitchen Shelf, consider the following:
- Instability/Wobbling: Ensure the shelf is placed on a level surface. Adjust the plastic feet at the bottom of the frame to stabilize the unit. Check that all assembly screws are securely tightened.
- Damaged Parts: If any part is damaged upon arrival or during assembly, do not proceed with assembly. Contact customer support for replacement parts.
- Missing Parts: Refer to the package contents list. If any parts are missing, contact customer support.
9. Warranty and Support
For warranty information, product support, or to order replacement parts, please refer to the contact details provided by your retailer or visit the official tectake website. Keep your purchase receipt as proof of purchase.
