ADO A20 XE E-Folding Bike User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and care of your ADO A20 XE E-Folding Bike. Please read this manual thoroughly before your first ride and keep it for future reference. Proper understanding of your e-bike's features and functions will ensure a safe and enjoyable riding experience.

2. Safety Information

Always prioritize safety when operating your e-bike. Failure to follow safety guidelines can result in serious injury or damage to the product.

• Always wear a helmet that meets local safety standards.
• Ensure all components, especially brakes and tires, are in good working order before each ride.
• Familiarize yourself with local traffic laws and regulations regarding e-bikes.
• Do not ride under the influence of alcohol or drugs.
• Adjust seat height and handlebar position for comfortable and safe riding.
• Be aware of your surroundings and other road users.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Do not exceed the maximum load capacity of 120 kg.

3. Product Features and Components

The ADO A20 XE is a versatile e-folding bike designed for urban commuting and leisure. Key features include a powerful motor, long-range battery, and a robust folding mechanism.

Figure 3.1: The ADO A20 XE E-Folding Bike, showcasing its compact folded form and full riding configuration.

3.1 Key Upgrades and Design

• Enhanced Paint Finish: Features a four-layer spray paint process for lasting color fixation and improved aesthetics.
• Lightweight Design: The bike weighs approximately 21.2 kg, making it manageable for transport.
• Durable Fenders and Rear Rack: Equipped with iron fenders and a sturdy rear rack for practical use.
• Mechanical Disc Brake 3.0: Incorporates a dual push system for improved braking performance.

Figure 3.2: Visual representation of the ADO A20 XE's upgraded features, including paint, weight, fenders, and brake system.

3.2 Battery System

The ADO A20 XE is powered by a 36V 10.4Ah high-energy lithium-ion battery, providing an ultra-long range of up to 80 km depending on riding conditions and assist level. The battery is removable for convenient charging and features multiple protection mechanisms.

• Capacity: 36V 10.4Ah
• Range: Up to 80 km (pedal assist)
• Charging Time: Approximately 6-7 hours for a full charge.
• Protections: Over-current, over-discharge, temperature, and short-circuit protection.

Figure 3.3: Illustration of the e-bike's battery capacity, estimated range, and integrated safety protections.

3.3 Drivetrain and Braking

• Motor: 250W brushless motor, providing assistance up to 25 km/h.
• Transmission: Shimano 7-speed transmission for smooth gear changes and adaptability to various terrains.
• Brakes: Mechanical disc brakes on both front and rear wheels, featuring a dual push system for responsive and safe stopping.

Figure 3.4: Details of the Shimano 7-speed transmission system and the mechanical disc brake 3.0 with its dual push mechanism.

3.4 Suspension and Frame

• Multi-Suspension System: Includes front fork dual dynamic shock absorption, double saddle elastic shock absorption, A20XE saddle tube gravity damping, and wheel dual gravity air damping for a comfortable ride.
• Frame Material: Lightweight aluminum alloy frame, contributing to the bike's overall low weight.

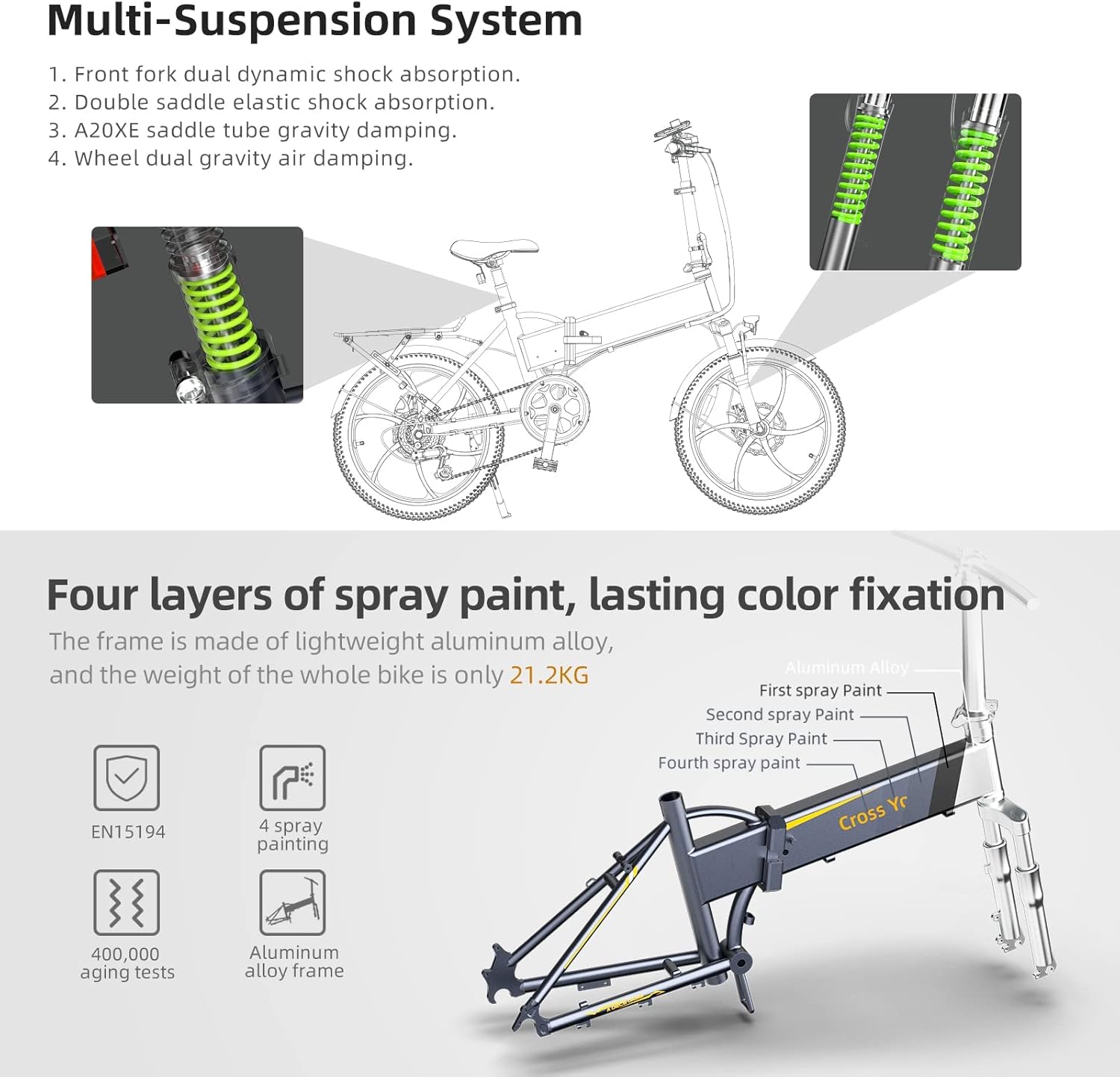

Figure 3.5: Illustration of the bike's multi-suspension system and the layered paint process applied to its aluminum alloy frame.

3.5 Additional Components

• Lighting: E-Mark certified lights and reflectors, including a bright LED headlight and rear brake lights for night riding safety.
• Display: HD LCD screen for displaying speed, battery level, and other riding data.
• Pedals: Non-slip pedals for secure foot placement.
• Charging Port: Integrated USB charging port for convenience.
• Handle Design: Center handle design for improved ergonomics.

Figure 3.6: Detailed views of the e-bike's various components, including lighting, display, fenders, rack, pedals, USB port, and handle.

4. Setup and Assembly

Your ADO A20 XE E-Folding Bike comes mostly pre-assembled. Follow these steps for initial setup:

1. Unfolding the Frame:
   • Place the bike on a flat surface.
   • Release the frame latch (usually located near the hinge in the middle of the frame).
   • Carefully unfold the frame until it locks into place. Ensure the latch is securely fastened.
2. Handlebar Setup:
   • Lift the handlebar stem and secure it with the quick-release lever.
   • Adjust the handlebar height to a comfortable position and tighten the clamp.
3. Seat Post Adjustment:
   • Open the quick-release lever on the seat post clamp.
   • Adjust the seat height so your leg has a slight bend at the knee when the pedal is at its lowest point.
   • Close the quick-release lever securely.
4. Pedal Installation (if not pre-installed):
   • Identify left (L) and right (R) pedals.
   • Thread the right pedal (R) clockwise into the right crank arm.
   • Thread the left pedal (L) counter-clockwise into the left crank arm.
   • Tighten pedals firmly with a wrench.
5. Battery Installation:
   • Ensure the battery is charged before first use.
   • Slide the battery into its compartment (usually located within the frame) until it clicks into place.
   • Lock the battery with the key provided for security.
6. Pre-Ride Checks:
   • Check tire pressure (refer to tire sidewall for recommended PSI).
   • Test both front and rear brakes for proper function.
   • Ensure all quick-release levers and latches are securely tightened.
   • Verify lights are working.

Figure 4.1: Dimensions of the ADO A20 XE in both unfolded and folded states, along with recommended rider height and load capacity.

5. Operating Instructions

The ADO A20 XE offers two main operating modes: Pedal Assisted Bike and Normal Bike.

5.1 Powering On/Off

• To turn on the e-bike system, press and hold the power button on the LCD display.
• To turn off, press and hold the power button again.

5.2 Pedal Assisted Mode

• The e-bike has 3 levels of pedal assistance.
• Use the '+' and '-' buttons on the LCD display to cycle through the assist levels (1-3).
• The motor will provide assistance as you pedal, making riding easier, especially uphill or against wind.

5.3 Normal Bike Mode

• You can ride the ADO A20 XE as a traditional bicycle by turning off the electric assist or setting it to level 0.
• Use the Shimano 7-speed gears to adjust your pedaling effort according to terrain and desired speed.

5.4 Shifting Gears

• Use the gear shifter on the handlebar to change between the 7 available speeds.
• Shift gears smoothly, especially when pedaling, to avoid strain on the drivetrain.

5.5 Braking

• Apply both front and rear brakes simultaneously for effective and controlled stopping.
• Avoid sudden, hard braking, especially at high speeds or on slippery surfaces.

6. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your e-bike.

6.1 Battery Care

• Charge the battery regularly, even if not in use, to maintain its health.
• Avoid completely draining the battery.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Use only the original charger provided with the bike.

6.2 Cleaning

• Clean the bike with a damp cloth and mild soap. Avoid high-pressure washers, which can damage electrical components.
• Do not submerge electrical parts in water.
• Keep the chain clean and lubricated.

6.3 Brake and Tire Checks

• Regularly inspect brake pads for wear and replace them when necessary.
• Check brake cables for fraying or damage.
• Maintain correct tire pressure as indicated on the tire sidewall.
• Inspect tires for cuts, punctures, or excessive wear.

6.4 General Inspection

• Periodically check all bolts and nuts for tightness.
• Ensure the folding mechanism is clean and operates smoothly.
• If you notice any unusual noises, vibrations, or performance issues, consult a qualified bicycle mechanic.

7. Troubleshooting

This section addresses common issues you might encounter with your ADO A20 XE E-Folding Bike.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact customer support or a certified bicycle mechanic.

8. Specifications

Detailed technical specifications for the ADO A20 XE E-Folding Bike:

• Model: ADO A20 XE
• Bike Type: Electric Bicycle, Folding Bike
• Age Range: Adult
• Color: Black
• Wheel Size: 20 Inch
• Frame Material: Aluminum Alloy
• Motor: 250W Brushless Motor
• Battery: 36V 10.4Ah Lithium-ion
• Max Speed: 25 km/h (15.5 mph)
• Range (Pedal Assist): 35-90 km (21-56 miles)
• Charging Time: 6-7 hours
• Brake Type: Mechanical Disc Brake (Front & Rear)
• Number of Speeds: 7 (Shimano)
• Suspension Type: Rigid (Multi-Suspension System)
• Product Weight: Approximately 21.2 kg (46.7 lbs)
• Max Load Capacity: 120 kg (265 lbs)
• Recommended Rider Height: 165cm-190cm (5'5"-6'3")
• Folded Dimensions: 90cm x 43cm x 70cm (35.4" x 16.9" x 27.6")
• Unfolded Dimensions: 155cm x 53cm x 103.5cm (61" x 20.9" x 40.7")

9. Warranty and Support

ADO provides a limited warranty for the A20 XE E-Folding Bike. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage period and exclusions.

For technical support, spare parts, or warranty claims, please contact ADO customer service through their official website or the retailer where you purchased the product. Have your model number and purchase date ready when contacting support.

Manufacturer: A Dece Oasis
