EFFYDESK KaiChair Ergonomic Office Chair User Manual

Introduction

Thank you for choosing the EFFYDESK KaiChair Ergonomic Office Chair. This manual provides comprehensive instructions for the assembly, operation, and maintenance of your new chair. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of your product.

Figure 1: EFFYDESK KaiChair Ergonomic Office Chair (Arctic White)

Safety Information

To ensure safe operation and prevent injury or damage, please observe the following safety guidelines:

• Always ensure all screws and bolts are securely tightened before and during use. Periodically check for loose connections.
• Do not stand on the chair. Use the chair only for its intended purpose of sitting.
• Do not use the chair on uneven or unstable surfaces.
• Keep children and pets away from the chair during assembly and adjustment to prevent injury from moving parts.
• Avoid placing heavy objects on the chair's backrest or armrests.

Package Contents

Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Chair Backrest (1)
• Seat Cushion (1)
• Armrests (2)
• Gas Lift Cylinder (1)
• Chair Base (1)
• Casters (5)
• Mechanism Plate (1)
• Hardware Kit (screws, washers, Allen wrench) (1)
• Headrest (1)

Assembly Instructions

Assembly typically takes 10-20 minutes. It is recommended to assemble the chair on a soft, clean surface to prevent damage. Refer to the provided installation instructions and videos for visual guidance.

1. Attach Casters to Base: Insert each of the five casters into the holes at the end of each leg of the chair base until they click securely into place.
2. Insert Gas Lift: Place the gas lift cylinder into the center hole of the assembled chair base.
3. Attach Mechanism Plate to Seat: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Secure it using the provided screws and Allen wrench. Ensure the front of the mechanism faces the front of the seat.
4. Attach Armrests to Seat: Secure the armrests to the sides of the seat cushion using the designated screws. Ensure they are oriented correctly.
5. Attach Backrest to Seat: Align the backrest with the mounting points on the seat mechanism. Secure it with the appropriate screws.
6. Attach Headrest: Slide the headrest into the designated slots at the top of the backrest.
7. Connect Seat Assembly to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center hole of the mechanism plate aligns with the top of the gas lift. Press down firmly to secure.
8. Final Check: Verify all screws are tightened and the chair is stable before use.

Figure 2: Side view of the KaiChair, illustrating components during assembly.

Operating Instructions and Adjustments

The KaiChair is designed with multiple adjustment features to provide optimal ergonomic support. Familiarize yourself with these adjustments to customize your seating experience.

• Seat Height Adjustment: Locate the lever on the right side, beneath the seat. Pull the lever upwards to raise the seat. To lower, remain seated and pull the lever upwards. Release the lever at the desired height.
• Recline/Tilt Adjustment (EFFY Synchron-tilt Technology): Use the lever on the left side, beneath the seat. Pull the lever out to unlock the tilt mechanism, allowing the backrest to recline. Push the lever in to lock the backrest at your desired angle. The chair offers 3 reclining positions.
• Tilt Tension Adjustment: The round knob located under the front of the seat controls the tilt tension. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
• 4D Armrest Adjustment: The armrests can be adjusted in four dimensions:
  • Height: Press the button on the side of the armrest and slide it up or down.
  • Forward/Backward: Slide the armrest pad forward or backward.
  • Left/Right (Pivot): Pivot the armrest pad left or right.
  • Inward/Outward: Slide the entire armrest assembly inward or outward.
• Adjustable Headrest: The headrest can be adjusted vertically by sliding it up or down to support your neck and head comfortably.
• Lumbar Support: The built-in lumbar support is designed to provide optimal lower back comfort. While not explicitly stated as adjustable, its ergonomic design ensures proper spinal alignment.

Figure 3: Front view of the KaiChair, highlighting the location of adjustment controls.

Maintenance

Proper maintenance will extend the life and appearance of your KaiChair.

• Cleaning: For general cleaning, use a soft, damp cloth. For spills or stains, spot clean immediately using a mild fabric cleaner. Do not use harsh chemicals or abrasive cleaners.
• Mesh Care: The breathable mesh backrest and headrest can be gently wiped with a damp cloth. Avoid excessive scrubbing.
• Hardware Check: Periodically check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability and safety.
• Caster Care: Keep casters free of hair and debris to ensure smooth movement.

Troubleshooting

If you encounter any issues with your KaiChair, refer to the following common problems and solutions:

Specifications

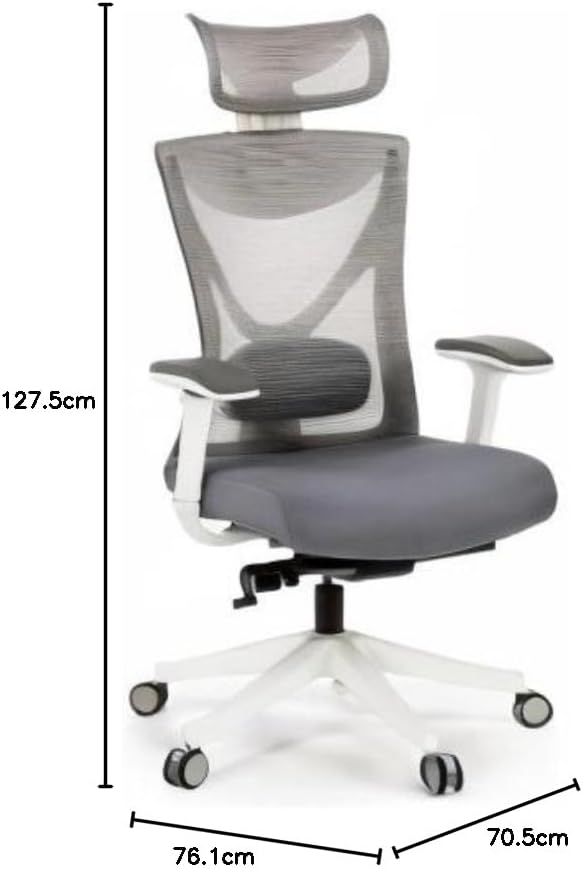

Figure 4: Detailed dimensions of the EFFYDESK KaiChair.

Warranty and Customer Support

Your EFFYDESK KaiChair comes with a 5-year manufacturer's warranty, covering defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or any inquiries regarding your product, please contact EFFYDESK customer support:

• Email: team@effydesk.ca
• Phone: 604-715-7577

Please have your model number (ED-KAI-WOC) and purchase information ready when contacting support.
