Belaco 15L Air Fryer Oven User Manual

1. Introduction

Thank you for purchasing the Belaco 15L Air Fryer Oven. This versatile appliance combines the functions of an air fryer, mini oven, convection oven, toaster, and grill, offering a wide range of cooking possibilities. Designed for healthy, oil-free heating, it features a double-layered glass door and an adjustable temperature range of 80°C to 230°C.

Please read this manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

Image: The Belaco 15L Air Fryer Oven, showcasing its compact design and the interior with food items like pizza and french fries being cooked.

2. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "OFF", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or any other materials not specifically designed for oven use.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, or any other materials not specifically designed for oven use.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

3. Product Components and Accessories

The Belaco 15L Air Fryer Oven comes with several accessories to enhance your cooking experience. Familiarize yourself with these components before first use.

• Main Unit: The 15L Air Fryer Oven with control knobs and glass door.
• Baking Tray: A versatile tray for baking, roasting, or collecting drips.
• Chrome Wire Rack: Can be used for grilling or supporting other cookware.
• Tray Handle: For safely inserting and removing hot trays and racks.
• Air Fry Basket: Specifically designed for air frying, allowing hot air to circulate around food for crispy results.

Image: An illustration showing the Belaco Air Fryer Oven alongside its included accessories: a tray handle, a baking/food tray, a grill/bake tray, and an air frying basket.

Image: A comparison table highlighting the advantages of the Belaco 15L Air Fryer Oven, such as 15L capacity, no preheating, oil-less cooking, and up and down heating tubes, compared to traditional ovens and dedicated air fryers.

4. Setup and First Use

4.1 Unpacking

1. Carefully remove the appliance and all accessories from the packaging.
2. Remove any packaging materials, stickers, or labels.
3. Wipe the exterior of the oven with a damp cloth.
4. Wash all removable accessories (baking tray, wire rack, air fry basket, tray handle) in warm, soapy water. Rinse and dry thoroughly.

4.2 Placement

• Place the oven on a stable, heat-resistant, and level surface.
• Ensure there is adequate ventilation around the oven (at least 10-15 cm clearance on all sides and above).
• Do not place the oven near flammable materials such as curtains or walls.

4.3 Initial Burn-Off

Before cooking food, it is recommended to run the oven empty for about 15 minutes to burn off any manufacturing residues and odors.

1. Plug the oven into a grounded electrical outlet.
2. Set the temperature knob to 230°C.
3. Set the timer knob to 15 minutes.
4. A slight odor or smoke may be present during this process; this is normal. Ensure the area is well-ventilated.
5. Once the timer rings, turn all knobs to "OFF" and unplug the oven. Allow it to cool completely before proceeding.

5. Operating Your Air Fryer Oven

The Belaco 15L Air Fryer Oven features three control knobs for mode selection, temperature, and timer, along with an interior light for easy monitoring.

Image: A visual representation of the Belaco Air Fryer Oven's control panel, highlighting its key features: 15L capacity, an audible shut-off bell, 1200W power, a 60-minute timer, precise temperature controls, and a 5-stage selector for various cooking modes.

5.1 Control Knobs

• Mode Selector Knob (Left): Choose from Air Fry, Broil, Bake, Toast, and Warm.
• Temperature Control Knob (Middle): Adjust temperature from 80°C to 230°C.
• Timer Knob (Right): Set cooking time up to 60 minutes. Includes a bell alert when finished.

5.2 Cooking Modes

This appliance offers 5 distinct cooking modes:

• Air Fry: Ideal for crispy foods like fries, chicken wings, and vegetables with little to no oil. Use the air fry basket.
• Broil: For grilling and browning the top of food. Use the wire rack on the upper position.
• Bake: Perfect for cakes, cookies, and casseroles. Use the baking tray.
• Toast: For toasting bread, bagels, and waffles.
• Warm: To keep food warm after cooking.

5.3 General Operation Steps

1. Place food on the appropriate accessory (baking tray, wire rack, or air fry basket).
2. Insert the accessory into the desired rack position inside the oven.
3. Close the glass door.
4. Turn the Mode Selector Knob to your desired cooking function (e.g., Air Fry).
5. Turn the Temperature Control Knob to the desired temperature (80°C - 230°C).
6. Turn the Timer Knob to the desired cooking time (up to 60 minutes). The oven will begin heating.
7. The interior light allows you to monitor cooking progress without opening the door.
8. When the timer rings, cooking is complete. Carefully remove food using the tray handle or oven mitts.
9. Turn all knobs to "OFF" and unplug the oven after use.

Image: The Belaco Air Fryer Oven in operation, demonstrating its capacity to cook multiple items like pizza, french fries, and meat on different racks simultaneously.

Image: The Belaco Air Fryer Oven with its door open, revealing a tray of cookies inside, highlighting the effective interior lighting for visibility during cooking.

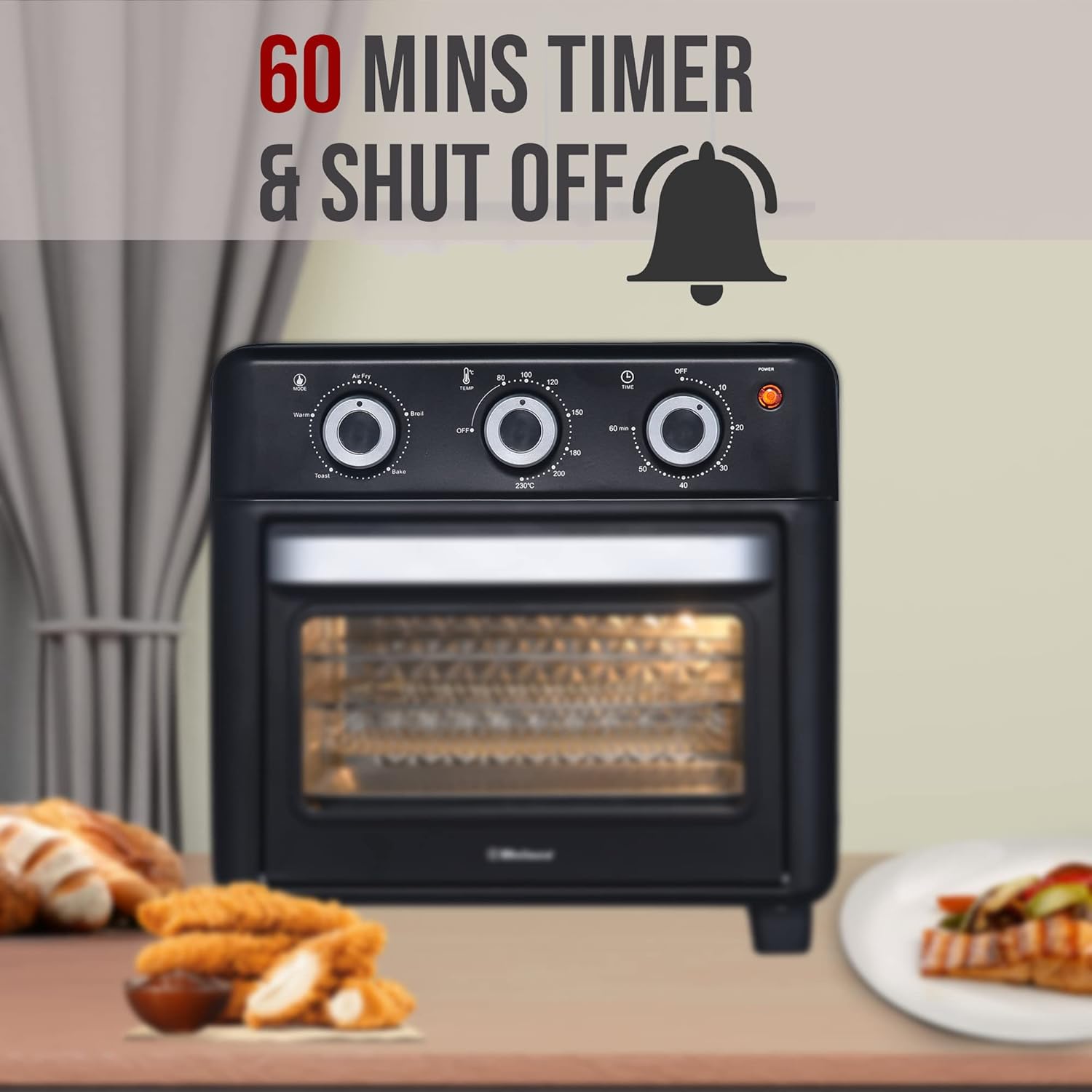

Image: The Belaco Air Fryer Oven with an overlay graphic emphasizing its 60-minute timer and automatic shut-off bell feature, ensuring precise cooking and safety.

6. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Belaco Air Fryer Oven.

Image: A composite image illustrating key maintenance features: the easy-to-clean stainless steel interior, the dishwasher-safe nature of all cooking attachments, and the convenient interior lamps for monitoring food.

6.1 Cleaning

1. Always unplug the oven and allow it to cool completely before cleaning.
2. Interior: The oven features an aluminum plated chamber for easy cleaning. Wipe the interior with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner. Do not use steel wool or abrasive cleaners.
3. Exterior: Wipe the exterior with a damp cloth. Do not immerse the oven in water. The black powder-coated body is designed to resist scratches.
4. Accessories: The baking tray, wire rack, and air fry basket are dishwasher safe. Alternatively, wash them in warm, soapy water, rinse, and dry thoroughly.
5. Crumb Tray: Regularly pull out and empty the crumb tray located at the bottom of the oven. Wash it with warm, soapy water and dry before replacing.

6.2 Storage

Ensure the oven is clean and dry before storing. Store it in a cool, dry place.

7. Troubleshooting Guide

If you encounter any issues with your Belaco Air Fryer Oven, please refer to the following common problems and solutions:

8. Technical Specifications

• Brand: Belaco
• Model Number: BEL-AFO15L-11
• Capacity: 15 Liters
• Power / Wattage: 1200 watts
• Voltage: 220 Volts
• Temperature Range: 80°C - 230°C
• Timer: Up to 60 minutes with bell alert
• Material: Stainless Steel (interior), Black Powder Coated Body (exterior)
• Product Dimensions: Approximately 32D x 34W x 33H cm (32 x 34 x 33 cm; 5.88 kg)
• Special Features: Adjustable Thermostat Control, Light Indicator, Non-Stick Cooking Surface (for some accessories), With Observation Window, Auto Shutoff.

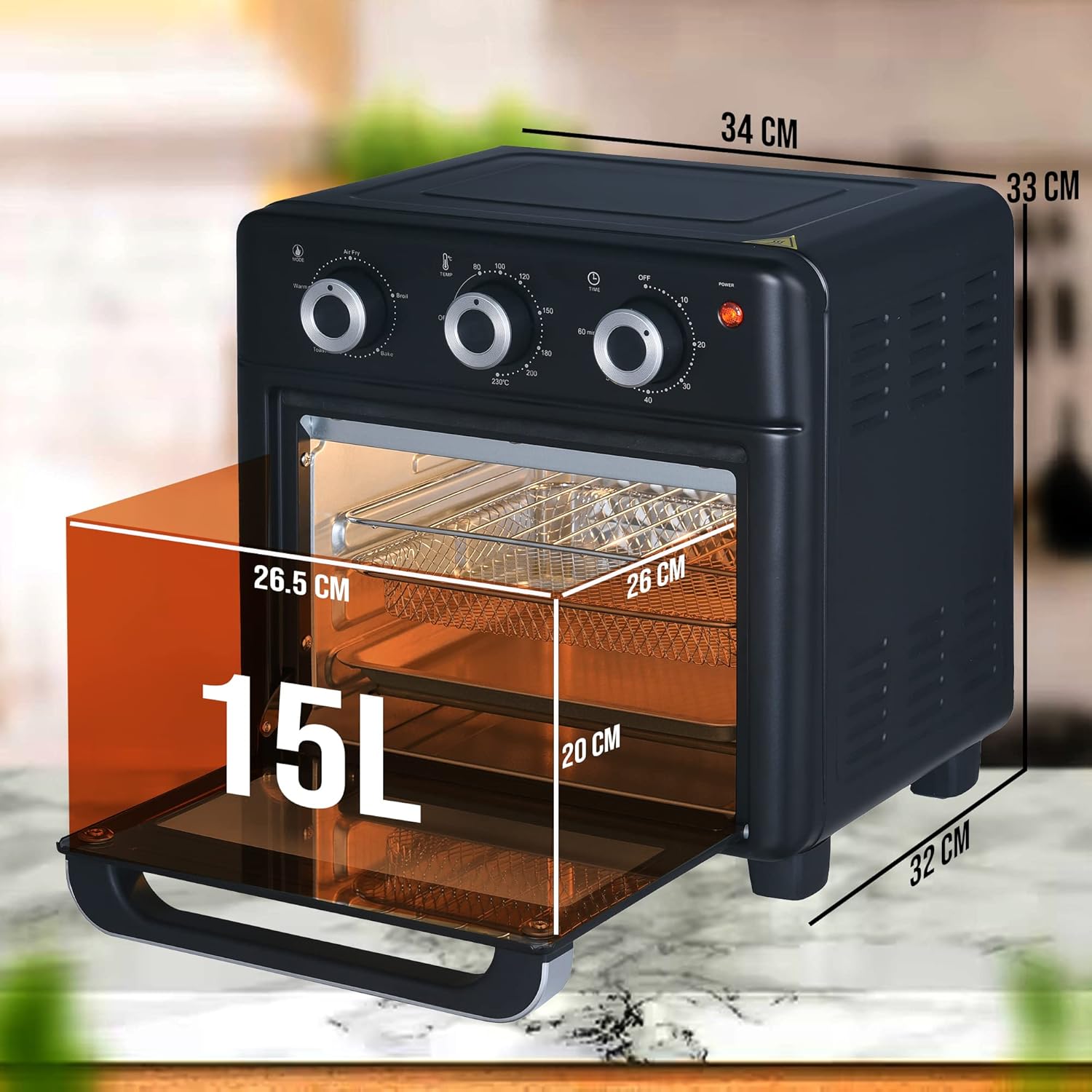

Image: A diagram illustrating the external and internal dimensions of the Belaco 15L Air Fryer Oven, including its overall height, width, and depth, as well as the internal cooking space dimensions, confirming its 15L capacity.

9. Warranty and Support

Belaco products are manufactured to high-quality standards. For any warranty claims or technical support, please refer to the warranty information provided at the time of purchase or contact your retailer. Keep your proof of purchase for warranty purposes.

For further assistance, please visit the official Belaco website or contact their customer service department.
