Irfora PC210 Thermal Camera Instruction Manual

1. Introduction

The Irfora PC210 is a portable digital thermal camera designed for industrial applications, offering advanced thermal imaging capabilities. It features a 256x192 infrared resolution, a wide temperature measurement range, and a long-lasting battery. This manual provides essential information for the safe and effective use of your device.

2. Safety Information

Please read all safety warnings and instructions before using the device to prevent injury or damage. Keep this manual for future reference.

• Do not point the camera directly at strong light sources, such as the sun or high-power lasers, as this may damage the infrared sensor.
• Avoid exposing the device to extreme temperatures, humidity, or corrosive environments.
• Do not attempt to disassemble or modify the device. Repairs should only be performed by authorized personnel.
• Use only the provided USB Type-C cable for charging.
• Keep the device away from water and other liquids.

3. Package Contents

Verify that all items are present in the package:

• Irfora PC210 Thermal Imager
• USB Type-C Cable
• Lanyard
• Quick Start Guide (English)

Figure 3.1: Package Contents. The image displays the Irfora PC210 Thermal Imager, a USB Type-C charging cable, a lanyard for secure handling, and a printed Quick Start Guide.

4. Product Overview

The Irfora PC210 features a robust design with an integrated LCD display for real-time thermal imaging. Key components include the infrared lens, visible light camera, trigger button, navigation buttons, and a USB Type-C port.

Figure 4.1: Irfora PC210 Thermal Camera. This image shows the front of the thermal camera with its LCD screen displaying a thermal image, and the back side highlighting the lens and caution label.

Key Features:

• SharpIR Composite Image Enhancement: Utilizes advanced deep learning technology for image optimization, including defogging, sharpening, contrast enhancement, and lossless magnification of low-resolution images.
• Multiple Image Modes: Supports IR, Visible Light, MIF, and PIP (Picture-in-Picture) modes.
• Temperature Display: All palettes can display temperature data, including maximum, minimum, and central spot temperatures in full-screen mode.
• PC Projection: Real-time image transfer to a computer via USB Type-C cable.
• Temperature Tracking & Alarm: Features full-screen maximum/minimum temperature tracking and a full-screen temperature threshold alarm (visual and flash).
• Long Battery Life: Up to 16 hours of operation with a 2000 mAh battery.
• Fast Charging: 2.5 hours for a full charge via USB Type-C.

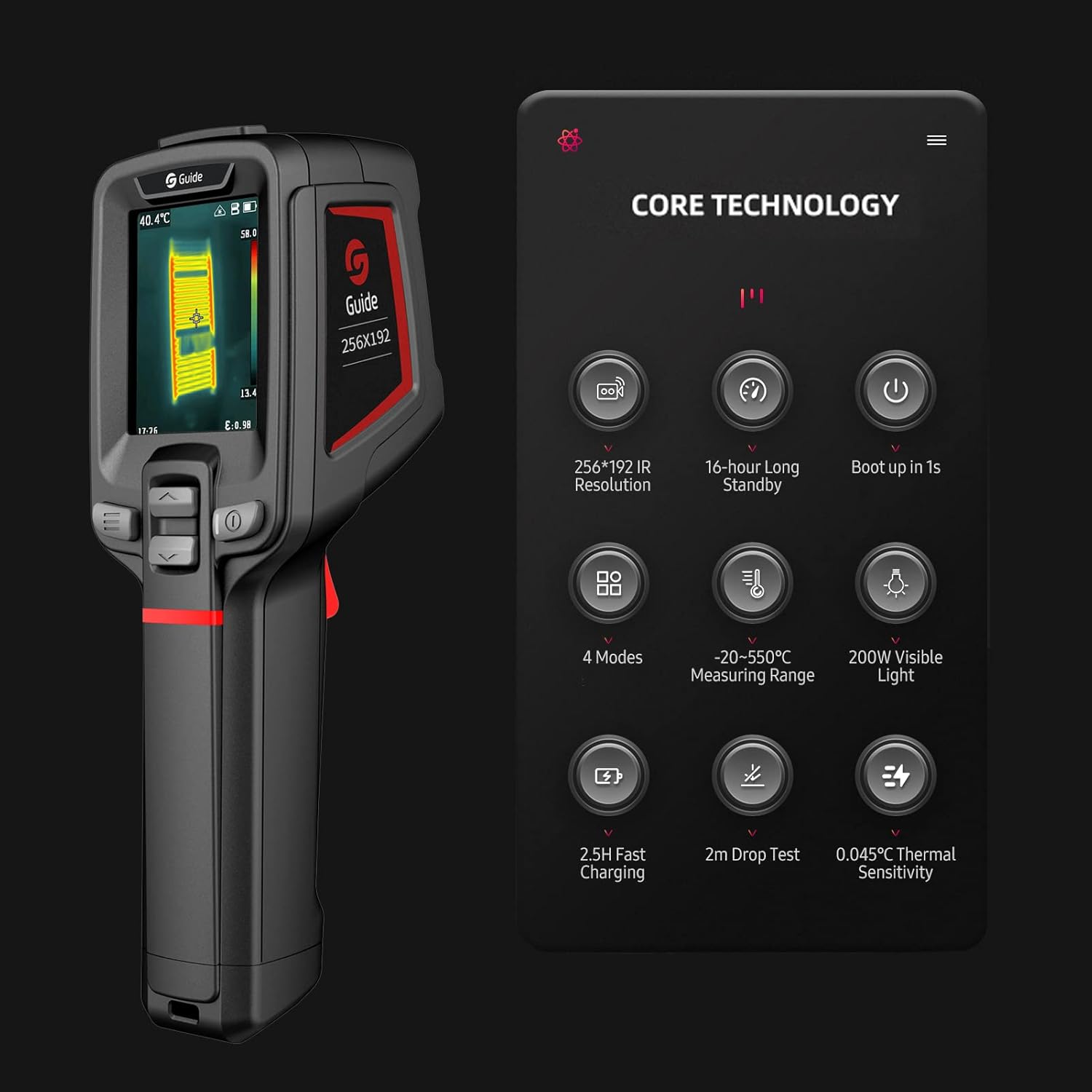

Figure 4.2: Core Technology Features. This image illustrates the key technical specifications and capabilities of the Irfora PC210, such as its 256x192 IR resolution, 16-hour standby, 1-second boot-up, 4 modes, -20 to 550°C measuring range, 200W visible light, 2.5-hour fast charging, 2m drop test, and 0.045°C thermal sensitivity.

5. Setup

5.1 Charging the Battery

Before initial use, fully charge the device. Connect the provided USB Type-C cable to the camera's charging port and to a compatible USB power adapter (not included). A full charge takes approximately 2.5 hours and provides up to 16 hours of operating time.

5.2 Powering On/Off

Press and hold the power button to turn the device on or off. The camera is designed for quick startup, booting up in approximately 1 second.

Figure 5.1: Fast Boot-up. This image highlights the camera's ability to boot up in 1 second, attributed to hardware upgrades and program optimization.

6. Operating Instructions

6.1 Basic Operation and Navigation

Use the navigation buttons located below the screen to move through menus and select options. The trigger button is typically used to capture images or activate specific functions depending on the selected mode.

6.2 Image Modes and Temperature Display

The camera supports various image modes (IR, Visible Light, MIF, PIP) to suit different inspection needs. In any mode, the device can display critical temperature data, including the highest, lowest, and central spot temperatures across the full screen.

Figure 6.1: Thermal Imaging Examples. This image displays three different thermal scans: a human hand, electrical wiring, and a circuit breaker panel, demonstrating the camera's ability to visualize temperature differences in various scenarios.

6.3 Temperature Tracking and Alarm

The PC210 can track the maximum and minimum temperatures across the entire screen or within a specific analyzed target area. A full-screen temperature threshold alarm can be set, which provides both visual and flash notifications when the threshold is exceeded.

6.4 PC Projection

To view images on a larger screen, connect the camera to a computer using the USB Type-C cable. The device supports real-time image projection to the connected computer.

6.5 Applications

The Irfora PC210 is suitable for a wide range of industrial applications, including:

• Electrical equipment testing
• Automobile testing
• HVAC system testing
• Air conditioning testing

Figure 6.2: Diverse Applications. This collage of images demonstrates the Irfora PC210 being utilized in different professional environments, such as inspecting electrical panels, automotive engines, and HVAC systems, highlighting its versatility.

Figure 6.3: Clear Imaging Comparison. This image compares the thermal output of the Irfora PC210 ('Ours') with other devices ('Others'), illustrating the PC210's enhanced clarity and detail in thermal imaging.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your thermal camera.

• Cleaning: Use a soft, dry cloth to clean the camera body. For the lens, use a specialized lens cleaning cloth and solution. Do not use abrasive cleaners or solvents.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: If storing for an extended period, charge the battery to approximately 50% every three months to maintain battery health.

8. Troubleshooting

If you encounter issues with your Irfora PC210, refer to the following common problems and solutions:

9. Specifications

Technical specifications for the Irfora PC210 Thermal Camera:

• Infrared Resolution: 256 x 192 pixels
• Temperature Measurement Range: -20°C to 550°C
• Thermal Sensitivity (NETD): 0.045°C
• Battery Capacity: 2000 mAh
• Battery Life: Up to 16 hours
• Charging Time: Approximately 2.5 hours via USB Type-C
• Drop Test Rating: 2 meters
• Image Modes: IR, Visible Light, MIF, PIP
• Display: LCD

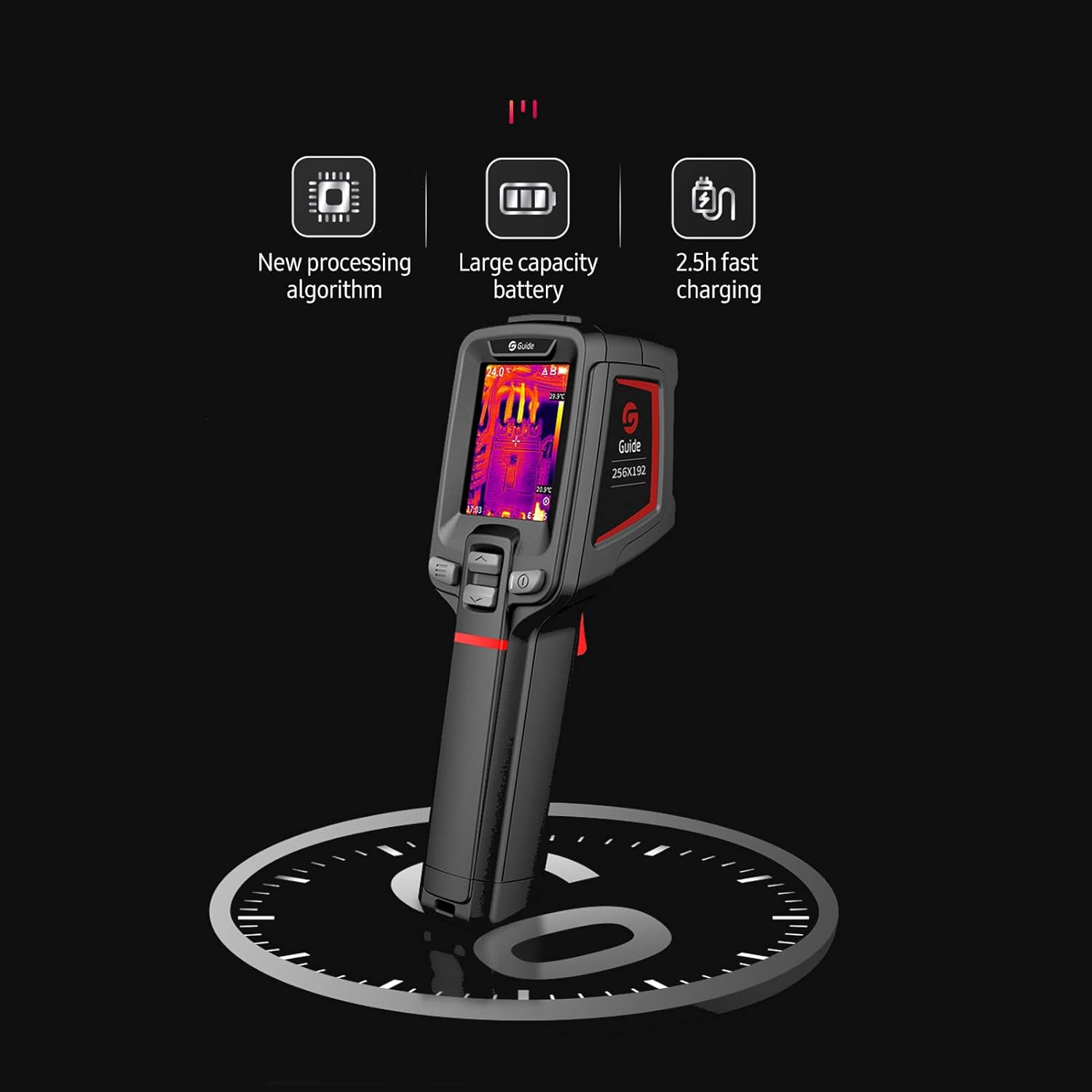

Figure 9.1: Performance Features. This image emphasizes the camera's new processing algorithm, large capacity battery, and 2.5-hour fast charging capability, contributing to its overall performance.

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Irfora website. Keep your proof of purchase for warranty claims.
