1. Product Overview
The OIMIS 30L Air Fryer Oven is a versatile kitchen appliance that combines the functionality of an air fryer, toaster, dehydrator, pizza grill, and oven. With a 30-liter capacity and 1800W power, this appliance is designed for efficient and healthy cooking for families.
Image 1: OIMIS 30L Multifunction Air Fryer Oven. This shows the complete appliance with a roasted chicken inside, the control buttons, and the digital display.
2. Installation and Setup
2.1 Unpacking and Checking
Carefully remove the appliance from its packaging. Check that all parts and accessories are present and undamaged. Retain the packaging for future transport or storage.
2.2 Placement
- Place the oven on a stable, heat-resistant surface.
- Ensure adequate ventilation around the appliance (minimum 10 cm clear space on all sides).
- Do not place the oven near water or other heat sources.
2.3 Initial Cleaning
Before first use, clean the inside of the oven and all accessories with a damp cloth and mild detergent. Dry everything thoroughly.
2.4 First Use (Preheating)
To remove any manufacturing residues, we recommend preheating the empty oven. Set the temperature to 200°C and let the oven run for approximately 15 minutes. A slight odor or smoke may occur; this is normal and will dissipate quickly.
3. Operation
3.1 Control Panel
The appliance features an LED display, a rotary knob, and various buttons for easy operation.

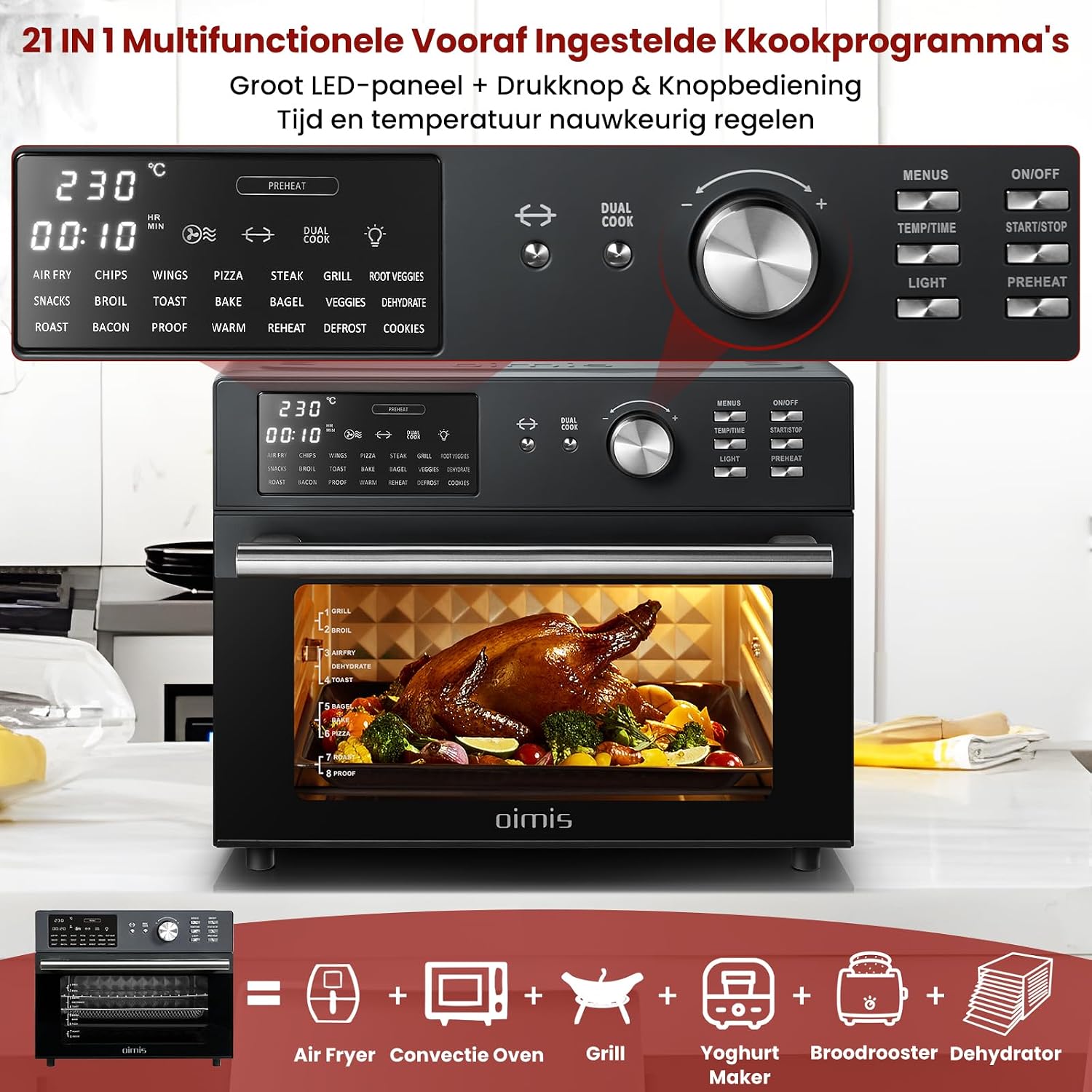

Image 2: Detailed overview of the control panel with LED display, rotary knob, and function buttons.
- ON/OFF: Turns the appliance on or off.
- START/STOP: Starts or pauses the cooking process.
- MENUS: Selects one of the 21 pre-programmed cooking programs.
- TEMP/TIME: Switches between temperature and time settings. Use the rotary knob to adjust values.
- LIGHT: Turns the internal light on or off to check progress.
- PREHEAT: Activates the preheating function.
- DUAL COOK: Activates the dual cooking mode for two consecutive programs.
- Rotary Knob: For adjusting temperature, time, and selecting menus.
3.2 Temperature and Time Setting
The temperature can be set from 30°C to 230°C, and the timer from 0 to 8 hours, depending on the program. Use the TEMP/TIME button and the rotary knob to achieve the desired settings.
Image 3: Visual representation of the wide temperature range from 30°C to 230°C, suitable for various preparations such as yogurt, baking, air frying, and grilling.
3.3 Pre-programmed Cooking Programs
Choose from 21 preset programs for various dishes, including:
- Air Fry (fries, snacks, chips)
- Roasting (chicken, meat)
- Grilling (steak, vegetables)
- Baking (pizza, cake, cookies, bagels)
- Dehydrating (fruit, vegetables)
- Keep Warm, Reheat, Defrost, Proof
Image 4: Overview of the 21 pre-programmed cooking programs on the control panel.
3.4 Dual Cook Function
The Dual Cook function allows you to combine two cooking programs consecutively. This is ideal for recipes that require different cooking phases, such as air frying first and then keeping warm.
Image 5: Illustration of the Dual Cook function, combining two cooking programs for complex recipes.
3.5 Rotisserie Function
Use the rotisserie spit for evenly roasting whole chickens or other meats. This ensures a crispy exterior and juicy interior.
Video 1: Demonstration of the rotisserie function, showing a whole chicken being roasted in the oven.
4. Included Accessories
The OIMIS 30L Air Fryer Oven comes with 6 convenient accessories:
- Baking Tray: For baking and roasting.
- Air Fry Basket: For air frying fries, snacks, and other small dishes.
- Oven Rack: For placing baking dishes or food.
- Rotisserie Spit: For roasting whole chickens or large cuts of meat.
- Grab Handle: For safely removing hot accessories.
- Crumb Tray: Catches crumbs and grease for easy cleaning.
Image 6: Overview of the six included accessories: baking tray, air fry basket, oven rack, rotisserie spit, grab handle, and crumb tray.
The oven has 4 rack positions, providing flexibility and efficiency when cooking multiple dishes simultaneously.
Image 7: The four rack positions in the oven, allowing for more choices and more even cooking.
5. Maintenance and Cleaning
Regular maintenance and cleaning ensure a long lifespan for your air fryer oven.
Image 8: Tips for cleaning and maintaining the oven.
- Preparation: Turn off the oven and unplug it from the power outlet. Allow the appliance to cool completely before cleaning.
- Interior: Wipe away grease and food residues with a damp cloth and mild detergent. For stubborn stains, you can use a mixture of vinegar and lemon juice.
- Accessories: Remove the baking tray, air fry basket, and oven rack. Submerge them in warm water with a neutral cleaning agent and clean them thoroughly. The removable glass inner door can be detached for easy cleaning.
- Crumb Tray: Empty and clean the crumb tray regularly to prevent the buildup of grease and crumbs.
- Exterior: Wipe the exterior of the oven with a soft, damp cloth. Do not use abrasive cleaners or steel brushes.
- Note: Always re-clean parts and the inner wall with water after cleaning with a detergent. If the inner wall of the oven is still warm, it will produce a pungent odor when wiped with vinegar water.
6. Troubleshooting
Below are some common problems and possible solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not work | Not connected to power, power outage, on/off button not pressed. | Check power connection. Check fuse. Press the ON/OFF button. |
| Food is not cooked | Incorrect temperature/time, overcrowded basket, door not properly closed. | Check temperature and time settings. Reduce food quantity. Ensure the door is properly closed. |
| White smoke from the oven | Grease residue on heating elements, too much oil used. | Clean the oven and accessories thoroughly. Use less oil. |
| Uneven cooking | Food not evenly distributed, incorrect rack position. | Shake or turn food halfway through cooking. Use the recommended rack position for the dish. |
7. Specifications
| Specification | Value |
|---|---|
| Model Number | 30L |
| Capacity | 30 Liters |
| Product Dimensions (D x W x H) | 43.4D x 46W x 37.5H centimeters |
| Output Power | 1800 Watts |
| Voltage | 220 Volts |
| Minimum Temperature Setting | 30 Degrees Celsius |
| Maximum Temperature Setting | 230 Degrees Celsius |
| Material | Cold-rolled plate, Stainless steel (exterior), Metal or stainless steel (interior) |
| Control Method | Push button, Knobs + infinite rotary knob (time, temperature, and menu settings + LED display) |
| Special Features | Automatic shutdown Programmable, Temperature control, Timer, Grill function, Large capacity, Indicator light, LED screen, Automatic cooking menu, Rotisserie function, Adjustable rack, Removable door, Removable crumb tray, Dual cook mode, Four Pizza modes |
| Air Frying Technology | Rapid air circulation |
| Weight | 11.46 Kilograms |
8. Warranty and Support
OIMIS strives to provide high-quality products and excellent customer service. For product inquiries, warranty claims, or technical support, please contact our customer service.
Contacting OIMIS Customer Service:
Image 9: Steps to contact OIMIS customer service.
- Step 1: Go to your orders and locate your order in the list.
- Step 2: Select "Problems with order" and choose the topic from the displayed list.
- Step 3: Select "Contact OIMIS".
Our professional customer service team will answer your questions within 24 hours.
