Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your JOUNJIP Double-Sided Mechanical Keyless Combination Lever Handle Door Lock, Model 2023. This lock is designed for secure access control without the need for batteries or external power, featuring a durable satin chrome finish and an upgraded square spindle for easier installation.
Image: JOUNJIP Double-Sided Mechanical Keyless Combination Lever Handle Door Lock, Satin Chrome.
Product Features
- Upgraded Square Spindle: The 2024 upgraded square spindle design facilitates easier and sturdier installation compared to previous versions.
- Versatile Door Thickness Compatibility: Accommodates door thicknesses from 1 3/8" to 2 3/8" using a single square spindle.
- Mechanical Operation: Requires no batteries, wiring, or external power source.
- Weather Resistant: Suitable for outdoor use on fences, gates, backyards, and garages (not marine proof).
- Passage Mode: Allows temporary deactivation of the code for free passage without altering the set combination.
- Bump Key Proof: Designed to resist bump key attacks.
Image: 100% Mechanical Keyless Lock - No Batteries, No Power, No Wiring, No Keys.
Package Contents
Verify that all the following components are included in your package:

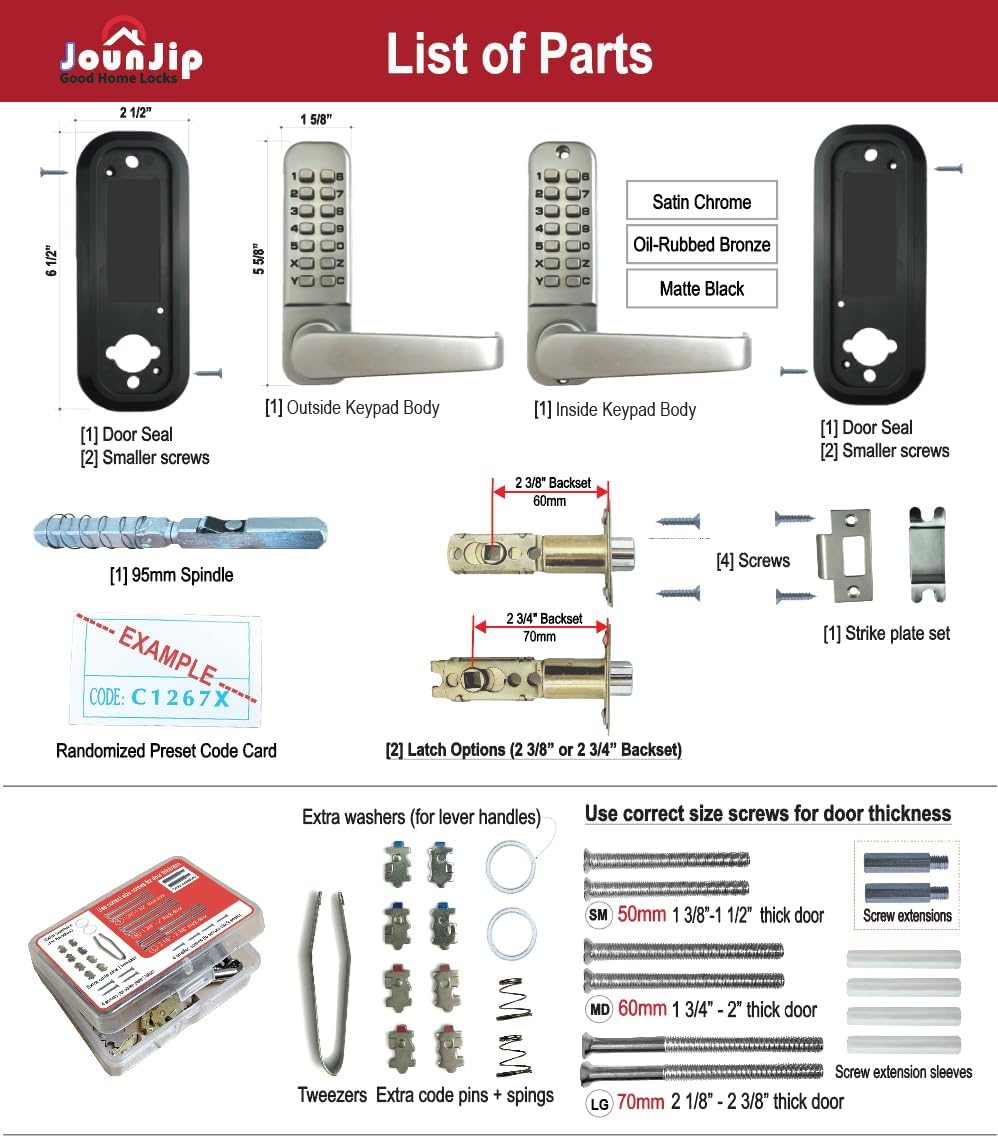

Image: Detailed view of all included parts.
- 2 Keypads and 2 Lever Handles (Outside and Inside)
- 2 Door Seals
- 1 Square Spindle (95mm)
- 2 Latch Size Options (2 3/8" and 2 3/4" Backset)
- 1 Strike Plate Set
- 3 Screw Size Options + 2 Extension Posts
- 8 Extra Code Change Pins + Tweezers
- Randomized Preset Code Card
Pre-Installation Checks
Before beginning installation, ensure your door meets the following requirements:
- Door Thickness: The lock is compatible with door thicknesses from 1 3/8" to 2 3/8". For doors thicker than 2 3/8", an extension kit may be required.
- Bore Hole: The standard bore hole (2 1/8") must be covered by the black seal (2 1/2").
- Latch Bolt Hole: The latch bolt hole must be centered on the edge of the door.
- Clearance: A minimum of 6.5 inches of clearance is needed for the lever handle.
Image: Door bore hole and backset requirements.
Image: Minimum clearance required for lever handle operation.
Installation Instructions
Follow these steps for proper installation:
- Prepare the Door: Ensure your door has the correct bore hole and backset. For most standard doors with pre-drilled holes, only one 3/8" (10mm) screw hole needs to be drilled.
- Install the Latch: Choose the correct latch (2 3/8" or 2 3/4" backset) and install it into the door edge. Ensure the latch bolt hole is centered.
- Insert the Spindle: Insert the square spindle through the latch mechanism. The square spindle must sit right in the center.
- Attach Keypads and Handles: Place the door seals on both sides. Align the outside and inside keypad bodies with the spindle and secure them.
- Secure with Screws: Use the appropriate screw length for your door thickness. Refer to the table below for guidance. Screw extensions and screw guide sleeves are provided for various thicknesses.
- Install Strike Plate: Install the strike plate set on the door frame, ensuring proper alignment with the latch.
Screw Size Guide for Door Thickness
Image: Screw size options for different door thicknesses.
| Door Thickness | Required Screws/Extensions |
|---|---|
| 1 3/8" - 1 1/2" thick door | Screw extensions + Small (50 mm) screws |
| 1 3/4" - 2" thick door | Screw extensions + Medium (60 mm) screws |
| 2 1/8" - 2 3/8" thick door | Screw extensions + Large (70 mm) screws |
For doors more than 2 3/8" thick, search for "JOUNJIP Square Spindle Thick Door Spindle Extension Kit" on Amazon.com.
Setting and Changing the Combination
The JOUNJIP mechanical lock uses a pin-setting mechanism to define the combination. The lock supports over 4000 combinations.
Image: Keypad with combination capability.
- Access the Pin Chamber: Carefully remove the back panel of the keypad to expose the pin chamber.
- Identify Code Pins: The lock uses small pins to set the combination. Red pins are 'code' pins, and blue/silver pins are 'non-code' pins.
- Change Pins: Using the provided tweezers, carefully remove the existing pins. To set a new code, insert red pins into the slots corresponding to your desired combination buttons. Insert blue/silver pins into the remaining slots. Be gentle, as the pins and springs are small.
- Test the Code: Before reassembling, test the new combination to ensure it functions correctly.
- Reassemble: Carefully reattach the back panel of the keypad.
A preset code card is included with your lock. It is recommended to change this code upon installation for enhanced security.
Operating Instructions
Entering the Combination
To unlock the door, press the buttons corresponding to your set combination in any order, then turn the lever handle. The order of button presses does not matter, only that all correct buttons are pressed.
Passage Mode
The lock features a passage mode option to temporarily deactivate the code requirement. This allows free entry and exit without entering the combination. To activate or deactivate passage mode, refer to the specific instructions provided on your preset code card or the detailed manual insert. This mode is useful for periods when the door needs to remain unlocked, such as during events or when moving items.
Image: Passage mode functionality and bump key proof design.
Maintenance
To ensure the longevity and optimal performance of your JOUNJIP lock:
- Cleaning: Wipe the lock exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Lubrication: Periodically apply a small amount of graphite lubricant to the internal mechanisms of the latch bolt to ensure smooth operation. Do not use oil-based lubricants.
- Inspection: Regularly check all screws and components for tightness. Tighten any loose parts to prevent wear and ensure security.
- Weather Exposure: While weather-resistant, prolonged exposure to extreme conditions may affect the finish. Regular cleaning and inspection are recommended for outdoor installations. Note that the lock is not salt water proof.
Troubleshooting
If you encounter issues with your lock, consider the following:
- Lock Not Engaging/Disengaging: Check if the spindle is correctly aligned and seated in the center. Ensure the latch bolt moves freely. Verify that the correct combination is being entered.
- Stiff Lever Handle: Apply graphite lubricant to the latch mechanism. Check for any obstructions around the handle or latch.
- Combination Not Working: Re-verify the combination using the pin-setting instructions. Ensure all code pins are correctly inserted and non-code pins are in their designated positions.
- Loose Components: Tighten any loose screws on the keypad bodies or the latch plate.
If problems persist, please contact customer support for assistance.
Specifications
| Attribute | Detail |
|---|---|
| Brand | JOUNJIP |
| Model Number | 2023 |
| Material | Satin Chrome (Handle Material: Rubber) |
| Color | Satin Chrome |
| Product Dimensions | 4"L x 2.5"W |
| Exterior Finish | Rust Proof Satin Chrome |
| Specific Uses | Fence gate, Door entries, Gates, Backyards, Garages, Windows |
| Special Feature | Outdoor weather proof (not salt water proof) |
| Lock Type | Combination Lock |
| Item Weight | 4.27 pounds (1.94 Kilograms) |
| Hand Orientation | Adjustable |
| Power Source | No power needed (No batteries required) |
| Door Thickness Range | 1 3/8" - 2 3/8" |
Warranty and Support
Your JOUNJIP Double-Sided Mechanical Keyless Combination Lever Handle Door Lock comes with a 1 Year Manufacturer Warranty.
For technical assistance, installation questions, or warranty claims, please refer to the contact information provided in your product packaging or visit the official JOUNJIP website. JOUNJIP is committed to providing excellent customer service and support for their products.
