ANKA Wireless Interconnected Smoke Alarm

1. Introduction and Overview

Thank you for choosing the ANKA Wireless Interconnected Smoke Alarm, Model AJ-763SI4. This device is designed to provide early warning of smoke and fire, enhancing the safety of your home or property. Featuring a built-in 10-year battery and wireless interconnection capabilities, this smoke alarm ensures that when one alarm detects smoke, all connected alarms will sound, alerting occupants throughout the premises. This product conforms to the EN 14604 standard for smoke alarms.

Figure 1: ANKA Wireless Smoke Alarms, certified to EN 14604 standard.

2. Safety Information

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in improper operation of the alarm and could lead to property damage, injury, or death.

• Do not paint the smoke alarm. Paint can clog the sensing chambers and prevent the alarm from operating correctly.
• Do not install in areas with high humidity, excessive dust, or near cooking appliances where false alarms are common.
• Test the alarm weekly to ensure proper function.
• Never ignore a smoke alarm. Investigate the cause of any alarm immediately.
• Replace the unit after 10 years from the manufacturing date, or when the low battery warning indicates.

3. Package Contents

Your ANKA Wireless Smoke Alarm package typically includes:

• ANKA Wireless Smoke Alarm Unit(s) (AJ-763SI4)
• Mounting Bracket(s)
• Screws and Wall Plugs
• Instruction Manual

4. Setup and Installation

Proper placement and installation are crucial for effective smoke detection.

1. Choose Location: Install smoke alarms on every level of your home, inside each bedroom, and outside each sleeping area. For best protection, place alarms in the center of the ceiling. Avoid corners or areas near air vents.
2. Mounting Bracket: Use the provided screws and wall plugs to securely attach the mounting bracket to the ceiling or wall.
3. Attach Alarm: Align the smoke alarm with the mounting bracket and twist clockwise until it clicks into place.
4. Initial Test: After installation, press the test button on the alarm to ensure it is functioning correctly. A loud siren should sound.

Figure 2: Recommended placement of interconnected smoke alarms throughout a home.

5. Interconnection (Wireless Linking)

The ANKA AJ-763SI4 smoke alarms are designed to interconnect wirelessly, meaning if one alarm detects smoke, all linked alarms will sound. This feature provides comprehensive coverage and early warning throughout your property.

1. Power On: Ensure all alarms you wish to interconnect are powered on.
2. Initiate Linking: On one alarm (the master), press and hold the test/interconnect button for approximately 3-5 seconds until the LED indicator flashes rapidly.
3. Link Other Alarms: Within 60 seconds, press the test/interconnect button on each additional alarm you want to link. The LED on these alarms should also flash rapidly, then briefly illuminate steadily to confirm successful linking.
4. Test Interconnection: After linking all units, press the test button on any one alarm. All interconnected alarms should sound simultaneously. If not, repeat the linking process.

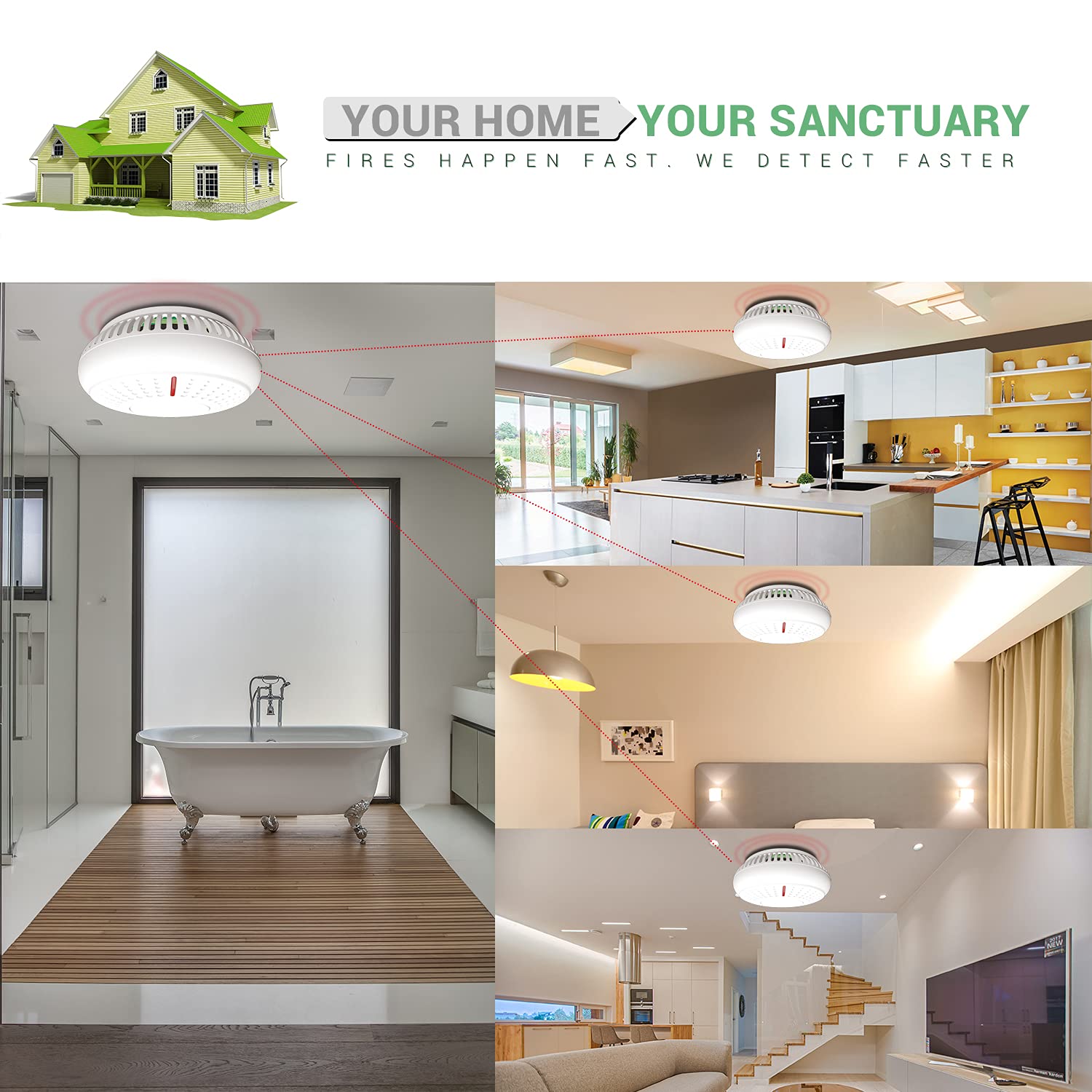

Figure 3: Visual representation of wireless interconnection between multiple smoke alarms.

6. Operating Instructions

Understanding the alarm's indicators and functions is essential for effective use.

• Normal Operation: The LED indicator will flash briefly every 40-60 seconds, indicating the alarm is functioning correctly.
• Alarm Condition: When smoke is detected, the alarm will emit a loud, pulsating siren, and the LED will flash rapidly. If interconnected, all linked alarms will also sound.
• Test Function: Press and hold the test button for a few seconds. The alarm will sound briefly, confirming its operational status. Perform this test weekly.
• Silence Function: In case of a nuisance alarm (e.g., from cooking fumes), press the test/silence button. This will temporarily silence the alarm for approximately 9 minutes. The alarm will automatically reset after this period if smoke levels have cleared. If smoke is still present, the alarm will reactivate.

Figure 4: Key features of the ANKA smoke alarm, including test and low battery indicators.

7. Maintenance

Regular maintenance ensures the longevity and reliability of your smoke alarm.

• Battery: The ANKA AJ-763SI4 features a built-in 10-year battery. This battery is not replaceable. When the battery is low, the alarm will chirp periodically (typically once every 40-60 seconds) and the low battery indicator will flash. Replace the entire unit immediately when this occurs.
• Cleaning: Dust and debris can affect the alarm's performance. Clean the smoke alarm at least once a month by gently vacuuming the exterior casing and air vents using a soft brush attachment. Do not use water or cleaning solvents.

Figure 5: The ANKA smoke alarm design, highlighting air inlets for smoke detection.

8. Troubleshooting

If your smoke alarm is not functioning as expected, refer to the following common issues and solutions:

9. Specifications

• Model: AJ-763SI4
• Brand: ANKA
• Power Source: Built-in 10-Year Battery
• Alarm Type: Audible (>85dB at 3 meters)
• Standard Compliance: EN 14604
• Interconnection: Wireless
• UPC: 793836567280
• Item Weight: 640 g (for 3-pack)
• Package Dimensions: 14.9 x 11.9 x 11.4 cm

10. Warranty and Support

ANKA products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or contact ANKA customer support. If you encounter any issues or have questions regarding your ANKA Wireless Smoke Alarm, please reach out to our customer service team for assistance.

Contact Information: Please refer to the ANKA official website or your purchase documentation for the most current customer support contact details.
