lecoo 52CC 10-in-1 Multi-Tool Instruction Manual

1. Safety Information

Read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions may result in electric shock, fire, and/or serious injury.

1.1 General Safety Warnings

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses, hearing protection, gloves, long pants, and sturdy footwear.
• Work Area: Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Bystanders: Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
• Fuel Handling: Handle fuel in a well-ventilated area. Do not smoke or allow open flames near fuel. Store fuel in approved containers.
• Inspection: Before each use, inspect the tool for damaged parts, loose fasteners, or any other condition that may affect its safe operation.

1.2 Specific Tool Safety

• Brush Cutter/Grass Trimmer: Be aware of thrown objects. Maintain a firm grip on the handles. Do not operate near fences, walls, or other obstacles that could cause kickback.
• Tree Pruner (Pole Chainsaw): Be aware of falling branches. Ensure proper footing and balance. Do not operate above shoulder height. Keep hands away from the chain.
• Hedge Trimmer: Keep hands away from the blades. Do not attempt to cut branches thicker than recommended.

2. Product Overview

The lecoo 52CC 10-in-1 Multi-Tool is a versatile gasoline-powered system designed for various outdoor landscaping tasks. It combines a powerful 52cc engine with interchangeable attachments to function as a brush cutter, grass trimmer, lawn mower, tree pruner (pole chainsaw), and hedge trimmer.

2.1 Included Attachments

• Main Engine Unit (52cc)
• Brush Cutter Attachment (with grass blade)
• Grass Trimmer Attachment (with nylon line)
• Pole Chainsaw / Tree Pruner Attachment (12"/30cm guide bar)
• Hedge Trimmer Attachment (22"/560mm dual-action blade)
• Extension Pole
• Handle Assembly
• Safety Guard
• Tool Kit
• Fuel Mixing Bottle

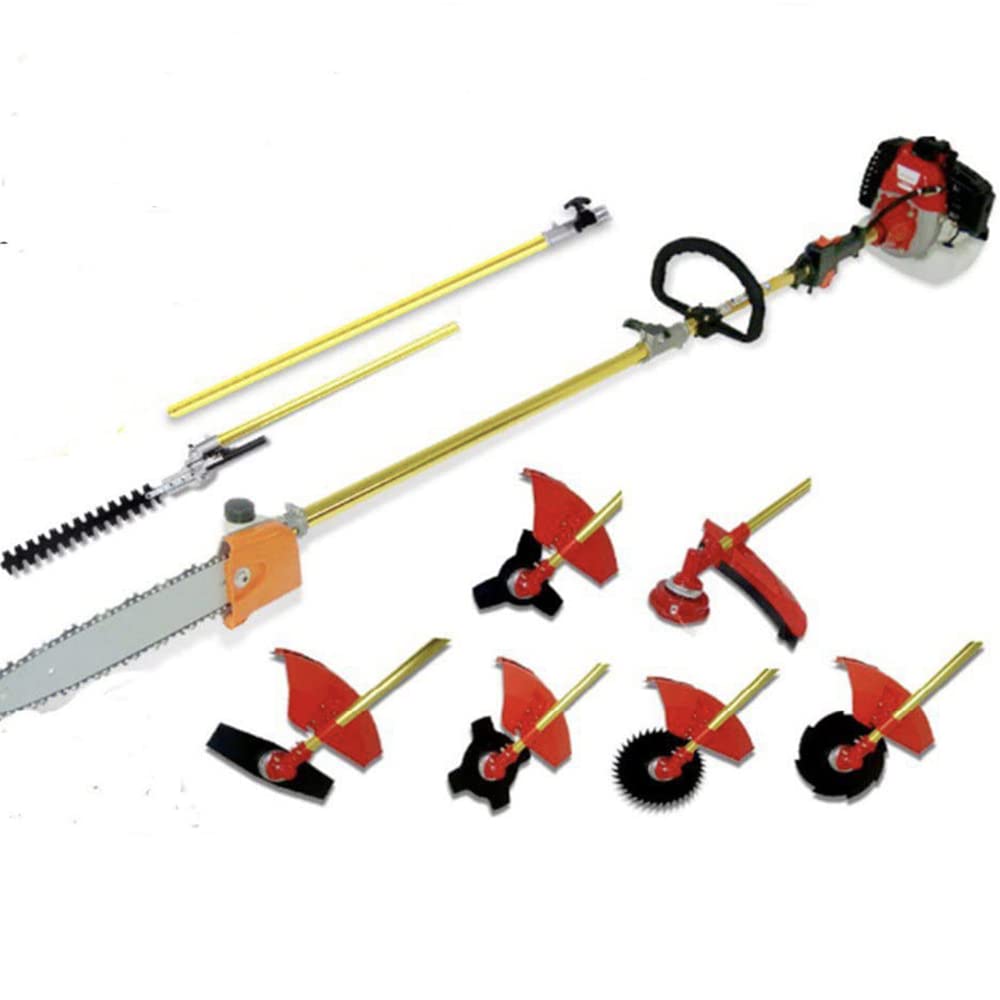

Image 2.1: The lecoo 52CC 10-in-1 Multi-Tool system, showcasing the main engine and various interchangeable attachments for different landscaping tasks.

3. Assembly

Carefully unpack all components and ensure all parts are present before beginning assembly.

3.1 Handle and Guard Installation

1. Attach the handle assembly to the main shaft using the provided clamps and bolts. Ensure it is positioned comfortably for operation.
2. Secure the safety guard to the shaft, ensuring it is firmly in place to protect against debris.

3.2 Attaching Tool Heads

1. Select the desired attachment (e.g., brush cutter, grass trimmer, pole chainsaw, hedge trimmer).
2. Align the attachment shaft with the main engine shaft.
3. Insert the attachment into the quick-release connector until it clicks into place.
4. Tighten any securing knobs or bolts to ensure a secure connection.
5. For the pole chainsaw, ensure the chain is properly tensioned and lubricated before use.

3.3 Fuel Mixing

This tool requires a gasoline and 2-stroke oil mixture. Use unleaded gasoline with an octane rating of 89 or higher.

• Initial Use (First 20 hours): Mix gasoline and 2-stroke oil at a ratio of 20:1 (20 parts gasoline to 1 part oil).
• After 20 hours: Mix gasoline and 2-stroke oil at a ratio of 25:1 (25 parts gasoline to 1 part oil).
• Use the provided fuel mixing bottle for accurate measurement.
• Shake the mixture thoroughly before pouring it into the fuel tank.
• Fill the fuel tank (capacity: 1.2L) in a well-ventilated area, away from ignition sources.

4. Operation

Always wear appropriate PPE and ensure the work area is clear of bystanders and obstacles before starting the engine.

4.1 Starting the Engine (Smart Starting Technology)

1. Place the tool on a flat, stable surface.
2. Ensure the fuel tank is filled with the correct fuel mixture.
3. Set the ON/OFF switch to the 'ON' position.
4. Engage the choke (if the engine is cold).
5. Press the primer bulb several times until fuel is visible.
6. Pull the starter cord firmly and smoothly until the engine starts. The 'Smart Starting Technology' is designed for easier pulls.
7. Once the engine starts, gradually disengage the choke.
8. Allow the engine to warm up for a few moments before engaging the throttle.

4.2 Operating as a Brush Cutter / Grass Trimmer

• Hold the tool firmly with both hands.
• Maintain a steady pace, swinging the cutting head from side to side.
• For brush cutting, use the metal blade for thicker vegetation. For grass trimming, use the nylon line.
• Avoid contact with hard objects to prevent damage to the blade/line.

4.3 Operating as a Tree Pruner (Pole Chainsaw)

• Ensure the chain is sharp and properly lubricated.
• Extend the pole to the desired length, ensuring all locking mechanisms are secure.
• Position yourself safely, away from the falling path of branches.
• Make cuts in a controlled manner, allowing the chain to do the work. Avoid forcing the tool.
• Be aware of kickback and use the inertia-type safety chain brake if it occurs.

4.4 Operating as a Hedge Trimmer

• Hold the tool with both hands, maintaining balance.
• Use a sweeping motion to trim hedges.
• The cutting angle is adjustable up to 135 degrees for versatility.
• Do not attempt to cut branches exceeding the 28mm (1.1") cut distance.

4.5 Stopping the Engine

Release the throttle and set the ON/OFF switch to the 'OFF' position.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your multi-tool. Always disconnect the spark plug wire before performing any maintenance.

5.1 Engine Maintenance

• Air Filter: Clean the air filter regularly, especially in dusty conditions. Replace if damaged.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled. Refer to specifications for the correct gap.
• Fuel Filter: Check and replace the fuel filter annually or if fuel delivery issues occur.

5.2 Attachment Maintenance

• Blades (Brush Cutter/Hedge Trimmer): Keep blades sharp and clean. Sharpen as needed and apply a light coat of oil to prevent rust.
• Chainsaw Chain: Ensure the chain is sharp and properly tensioned. Lubricate the chain regularly with appropriate chain oil. The automatic adjustable chain lubrication system should be checked for proper function.
• Nylon Line (Grass Trimmer): Replace worn or broken line as needed.

5.3 Cleaning and Storage

• Clean the tool thoroughly after each use, removing grass, dirt, and debris.
• Drain the fuel tank if storing for an extended period (over 30 days) to prevent fuel degradation.
• Store the tool in a dry, well-ventilated area, out of reach of children.

6. Troubleshooting

7. Specifications

8. Warranty and Support

This lecoo multi-tool comes with a 1-year warranty. In case of any issues or for technical assistance, please contact customer support.

Customer support is available for 24 hours online service. Please refer to your purchase documentation or the seller's contact information for specific support channels.

Any problems encountered during use can be addressed, and replacement parts will be arranged without additional charge under warranty terms.
