1. Important Safety Information
Read all safety warnings and instructions carefully before installing or handling the battery. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Always wear appropriate personal protective equipment, including safety glasses and gloves, when handling batteries.
- Batteries contain sulfuric acid, which is corrosive. Avoid contact with skin, eyes, or clothing. In case of contact, flush immediately with water and seek medical attention.
- Keep batteries away from open flames, sparks, and other ignition sources. Batteries produce explosive gases.
- Do not short-circuit battery terminals. This can cause severe burns and damage the battery.
- Ensure proper ventilation when working with batteries.
- Keep out of reach of children.
- Dispose of used batteries responsibly according to local regulations.
2. Product Overview
The VARTA Silver Dynamic AGM A7 battery is designed for modern vehicles with Start-Stop systems and high energy demands, including xEV (electric and hybrid-electric vehicles). It utilizes Absorbent Glass Mat (AGM) technology for enhanced performance, durability, and deep cycle resistance.
Key Features:
- Start-Stop Compatibility: Engineered to support advanced Start-Stop systems, providing reliable power for frequent engine restarts.
- xEV Ready: Suitable for electric and hybrid-electric vehicles, meeting their specific power requirements.
- High Cold Cranking Amps (CCA): Delivers 760 A CCA for dependable starting power in various temperatures.
- Capacity: 70 Ah (C20) for sustained energy supply.
- AGM Technology: Offers superior cycling performance, vibration resistance, and leak-proof design.
- Original Equipment (OE) Quality: Ensures the same quality as the original battery installed in your vehicle.

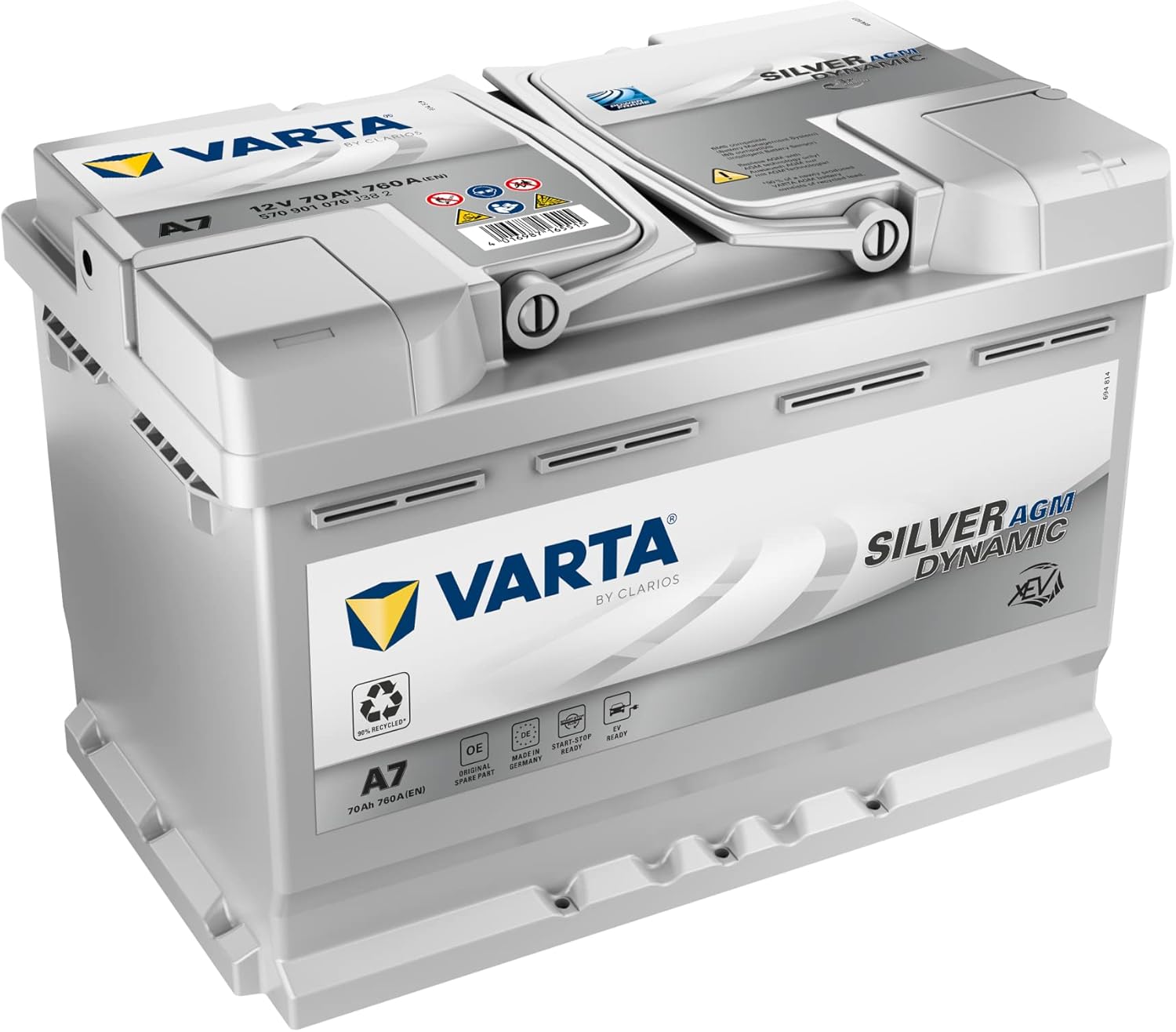

Figure 2.1: Front-side view of the VARTA Silver Dynamic AGM A7 battery, highlighting the VARTA logo and Silver Dynamic AGM branding.
Figure 2.2: Top view of the VARTA Silver Dynamic AGM A7 battery, showing terminal covers, model designation (A7), 12V 70Ah 760A ratings, and safety symbols.
3. Setup and Installation
3.1 Pre-Installation Checks
- Verify that the new VARTA Silver Dynamic AGM A7 battery matches the specifications and physical dimensions of the original battery in your vehicle.
- Ensure the vehicle's ignition is off and all electrical accessories are disconnected.
- Gather necessary tools: wrench set, battery terminal cleaner, battery terminal puller (if needed), and protective gear.
3.2 Installation Steps
- Disconnect Old Battery: Always disconnect the negative (-) terminal first, followed by the positive (+) terminal. Remove any battery hold-down clamps.
- Remove Old Battery: Carefully lift and remove the old battery. Be aware of its weight.
- Clean Battery Tray and Terminals: Clean the battery tray and the vehicle's battery cables/terminals to ensure good electrical contact.
- Place New Battery: Position the VARTA Silver Dynamic AGM A7 battery securely in the battery tray.
- Connect New Battery: Connect the positive (+) terminal first, then the negative (-) terminal. Ensure connections are tight and secure.
- Secure Battery: Reinstall any hold-down clamps to prevent battery movement.
- Post-Installation: Some modern vehicles may require battery registration or a system reset after battery replacement. Consult your vehicle's owner's manual or a qualified mechanic.
Figure 3.1: The VARTA Silver Dynamic AGM A7 battery showing its dimensions: 278mm (length), 175mm (width), and 190mm (height).
4. Operating Instructions
The VARTA Silver Dynamic AGM A7 battery is designed for optimal performance in vehicles equipped with advanced electrical systems.
4.1 Start-Stop System Compatibility
This battery is specifically engineered to handle the frequent cycling demands of Start-Stop vehicle technology. It provides the necessary power for engine restarts and supports the vehicle's electrical systems during engine-off periods.
4.2 xEV Readiness
The VARTA Silver Dynamic AGM A7 is suitable for xEV applications, including hybrid and electric vehicles, ensuring reliable power delivery for their complex electrical loads.
Figure 4.1: Diagram illustrating various vehicle systems powered by the AGM battery, ensuring reliable energy and onboard management. This includes Safety Functions (ABS, ESP, ASR), Onboard Systems (Battery Management, Electric Water Pump), Important Essential Consumers (Rear Window Heating, Central Locking, Electric Windows), Comfort Functions (Heating/Cooling, Infotainment, WLAN, Bluetooth), and Assistance Systems (Pedestrian Detection, Brake Assist, Adaptive Headlights).
5. Maintenance and Care
Proper maintenance extends battery life and ensures optimal performance.
- Keep Terminals Clean: Regularly inspect battery terminals for corrosion. Clean them with a wire brush and a baking soda/water solution if necessary. Ensure they are dry before reconnecting.
- Check Connections: Ensure battery cables are securely fastened to the terminals. Loose connections can lead to poor performance and damage.
- Battery Charge: For vehicles not used regularly, consider using a compatible smart charger designed for AGM batteries to maintain optimal charge levels. Avoid overcharging.
- Environmental Factors: Extreme temperatures can affect battery life. Protect the battery from excessive heat and cold where possible.
- Physical Inspection: Periodically check the battery case for any signs of damage, cracks, or leaks.
6. Troubleshooting
This section addresses common issues you might encounter with your VARTA Silver Dynamic AGM A7 battery.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine cranks slowly or not at all | Low battery charge, corroded terminals, loose connections, faulty starter motor. | Charge the battery, clean terminals, tighten connections, have starter motor checked by a professional. |
| Start-Stop system not functioning | Battery not fully charged, external temperature too low/high, other vehicle systems preventing Start-Stop activation. | Ensure battery is fully charged. Check vehicle's owner's manual for Start-Stop system conditions. |
| Battery warning light on dashboard | Charging system fault (alternator), battery issue, loose belt. | Have the vehicle's charging system inspected by a qualified mechanic immediately. |
| Corrosion on terminals | Normal chemical reaction, loose connection. | Clean terminals with a wire brush and baking soda solution. Apply anti-corrosion grease. Ensure connections are tight. |
7. Specifications
Detailed technical specifications for the VARTA Silver Dynamic AGM A7 battery.
| Specification | Value |
|---|---|
| Brand | Varta |
| Model | Silver Dynamic AGM xEV A7 |
| Model Number | 560901076 |
| Manufacturer | Clarios |
| Voltage | 12 Volts (DC) |
| Capacity (C20) | 70 Ah |
| Cold Cranking Amps (CCA) | 760 A |
| Product Dimensions (L x W x H) | 27.8 x 17.5 x 19 cm |
| Item Weight | 1 Kilograms |
| Battery Composition | VRLA Lead-Acid Battery |
| Number of Cells | 6 |
| Terminal Type | SAE Terminal |
| Specific Features | xEV and Start-Stop ready |
| UPC/EAN | 4016987165515 |
Figure 7.1: Key specifications of the VARTA A7 AGM Start-Stop Battery, including 760 A CCA, 70 Ah capacity, OE quality, and xEV readiness for electric and hybrid vehicles.
8. Warranty and Support
VARTA batteries are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official VARTA website.
For technical support, product inquiries, or warranty claims, please contact VARTA customer service through their official channels. Always provide your battery model number (560901076) and any relevant purchase information when seeking support.
Official VARTA Website: www.varta-automotive.com
Figure 8.1: VARTA's commitment to a better future, emphasizing responsibility in all aspects of their operations.
