1. Introduction
Thank you for purchasing the vidaXL Locker Cabinet Model 339821. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your new locker cabinet. Please read these instructions thoroughly before assembly and retain them for future reference.
2. Safety Information
To ensure safe use and prevent injury or damage, please observe the following safety guidelines:
- Always assemble the cabinet on a clean, flat, and stable surface.
- Ensure all parts are correctly installed and fasteners are tightened securely before use.
- Do not overload the individual compartments or the cabinet itself. Distribute weight evenly.
- Keep children and pets away from the assembly area. Small parts can be a choking hazard.
- Use the provided wall attachment device to secure the cabinet to a wall. This is crucial to prevent tipping, especially in households with children.
Image: Anti-tip warning symbol. This symbol indicates the importance of securing the cabinet to a wall to prevent it from tipping over, which can cause serious injury, especially to children.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. The package should contain:
- Cabinet panels (top, bottom, sides, back)
- 15 individual locker doors with pre-installed locks
- Keys for each lock
- Name tag holders for each door
- Assembly hardware (screws, bolts, nuts, etc.)
- Wall attachment device
- Assembly instructions manual
4. Setup and Assembly
Assembly of the vidaXL Locker Cabinet requires two people for safety and ease. Follow the detailed assembly instructions provided in the package. A wall attachment device is included for securing the cabinet to a wall, which is essential for stability and safety.
4.1 Assembly Steps Overview
- Unpack all components and lay them out on a protective surface.
- Identify all panels and hardware according to the parts list in the separate assembly guide.
- Assemble the main frame of the cabinet, ensuring all connections are firm.
- Attach the individual locker doors, ensuring they open and close smoothly.
- Install the feet or base as instructed.
- Secure the cabinet to a suitable wall using the provided wall attachment device. Ensure the wall material can support the cabinet's weight and potential contents.
Image: Front view of the assembled locker cabinet with all doors closed.

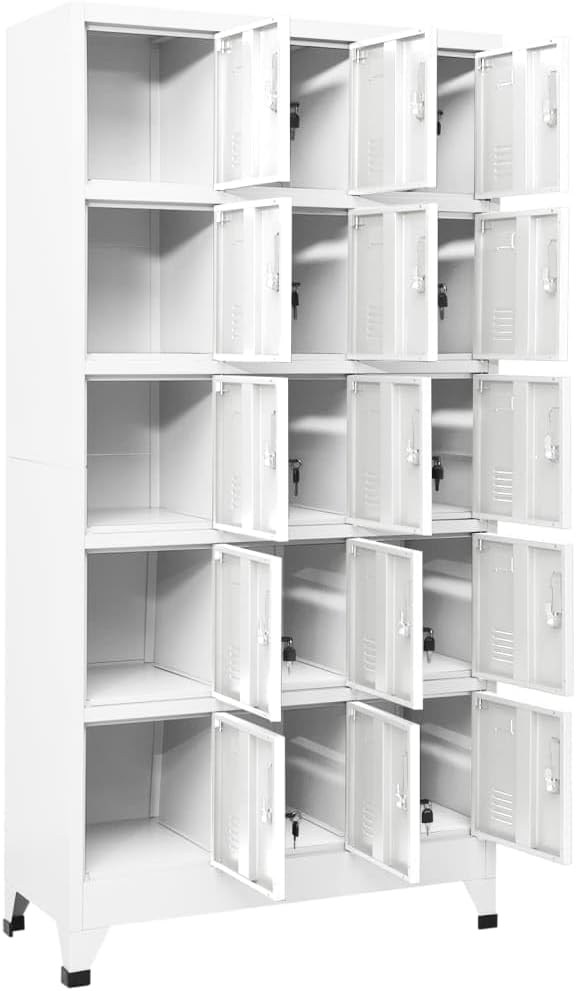

Image: Front view of the assembled locker cabinet with all doors open, illustrating the spacious interior of each compartment.

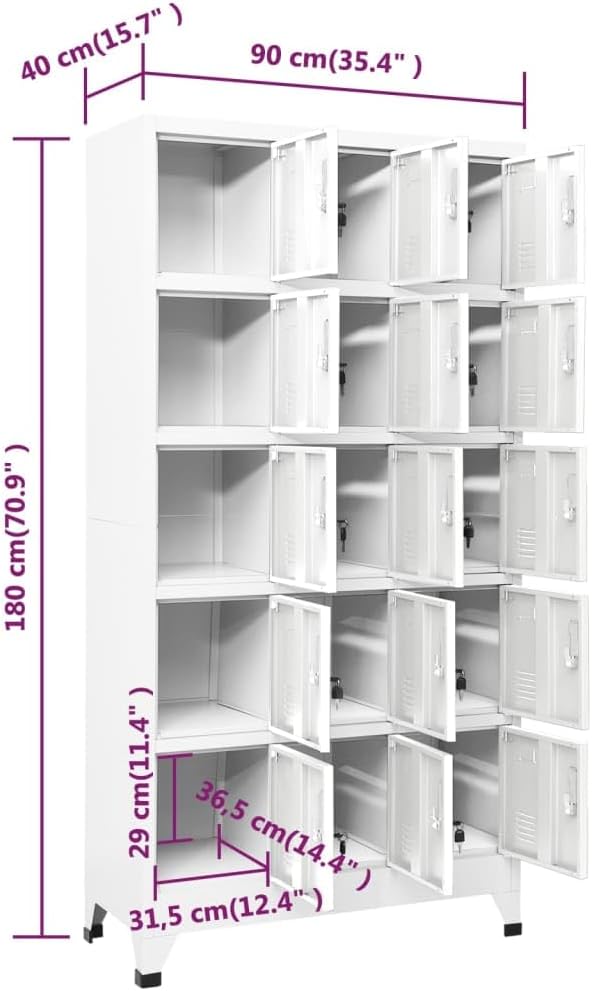

Image: Dimensional diagram of the locker cabinet, indicating overall measurements and internal compartment sizes.
5. Operating Instructions
The vidaXL Locker Cabinet is designed for secure and organized storage.
5.1 Using the Lockable Doors
- Each of the 15 compartments is equipped with a lock and comes with its own set of keys.
- To lock a door, ensure it is fully closed, insert the key, and turn it to the locked position. Remove the key.
- To unlock, insert the correct key and turn it to the unlocked position, then open the door.
- Keep spare keys in a secure location.
5.2 Using Name Tag Holders
- Each door features a transparent holder for name tags or labels.
- Insert a paper label with the desired identification into the holder. This aids in organization and quick identification of contents or assigned users.
Image: Detail of a locker door, highlighting the lock mechanism and the integrated name tag holder.
6. Maintenance
The vidaXL Locker Cabinet is constructed from durable alloy steel, making it easy to maintain.
- Cleaning: Wipe surfaces with a soft, damp cloth and a mild detergent. Avoid abrasive cleaners or solvents that could damage the finish. Dry thoroughly after cleaning.
- Inspection: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.
- Locks: If a lock becomes stiff, apply a small amount of graphite lubricant to the keyhole. Do not use oil-based lubricants.
- Ventilation: The integrated air vents help prevent moisture and odors. Ensure they are not blocked.
7. Troubleshooting
If you encounter issues with your locker cabinet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not close or latch properly. | Misalignment during assembly; obstruction in the door frame. | Check door hinges and frame for proper alignment. Ensure no items are blocking the door's path. Re-tighten hinge screws if loose. |
| Key is difficult to turn in the lock. | Dust or debris in the lock mechanism; lack of lubrication. | Apply a small amount of graphite lubricant into the keyhole. Do not force the key. |
| Cabinet feels unstable or wobbly. | Uneven floor; loose assembly fasteners; cabinet not secured to wall. | Ensure the cabinet is on a level surface. Check and tighten all assembly screws. Verify the wall attachment device is securely installed. |
8. Specifications
Detailed specifications for the vidaXL Locker Cabinet Model 339821:
| Feature | Detail |
|---|---|
| Brand | vidaXL |
| Model Number | 339821 |
| Colour | Light Grey |
| Material | Alloy Steel |
| Overall Dimensions (W x D x H) | 90 x 40 x 180 cm (35.4 x 15.7 x 70.9 inches) |
| Number of Doors | 15 (lockable) |
| Special Features | Durable, Air Vents, Name Tag Holders, Wall Attachment Device |
| Item Weight | 50.6 kg |
| Manufacturer | vidaXL |
9. Warranty and Support
For information regarding warranty coverage, product support, or to order replacement parts, please refer to the warranty card included with your purchase or visit the official vidaXL website. You may also contact vidaXL customer service directly for assistance.
Contact Information: Please refer to your purchase documentation or the vidaXL official website for the most current customer support contact details.
