1. Product Overview
The URBAN ARMOR GEAR (UAG) Monarch Series case is engineered to provide robust protection for your Samsung Galaxy S23. This case features a multi-layer construction designed to safeguard your device against drops, impacts, and daily wear.
Key Features:
- Multi-Layer Protection: Features 5 layers including an armor frame, shock-resistant core, carbon fiber/leather, polycarbonate shear plate, alloy metal hardware, and impact-resistant rubber.
- Full Body Protection: Soft impact-resistant core, contoured perimeter edge for grip, sculpted corners for reinforced drop protection, and raised bezels for screen and camera lens protection.
- Enhanced Functionality: Oversized tactile buttons for responsive feedback and an integrated lanyard anchor (lanyard not included).
- Wireless Charging Compatibility: Designed to be compatible with most third-party wireless chargers.
- Military Grade Drop Protection: Tested to 20 ft. (6 meters) drop protection, certified to Mil Spec Standards.
Figure 1: Front view of the UAG Monarch Series case with a Samsung Galaxy S23 installed, showcasing the protective design.
2. Compatibility
This UAG Monarch Series case is specifically designed for the Samsung Galaxy S23 (6.1-inch). It is not compatible with the Samsung Galaxy S23 Ultra or Samsung Galaxy S23 Plus models due to differences in device dimensions.
Figure 2: Compatibility chart illustrating that the case fits only the Samsung Galaxy S23 (6.1-inch) model.
3. Installation
Follow these steps to properly install your Samsung Galaxy S23 into the UAG Monarch Series case:
- Ensure your Samsung Galaxy S23 is clean and free of dust or debris.
- Hold the case with the back facing you.
- Align the top of your Samsung Galaxy S23 with the top opening of the case.
- Gently push the phone into the case, ensuring all corners and edges are securely seated within the case's protective frame. Apply even pressure around the perimeter until the phone is fully enclosed.
- Verify that all buttons align correctly with the case's tactile buttons and that all ports are accessible through the case's cutouts.
Figure 3: Interior view of the case, showing the hex pattern designed for shock absorption and proper phone seating.
4. Operating Instructions
Button Functionality:
The case features oversized tactile buttons that provide a responsive and clear click-feel. These buttons are designed to align perfectly with your phone's power and volume buttons, ensuring full functionality without obstruction.
Wireless Charging:
The UAG Monarch Series case supports wireless charging. Place your device, with the case installed, onto a compatible wireless charging pad. Ensure proper alignment for optimal charging performance.
Lanyard Anchor:
An integrated lanyard anchor point is provided for attaching a lanyard (not included). This feature allows for secure carrying options, reducing the risk of accidental drops.

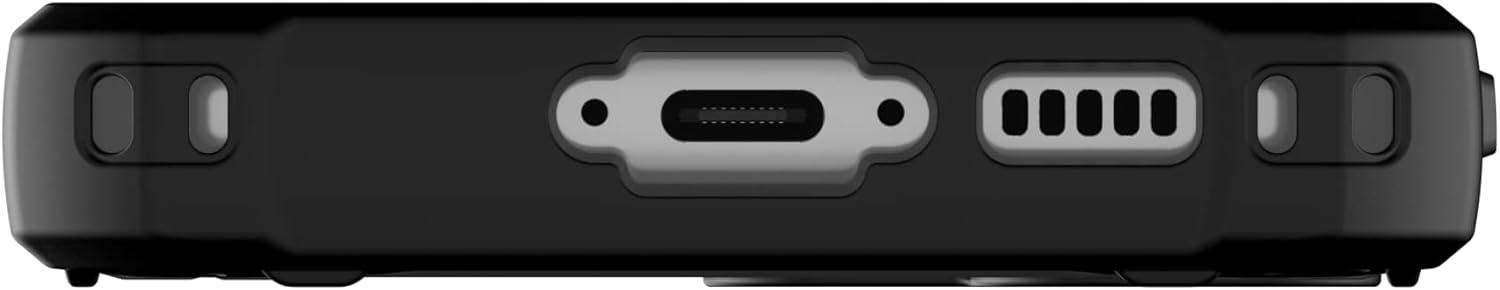

Figure 4: Bottom view of the case, illustrating the precise cutouts for the USB-C charging port and speaker grilles.
5. Maintenance
To maintain the appearance and protective qualities of your UAG Monarch Series case, follow these cleaning guidelines:
- Remove your phone from the case before cleaning.
- Wipe the case with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used.
- Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the case's materials and finish.
- Allow the case to air dry completely before re-installing your phone.
6. Troubleshooting
Wireless Charging Issues:
- Ensure proper alignment: Make sure your phone is centered on the wireless charging pad.
- Check charger compatibility: Verify that your wireless charger is compatible with the Samsung Galaxy S23.
- Remove foreign objects: Ensure there are no metal objects or cards between your phone and the case, or between the case and the charging pad.
Case Fit Issues:
- Verify phone model: Confirm that your phone is a Samsung Galaxy S23 (6.1-inch). This case is not designed for other S23 models.
- Re-install the case: Remove the phone from the case and carefully re-install it, ensuring all edges snap into place.
7. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 5.98 x 3.03 x 0.59 inches |
| Item Weight | 1.76 ounces |
| Item Model Number | 214120113333 |
| Compatible Phone Models | Samsung Galaxy S23 |
| Material | Carbon Fiber, Leather, Polycarbonate, Thermoplastic Polyurethane |
| Manufacturer | URBAN ARMOR GEAR |
| Drop Protection | 20 ft. (6 meters) - Mil Spec Standards certified |
| Wireless Charging | Supported |
8. Warranty and Support
URBAN ARMOR GEAR products are designed for durability and performance. For information regarding product warranty, returns, or technical support, please refer to the official URBAN ARMOR GEAR website or contact their customer service directly. Details are typically available on the product packaging or the manufacturer's website.
For further assistance, please visit: URBAN ARMOR GEAR Store on Amazon
