vidaXL LED Headboard 147x16x78/88 cm in Velvet - Instruction Manual

1. Introduction

Thank you for choosing the vidaXL LED Headboard. This classic LED headboard, featuring an elegant design, adds a modern and striking touch to your bed frame and is perfectly suited for any bedroom. This manual provides essential information for the safe assembly, operation, and maintenance of your new headboard.

Key Features:

• Soft Velvet Upholstery: Made from a luxurious velvet fabric with a smooth, soft-to-the-touch surface for enhanced comfort.
• Colorful LED Lighting: Integrated LED lights to create an ambient atmosphere in your bedroom.
• Adjustable Height: The headboard's height can be adjusted to suit your preference and bed frame.
• Excellent Back Support: Provides comfortable support for your back when sitting up in bed.
• Cuttable LED Strip: The flexible LED strip can be trimmed to your desired length at marked points.

2. Safety Information

Please read all safety instructions carefully before assembly and use. Keep this manual for future reference.

• Ensure all components are present and undamaged before assembly. Do not proceed if any parts are missing or broken.
• Assembly should be performed by at least two adults to prevent injury.
• Keep small parts and packaging materials away from children to avoid choking hazards.
• Do not overtighten screws during assembly, as this may damage the material.
• For LED lights: Only cut the LED strip at the designated scissor marks. Cutting elsewhere will damage the strip.
• The LED strip requires a 5V USB power source (not included). Do not connect to higher voltage power sources.
• Keep electrical components away from water and moisture.
• Do not attempt to modify or repair the LED components yourself. Contact customer support if issues arise.

3. Package Contents

Please verify that all the following items are included in your package:

• 1 x Headboard with 'ears' (side panels)
• 2 x LED Strips
• Assembly Hardware (screws, brackets, etc.)
• Assembly Manual (separate document)

4. Assembly Instructions

Your product includes a detailed assembly manual in the packaging. Please refer to that document for step-by-step instructions. The following provides a general overview and visual aids.

General Assembly Steps:

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Attach the support legs to the main headboard panel using the provided hardware. Ensure they are securely fastened.
3. Position the headboard against your bed frame or wall.
4. Adjust the height of the headboard to your desired level.
5. Secure the headboard to your bed frame or wall using the appropriate mounting hardware.
6. Install the LED strips as described in the 'Operating the LED Lights' section.

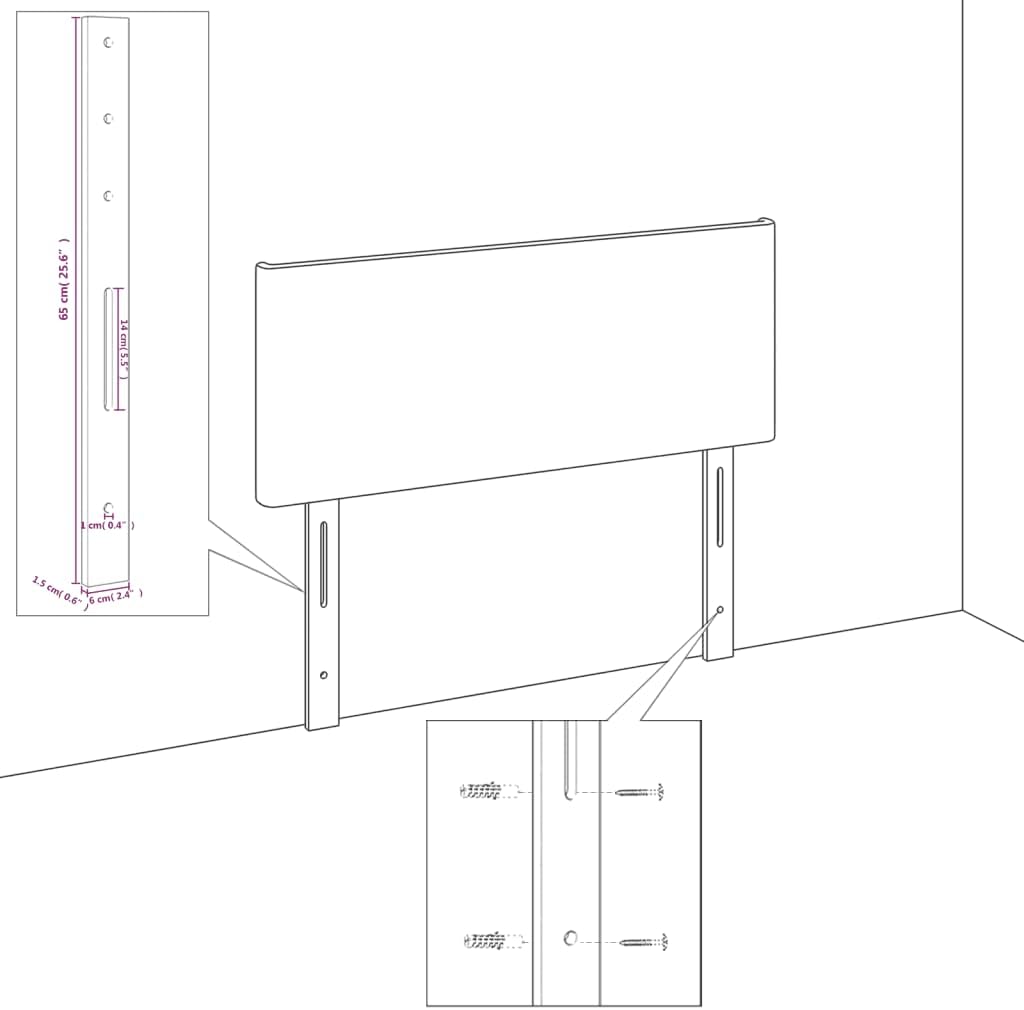

Figure 1: Diagram illustrating the wall mounting process for the headboard, showing bracket placement and screw points.

Figure 2: Diagram detailing the attachment of the headboard to a bed frame, highlighting the connection points with metal plates and screws.

5. Operating the LED Lights

Your headboard comes with two flexible LED strips to enhance your bedroom ambiance.

Installation and Connection:

1. Carefully unroll the LED strips.
2. Determine the desired placement for the LED strips, typically along the back or top edge of the headboard.
3. Peel off the adhesive backing and firmly press the LED strip onto the clean, dry surface of the headboard.
4. Connect the USB connector of each LED strip to a 5V USB power source (e.g., a USB wall adapter, power bank, or compatible USB port on a device). Note: A 5V power source is not included.

Figure 3: A flexible LED light strip, ready for installation.

Figure 4: Detail of the LED strip showing the USB connector for power supply.

Cutting the LED Strip:

If you need to adjust the length of the LED strip, you can cut it at specific points.

• Look for the scissor symbol along the LED strip. These are the only safe points to cut the strip.
• Use sharp scissors to make a clean cut at the designated mark.
• Important: Only the section marked with the scissor symbol can be cut. Only the part connected to the USB will continue to function as before.

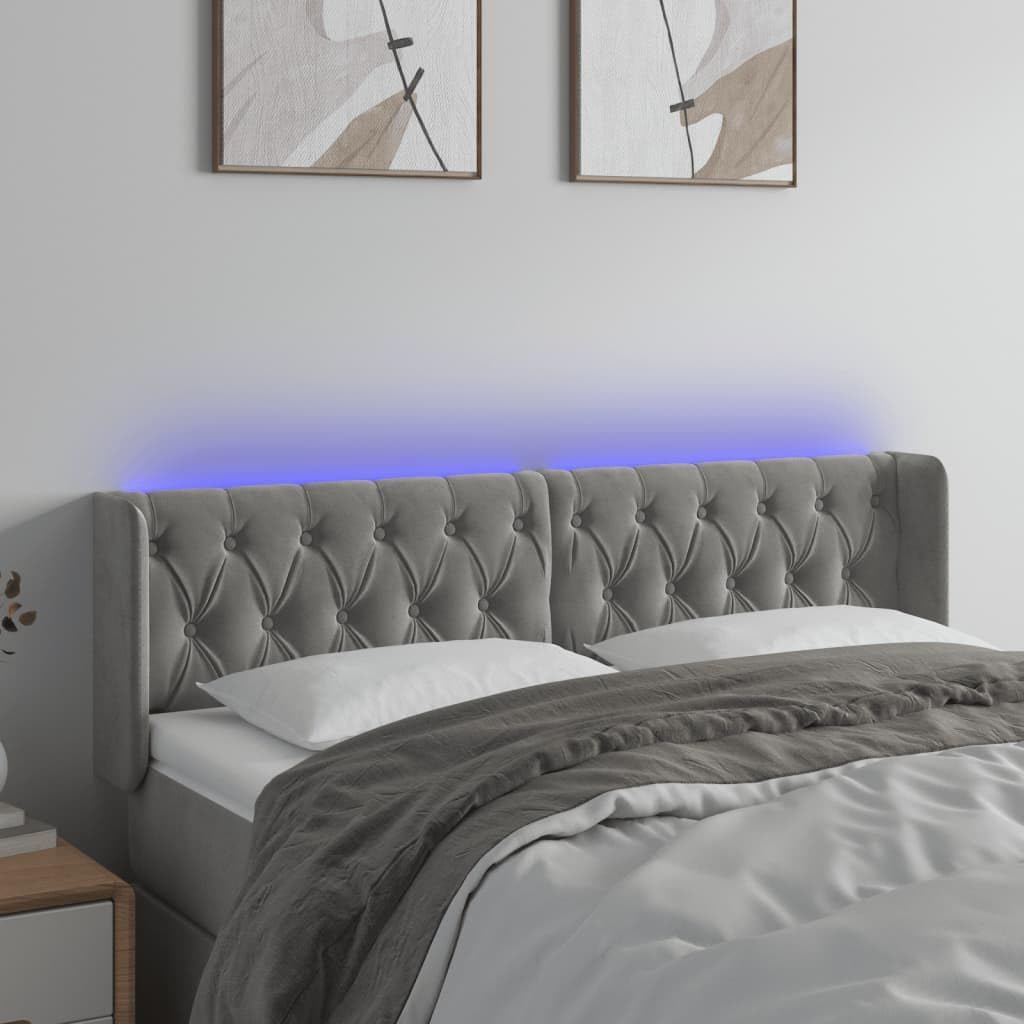

Figure 5: The vidaXL LED headboard installed on a bed, with the integrated LED lights emitting a blue glow.

6. Care and Maintenance

Proper care will ensure the longevity and appearance of your headboard.

Velvet Upholstery Care:

• Regular Cleaning: Gently vacuum the velvet upholstery using a soft brush attachment to remove dust and debris.
• Spot Cleaning: For spills, blot immediately with a clean, dry cloth. Do not rub, as this can damage the pile. For stubborn stains, use a mild upholstery cleaner, testing on an inconspicuous area first.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading.
• Avoid Harsh Chemicals: Do not use abrasive cleaners or strong chemical solvents, as these can damage the velvet.

Figure 6: A detailed view of the headboard's light grey velvet upholstery, highlighting the soft texture and tufted design.

LED Light Care:

• Wipe the LED strips with a soft, dry cloth.
• Do not use liquid cleaners directly on the LED components.
• Ensure the USB connection remains dry and free from dust.

7. Troubleshooting

If you encounter any issues with your headboard, refer to the following common problems and solutions:

LED Lights Not Working:

• Check Power Source: Ensure the USB connector is securely plugged into a functional 5V USB power source. Try a different USB port or adapter.
• Inspect Connections: Verify that the LED strip is properly connected to its USB cable.
• Check for Damage: Examine the LED strip for any visible damage or breaks, especially if it has been cut. Remember, only sections with the scissor symbol can be cut.
• Power Cycle: Disconnect and reconnect the USB power source.

If the problem persists after trying these steps, please contact vidaXL customer support.

8. Specifications

Figure 7: Detailed dimensional drawing of the headboard, indicating its length, depth, and adjustable height range.

9. Warranty and Support

For warranty information, product support, or to purchase replacement parts, please visit the official vidaXL store or contact their customer service directly.

You can find more information and contact details on the vidaXL brand store page: vidaXL Store on Amazon
