Introduction
This instruction manual provides important information for the safe and efficient use of your Bosch MFQ4930B Hand Mixer. Please read these instructions carefully before using the appliance and keep them for future reference. This appliance is designed for household use only.
Safety Instructions
- Always unplug the appliance from the power supply before assembly, disassembly, or cleaning.
- Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
- Do not immerse the motor unit in water or other liquids. Clean with a damp cloth only.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
Product Overview
The Bosch MFQ4930B Hand Mixer is a versatile kitchen appliance designed for mixing, beating, and kneading. It comes with various attachments to assist with different culinary tasks.
Main Components:
- Motor Unit (Hand Mixer Body)
- Dough Hooks (for kneading heavy dough)
- Whisks (for beating eggs, cream, and light batters)
Figure 1: The two stainless steel dough hooks are designed for efficient kneading of various dough types. They are shown here alongside a bowl containing raw dough, illustrating their primary use.
Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
- Initial Cleaning: Before first use, clean all detachable parts (dough hooks, whisks) as described in the "Maintenance and Cleaning" section. Wipe the motor unit with a damp cloth.
- Attaching Accessories:
- Insert the desired attachments (dough hooks or whisks) into the openings on the underside of the motor unit.
- Push and twist slightly until they click securely into place. Ensure both attachments are fully inserted.
- Power Connection: Plug the power cord into a suitable 240 Volt electrical outlet.
Operating Instructions
Always ensure the attachments are securely in place before starting the mixer.
- Selecting Speed: The hand mixer features multiple speed settings. Start with a low speed and gradually increase as needed to prevent splashing and ensure thorough mixing.
- Mixing/Beating: For light batters, creams, and eggs, use the whisks. Begin at a low speed and increase to achieve desired consistency.
- Kneading: For heavier doughs like bread or pizza dough, use the dough hooks. Start at a low speed to combine ingredients, then increase to a medium speed for effective kneading. Do not overload the mixer; refer to recipe guidelines for maximum quantities.
- Stopping Operation: To stop the mixer, switch the speed selector to the "0" (off) position.
- Detaching Accessories: Unplug the mixer from the power outlet. Press the eject button (if available) or gently pull the attachments out.
Maintenance and Cleaning
Regular cleaning ensures the longevity and hygienic operation of your Bosch MFQ4930B Hand Mixer.
- Unplug: Always unplug the appliance before cleaning.
- Motor Unit: Wipe the motor unit with a clean, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- Attachments (Dough Hooks & Whisks): The stainless steel dough hooks and whisks are dishwasher-safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots.

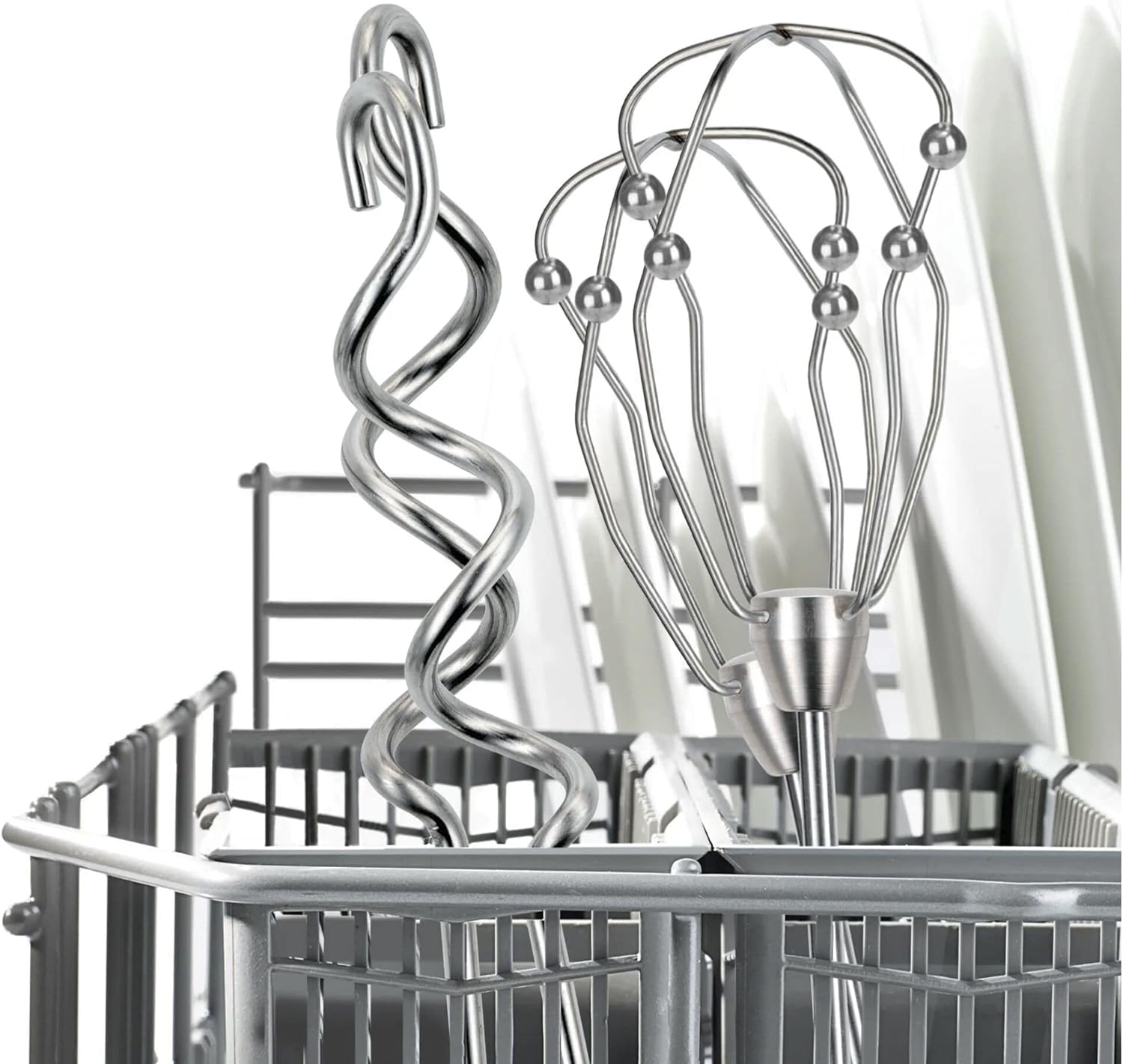

Figure 2: Both the dough hook and whisk attachments are shown positioned within a dishwasher rack, confirming their dishwasher-safe design for convenient cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not switch on. | Not plugged in; power outlet faulty; speed selector not at "0". | Check power cord connection; test outlet with another appliance; ensure speed selector is at "0" before turning on. |
| Attachments are difficult to insert or remove. | Attachments not aligned correctly; food residue in openings. | Ensure attachments are aligned with the openings; clean openings thoroughly. |
| Motor sounds strained during operation. | Overloaded with ingredients; too thick consistency. | Reduce quantity of ingredients; add more liquid if appropriate for the recipe. |
Specifications
| Feature | Detail |
|---|---|
| Model Name | MFQ4930B |
| Brand | Bosch |
| Material (Body) | Aluminium |
| Blade Material (Attachments) | Stainless Steel |
| Voltage | 240 Volts |
| Item Weight | 3000 Grams (3 kg) |
| Dishwasher Safe | Yes (Attachments only) |
| Manufacturer | Bosch |
Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Bosch website for your region. Keep your purchase receipt as proof of purchase.
For technical assistance or service inquiries, please contact Bosch customer service.
