ACEMO P10 Portable Power Station User Manual

1. Introduction

Thank you for purchasing the ACEMO P10 Portable Power Station. This device is designed to provide reliable power for various applications, including outdoor activities, RV travel, and emergency home backup. It features a high-capacity LiFePO4 battery, multiple output ports, and fast charging capabilities. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. Safety Instructions

To prevent injury, property damage, or damage to the product, always follow these basic safety precautions:

• Do not disassemble, repair, or modify the unit. Incorrect reassembly may cause fire or electric shock.
• Do not expose the unit to fire or high temperatures (above 60°C/140°F).
• Do not use or store the unit in direct sunlight, near heat sources, or in high humidity environments.
• Keep the unit away from water and other liquids.
• Ensure proper ventilation during charging to prevent overheating. The AC adapter may reach up to 65°C (149°F) during charging, which is within the safe operating temperature of 75°C (167°F).
• Use only the provided or approved charging cables and adapters.
• Keep out of reach of children and pets.
• The unit uses a high-quality Lithium Iron Phosphate (LiFePO4) battery, known for its safety and long lifespan. It is equipped with a Battery Management System (BMS) for protection against over-temperature, low temperature, over-voltage, over-current, short-circuit, over-charge, overload, and sleep protection.
• This product is certified with PSE, UN38.3, and CE standards, and uses UL94 V-0 grade flame-retardant ABS material for the casing.

Image: LiFePO4 Battery Safety and BMS Protection Overview.

3. Product Overview

3.1 Package Contents

• ACEMO P10 Portable Power Station
• AC Charging Cable
• Car Charging Cable
• User Manual

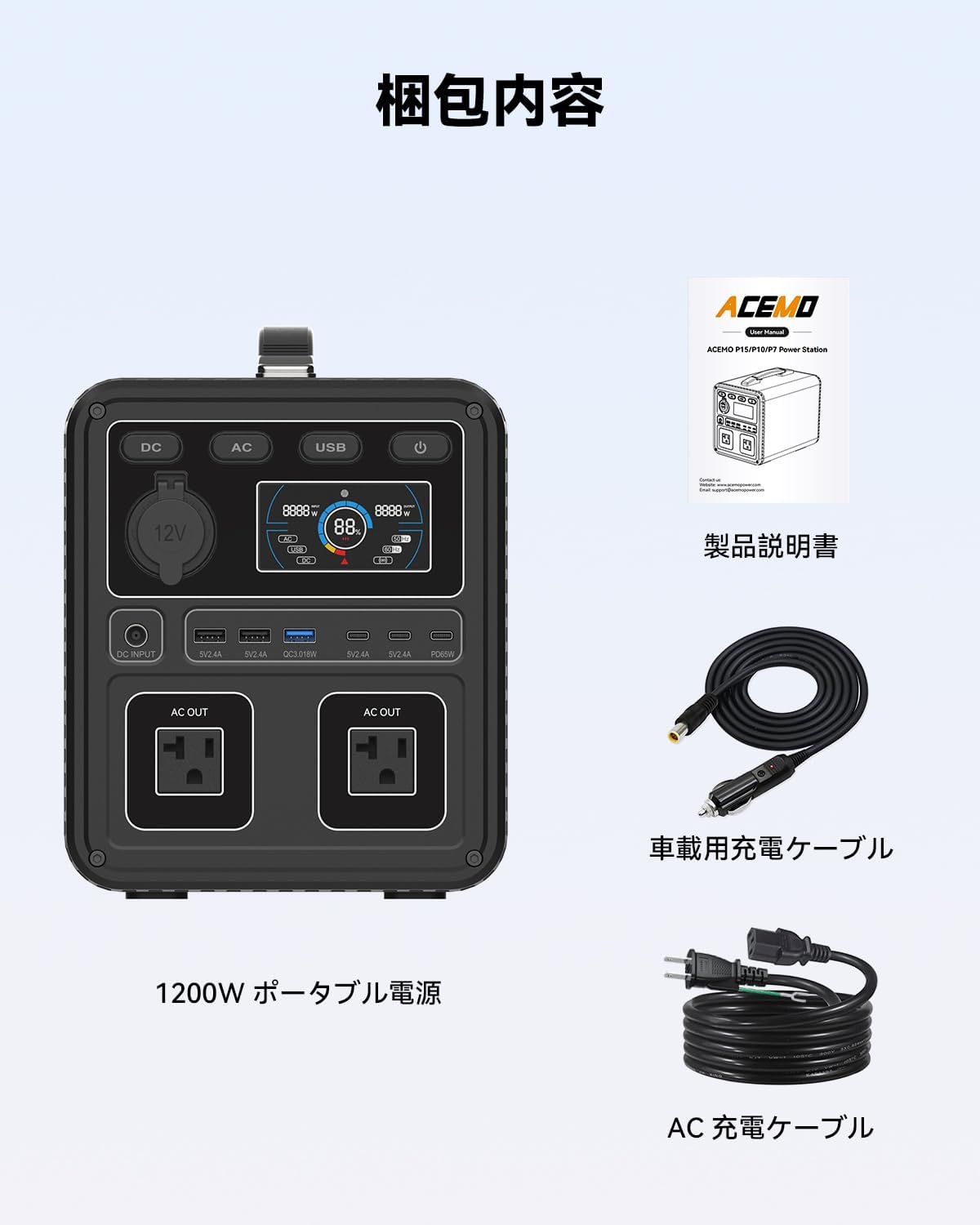

Image: Package Contents of ACEMO P10.

3.2 Unit Layout and Ports

The ACEMO P10 features a clear display and multiple ports for versatile connectivity.

Image: Front Panel and Port Layout.

• DC Input: For charging the power station via AC adapter, car charger, or solar panels.
• USB-A Ports (x2): Standard USB ports for charging various devices.
• USB-A Quick Charge Port (x1): Supports QC 18W fast charging.
• USB-C Ports (x2): Versatile ports for charging and powering devices.
• USB-C PD Port (x1): Supports PD 65W fast charging.
• AC Outlets (x2): Standard AC outlets for powering household appliances (Pure Sine Wave output).
• Car Port (x1): 12V DC output for car appliances.
• Display Screen: Shows battery level, input/output power, and other status indicators.

4. Setup

4.1 Initial Charge

Before first use, fully charge the ACEMO P10. Connect the provided AC charging cable to the DC input port and plug it into a wall outlet. The display will indicate charging status. A full charge from 0% to 80% can be achieved in approximately 50 minutes, and a full charge in about 1.3 hours.

Image: AC Wall Charging.

5. Operating Instructions

5.1 Charging the Power Station

The ACEMO P10 supports multiple charging methods:

• AC Wall Outlet: Use the included AC charging cable. Full charge in approximately 1.3 hours.
• Solar Panel: Connect compatible solar panels (not included) to the DC input port. The unit features MPPT (Maximum Power Point Tracking) control for efficient solar charging. With 500W solar panels, it can fully charge in about 2.7 hours.
• Car Charger: Use the included car charging cable to charge from your vehicle's 12V cigarette lighter socket. Full charge in approximately 12 hours.

Image: Solar Charging.

Image: Car Charging.

5.2 Powering Devices

Press the main power button to turn on the unit. Then, activate the specific output ports (AC, USB, DC) you wish to use. Connect your devices to the appropriate ports. The display will show the output power consumption.

The ACEMO P10 can power up to 9 devices simultaneously. It supports pass-through charging, meaning you can charge the power station while simultaneously powering other devices.

Image: Powering Multiple Devices.

5.3 Example Usage Scenarios

• Camping: Power camping lights (10W for 91 hours), cameras (16Wh for 57 charges), projectors (100W for 9 hours), or cooling fans (40W for 22 hours).
• RV Travel: Run electric kettles (1200W for 0.76 hours), drones (40Wh for 22 charges), mini-refrigerators (60W for 15 hours), or electric cookers (1200W for 0.76 hours).
• Home Emergency: Charge smartphones (10Wh for 91 charges), laptops (60Wh for 15 charges), power 50-inch TVs (110W for 8 hours), CPAP machines (40W for 22 hours), WiFi routers (10W for 91 hours), microwave ovens (1200W for 0.76 hours), or refrigerators (120W for 9 hours).
• Tool Operation: Power electric circular saws (1200W for 0.76 hours), electric hammers (1000W for 0.9 hours), electric screwdrivers (800W for 1.1 hours), or cutting machines (800W for 1.1 hours).

Image: Outdoor Leisure Use.

Image: Home Emergency Power.

Image: Powering Tools.

6. Maintenance

Proper maintenance ensures the longevity and performance of your ACEMO P10.

• Storage: Store the unit in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to 50-80% every 3-6 months to maintain battery health.
• Cleaning: Use a dry, soft cloth to clean the exterior of the unit. Do not use abrasive cleaners or immerse the unit in water.
• Ventilation: Ensure the ventilation openings are clear of dust and debris to prevent overheating.

7. Troubleshooting

If you encounter issues with your ACEMO P10, refer to the following common problems and solutions:

• Unit not turning on: Ensure the battery is charged. Press and hold the main power button for a few seconds.
• Devices not charging: Check if the specific output port (AC, USB, DC) is activated. Ensure the device is properly connected and within the power station's output limits.
• Slow charging: Verify that the charging cable and adapter are correctly connected. For solar charging, ensure panels are in direct sunlight and free from obstructions.
• Overheating: If the unit feels excessively hot, disconnect all devices and charging cables. Allow it to cool down in a well-ventilated area. The BMS will automatically shut down the unit if it detects unsafe temperatures.
• Display errors: If the display shows an error code, try restarting the unit. If the error persists, contact customer support.

8. Specifications

9. Warranty and Support

ACEMO provides a 5-year quality guarantee for this product. For any inquiries or assistance regarding the product, our customer support team is available 24 hours a day, 365 days a year. Please feel free to contact us if you have any questions before or during use.

Contact Method: On the product page, locate "Sold by: ACEMO-JP" and click on "Ask a question."
