1. Introduction
Thank you for choosing the Pilipane Handheld Milk Frother. This device is designed to create rich, creamy foam for a variety of beverages, including lattes, cappuccinos, frappes, matcha teas, and hot chocolate. Please read this manual carefully before use to ensure proper operation and to maintain the product's longevity.
Safety Precautions
- Keep the frother away from children.
- Do not immerse the main body of the frother in water or other liquids. The whisk head is washable.
- Ensure batteries are inserted correctly according to polarity markings.
- Remove batteries if the frother will not be used for an extended period.
- Do not mix old and new batteries, or different types of batteries.
- Use the frother only for its intended purpose as described in this manual.
2. Product Overview
The Pilipane Handheld Milk Frother consists of a main body, a whisk head, and a stand for convenient storage. It is constructed from durable ABS plastic and stainless steel.
Image: Close-up of the double spring whisk head, designed for efficient frothing.

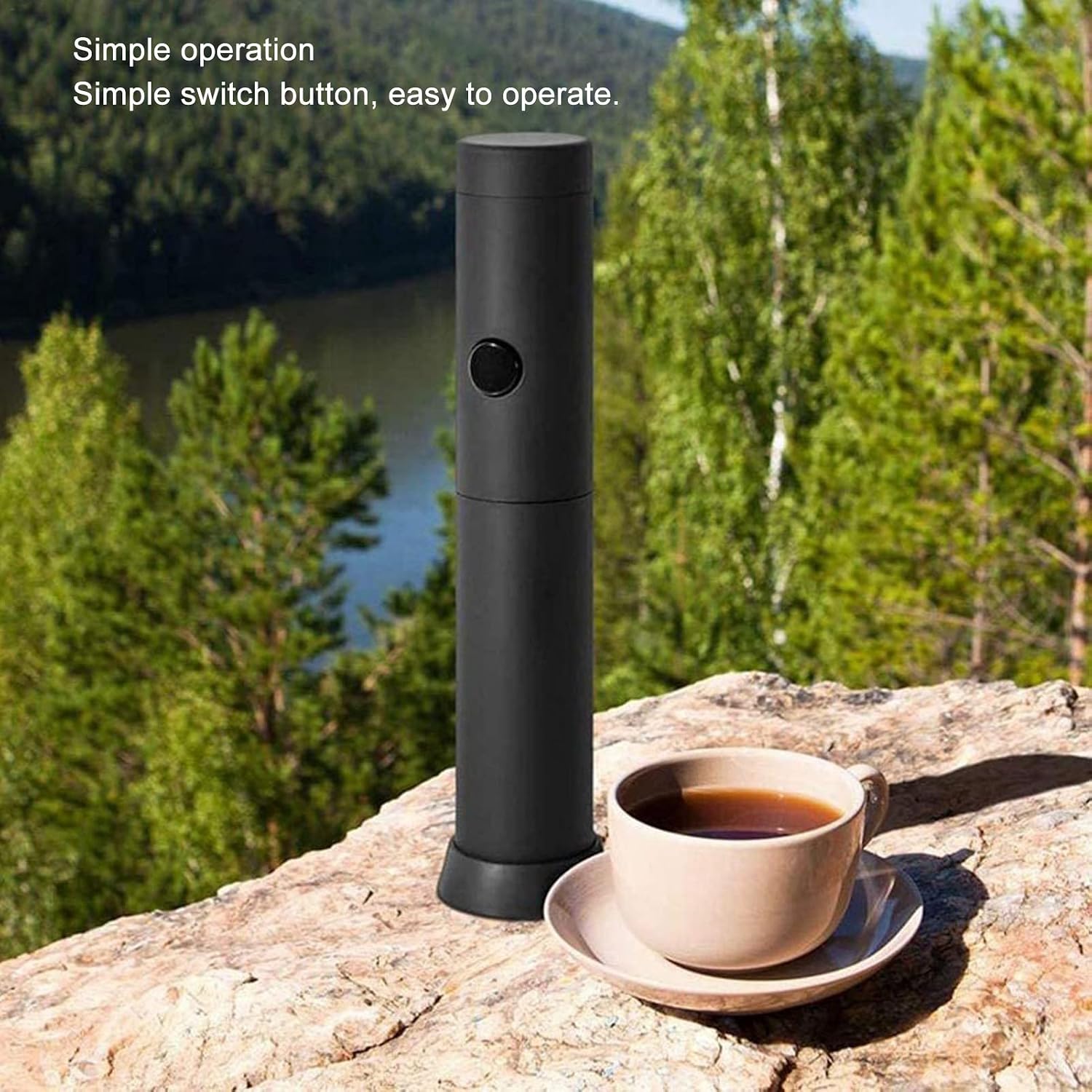

Image: The Pilipane Handheld Milk Frother with its stand.
3. Setup
The frother requires 2 AA batteries (not included) for operation.
- Twist the bottom cap of the frother counter-clockwise to open the battery compartment.
- Insert two AA batteries, ensuring the correct polarity (+/-) as indicated inside the compartment.
- Replace the bottom cap by twisting it clockwise until securely closed.
Image: Battery compartment with AA battery slots.
4. Operating Instructions
The Pilipane Handheld Milk Frother is designed for simple one-button operation.
- Pour your desired liquid (milk, cream, coffee, etc.) into a cup or container. For best frothing results, use cold milk and ensure the container is large enough to prevent overflow.
- Insert the whisk head into the liquid, ensuring it is submerged but not touching the bottom or sides of the container.
- Press and hold the power button on the frother's body to activate the whisk.
- Move the frother gently up and down in the liquid for 15-30 seconds, or until the desired foam consistency is achieved.
- Release the power button to turn off the frother.
- Carefully remove the frother from the frothed liquid.
Applications
This frother is versatile and can be used for:
- Creating foam for lattes, cappuccinos, and macchiatos.
- Mixing frappes, matcha teas, and hot chocolate.
- Blending bulletproof coffee or keto coffee.
- Whisking eggs for omelets or scrambled eggs.
Image: The frother in operation, whisking liquid.
Image: Example of frothed milk in coffee beverages.
5. Maintenance and Cleaning
Regular cleaning ensures optimal performance and hygiene of your frother.
- Cleaning the Whisk Head: Immediately after each use, place the whisk head under hot running water. Briefly turn on the frother for a few seconds to allow the whisk to spin and rinse off any residue. Turn off the frother and dry the whisk head thoroughly.
- Cleaning the Body: Wipe the main body of the frother with a damp cloth. Do not immerse the main body in water.
- Storage: Store the frother upright in its provided stand in a dry place. If storing for an extended period, remove the batteries.
Image: Cleaning the whisk head under running water.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Frother does not turn on. | Batteries are dead or incorrectly inserted. | Check battery polarity. Replace with fresh AA batteries. |
| Poor or no foam produced. | Insufficient battery power; liquid type or temperature not ideal; whisk head is dirty. | Replace batteries. Use cold milk for best results. Ensure whisk head is clean and fully submerged. |
| Frother vibrates excessively or makes unusual noise. | Whisk head is bent or damaged. | Inspect whisk head for damage. If bent, gently try to straighten it or contact support for replacement. |
7. Specifications
- Item Type: Electric Milk Frother
- Brand: Pilipane
- Model: Handheld Milk Frother
- Material: ABS, Stainless Steel
- Power Source: Battery Powered (2 x AA batteries, not included)
- Item Weight: Approximately 4.6 ounces (130g)
- Product Care: Hand Wash Only (whisk head)
8. Warranty and Support
For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. You may also visit the official Pilipane website for further assistance.
