EXTRALINK EGH-5500 Hybrid Generator User Manual

1. Important Safety Instructions

Read and understand all safety warnings and instructions before operating this generator. Failure to follow these instructions may result in electric shock, fire, serious injury, or death. Keep this manual for future reference.

• Carbon Monoxide Hazard: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate generators outdoors only, far away from windows, doors, and vents. Never operate in an enclosed area.
• Electric Shock Hazard: Never operate the generator in wet conditions. Ensure all electrical connections are dry and properly insulated. Do not touch the generator with wet hands.
• Fire Hazard: Fuel is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke or allow open flames near the generator. Store fuel in approved containers.
• Hot Surfaces: The generator engine and muffler become very hot during operation and remain hot for some time after shutdown. Avoid contact to prevent burns.
• Children and Pets: Keep children and pets away from the generator at all times.
• Overload Protection: The generator is equipped with an overload protection system. Do not exceed the generator's rated wattage.

2. Product Overview

The EXTRALINK EGH-5500 is a versatile hybrid generator designed to provide reliable power using gasoline, LPG (Liquefied Petroleum Gas), or CNG (Compressed Natural Gas). It features a robust design, easy starting, and multiple power outlets, making it suitable for various applications including home backup, camping, and construction sites.

Figure 1: EXTRALINK EGH-5500 Hybrid Generator connected to an external gas cylinder, illustrating its dual-fuel capability.

Key Components

Figure 2: Detailed view of the generator's control panel, highlighting the engine switch, AC 230V outlets, voltmeter, circuit breaker, AC 400V outlet, and DC output.

• Engine Switch (ENG. SW.): Controls the engine's power (OFF, ON, START).
• AC 230V Outlets: Two standard 230V AC power outlets for general use.
• Voltmeter: Displays the output voltage.
• Circuit Breaker: Protects the generator from overload.
• AC 400V Outlet: A higher voltage AC outlet for specific applications.
• DC Output: Provides direct current power, typically for battery charging.
• Fuel Tank: 25-liter capacity for gasoline.
• Engine: Powerful 13 HP engine.

Figure 3: Close-up view of the generator's engine, indicating its 13 HP power rating.

3. Setup and First Use

Before starting the generator for the first time, ensure it is placed on a level, stable surface in a well-ventilated outdoor area.

3.1 Unpacking and Assembly

1. Carefully remove the generator from its packaging.
2. Attach the wheels and handles if they are not pre-installed. The robust wheels and handles are designed for easy transport.
3. Check for any shipping damage or loose parts.

Figure 4: The generator's integrated wheels and handles facilitate easy movement and positioning.

3.2 Adding Engine Oil

The generator is shipped without engine oil. It is critical to add the correct type and amount of oil before starting.

1. Locate the oil fill cap/dipstick.
2. Add recommended engine oil (refer to specifications for type and capacity) until it reaches the upper mark on the dipstick. Do not overfill.
3. Securely replace the oil fill cap.

3.3 Adding Fuel

The EGH-5500 supports gasoline, LPG, and CNG. Choose one fuel type for operation.

3.3.1 Gasoline

1. Ensure the engine is off and cool.
2. Open the fuel tank cap.
3. Carefully pour fresh, unleaded gasoline into the fuel tank. Do not fill above the maximum level indicator.
4. Securely close the fuel tank cap.

3.3.2 LPG/CNG

1. Ensure the engine is off and cool.
2. Connect the LPG/CNG cylinder to the generator's gas inlet using the appropriate hose and regulator (not included).
3. Ensure all connections are tight and leak-free.

Figure 5: The generator's capability to operate on gasoline, LPG, or CNG, shown with a gas tank connection.

4. Operating Instructions

4.1 Starting the Generator

1. Ensure the generator is on a level surface and all electrical loads are disconnected.
2. Open the fuel valve (if using gasoline) or the gas cylinder valve (if using LPG/CNG).
3. Set the choke lever to the 'CHOKE' position (if the engine is cold).
4. Turn the engine switch to the 'START' position.
5. Once the engine starts, slowly move the choke lever to the 'RUN' position.
6. Allow the engine to warm up for a few minutes before connecting electrical loads.

Figure 6: The engine switch (ENG. SW.) with OFF, ON, and START positions, used to initiate generator operation.

4.2 Connecting Electrical Loads

1. Ensure the generator is running smoothly.
2. Plug your electrical devices into the appropriate AC 230V or AC 400V outlets.
3. Do not exceed the generator's maximum output capacity of 5500 Watts. The overload protection system will trip if overloaded.

4.3 Stopping the Generator

1. Disconnect all electrical loads from the generator.
2. Turn the engine switch to the 'OFF' position.
3. Close the fuel valve (gasoline) or gas cylinder valve (LPG/CNG).

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your generator.

5.1 Engine Oil Change

Change the engine oil after the first 20 hours of operation, then every 50-100 hours or annually, whichever comes first.

1. Run the engine for a few minutes to warm the oil.
2. Turn off the engine and disconnect the spark plug wire.
3. Place a drain pan under the oil drain plug and remove the plug.
4. Allow all old oil to drain completely.
5. Replace the drain plug and refill with the recommended new engine oil.

5.2 Air Filter Cleaning

Inspect the air filter every 50 hours or more frequently in dusty conditions. Clean or replace as needed.

1. Remove the air filter cover.
2. Remove the foam filter element.
3. Wash the element in warm, soapy water, rinse, and allow to air dry completely.
4. Lightly oil the foam element with engine oil and squeeze out excess.
5. Reinstall the filter element and cover.

5.3 Spark Plug Inspection

Inspect the spark plug every 100 hours or annually.

1. Remove the spark plug cap and use a spark plug wrench to remove the plug.
2. Check for carbon buildup or electrode wear. Clean or replace if necessary.
3. Ensure the gap is set correctly (refer to specifications).
4. Reinstall the spark plug and cap.

6. Troubleshooting

This section addresses common issues you might encounter with your EXTRALINK EGH-5500 generator.

7. Specifications

8. Warranty and Support

The EXTRALINK EGH-5500 Hybrid Generator comes with a 36-month warranty. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please contact your retailer or the EXTRALINK customer service department.

Please retain your proof of purchase for warranty validation.

9. Applications

The EXTRALINK EGH-5500 Hybrid Generator is suitable for a wide range of applications, providing reliable power wherever needed.

Figure 7: Examples of the generator's utility in diverse settings such as construction, outdoor events, and emergency power backup.

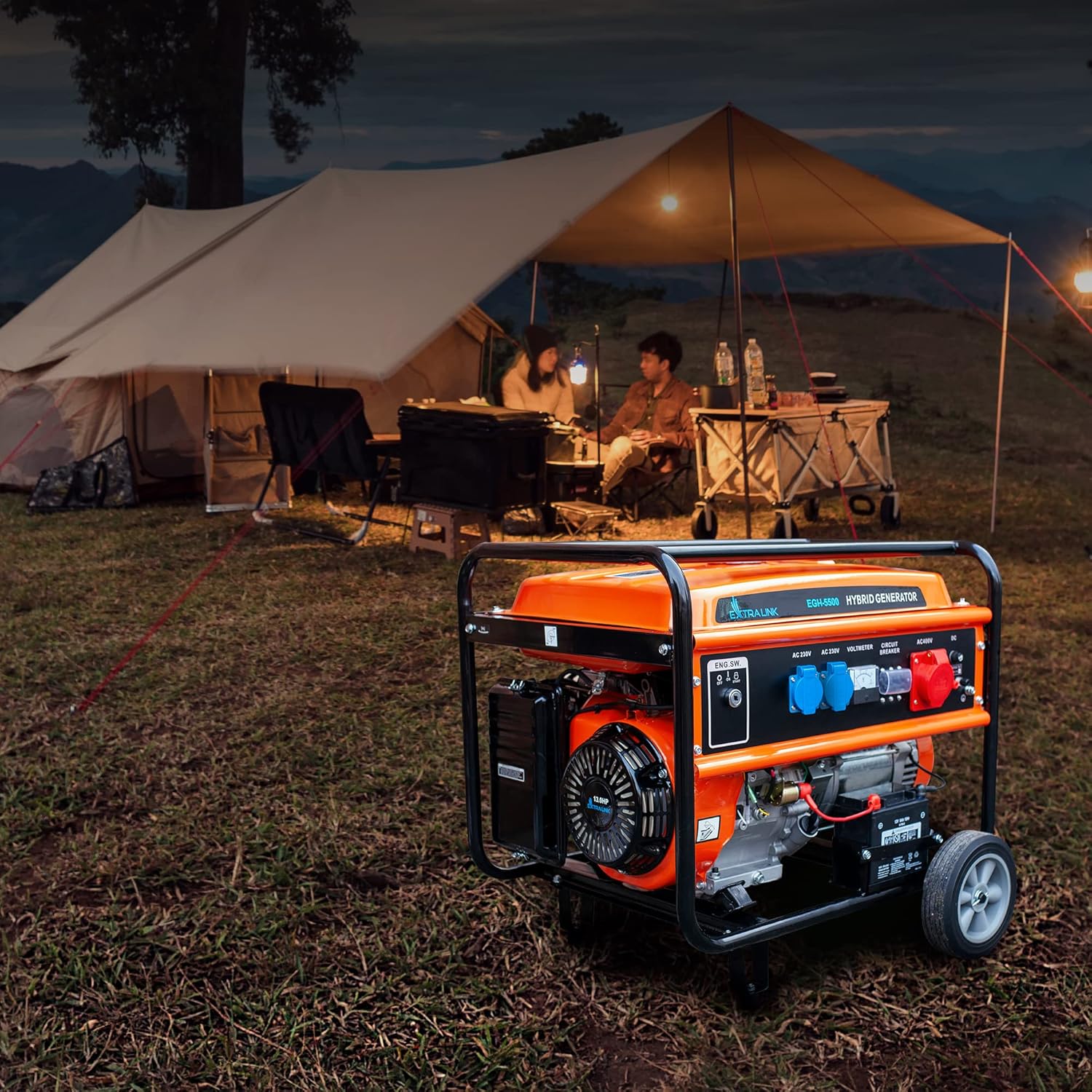

Figure 8: The generator in use at a campsite, demonstrating its portability and suitability for outdoor power needs.
