Introduction
Thank you for choosing the CAPHAUS NSF Adjustable 5-Tier Metal Wire Shelving Unit. This manual provides essential information for the safe assembly, operation, and maintenance of your new shelving unit. Please read it thoroughly before use and retain it for future reference.
Image: The fully assembled CAPHAUS 5-Tier Metal Wire Shelving Unit, showcasing its silver finish and the included shelf liners.
Safety Information
- Read all instructions carefully before assembly and use.
- Do not exceed the maximum weight capacity of 250 lbs per shelf or 1250 lbs total for the unit. Distribute weight evenly.
- Ensure all components are securely fastened before placing items on the shelves.
- Keep children away from the shelving unit during assembly to prevent injury.
- Avoid climbing on the unit.
- Place the unit on a flat, stable surface. Use the leveling feet to ensure stability.
- This product is intended for indoor use only.
Package Contents
Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact customer service.
Image: An exploded diagram illustrating all components included in the package, such as wire shelves, clear liners, upper and lower poles, caps, connectors, leveling feet, and plastic clips.
| Component | Quantity |
|---|---|
| Wire Shelf | 5 |
| Clear Liner | 5 |
| Upper Pole | 4 |
| Lower Pole | 4 |
| Cap | 4 |
| Connector | 4 |
| Leveling Foot | 4 |
| Plastic Clip | 42 (8 per shelf + 2 spares) |
Assembly Instructions
Assembly is straightforward and requires no tools. Follow these steps:
- Attach Leveling Feet: Screw the leveling feet into the bottom of the lower poles.
- Connect Poles: Insert the connectors into the top of the lower poles. Then, slide the upper poles onto the connectors to create four full-length vertical poles.
- Install Plastic Clips: Determine the desired height for your bottom shelf. Snap two plastic clips around each pole at the same height, ensuring they are securely locked into the grooves. The clips should be placed just below where the shelf will rest.
- Place First Shelf: Carefully slide the first wire shelf down over the poles until it rests firmly on the plastic clips. Ensure the shelf is level and all four corners are seated correctly.
- Add Subsequent Shelves: Repeat step 3 and 4 for the remaining four shelves, adjusting the height as desired.
- Install Top Caps: Place the plastic caps on top of the poles for a finished look.
- Apply Liners: Place the clear liners on each shelf to create a smooth, flat surface for smaller items.
- Adjust Leveling: Once assembled, adjust the leveling feet at the bottom of the unit to ensure it stands stable and level on your floor.
Image: A detailed view of how the plastic clips attach to the pole to support a shelf, highlighting the NSF certification.
Operating Instructions
Adjusting Shelf Height
The shelves are adjustable in 1-inch increments, allowing you to customize the unit to fit various items. To adjust a shelf:
- Empty the shelf you wish to adjust.
- Lift the shelf slightly to relieve pressure on the plastic clips.
- Remove the plastic clips from the poles.
- Re-position the clips at the desired new height, ensuring they are at the same level on all four poles and securely snapped into the grooves.
- Lower the shelf onto the newly positioned clips.

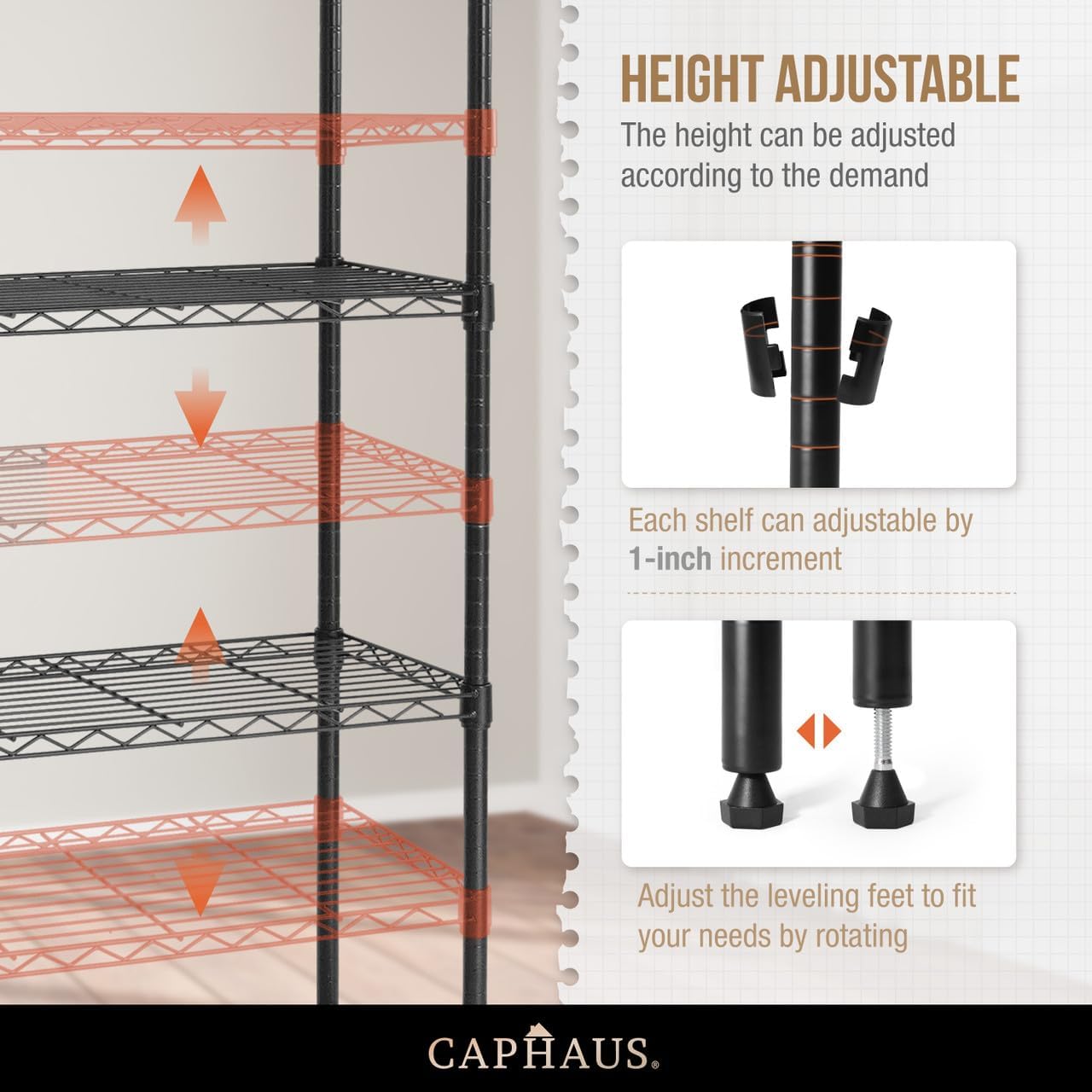

Image: Visual representation of how shelves can be adjusted vertically in 1-inch increments and how to rotate leveling feet for stability.
Using Shelf Liners
The included clear liners provide a smooth, flat surface, preventing small items from falling through the wire gaps and making cleaning easier. Simply place one liner on each wire shelf after assembly.
Image: A demonstration of the smooth, steady surface provided by the shelf liners, preventing small items from falling through.
Care and Maintenance
- Cleaning: Wipe the shelving unit with a dry cloth to remove dust and debris. For more stubborn dirt, use a damp cloth with mild soap and water, then dry immediately to prevent rust.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Regular Inspection: Periodically check all connections and clips to ensure they remain secure.
- Weight Distribution: Always distribute weight evenly across the shelves to maintain stability and prevent warping.
Troubleshooting
- Problem: The shelving unit is wobbly or unstable.
- Solution: Ensure the unit is placed on a flat surface. Adjust the leveling feet at the bottom of each pole by rotating them until the unit is stable and level. Check that all plastic clips are securely snapped into the pole grooves and that shelves are fully seated.
- Problem: A shelf is not level.
- Solution: Remove items from the shelf. Check that the plastic clips on all four poles supporting that shelf are at the exact same height and securely locked into the grooves. Re-adjust if necessary.
- Problem: Small items fall through the wire gaps.
- Solution: Utilize the included clear shelf liners. These liners provide a solid surface to prevent small objects from falling through.
Specifications
| Feature | Detail |
|---|---|
| Model Name | RWWHLAL |
| Item Model Number | RWW-CH30145L-SV@CH-HLAL |
| Product Dimensions | 14"D x 30"W x 59"H |
| Number of Shelves | 5 |
| Weight Limit per Shelf | 250 lbs (evenly distributed) |
| Total Max Weight Capacity | 1250 lbs |
| Material | High quality steel with silver grey paint coated |
| Special Features | Adjustable shelf height, Durable, NSF Certified, Includes Liners |
| Finish Type | Painted |
| Assembly Required | Yes |
| Recommended Uses | Garage, Kitchen, Living Room, Office, Storage Room |
Warranty and Customer Support
CAPHAUS is committed to providing high-quality products and customer satisfaction. For specific warranty details, please refer to the warranty card included with your purchase or visit the official CAPHAUS website.
If you encounter any issues with your shelving unit, require replacement parts, or have questions not covered in this manual, please contact our customer service team. We are dedicated to assisting you.
Contact Information:
- Online Support: Visit the CAPHAUS Store on Amazon
- Email: Refer to your product packaging or warranty card for direct email support.
