1. Introduction
Thank you for choosing the VGR Professional Grooming Kit V-102. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new grooming device. Please read this manual thoroughly before first use and keep it for future reference.
2. Safety Information
Important Safety Precautions:
- Use on dry skin only.
- Avoid contact with water. This device is not waterproof.
- Exercise caution when trimming near sensitive areas of the body.
- Always unplug the trimmer before cleaning or storing to prevent accidental activation.
- Do not use this product on infants or young children.
- This product is designed for personal grooming and should not be used for any other purpose.
3. Package Contents
Your VGR Professional Grooming Kit V-102 includes the following items:
- Main Grooming Device (V-102)
- Full-size Trimmer Head
- Precision Trimmer Head
- Shaver Head
- Nose Trimmer Head
- Design Trimmer Head
- 5 Adjustable Cutting Guide Combs (for various trimming lengths)
- Storage Base
- USB Charging Cable
- Cleaning Brush
- Blade Oil
Image: The back of the product packaging, illustrating all included components such as the main device, various trimmer heads, guide combs, charging cable, cleaning brush, and blade oil.
4. Product Overview
The VGR V-102 is a versatile cordless grooming kit designed for various hair trimming needs. It features a durable stainless steel blade for efficient and precise cutting.
Image: The main VGR V-102 grooming device, showcasing its camouflage design and control buttons.
Key Features:
- Multi-purpose Design: Includes heads for full-size trimming, precision trimming, shaving, nose hair trimming, and design work.
- High-Quality Blade: Equipped with a stainless steel blade for efficient, accurate, and smooth shaving.
- Adjustable Trimming Lengths: Five adjustable cutting guide combs allow length adjustments from 0mm to 12mm.
- Cordless Operation: Powered by a 600mAh lithium-ion battery.
- Portable Charging: Can be charged via USB using a power bank, 5V=1A adapters, or a computer.
- LED Display:
5. Setup
Before using your VGR V-102 grooming kit for the first time, please follow these steps:
- Unpack: Carefully remove all components from the packaging.
- Inspect: Check the device and all accessories for any signs of damage. Do not use if damaged.
- Initial Charge: Fully charge the device before its first use. Refer to the "Charging" section for detailed instructions.
- Attach Head: Select the desired trimmer head (e.g., full-size trimmer, precision trimmer) and align it with the main unit. Gently push until it clicks into place.
- Attach Guide Comb (if needed): If using a guide comb, slide it onto the trimmer head until it is securely attached. Ensure the desired length setting is selected.

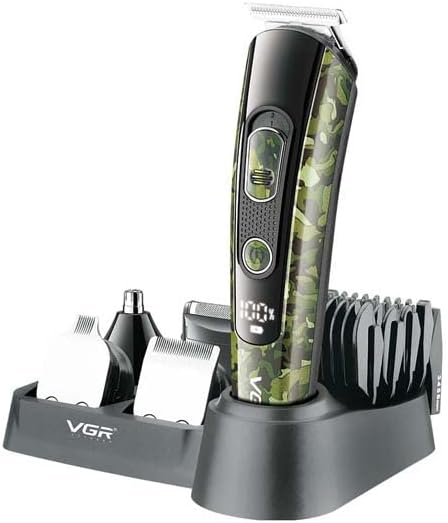

Image: The VGR V-102 main unit placed on its charging base, surrounded by its various interchangeable trimmer heads and guide combs, illustrating the complete setup.
6. Charging
The VGR V-102 grooming kit is equipped with a powerful 600mAh lithium-ion battery, providing extended cordless operation.
Charging Instructions:
- Ensure the device is turned off before charging.
- Connect the USB charging cable to the charging port on the device or the charging base.
- Plug the other end of the USB cable into a compatible power source, such as a power bank, a 5V=1A adapter, or a computer's USB port.
- The LED display on the device will indicate the charging status.
- A full charge takes approximately 2 hours. Once fully charged, the device provides up to 150 minutes of cordless operating time.
- Disconnect the charging cable once charging is complete.
7. Operating Instructions
Follow these guidelines for optimal performance and safety when using your VGR V-102 grooming kit.
General Operation:
- Ensure the desired trimmer head and guide comb (if applicable) are securely attached.
- Press the power button to turn on the device.
- Gently place the blade against the skin and move the trimmer slowly against the direction of hair growth.
- For best results, ensure your skin is dry before use.
- This product can be used once per day.
Image: A close-up view of the VGR V-102 grooming device being held in a hand, demonstrating its ergonomic design during use.
Using Different Trimmer Heads:
- Full-size Trimmer: Ideal for defining hair around the neckline and for general hair trimming.
- Precision Trimmer: Used for defining straight lines and curved edges for detailed grooming.
- Shaver: For achieving a close, clean, and smooth shave.
- Nose Trimmer: Designed for safely and comfortably trimming nose and ear hair.
- Design Trimmer: For creating personalized beard designs and other modeling styles.
Adjusting Trimming Length:
The five adjustable cutting guide combs allow you to set the trimming length from 0mm (without a comb) up to a maximum of 12mm. Select the appropriate comb for your desired hair length and attach it securely to the trimmer head.
8. Maintenance and Cleaning
Regular maintenance ensures the longevity and optimal performance of your VGR V-102 grooming kit.
- Turn Off and Unplug: Always ensure the device is turned off and unplugged from the power source before cleaning.
- Remove Head: Detach the trimmer head from the main unit.
- Clean Blades: Use the provided cleaning brush to remove any hair clippings from the blades and inside the trimmer head.
- Oil Blades: After every few uses, apply a small drop of the provided blade oil to the blades. Turn on the device for a few seconds to distribute the oil evenly. This helps maintain blade sharpness and reduces friction.
- Wipe Body: Wipe the main body of the device with a clean, dry cloth. Do not rinse the main unit under water.
- Storage: Store the device and all accessories in a cool, dry place, preferably in its original packaging or on the provided storage base.
9. Troubleshooting
If you encounter any issues with your VGR V-102 grooming kit, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Battery is depleted. | Charge the device fully (refer to Section 6). |
| Poor trimming performance / pulling hair. | Blades are dull or clogged with hair. | Clean the blades thoroughly and apply blade oil (refer to Section 8). If blades are dull, consider replacement if available. |
| Device makes unusual noise. | Lack of lubrication or foreign object. | Apply blade oil. Check for any obstructions in the blade area and remove them carefully. |
| Charging indicator not working. | Faulty charging cable or power source. | Try a different USB cable or power adapter (ensure it's 5V=1A). |
If the problem persists after trying these solutions, please contact customer support for further assistance.
10. Specifications
| Feature | Detail |
|---|---|
| Brand | VGR |
| Model Number | V-102 |
| Power Source | Battery Operated (Cordless) |
| Blade Material | Stainless Steel |
| Battery Type | Lithium Ion (600mAh) |
| Operating Time | Up to 150 minutes |
| Charging Time | Approximately 2 hours |
| Product Dimensions | 17 x 5 x 5 cm |
| Item Weight | 400 grams |
| Country of Origin | China |
| Color | Camouflage |
| Hair Type Compatibility | All Hair Types |
11. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact the retailer where you purchased the VGR Professional Grooming Kit V-102. Extended protection plans may also be available from your retailer.
For technical support or inquiries, please visit the official VGR website or contact their customer service department using the contact information provided in your product packaging.
