BIUBLE CR2025

BIUBLE CR2025 3V Lithium Button Cell Battery User Manual

Model: CR2025

1. Introduction

This manual provides essential information for the safe and effective use of BIUBLE CR2025 3V Lithium Button Cell Batteries. Please read this manual thoroughly before using the product and retain it for future reference.

2. Safety Information

WARNING: KEEP BATTERIES AWAY FROM CHILDREN. Swallowing may lead to serious injury or death in as little as 2 hours due to chemical burns and potential perforation of the esophagus. Seek immediate medical attention if a battery is swallowed.

  • Handle cells with clean, dry fingers.
  • Do not place fingers on the flat ends (terminals) of the battery.
  • Insert batteries with correct polarity (+ and -).
  • Do not short-circuit, recharge, disassemble, heat above 140°F (60°C), or incinerate.
  • Keep unused cells in a cool, dry place, away from direct sunlight.
  • Do not use different kinds of cells together.
Diagram showing correct and incorrect handling of button cell batteries, and warnings against short-circuiting and mixing battery types.
Figure 2.1: Important safety precautions for handling and storing button cell batteries.

3. Product Specifications

The BIUBLE CR2025 batteries are designed for reliable performance in various electronic devices.

  • Brand: BIUBLE
  • Model: CR2025
  • Battery Cell Composition: Lithium
  • Voltage: 3 Volts
  • Size: 20mm diameter * 2.5mm thickness
  • Features: Leak-free, mercury-free, nickel plating, stable and durable discharge capacity.
  • Unit Count: 100 pieces (typically packaged in 5-piece blister packs)
  • Period of Validity: 2 Years

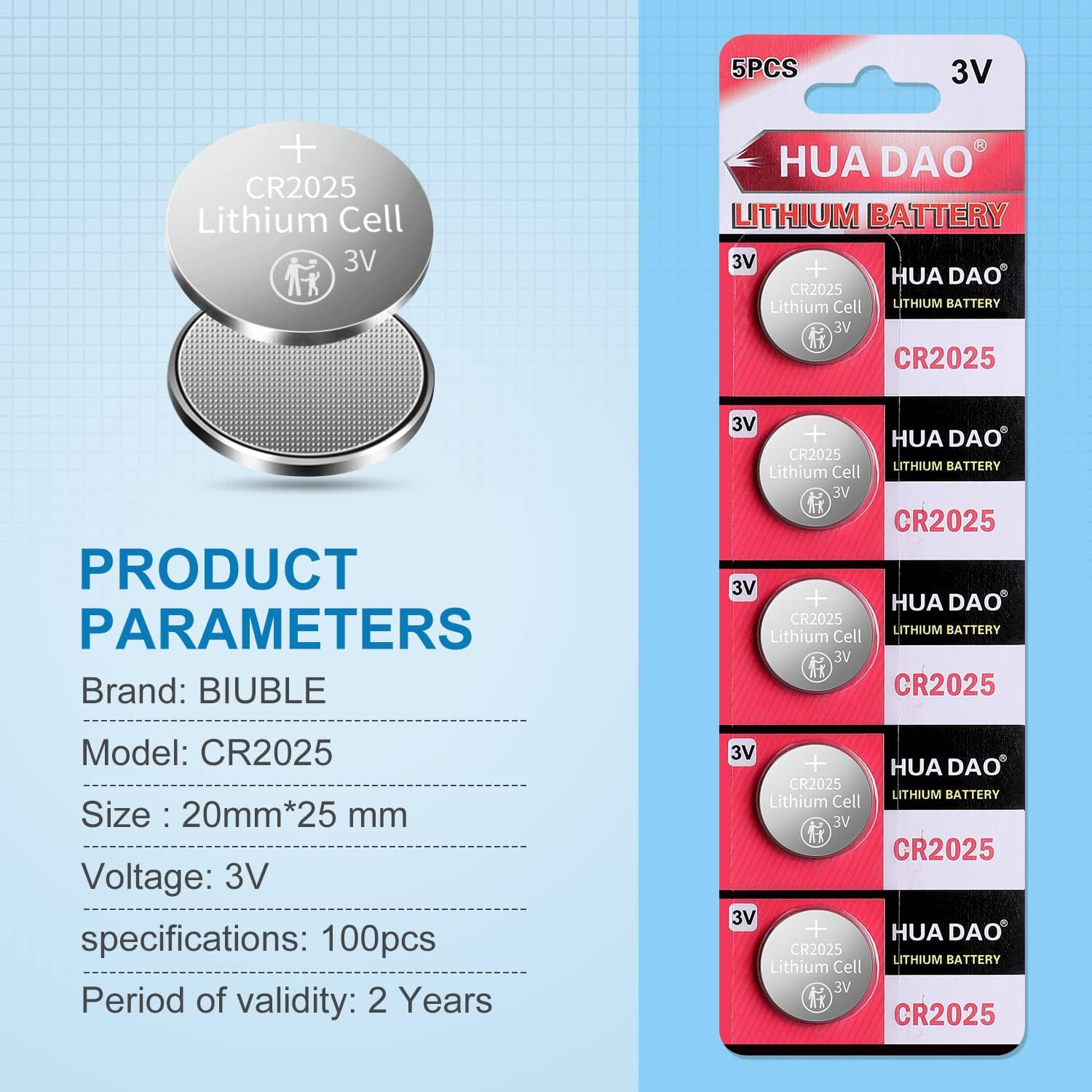

Image displaying product parameters for BIUBLE CR2025 Lithium Cell, including brand, model, size, voltage, specifications, and validity period.
Figure 3.1: Detailed product parameters of the CR2025 battery.
Graph showing voltage discharge over time for BIUBLE CR2025 Coin Button Cell, highlighting 3V & 140mAh, multi-protection, long life, no pollution, and powerful energy.
Figure 3.2: Voltage discharge characteristics and key features of the BIUBLE CR2025 battery.

4. Recommended Uses

These CR2025 batteries are suitable for a wide range of small electronic devices:

  • Remote controls (e.g., car key fobs, garage door openers)
  • Watches
  • Computer motherboards (CMOS batteries)
  • Calculators
  • Electronic organizers
  • Toys
  • MP3 players
  • Digital voice recorders
  • Door chimes
  • Pet collars
  • LED lights
  • Flameless candles
Circular diagram illustrating various applications for CR2025 batteries, including smart water bottles, doorbells, watches, car key remotes, and flameless candles.
Figure 4.1: Common applications for CR2025 button cell batteries.

5. Installation and Replacement

To install or replace a CR2025 battery:

  1. Identify the battery compartment on your device. This may require a small screwdriver or a coin to open.
  2. Carefully remove the old battery, noting its orientation (which side is positive and which is negative).
  3. Ensure your hands are clean and dry. Avoid touching the flat surfaces of the new battery to prevent transferring oils or dirt.
  4. Insert the new CR2025 battery according to the polarity markings in the device's compartment. The positive (+) side is usually marked and should face upwards.
  5. Close the battery compartment securely.
  6. Test the device to ensure proper function.

6. Storage and Maintenance

Proper storage and maintenance extend battery life and ensure safety:

  • Store unused batteries in their original packaging in a cool, dry place at room temperature.
  • Avoid extreme temperatures and direct sunlight.
  • Do not store batteries loosely or with metal objects to prevent short-circuiting.
  • Check the expiration date on the packaging before use.

7. Troubleshooting

If your device is not functioning after battery replacement:

  • Check Polarity: Ensure the battery is inserted with the correct positive (+) and negative (-) orientation.
  • Secure Connection: Verify that the battery is seated firmly in its compartment and the cover is closed properly.
  • New Battery: Try a different new battery from the pack to rule out a faulty cell.
  • Device Issue: If the problem persists, the issue might be with the device itself, not the battery. Consult your device's manual.

8. Disposal

Dispose of used batteries responsibly according to local regulations. Do not dispose of batteries in household waste or by incineration. Many retailers and community centers offer battery recycling programs.

9. Warranty and Support

If you encounter any issues with your BIUBLE batteries, please contact us. A new replacement will be sent to you promptly.

© 2026 BIUBLE. All rights reserved.
