1. Introduction
Thank you for choosing the Cecotec Fun&Sugar Marshmallow Maker. This appliance is designed for heating marshmallows and s'mores ingredients, providing a convenient and enjoyable experience. To ensure safe operation and optimal performance, please read this instruction manual thoroughly before first use and retain it for future reference.
Image 1.1: The Cecotec Fun&Sugar Marshmallow Maker, showcasing its main unit, removable trays filled with marshmallows, and two metal roasting forks.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Please observe the following:
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs. The heating element and surrounding areas become very hot during operation.
- To protect against electrical hazards, do not immerse the cord, plugs, or the appliance itself in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from the outlet when not in use and before cleaning. Allow to cool completely before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to "off," then remove the plug from the wall outlet.
- Do not use the appliance for anything other than its intended use.
- This appliance operates without an open flame, reducing fire risk. However, exercise caution as the heating element still generates significant heat.
- Ensure the appliance is placed on a stable, heat-resistant surface during operation.
3. Product Components
Familiarize yourself with the parts of your Cecotec Fun&Sugar Marshmallow Maker:
- Main Heating Unit: Contains the electrical heating element and power switch.
- Removable Trays (4): Designed to hold marshmallows, cookies, or other s'mores ingredients. These trays can be detached for easy cleaning and serving.
- Metal Roasting Forks (2): Used to hold marshmallows over the heating element.
- Stainless Steel Cover: Protects the heating element and helps distribute heat.

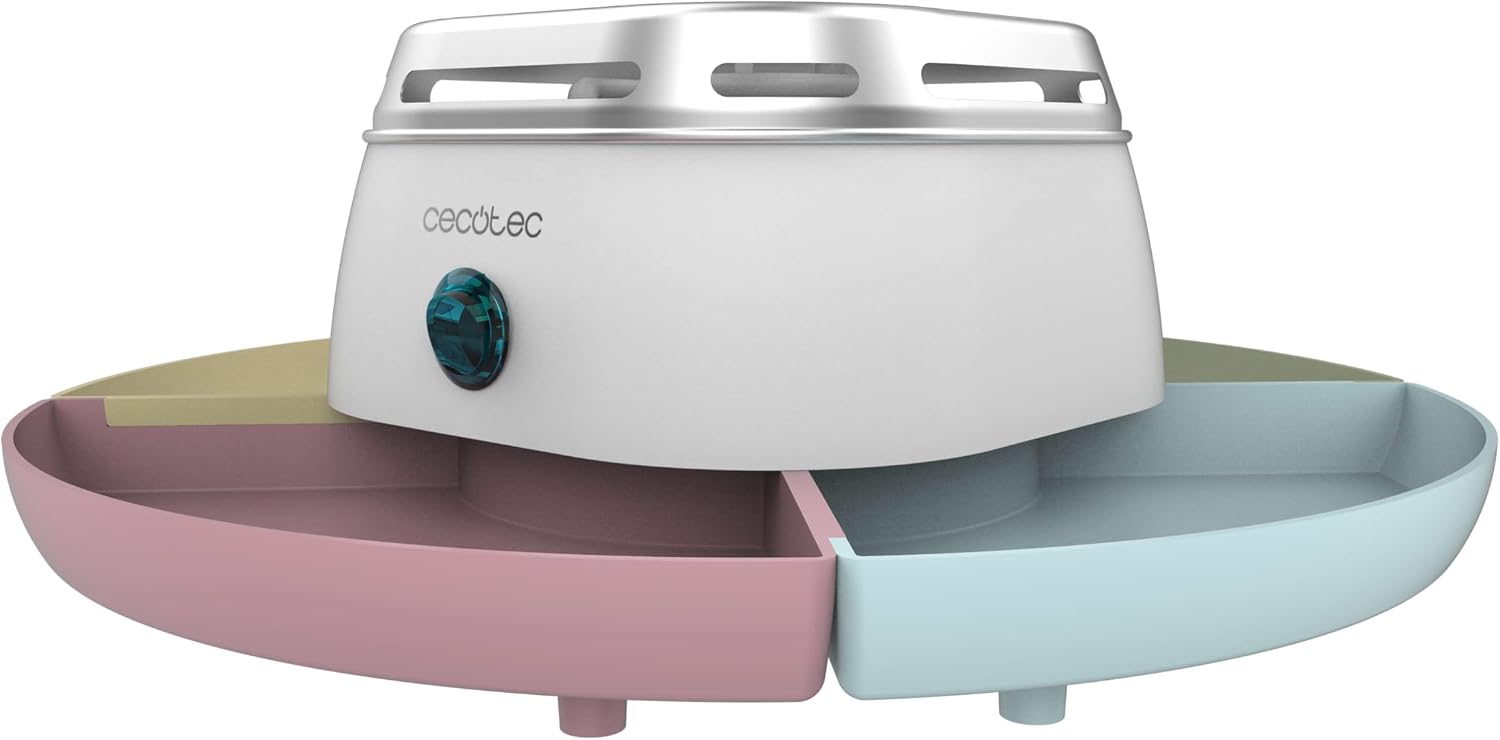

Image 3.1: Front view of the marshmallow maker, showing the main unit and the four removable compartments.
Image 3.2: A close-up view of the internal heating element of the marshmallow maker, visible when the top cover is removed.
4. Setup
Follow these steps to set up your marshmallow maker:
- Unpack: Carefully remove all components from the packaging. Retain packaging for storage if desired.
- Clean: Before first use, wash the removable trays and metal forks with warm, soapy water. Rinse thoroughly and dry completely. Wipe the main heating unit with a damp cloth.
- Assemble Trays: Position the four removable trays around the base of the main heating unit. They are designed to fit snugly.
- Placement: Place the assembled marshmallow maker on a stable, flat, and heat-resistant surface, away from flammable materials. Ensure there is adequate ventilation around the unit.
- Connect Power: Plug the power cord into a standard electrical outlet.
Image 4.1: The marshmallow maker with its four removable trays detached, illustrating the ease of assembly and cleaning.
5. Operating Instructions
Enjoy perfectly heated marshmallows and s'mores with these simple steps:
- Prepare Ingredients: Place marshmallows, chocolate, graham crackers, or other desired s'mores ingredients into the removable trays.
- Power On: Locate the power switch on the front of the main heating unit and switch it to the "ON" position. The indicator light will illuminate, signifying the heating element is active.
- Heat Marshmallows: Carefully place a marshmallow onto one of the metal roasting forks. Hold the marshmallow directly over the heating element, rotating it slowly to ensure even heating. The flameless heating element will gently toast the marshmallow to your desired level of golden brown.
- Assemble S'mores: Once the marshmallow is heated, place it onto a graham cracker with a piece of chocolate, then top with another graham cracker to create a s'more.
- Repeat: Continue heating marshmallows as desired.
- Power Off: When finished, switch the power button to the "OFF" position and unplug the appliance from the wall outlet. Allow the unit to cool completely before cleaning or storing.
Image 5.1: A close-up of the power switch on the marshmallow maker, with a finger activating it. Various small candies are visible in the trays.
Image 5.2: Two metal forks are shown holding marshmallows directly above the heating element, demonstrating the toasting process.
Image 5.3: A hand holds a marshmallow on a fork, toasted to a golden brown, above the marshmallow maker.
6. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your appliance:
- Unplug and Cool: Always ensure the appliance is unplugged and completely cool before attempting any cleaning.
- Clean Removable Parts: The removable trays and metal forks can be washed by hand with warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion. These parts may also be dishwasher safe (check product label for confirmation).
- Clean Main Unit: Wipe the exterior of the main heating unit with a soft, damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the main unit in water or any other liquid.
- Storage: Store the cleaned and dried appliance in a cool, dry place.
7. Troubleshooting
If you encounter issues with your marshmallow maker, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power switch off; no power at outlet. | Ensure the power cord is securely plugged into a working outlet. Check if the power switch is in the "ON" position. Test the outlet with another appliance. |
| Marshmallows are not heating evenly. | Insufficient rotation; marshmallow too far from heating element. | Rotate the marshmallow continuously over the heating element. Ensure the marshmallow is positioned close enough to the element without touching it. |
| Plastic smell during first use. | Normal initial burn-off of manufacturing residues. | This is common during the first few uses and should dissipate. Ensure good ventilation. If the smell persists or is strong, discontinue use and contact customer support. |
If the problem persists after attempting these solutions, please contact Cecotec customer support.
8. Specifications
- Model: 03832
- Brand: Cecotec
- Power: 270 W
- Dimensions (L x W x H): 33.1 x 10 x 17.2 cm
- Weight: 1.02 kg
- Material: Plastic, Iron
9. Warranty and Support
Cecotec products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Cecotec website.
- Spare Parts Availability: Spare parts for this product are available for 10 years from the date of purchase.
- Customer Support: For any questions, technical assistance, or warranty claims, please contact Cecotec customer support through their official channels.
