Cecotec Bolero Flux PM 606500 Pyramidal Range Hood User Manual

1. Introduction

Thank you for choosing the Cecotec Bolero Flux PM 606500 Pyramidal Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.

2. Safety Instructions

General Safety:

• Read all instructions carefully before installation and use.
• Keep this manual for future reference.
• Ensure the electrical supply matches the rating plate on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambé under the range hood.
• Do not leave frying pans unattended during use as overheated fats or oils can ignite.
• Clean the range hood regularly to avoid grease accumulation, which can be a fire hazard.
• Ensure adequate ventilation in the room when the range hood is used simultaneously with appliances burning gas or other fuels.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• Regulations concerning the discharge of air must be fulfilled.
• Disconnect the appliance from the main power supply before any cleaning or maintenance.

3. Product Overview

The Cecotec Bolero Flux PM 606500 is a 60 cm pyramidal wall-mounted range hood designed for efficient kitchen ventilation. It features a powerful 165 W motor, offering a suction capacity of 650 m³/h, and is equipped with mechanical controls for ease of use.

Key Features:

• Spacious Width: 60 cm width suitable for various kitchen layouts.
• Powerful Suction: 165 W motor with 650 m³/h extraction capacity.
• Mechanical Control: Easy-to-use manual controls with 3 power levels.
• Effective Filtration: Includes Ø176 carbon filters for odor elimination and 5-layer aluminum grease filters.
• LED Lighting: Integrated LED lights for illuminating the cooking area.
• Material: Durable stainless steel finish.

Figure 1: Front view of the Cecotec Bolero Flux PM 606500 range hood.

Figure 2: Mechanical control panel with buttons for light and fan speeds.

4. Setup and Installation

This range hood is designed for wall-mounted installation and can operate in either ducted or recirculating (ductless) mode. Ensure you have the necessary tools and follow local building codes and regulations.

Dimensions:

Product dimensions: 51D x 60B x 105.2H centimeters (51 x 60 x 105.2 cm).

Figure 3: Product dimensions for installation planning.

Installation Steps (General):

1. Preparation: Unpack the range hood and check for any damage. Ensure all components are present.
2. Mounting Height: Determine the appropriate mounting height above your cooking surface. Refer to local regulations and the manufacturer's recommendations (typically 65-75 cm above an electric hob and 75-85 cm above a gas hob).
3. Wall Mounting: Mark the drilling points on the wall according to the mounting template (if provided) or product dimensions. Drill holes and insert wall plugs.
4. Secure the Hood: Mount the range hood securely to the wall using appropriate screws.
5. Ducting (if applicable): Connect the exhaust ducting to the outlet of the range hood and vent it to the outside. Ensure the ducting is as short and straight as possible for optimal performance.
6. Recirculation (if applicable): If using in recirculation mode, install the carbon filters (see Maintenance section) and ensure the air outlet is clear for filtered air to return to the kitchen.
7. Electrical Connection: Connect the range hood to a suitable power outlet, ensuring it complies with local electrical safety standards.
8. Final Checks: Test all functions (fan speeds, lights) to ensure proper operation.

5. Operating Instructions

Your Cecotec Bolero Flux PM 606500 range hood features mechanical controls for easy operation of its functions.

Control Panel:

The control panel consists of several buttons or knobs to manage the fan speed and lighting. Refer to Figure 2 for a visual guide.

• Power Button: Turns the range hood on or off.
• Fan Speed Buttons (1, 2, 3): Select one of the three available fan speeds to adjust the extraction power according to your cooking needs.
• Light Button: Turns the integrated LED lights on or off to illuminate your cooking area.

Using the Range Hood:

1. Before Cooking: It is recommended to turn on the range hood a few minutes before you start cooking to create an airflow that captures steam and odors more effectively.
2. During Cooking: Select the appropriate fan speed based on the intensity of cooking. Use lower speeds for simmering and higher speeds for frying or grilling.
3. After Cooking: Leave the range hood running for a few minutes after you finish cooking to clear any remaining steam or odors from the kitchen.
4. Lighting: Use the light button to switch on the LED lights for better visibility over your hob.

Figure 4: Range hood in operation with LED lighting.

6. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the lifespan of your range hood. Always disconnect the appliance from the power supply before cleaning or maintenance.

Cleaning the Exterior:

• Wipe the stainless steel surfaces with a soft cloth and a mild, non-abrasive cleaner.
• Avoid using harsh chemicals, abrasive pads, or steel wool, as these can damage the finish.
• For stubborn stains, use a stainless steel cleaner specifically designed for kitchen appliances.

Cleaning Aluminum Grease Filters:

The 5-layer aluminum grease filters capture airborne grease particles. They should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain suction efficiency.

1. Removal: Carefully unlatch and remove the aluminum grease filters from the underside of the hood.
2. Cleaning: The filters are dishwasher safe. Alternatively, wash them by hand in hot water with a mild detergent. Ensure they are completely dry before reinstallation.
3. Reinstallation: Insert the dry filters back into their slots until they click into place.

Figure 5: Aluminum grease filters are easy to remove and dishwasher safe.

Replacing Carbon Filters (for Recirculation Mode):

If your range hood is operating in recirculation mode, it uses Ø176 carbon filters to remove odors. These filters are not washable and must be replaced periodically (typically every 3-6 months, depending on usage).

1. Removal: Remove the aluminum grease filters first. The carbon filters are usually attached to the motor housing. Follow the specific instructions in your product's detailed manual for removal.
2. Replacement: Install new carbon filters, ensuring they are securely fitted.
3. Reinstallation: Reinstall the aluminum grease filters.

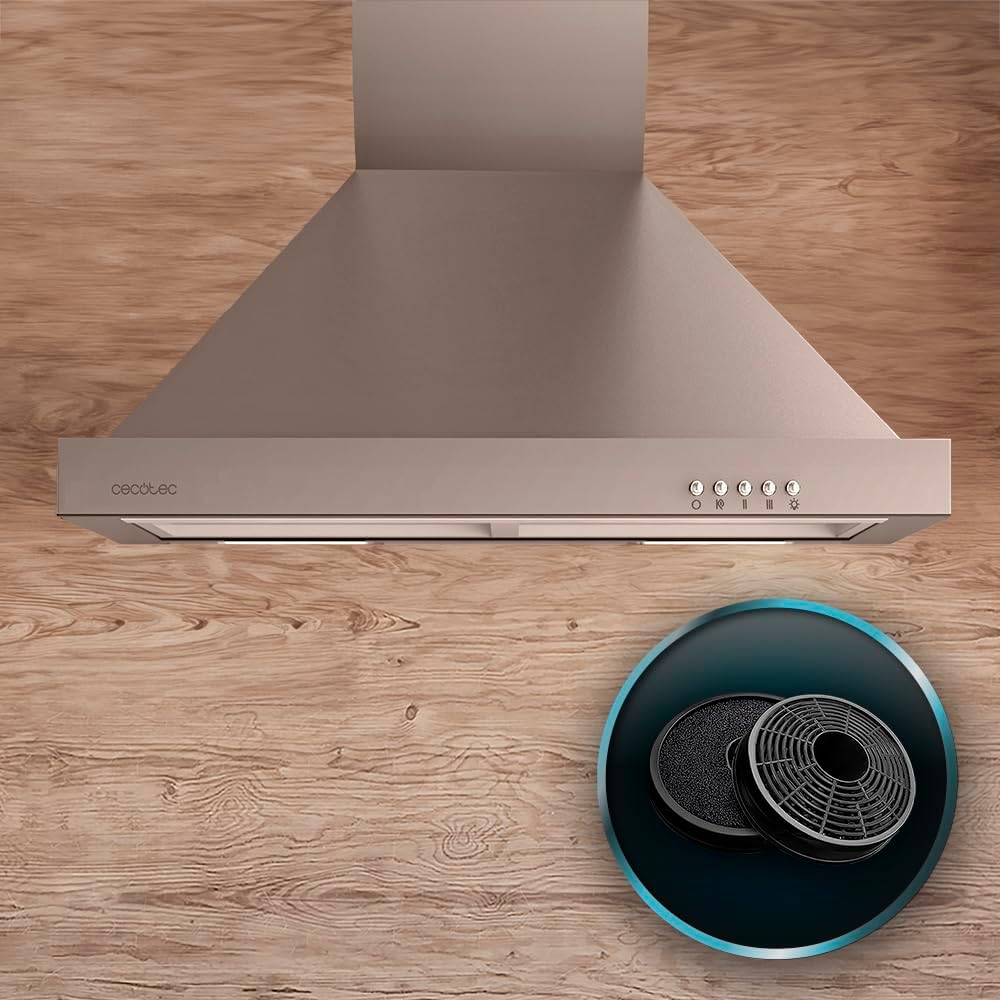

Figure 6: Carbon filters for odor removal in recirculation mode.

7. Troubleshooting

Before contacting customer service, please check the following common issues:

8. Specifications

Detailed technical specifications for the Cecotec Bolero Flux PM 606500 range hood:

9. Warranty and Support

Your Cecotec Bolero Flux PM 606500 range hood comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.

For technical assistance, spare parts, or warranty claims, please contact Cecotec customer support. Keep your purchase receipt and product model number (02870) handy when contacting support.

Online Support:

Visit the official Cecotec website for FAQs, additional resources, and contact information.
