WFLY RG209S 9-Channel RC Receiver Instruction Manual

1. Product Overview

The WFLY RG209S is a 9-channel RC receiver designed for use with WFLY X9 series transmitters. It features support for external gyroscope modules and GPS for speed detection, making it suitable for various RC applications including racing cars and rock crawlers.

Image 1.1: Front view of the WFLY RG209S receiver, showing the channel ports and antenna.

Key Features:

• 9 channels for comprehensive control.
• Compatible with WFLY X9 transmitters.
• Supports external gyroscope module for enhanced stability.
• Integrated GPS support for speed detection.
• Compact dimensions suitable for various RC models.

2. What's in the Box

Verify that all components are present upon unboxing:

• 1x WFLY RG209S RC Receiver
• 1x Voltage Inspection Wire

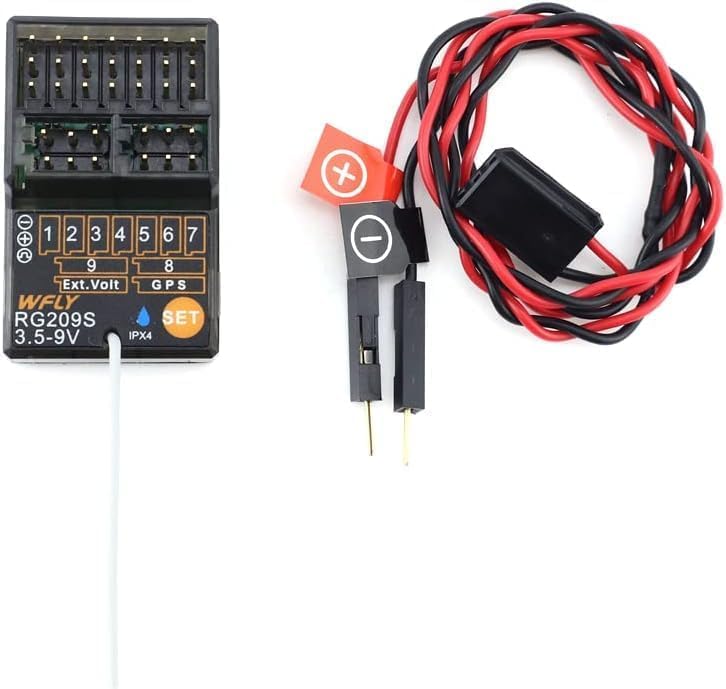

Image 2.1: The WFLY RG209S receiver packaged with its voltage inspection wire.

3. Setup and Binding

Follow these steps to properly set up and bind your RG209S receiver with your WFLY X9 transmitter.

3.1 Receiver Layout

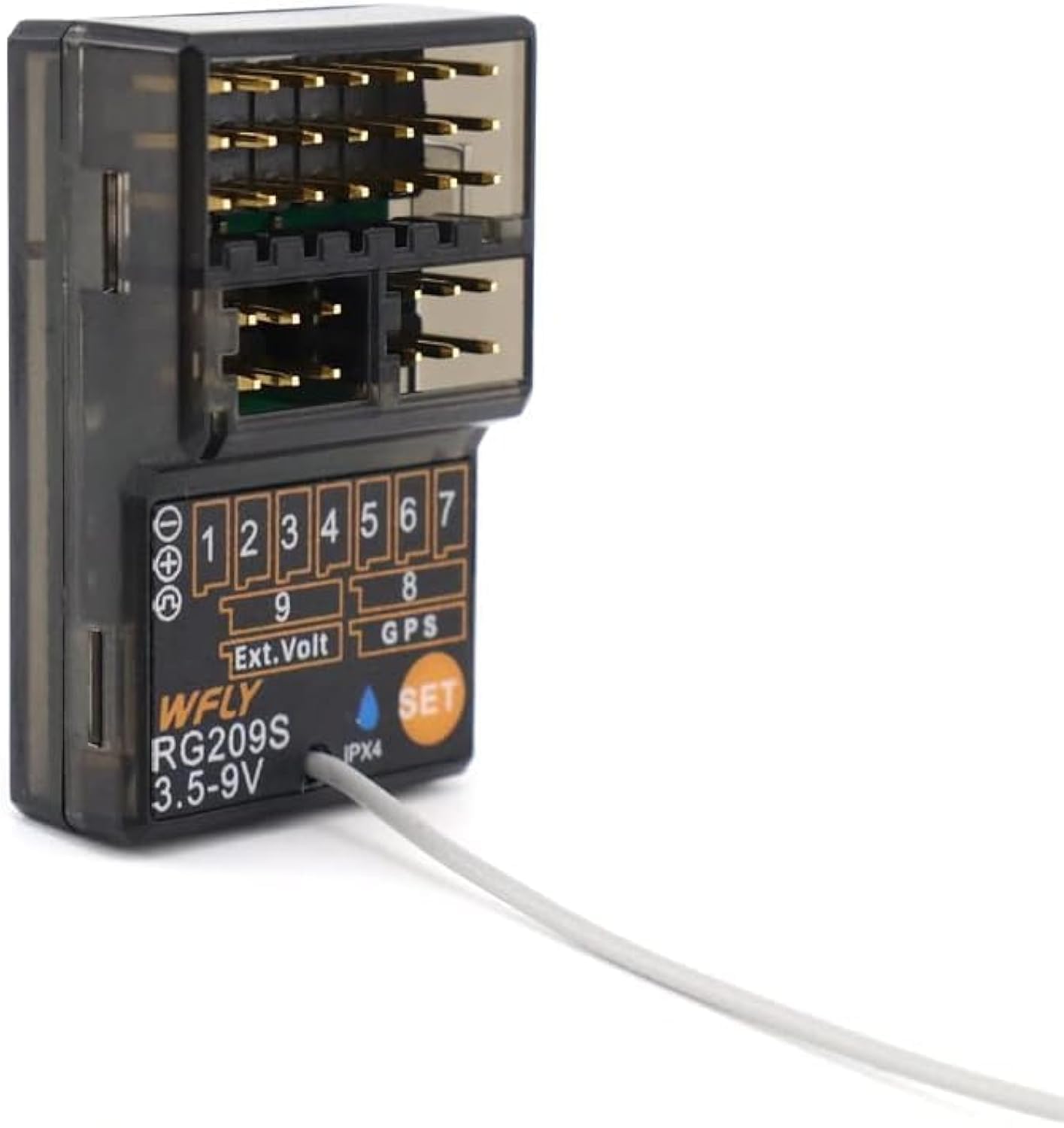

Image 3.1: Detailed view of the RG209S receiver showing channel ports 1-9, external voltage port, GPS port, and SET button.

3.2 Binding Procedure

1. Ensure your WFLY X9 transmitter is powered off.
2. Connect a power source (e.g., ESC or separate battery) to any channel port on the RG209S receiver.
3. Press and hold the SET button on the receiver while powering it on. The receiver's LED indicator will flash rapidly, indicating it is in binding mode.
4. Power on your WFLY X9 transmitter. Navigate to the binding menu on your transmitter and initiate the binding process.
5. Once binding is successful, the receiver's LED will turn solid. Power cycle both the transmitter and receiver to confirm the binding.

Note: Some users have reported compatibility issues with newer X9S transmitters requiring specific firmware updates. Refer to WFLY's official support for the latest firmware and compatibility information if you encounter difficulties.

4. Operation

After successful binding, the receiver is ready for operation. Connect your servos, ESC, and other accessories to the appropriate channels.

4.1 External Voltage Monitoring

Connect the provided voltage inspection wire to the 'Ext. Volt' port on the receiver and to your main battery to monitor its voltage through your WFLY X9 transmitter.

4.2 GPS Functionality

The RG209S supports GPS modules for speed detection. Connect a compatible GPS module to the 'GPS' port on the receiver. Refer to your GPS module's instructions for specific setup and calibration.

4.3 External Gyroscope Module

For enhanced stability, an external gyroscope module can be connected. Consult the gyroscope module's manual for connection details and configuration with the RG209S receiver.

5. Maintenance and Care

To ensure the longevity and optimal performance of your WFLY RG209S receiver, observe the following maintenance guidelines:

• Cleaning: Gently clean the receiver with a soft, dry cloth. Avoid using solvents or harsh chemicals.
• Storage: Store the receiver in a dry, cool environment away from direct sunlight and extreme temperatures.
• Moisture Protection: The receiver has an IPX4 rating, indicating resistance to splashing water from any direction. However, it is not waterproof. Avoid submerging the receiver or exposing it to heavy rain.
• Antenna Placement: Ensure the receiver antenna is positioned correctly and not obstructed by carbon fiber or metal parts for optimal signal reception.

6. Troubleshooting

If you encounter issues with your RG209S receiver, refer to the following common troubleshooting steps:

• No Signal/Loss of Control:
  • Re-bind the receiver to the transmitter.
  • Check all wiring connections for security and correct polarity.
  • Ensure the transmitter batteries are charged.
  • Verify the receiver antenna is not damaged or obstructed.
• Intermittent Signal:
  • Check for sources of interference (e.g., other 2.4GHz devices, high-power electronics).
  • Ensure the receiver is not mounted directly against large metal surfaces.
• Receiver Not Powering On:
  • Confirm the power source is connected correctly and providing adequate voltage (3.5-9V).
  • Inspect the power wires for any damage.

For further assistance, contact WFLY customer support.

7. Specifications

Image 7.1: The RG209S receiver with dimensions indicated, showing its compact size.

8. Warranty and Support

WFLY products are manufactured to high standards. For warranty information, technical support, or service inquiries, please refer to the official WFLY website or contact your authorized dealer. Keep your proof of purchase for warranty claims.

Manufacturer: Shenzhen WFLY Technology Development Co.,Ltd
