1. Introduction
Thank you for choosing the AVERA CEV60N 60 cm Wall-Mounted Kitchen Hood. This appliance is designed to effectively remove smoke, steam, and odors from your kitchen, ensuring a fresh and clean cooking environment. Featuring a sleek design with tempered glass and stainless steel, LED lighting, and a powerful 3-speed motor, this hood combines functionality with modern aesthetics. Please read this manual carefully before installation and operation to ensure proper use and maintenance.

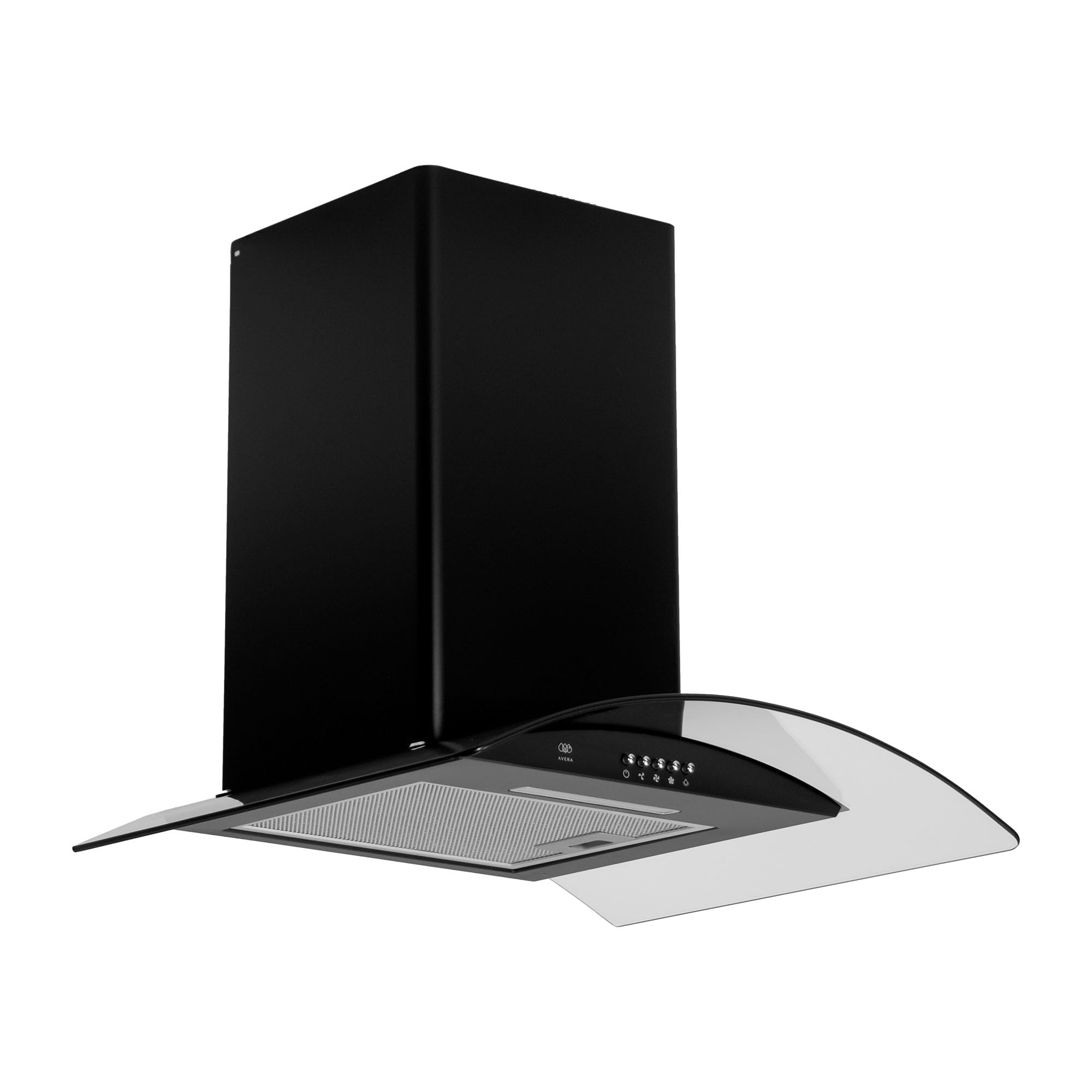

Image: Front view of the AVERA CEV60N kitchen hood, showcasing its curved tempered glass and black stainless steel finish.
2. Safety Information
Always adhere to basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. Keep this manual for future reference.
- Ensure the power supply matches the voltage specified on the appliance (127 V).
- Installation must be performed by a qualified technician in accordance with local regulations.
- Do not operate the hood if the power cord or plug is damaged.
- Maintain a safe distance between the hood and the cooking surface (recommended 65-75 cm).
- Clean grease filters regularly to prevent fire hazards.
- Do not flambé under the range hood.
- Ensure adequate ventilation in the room when the range hood is used simultaneously with gas or other fuel-burning appliances.
3. Product Overview
Key Features
- Dual Functionality: Operates as an extractor (ducted) or purifier (recirculation with carbon filters).
- Powerful Extraction: 124 W motor with 3 adjustable speeds for efficient air purification.
- Quiet Operation: Low noise levels, starting from 48 dB at the lowest speed.
- Efficient Lighting: Integrated 4 W LED light for clear visibility of your cooking area.
- Easy Maintenance: Includes a removable and washable metallic mesh filter and two activated carbon filters.
- Durable Construction: Made from high-quality stainless steel and tempered glass.
Components and Dimensions
Image: Diagram illustrating the dimensions of the AVERA CEV60N kitchen hood. It has a width of 60 cm, a depth of 50 cm, and a height of 94.5 cm. The total weight is 14.2 kg.
Image: Detailed diagram of the AVERA CEV60N kitchen hood, highlighting its control buttons (On/Off, 3-speed controls, LED light button), decorative chimney, pyramidal design, 1.5m 127V cable, two activated carbon filters, and one removable and washable metallic mesh filter.
4. Installation
The AVERA CEV60N is a wall-mounted kitchen hood. Proper installation is crucial for optimal performance and safety. A basic installation kit, including screws, is provided.
Installation Requirements:
- Mounting Type: Wall-mounted.
- Distance from Cooktop: Maintain a distance of 65 to 75 cm between the bottom of the hood and the cooking surface.
- Ventilation Options: The hood supports both ducted (exterior ventilation) and recirculation (interior ventilation with activated carbon filters) modes.
Image: The AVERA CEV60N kitchen hood installed above a gas cooktop, illustrating the recommended installation height. A basic installation kit with screws is shown in the top right corner.
Ventilation Modes:
Choose the appropriate ventilation mode for your kitchen setup:
- Duct Mode: Air is extracted outside through a duct system. This requires an external exhaust vent.
- Recirculation Mode: Air is filtered through activated carbon filters and then returned to the kitchen. This mode is suitable when external ducting is not possible. Ensure activated carbon filters are installed for this mode.
Image: Diagram illustrating the two ventilation modes: 'Ventilación exterior modo ducto' (exterior ventilation duct mode) where air is expelled, and 'Ventilación interior modo recirculación' (interior ventilation recirculation mode) where air is filtered and returned. Two activated carbon filters are shown at the bottom, which are used for recirculation mode.
5. Operating Instructions
The AVERA CEV60N kitchen hood features intuitive controls for easy operation.
Control Panel:
The control panel is located on the front of the hood and includes:
- On/Off Button: To power the hood on or off.
- Speed Buttons: Three buttons to select extraction speeds (Low, Medium, High).
- LED Light Button: To turn the 4W LED light on or off.
Speed Settings and Noise Levels:
Adjust the extraction speed based on your cooking needs. The hood operates at low noise levels:
- Low Speed: 48 dB
- Medium Speed: 53 dB
- High Speed: 56 dB
Image: This diagram illustrates the three extraction speeds (Low, Medium, High) and their respective low noise levels (48 dB, 53 dB, 56 dB) for the AVERA CEV60N kitchen hood, demonstrating quiet operation.
6. Maintenance and Cleaning
Regular maintenance ensures the longevity and efficiency of your kitchen hood.
Cleaning the Metallic Mesh Filter:
The metallic mesh filter is designed to trap grease and is washable. Clean it regularly (e.g., monthly, depending on usage) to maintain optimal performance.
- Turn off and unplug the hood before cleaning.
- Carefully remove the metallic mesh filter.
- Wash the filter by hand with warm soapy water or in a dishwasher.
- Allow the filter to dry completely before reinserting.
Replacing Activated Carbon Filters:
If using the hood in recirculation mode, the activated carbon filters absorb odors. These filters are not washable and must be replaced periodically (typically every 3-6 months, depending on usage).
- Turn off and unplug the hood.
- Remove the metallic mesh filter to access the carbon filters.
- Remove the old carbon filters and dispose of them.
- Install new carbon filters, ensuring they are securely in place.
- Reinstall the metallic mesh filter.
Image: A person demonstrating the removal of a filter from a kitchen hood, illustrating the process for cleaning or replacing filters.
Exterior Cleaning:
Clean the exterior surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals or abrasive pads that could damage the stainless steel or tempered glass finish.
7. Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on | No power supply; Power cord unplugged; Circuit breaker tripped | Check power connection; Plug in the power cord; Reset circuit breaker |
| Low extraction power | Grease filters clogged; Activated carbon filters saturated; Ducting obstructed; Incorrect installation height | Clean metallic mesh filters; Replace activated carbon filters; Check ducting for obstructions; Verify installation height (65-75 cm) |
| Excessive noise | Loose components; Improper installation; Obstruction in fan | Check for loose screws or parts; Ensure correct installation; Inspect fan for foreign objects |
| LED light not working | Light bulb faulty; Electrical connection issue | Replace LED bulb (if replaceable); Contact customer support for electrical issues |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | AVERA |
| Model Number | CEV60N |
| Color | Black |
| Material | Stainless Steel, Tempered Glass |
| Mounting Type | Wall Mount |
| Dimensions (Width x Depth x Height) | 60 cm x 50 cm x 94.5 cm (approximate height) |
| Weight | 14.2 Kg |
| Motor Power | 124 W |
| Voltage | 127 Volts |
| Number of Speeds | 3 |
| Noise Level (Min-Max) | 48 dB (Low) - 56 dB (High) |
| Lighting | 4 W LED Light |
| Filter Type | Washable Metallic Mesh Filter, Activated Carbon Filters |
| Ventilation Type | Ducted / Ductless (Recirculation) |
| Controls Type | Push Button |
9. Warranty and Support
The AVERA CEV60N kitchen hood comes with a 2-year warranty, ensuring peace of mind regarding its quality and performance.
Image: A visual representation of the AVERA CEV60N kitchen hood, highlighting its 2-year warranty.
For technical assistance, warranty claims, or any questions regarding your product, please contact AVERA customer support. Refer to the product packaging or the official AVERA website for contact details.
10. Product Videos
AVERA Wall-Mounted Kitchen Hood Overview
Video: This video provides an overview of an AVERA 60 cm wall-mounted kitchen hood, demonstrating its features and design. It shows the product from various angles and highlights key functionalities.
