1. Product Overview
The AUKEY LS02 Smart Watch is designed to help you monitor your daily activities and stay connected. It features a large 1.4-inch TFT screen with a 320 x 320 pixel resolution, providing clear display of information.
Key functionalities include:
- Display of daily activity information and phone notifications.
- Synchronization with the AUKEY Fit App for call, text, and chat message alerts.
- Control of your phone's music playlist directly from your wrist.
- Accurate fitness tracking for various activities like running, cycling, and walking.
- Monitoring of performance data such as steps, activity minutes, distance, and calories burned.
- Compatibility with both iPhone and Android smartphones.
Figure 1.1: Front view of the AUKEY LS02 Smart Watch, showing the display with time, date, and various health metrics.
2. Setup Guide
2.1. What's in the Box
Upon unboxing, please verify that all components are present:
- AUKEY LS02 Smart Watch (with strap attached)
- Charging Cable
- Instruction Manual (this document)
2.2. Initial Charging
Before first use, fully charge your AUKEY LS02 Smart Watch.
- Connect the magnetic charging cable to the charging contacts on the back of the watch.
- Plug the USB end of the charging cable into a standard USB power adapter (5V/1A recommended) or a computer's USB port.
- The watch display will indicate charging status. Allow approximately 2 hours for a full charge.

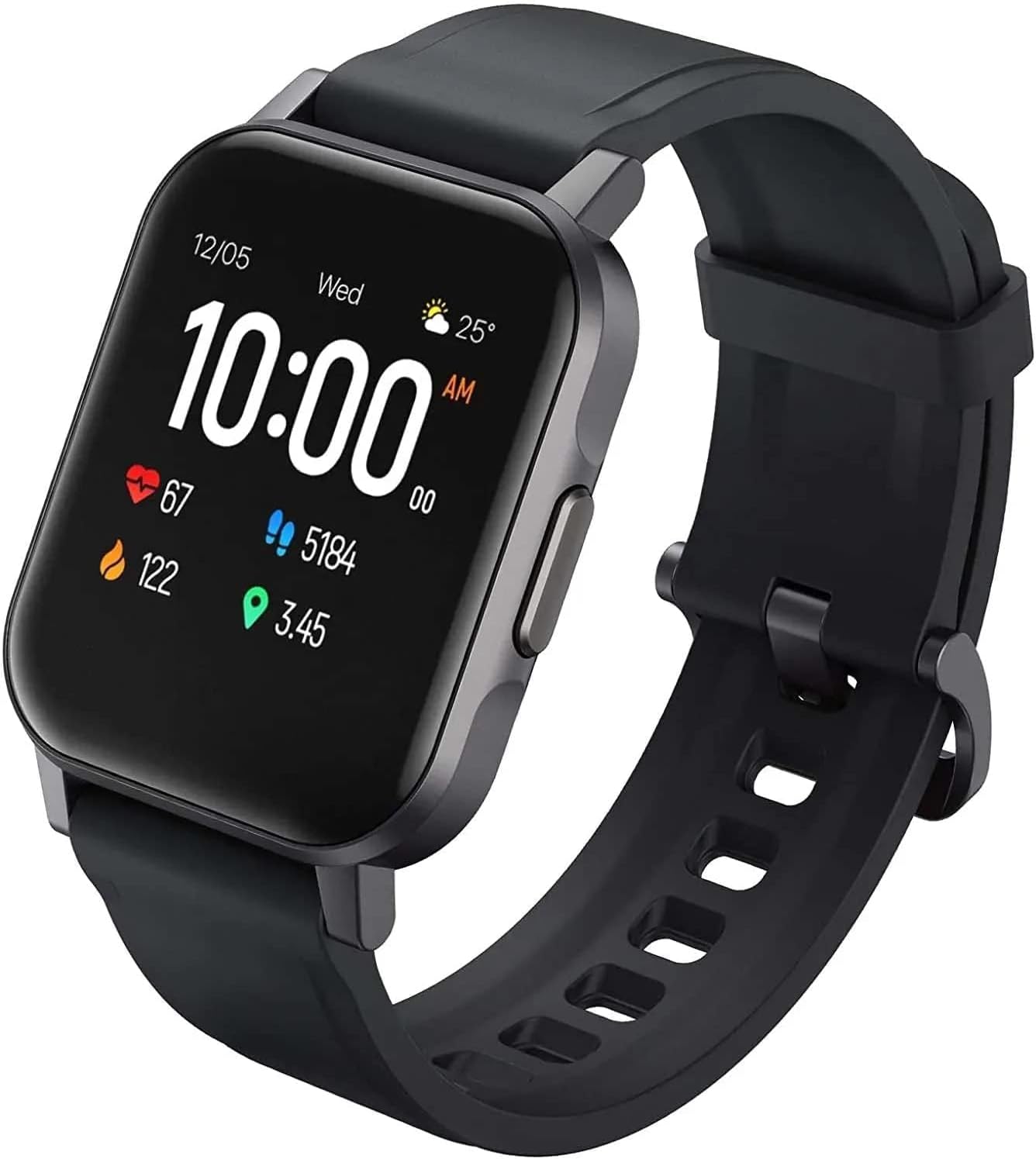

Figure 2.1: Angled view of the AUKEY LS02 Smart Watch, highlighting the watch body and strap connection.
2.3. Pairing with Your Smartphone
To unlock the full features of your smartwatch, pair it with the AUKEY Fit App.
- Download the AUKEY Fit App: Search for "AUKEY Fit" in your smartphone's app store (Google Play Store for Android or Apple App Store for iOS) and install it.
- Enable Bluetooth: Ensure Bluetooth is enabled on your smartphone.
- Open the App: Launch the AUKEY Fit App and follow the on-screen instructions to create an account or log in.
- Add Device: In the app, navigate to the "Device" or "Add Device" section. The app will search for nearby AUKEY smartwatches.
- Select Your Watch: From the list of found devices, select "AUKEY LS02" or a similar identifier.
- Confirm Pairing: A pairing request may appear on both your phone and the watch. Confirm the pairing on both devices.
- Synchronization: Once paired, the watch will synchronize data with the app, including time, date, and personal settings.
Note: Keep your watch close to your smartphone during the pairing process to ensure a stable connection.
3. Operating Your Smart Watch
3.1. Basic Navigation
- Touchscreen: Swipe left/right, up/down to navigate through menus and screens. Tap to select an option.
- Side Button: Press the side button to wake the screen, return to the home screen, or access the main menu (functionality may vary based on context).
3.2. Display Information
The main watch face typically displays:
- Time and Date
- Battery Level
- Bluetooth Connection Status
- Daily Steps Count
- Heart Rate
- Calories Burned
- Distance Traveled
Swipe through different screens to access more detailed information or specific functions.
3.3. Notifications
Once paired with the AUKEY Fit App, your watch can receive notifications from your smartphone.
- Ensure notification permissions are enabled for the AUKEY Fit App in your phone's settings.
- Within the AUKEY Fit App, select which applications you wish to receive notifications from (e.g., calls, SMS, WhatsApp, Facebook).
- When a notification arrives, the watch will vibrate and display the message content.
- Swipe up or down on the watch face to view recent notifications.
3.4. Fitness Tracking
The watch automatically tracks your daily activity and offers modes for specific exercises.
- Daily Activity: Monitors steps, distance, calories, and active minutes throughout the day.
- Workout Modes: Select from various activities such as running, cycling, mountain climbing, and walking. The watch will record specific metrics for the chosen activity.
- Heart Rate Monitoring: The watch continuously monitors your heart rate. View your current heart rate on the watch or detailed historical data in the AUKEY Fit App.
3.5. Music Control
Control your smartphone's music playback directly from your watch.
- Ensure your watch is connected to your smartphone via Bluetooth.
- Navigate to the music control interface on your watch (usually by swiping or through the main menu).
- You can play/pause, skip tracks (next/previous), and adjust volume (if supported by the watch model).
4. Care and Maintenance
4.1. Cleaning Your Smart Watch
Regular cleaning helps maintain the watch's appearance and functionality.
- Wipe the screen and watch body with a soft, lint-free cloth. If necessary, slightly dampen the cloth with water.
- For the strap, use a mild soap solution and rinse thoroughly. Ensure the strap is completely dry before reattaching to the watch or wearing.
- Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the watch's finish or internal components.
4.2. Water Resistance
The AUKEY LS02 Smart Watch is designed to be splash-proof and resistant to sweat and light rain. It is not suitable for swimming, showering, or diving. Avoid prolonged exposure to water.
Important: Water damage is not covered under warranty if the watch is used beyond its specified water resistance capabilities.
4.3. Storage
When not in use for extended periods, store your watch in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the watch is partially charged (around 50%) before long-term storage to preserve battery health.
7. Warranty and Support
AUKEY products are designed with quality and reliability in mind. For specific warranty terms and conditions applicable to your AUKEY LS02 Smart Watch, please refer to the warranty card included with your purchase or visit the official AUKEY website.
If you require technical assistance, have questions about product functionality, or need to report a defect, please contact AUKEY customer support through their official channels. Details for contacting support can typically be found on the AUKEY website or within the AUKEY Fit App.
Please have your product model number (AUKEY-LS02BLK) and purchase details ready when contacting support.
