1. Introduction
This user manual provides detailed instructions for the installation and maintenance of the Jaronx Air Vent Clips Tab Repair Kit. Designed as an upgraded replacement for original BMW air vent components, this kit offers a durable and cost-effective solution for repairing broken vent louvers and clips, restoring full functionality and aesthetic appeal to your vehicle's interior.
2. Product Features
- Cost-Effective Repair: Replaces only the broken vent tabs and louvers, eliminating the need to replace the entire vent assembly, saving significant repair costs.
- Enhanced Durability: Manufactured from high-quality ABS+PC materials, providing scratch-resistance, high-temperature resistance, and corrosion resistance for extended service life.
- Seamless Fit and Functionality: Designed to match factory specifications, ensuring a perfect fit and allowing full motion of vent louvers (up/down) and the ability to close the vent, just like the original parts.
- Upgraded Structure: Features an upgraded connector design for the vent clips, making them more solid and less prone to breakage compared to original components.
3. Compatibility
The Jaronx Air Vent Clips Tab Repair Kit (Right Side) is compatible with the following BMW models:
- BMW 3 Series G20/G21 (2019-2023)
- BMW 4 Series G22/G23 (2020-2023)
- BMW X3 Series G01/G08 (2017-2023)
- BMW X4 Series G02 (2018-2023)
- BMW Z4 Series G29 (2019-2023)
Please ensure your vehicle model and the side of the vent (Right Side) match the product's compatibility before installation.
Image: Detailed compatibility list for various BMW models.
4. Materials
The air vent outlet clip tab set is constructed from high-quality ABS+PC materials. This composite material is chosen for its superior properties, including:
- Scratch-Resistance: Helps maintain the aesthetic integrity of the clips over time.
- High-Temperature Resistance: Ensures durability and stability in varying vehicle interior temperatures.
- Corrosion-Resistance: Protects against degradation from environmental factors and common automotive chemicals.
- Long Service Life: Contributes to the overall longevity and reliability of the repaired vent.
Image: Illustrates the high-quality ABS+PC material and the chrome part designed to match the original car's interior texture.
5. Installation Guide
Installation of the Jaronx Air Vent Clips Tab Repair Kit can be performed without removing the entire air grille assembly. While it can be challenging, following these steps and referring to the provided video will ensure a successful repair.
5.1. Tools Required
- Small flat-head screwdriver or pry tool (for initial removal)
- The Jaronx Air Vent Clips Tab Repair Kit
5.2. Installation Steps
- Prepare the Vent: Carefully use a thin flat-head screwdriver or pry tool to gently remove the existing broken vent tab or louver from the air vent. Be cautious not to damage the surrounding trim.
- Disassemble New Parts (if necessary): The repair kit includes several components. Familiarize yourself with the parts before assembly. The main image shows the disassembled components.
- Assemble the New Clip: Follow the video instructions to assemble the new vent clip and louver components. Ensure all parts snap securely into place.
- Insert the New Clip: Carefully insert the assembled new vent clip into the air vent opening. Ensure it aligns correctly with the existing mechanism.
- Secure the Clip: Gently press the new clip into place until it is fully seated and operates smoothly. Test the movement of the louver to ensure full range of motion.
5.3. Visual Aids

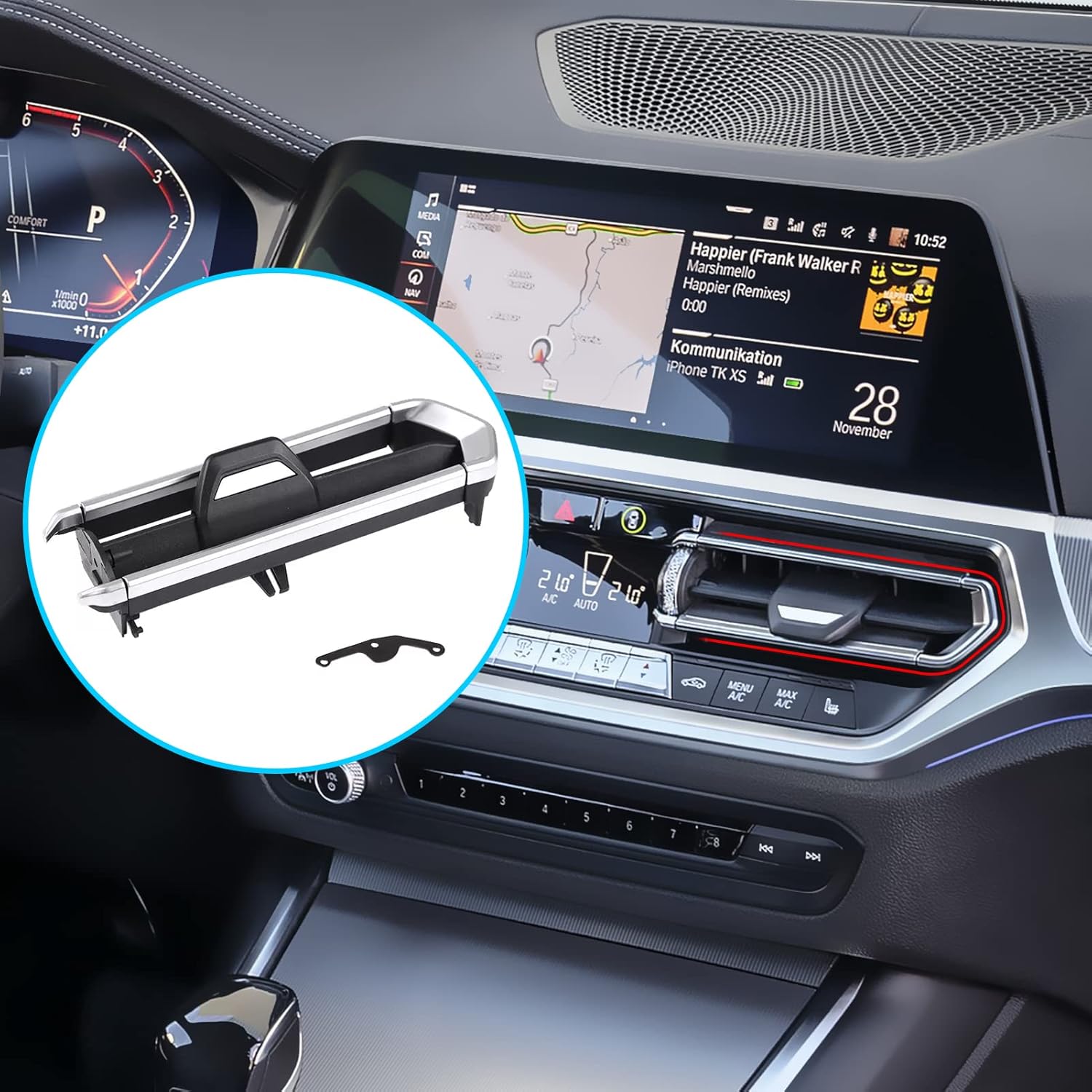

Image: Shows the vehicle's air vent and the individual components of the Jaronx repair kit, including the main vent tab, side pieces, and small metal parts.
Image: A visual comparison showing the air vent before and after the installation of the Jaronx repair kit, highlighting the restored appearance.
Image: An exploded view demonstrating how the individual components of the vent clip fit together during assembly.
Image: A close-up view of the installed AC vent clip tab, emphasizing its design and how it matches the original air vent assembly.
5.4. Installation Video
For a comprehensive visual guide, please watch the official installation video provided by Jaronx. This video demonstrates the step-by-step process of replacing the air vent clips.
Video: Official Jaronx installation guide for BMW G Series Air Vent Clips Repair Kit. This video demonstrates the process of removing the old clip and installing the new one, ensuring proper fit and function.
You can also search for "Jaronx HotTech" on YouTube for additional installation videos and tips.
6. Operating Instructions
Once installed, the Jaronx Air Vent Clips Tab functions identically to the original part. To adjust the airflow direction:
- Gently grasp the vent tab.
- Move the tab horizontally to direct airflow left or right.
- Move the tab vertically to direct airflow up or down.
- To close the vent, adjust the tab to the fully closed position, if applicable to your specific vent design.
7. Maintenance
The Jaronx Air Vent Clips Tab Repair Kit is designed for long-lasting performance with minimal maintenance. To ensure continued smooth operation and appearance:
- Cleaning: Wipe the vent clips with a soft, damp cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, which can damage the material and finish.
- Inspection: Periodically check the clips for any signs of wear or damage. While designed to be durable, extreme force or impact can cause issues.
- Avoid Excessive Force: When adjusting the vent, apply gentle pressure. Excessive force can stress the internal mechanisms.
8. Troubleshooting
If you encounter any issues after installing the Jaronx Air Vent Clips Tab Repair Kit, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Vent tab feels loose or wobbly. | Improper seating during installation or internal component misalignment. | Gently press the tab firmly into place. If it persists, carefully remove the tab and re-install, ensuring all internal connections are secure. Refer to the installation video. |
| Vent tab does not move smoothly. | Obstruction or incorrect alignment. | Check for any foreign objects obstructing the movement. Re-install the tab, ensuring it is not binding against the vent housing. |
| Vent tab does not direct airflow effectively. | Louver not properly connected or damaged. | Verify that the louver is correctly attached to the tab. If damaged, replacement may be necessary. |
If troubleshooting steps do not resolve the issue, please contact Jaronx customer support for further assistance.
9. Specifications
- Manufacturer: Jaronx
- Model Number: G01/G20 Vent Clips-Right
- Item Weight: 2.39 ounces
- Product Dimensions: 6.29 x 2 x 0.78 inches
- Material: High-quality ABS+PC
- Compatibility: BMW 3 Series G20/G21, 4 Series G22/G23, X3 G01/G08, X4 G02, Z4 G29 (Right Side)
- Date First Available: December 1, 2022
