FASCINATE RM307 Rechargeable Wall Mounted Lighted Vanity Mirror User Manual

1. Introduction

Thank you for choosing the FASCINATE RM307 Rechargeable Wall Mounted Lighted Vanity Mirror. This manual provides essential information for the safe and effective use, installation, and maintenance of your new mirror. Please read these instructions thoroughly before use and retain them for future reference.

This mirror features a double-sided design with 1X and 10X magnification, three adjustable color light modes, dimmable brightness, and a 360-degree swivel with an extendable arm for optimal viewing. Its rechargeable battery offers cordless convenience.

2. Safety Information

For safe use, please handle the mirror with care to avoid breakage. Do not allow children to use the mirror unsupervised. Ensure proper mounting according to the provided instructions to avoid falling. This product contains glass components; handle with care.

• Do not expose the mirror to excessive moisture or direct water spray.
• Avoid dropping or subjecting the mirror to strong impacts.
• Keep the charging port dry and clean.
• Use only the provided USB-C cable for charging.

3. Package Contents

Please check the package for the following items:

• FASCINATE RM307 Wall Mounted Lighted Vanity Mirror
• USB-C Charging Cable
• Mounting Hardware (screws, anchors)
• User Manual

4. Product Features

• Double-Sided Magnification: 1X for general viewing and 10X for detailed tasks.
• 3 Color Light Modes: Warm, Natural, and White light to suit various environments and makeup needs.
• Dimmable Brightness: Adjustable light intensity via touch control.
• Rechargeable Battery: Built-in 2000mAh battery for cordless operation.
• 360° Swivel & Extendable Arm: Offers flexible viewing angles and space-saving storage. The arm extends up to 17.4 inches.
• Touch Sensor Control: Easy operation for power, light modes, and brightness adjustment.
• Durable Construction: Made from anti-rust and moisture-resistant stainless steel.

5. Setup & Installation

The FASCINATE RM307 mirror is designed for easy wall mounting. All necessary installation accessories are included.

5.1 Wall Mounting Steps

1. Choose Location: Select a suitable wall location, ensuring it is sturdy and at a comfortable height for use.
2. Mark Drilling Points: Hold the mounting base against the wall at the desired position and mark the screw holes with a pencil.
3. Drill Holes: Use an appropriate drill bit to drill holes at the marked points. If installing into drywall, insert the provided wall anchors.
4. Secure Base: Align the mounting base with the drilled holes and secure it to the wall using the provided screws.
5. Attach Mirror: Slide the mirror arm onto the secured wall mount. Ensure it is firmly attached.

Installation can typically be completed in under 2 minutes without professional assistance.

6. Operating Instructions

The mirror features intuitive touch controls for ease of use.

6.1 Power On/Off

• To turn the light on or off, simply tap the touch sensor button located on the mirror surface.

6.2 Changing Light Modes

• With the light on, tap the touch sensor button repeatedly to cycle through the three color light modes: Warm Light, Natural Light, and White Light.

6.3 Adjusting Brightness

• To adjust the brightness, press and hold the touch sensor button. The brightness will gradually increase or decrease. Release the button when the desired brightness level is reached.

6.4 Using Magnification

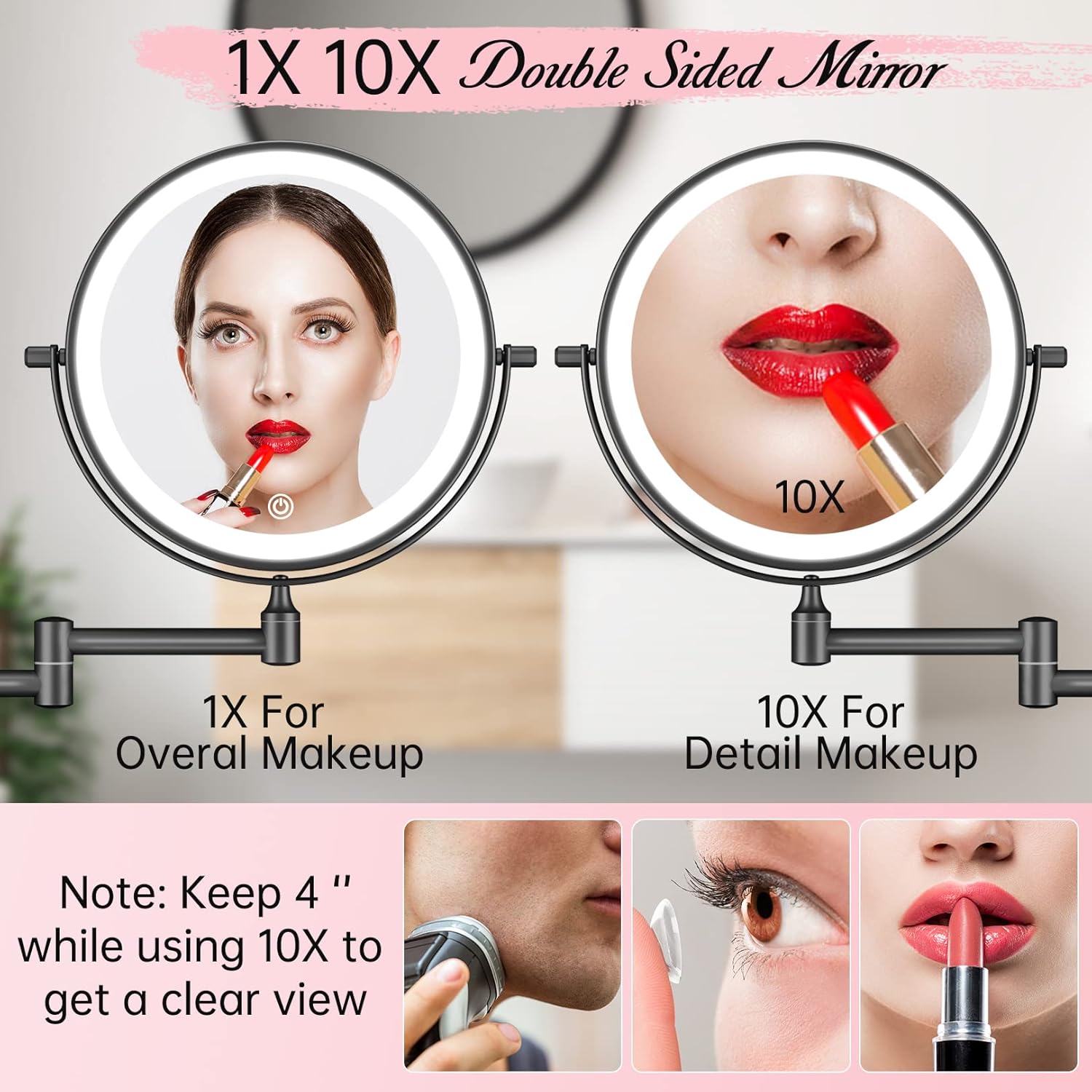

• The mirror is double-sided. Rotate the mirror head to switch between the 1X (standard) and 10X (magnifying) sides.
• For the 10X magnification side, it is recommended to keep your face within 4 inches (10 cm) of the mirror to achieve a clear, non-distorted image and avoid dizziness.

6.5 Adjusting Mirror Angle

• The mirror head can be rotated 360 degrees for optimal viewing.
• The extendable arm allows you to pull the mirror closer or push it back against the wall to save space when not in use.

7. Charging Instructions

The mirror is equipped with a built-in rechargeable battery for wireless operation.

• Connect the provided USB-C cable to the charging port on the mirror.
• Plug the other end of the USB-C cable into a compatible USB power adapter (not included).
• A red indicator light will illuminate to show that the mirror is charging.
• The indicator light will turn blue when the battery is fully charged.
• Once fully charged, the mirror can be used wirelessly.

8. Maintenance

Proper care will ensure the longevity and performance of your FASCINATE RM307 mirror.

• Cleaning the Mirror Surface: Use a soft, lint-free cloth, such as the microfiber cloth often included, to gently wipe the mirror surface. For stubborn spots, dampen the cloth slightly with water or a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals.
• Cleaning the Frame and Arm: Wipe the metal frame and arm with a soft, dry cloth. The mirror is made of anti-rust and moisture-resistant stainless steel, but excessive moisture should still be avoided.
• Storage: When not in use, the mirror can be folded back against the wall to save space.

9. Troubleshooting

If you encounter any issues with your mirror, please refer to the following common problems and solutions:

If you experience any issues not covered here, please contact FASCINATE customer support.

10. Specifications

11. Warranty & Support

FASCINATE is committed to providing high-quality products and customer satisfaction. We offer 7/24 support service for any inquiries or issues you may encounter.

For assistance, please contact our customer support team through the retailer's platform or visit the official FASCINATE website for contact information.
