1. Introduction
Thank you for choosing the Zanussi Maxi Crousti'Fries AF14 Air Fryer. This appliance is designed to cook your favorite foods with little to no oil, providing a healthier alternative to traditional frying. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your air fryer. Please read it thoroughly before first use and keep it for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the frying basket is correctly inserted before operation.
- Do not block any ventilation openings.
3. Product Overview
Familiarize yourself with the components of your Zanussi Maxi Crousti'Fries AF14 Air Fryer.
Main Components:
- Main Unit with Control Panel
- Frying Basket
- Crisper Plate (removable)
- Air Outlet Vent (rear)
- Power Cord

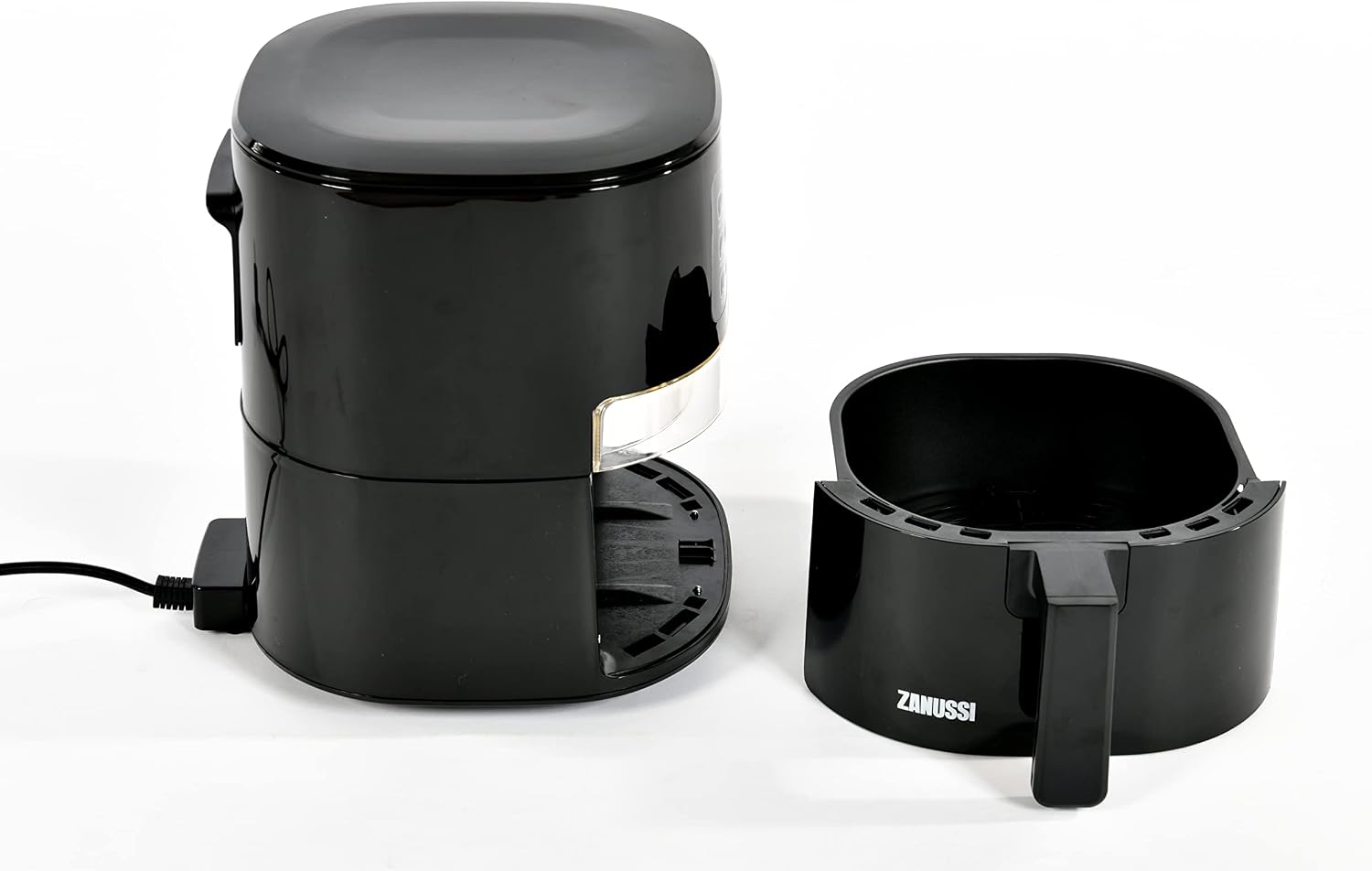

Image: The Zanussi AF14 Air Fryer main unit with its frying basket detached, illustrating the primary components.
Control Panel:
The air fryer features a touch control panel with a digital display for easy operation. It includes controls for temperature, time, and various preset cooking functions.
- Digital Display: Shows time and temperature.
- Temperature Control: Adjust cooking temperature (up to 200°C).
- Timer Control: Set cooking duration.
- Preset Functions: Dedicated buttons for common dishes like fries, chicken, fish, etc.
- Start/Pause Button: To begin or temporarily stop cooking.
- Cancel Button: To stop the cooking process.
4. Setup and First Use
4.1 Unpacking
- Carefully remove the air fryer and all packaging materials from the box.
- Remove any stickers or labels from the appliance.
- Retain the packaging for storage or future transport if needed.
Image: The Zanussi AF14 Air Fryer in its original packaging box, highlighting the product's appearance and features.
4.2 Initial Cleaning
- Wipe the exterior of the appliance with a damp cloth.
- Wash the frying basket and crisper plate thoroughly with hot water, dish soap, and a non-abrasive sponge. Rinse and dry completely.
- Ensure all parts are completely dry before use.
4.3 Placement
- Place the air fryer on a stable, heat-resistant, and level surface.
- Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance to allow for proper air circulation.
- Do not place the appliance against a wall or other appliances.
Image: Side view of the Zanussi AF14 Air Fryer, illustrating the power cord connection and the compact design suitable for countertop placement.
4.4 Power Connection
- Plug the power cord into a grounded wall outlet.
- The appliance is now ready for use.
5. Operating Instructions
5.1 Preheating (Optional)
- Plug in the air fryer. The display will light up.
- Set the desired temperature (e.g., 180°C) and a short time (e.g., 3-5 minutes) for preheating.
- Press the Start button. The air fryer will begin to preheat.
- Once the preheating time is complete, the air fryer will beep.
5.2 Cooking Food
- Pull out the frying basket from the appliance.
- Place the crisper plate inside the basket.
- Place your ingredients into the frying basket. Do not overfill the basket; ensure there is enough space for air circulation. For best results, do not exceed the MAX fill line.
- Slide the frying basket back into the air fryer until it clicks into place.
- Select a preset cooking function or manually set the desired temperature (up to 200°C) and cooking time using the touch controls.
- Press the Start button to begin cooking.
- For some recipes, it may be necessary to shake the basket halfway through the cooking time to ensure even cooking. To do this, carefully pull out the basket, shake it, and then slide it back in. The air fryer will resume cooking automatically.
- When the cooking time is complete, the air fryer will beep. Carefully pull out the basket and transfer the cooked food to a plate.
- Unplug the appliance after use.
5.3 Cooking Tips
- For crispier results, lightly brush or spray food with oil.
- Smaller food items usually require shorter cooking times than larger ones.
- Foods that are typically baked in an oven can also be prepared in the air fryer.
- Use oven-safe dishes or molds if cooking liquid-based foods or delicate items.
6. Maintenance and Cleaning
Regular cleaning will help maintain the performance and extend the lifespan of your air fryer.
- Always unplug the air fryer and allow it to cool down completely before cleaning.
- Frying Basket and Crisper Plate: These parts are not dishwasher safe. Wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residue, soak them in hot water for about 10 minutes before cleaning.
- Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent. Avoid abrasive cleaners or scouring pads.
- Exterior: Clean the exterior with a soft, damp cloth.
- Never immerse the main unit in water or any other liquid.
- Ensure all parts are thoroughly dry before storing or reusing the appliance.
Image: The Zanussi AF14 Air Fryer with its frying basket partially removed, providing a view of the interior and the basket's structure, useful for cleaning instructions.
7. Troubleshooting
If you encounter any issues with your air fryer, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in. | Ensure the power cord is securely plugged into a grounded outlet. |
| Frying basket is not inserted correctly. | Push the frying basket completely into the appliance until it clicks into place. | |
| Food is not cooked evenly. | Basket is overloaded. | Cook food in smaller batches. |
| Food was not shaken or flipped. | Shake or flip food halfway through cooking for even results. | |
| White smoke comes from the appliance. | Fat residue from previous use. | Clean the frying basket and crisper plate thoroughly after each use. |
| Cooking fatty ingredients. | This is normal for fatty foods. Ensure the basket is clean. | |
| Unusual smell during first use. | New appliance odor. | This is normal and will dissipate after a few uses. Ensure good ventilation. |
8. Specifications
Technical details for the Zanussi Maxi Crousti'Fries AF14 Air Fryer.
- Model Name: Maxi Crousti'Fries
- Model Number: AF14
- Brand: Zanussi
- Capacity: 4 Liters
- Color: Black
- Material: Plastic, Aluminum
- Product Dimensions (D x W x H): 35P x 26.4l x 31.7H cm
- Wattage: 1600 watts
- Output Power: 1500 Watt
- Maximum Temperature Setting: 200 Degrees Celsius
- Control Method: Touch
- Control Unit Type: Manual control
- Special Feature: Temperature control
- Recommended Uses: Frying, grilling, baking, roasting
- Non-stick Coating: No
- Dishwasher Safe: No
- Inner Material: Aluminum
9. Warranty and Support
Your Zanussi Maxi Crousti'Fries AF14 Air Fryer comes with a manufacturer's warranty. Please refer to your purchase documentation or the warranty card included with your product for specific terms and conditions.
For technical support, service, or questions regarding your product, please contact Zanussi customer support through their official website or the contact information provided in your product packaging.
