1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your EISL EASY ENERGY Shower System DX12004BL-A. Please read these instructions carefully before installation and retain them for future reference.
The EISL EASY ENERGY Shower System DX12004BL-A is a 2-in-1 shower solution designed for comfort and functionality, featuring a large rain shower head and a convenient hand shower. Its black finish and robust brass construction ensure durability and a modern aesthetic.
2. Safety Instructions
- Professional Installation Recommended: Installation should be performed by a qualified professional or a person with appropriate plumbing knowledge to ensure correct setup and prevent water damage.
- Water Supply: Ensure the main water supply is turned off before beginning any installation work.
- Water Pressure: Verify that your household water pressure is within the recommended range for shower systems to ensure optimal performance and prevent damage.
- Temperature Control: Always test water temperature before use to prevent scalding, especially for children and the elderly.
- Component Integrity: Inspect all components for damage before installation. Do not install damaged parts.
- Cleaning: Use only mild cleaning agents and soft cloths. Abrasive cleaners or harsh chemicals can damage the finish.
3. Package Contents
Carefully unpack the box and ensure all the following components are present:
- 1x Shower Bar (103 cm)
- 1x Hand Shower
- 1x Rain Shower Head
- 1x Shower Holder (for hand shower)
- 1x Shower Hose (150 cm)
- 1x Connection Hose (80 cm)
- 1x Diverter
- 2x Wall Brackets
- Mounting hardware (screws, wall plugs)
- Instruction Manual
4. Setup and Installation
Follow these general steps for installing your shower system. Specific details may vary based on your existing plumbing. Always consult a professional if unsure.
- Prepare the Installation Area: Turn off the main water supply. Clear the area where the shower system will be installed.
- Mount Wall Brackets: Position the wall brackets at the desired height. The adjustable wall bracket design allows for the use of existing drill holes, which is ideal for renovation projects. Mark the drilling points, drill holes, insert wall plugs, and secure the brackets to the wall.
- Assemble Shower Bar: Connect the sections of the shower bar if necessary.
- Attach Diverter and Connection Hose: Install the diverter onto the shower bar. Connect the 80 cm connection hose from your water outlet to the diverter.
- Install Rain Shower Head: Attach the rain shower head arm to the top of the shower bar and secure the rain shower head.
- Install Hand Shower and Hose: Connect the 150 cm shower hose to the hand shower and the diverter. Place the hand shower into its adjustable holder on the shower bar.
- Final Connections: Ensure all connections are tight to prevent leaks.
- Test System: Slowly turn on the main water supply and check for any leaks. Test both the rain shower and hand shower functions.
5. Operating Instructions
Your EISL EASY ENERGY Shower System is designed for straightforward operation.
- Water Flow Control: Use your existing faucet to control the water flow and temperature. This shower system does not include an integrated faucet.

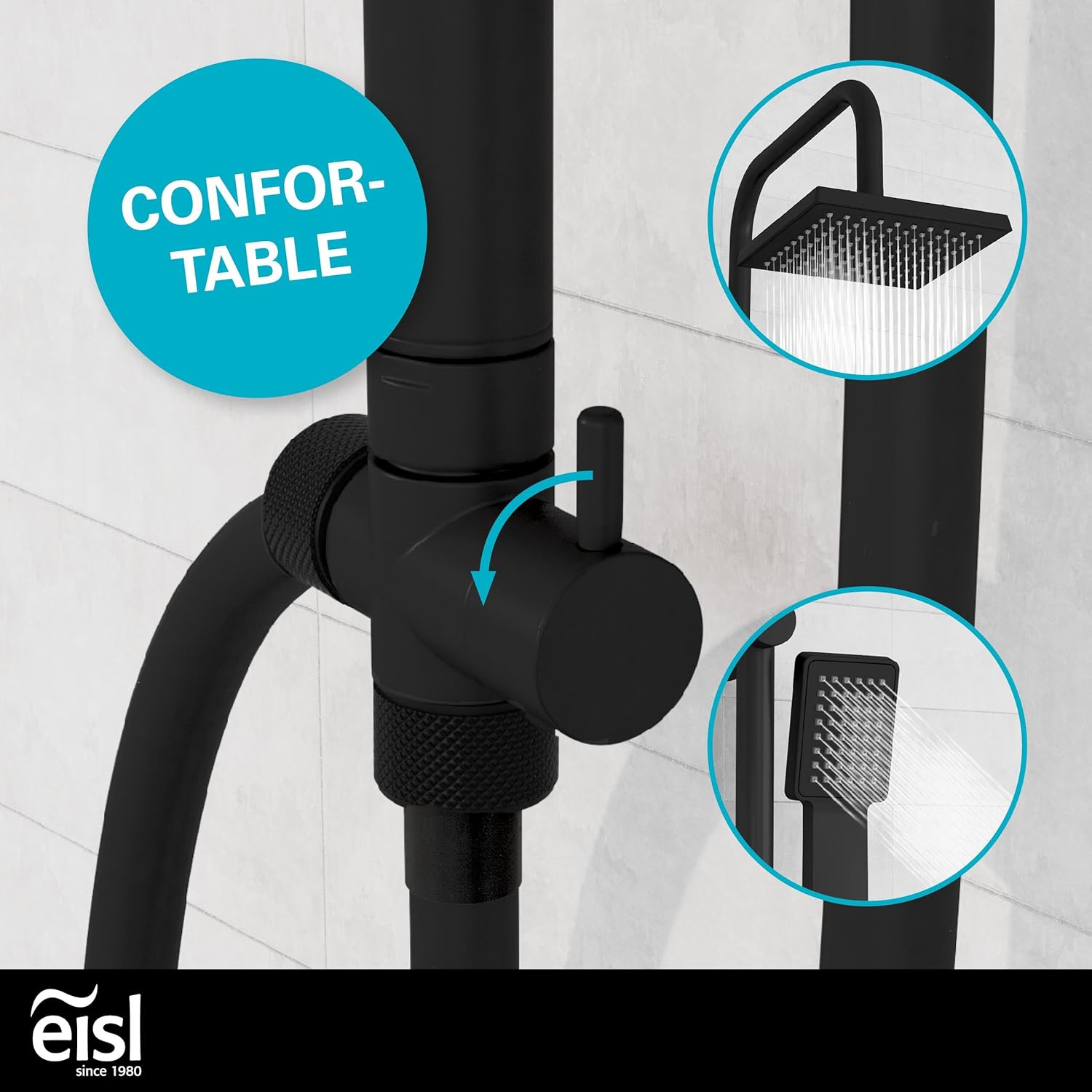

- Switching Between Showers: The integrated diverter allows you to easily switch between the large rain shower head and the hand shower. Rotate the diverter knob to select your desired water outlet.

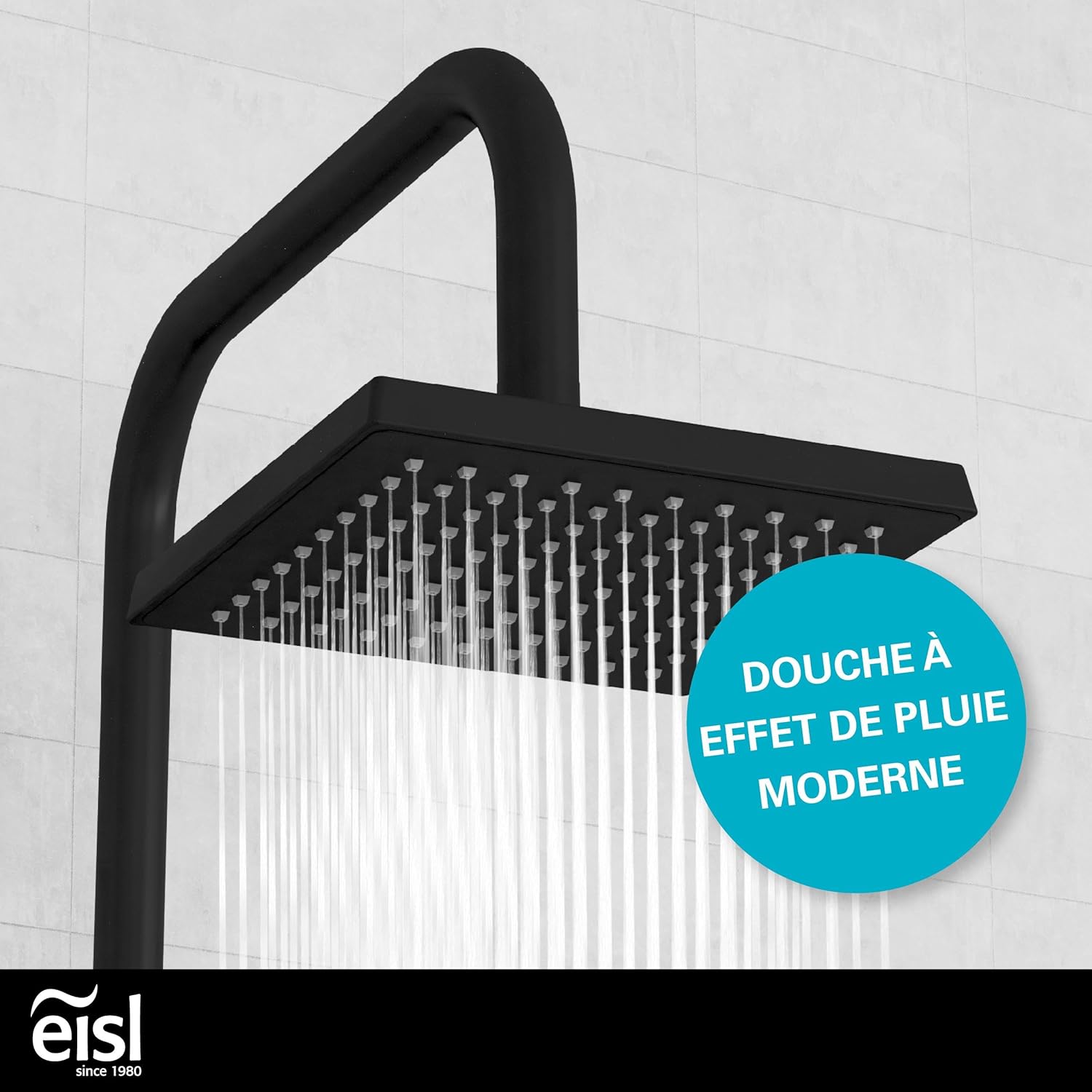

- Rain Shower Head: Enjoy a wide, even spray pattern from the 170x170 mm rain shower head.

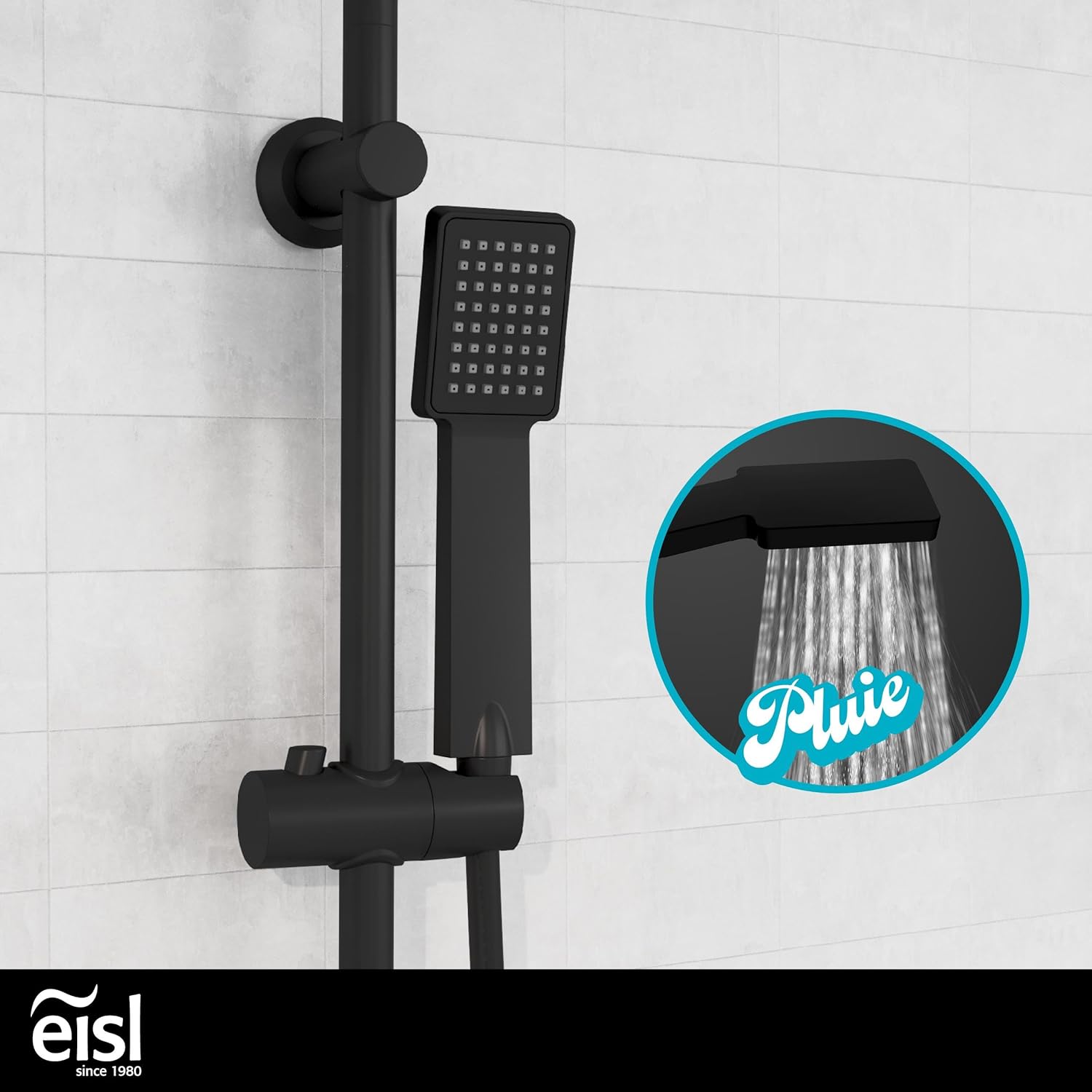

- Hand Shower: The hand shower provides a focused spray for targeted rinsing.
6. Maintenance
Regular cleaning and maintenance will prolong the life and appearance of your shower system.
- General Cleaning: Clean the shower system regularly with a soft cloth and mild soap or a non-abrasive bathroom cleaner. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
- Anti-Limescale Nozzles: Both the rain shower head and hand shower are equipped with anti-limescale nozzles. To remove limescale deposits, gently rub the rubber nozzles with your finger or a soft brush. This should be done periodically, especially in areas with hard water.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, ammonia-based products, or other harsh chemicals, as these can damage the black finish and internal components.
7. Troubleshooting
If you encounter issues with your shower system, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow from shower head/hand shower | Limescale buildup in nozzles; low water pressure; kinked hose. | Clean anti-limescale nozzles. Check household water pressure. Ensure shower hose is not kinked. |
| Water leaking from connections | Loose connections; worn seals/washers. | Tighten connections. Replace seals/washers if damaged. Ensure PTFE tape was used during installation. |
| Diverter not switching properly between showers | Internal mechanism obstruction; faulty diverter. | Flush the system by running water through both outlets. If the problem persists, the diverter may need inspection or replacement by a professional. |
| Water temperature inconsistent | Issue with existing water heater or faucet. | This shower system does not control temperature. Check your main water heater or existing faucet for issues. |
If the problem persists after attempting these solutions, please contact a qualified plumber or EISL customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | DX12004BL-A |
| Color | Black |
| Material | Brass |
| Finish | Chrome (Black coating) |
| Product Dimensions (L x W x H) | 33.5 x 17 x 97 cm |
| Item Weight | 1.94 Kilograms |

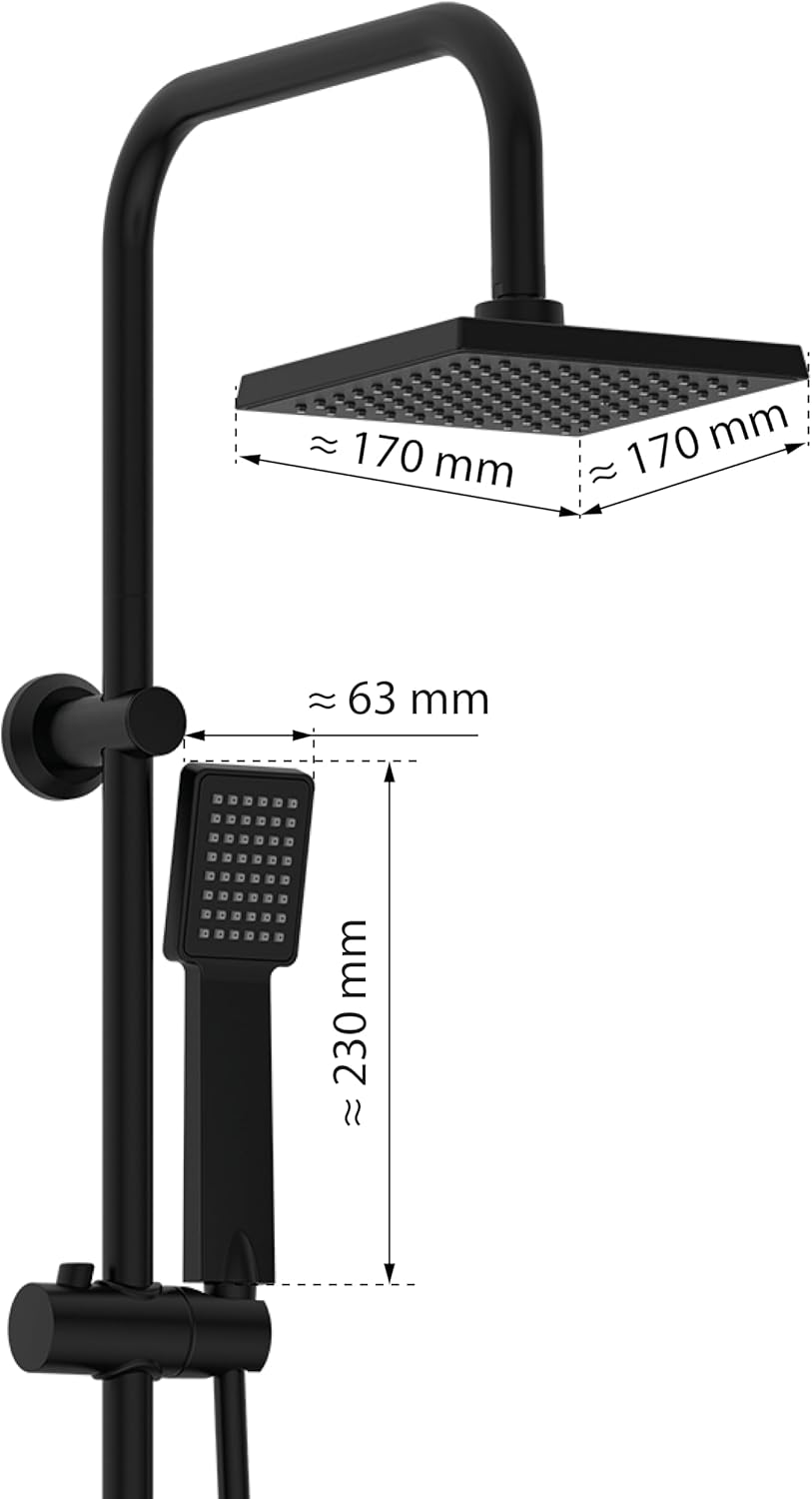

| Rain Shower Head Size | 170 x 170 mm |
| Hand Shower Length | Approx. 230 mm |
| Shower Hose Length | 150 cm |
| Connection Hose Length | 80 cm |
| Mounting Type | Wall Mount |
| Special Features | 2-in-1 system (rain shower + hand shower), integrated diverter, anti-limescale nozzles, height-adjustable wall bracket. |
9. Warranty and Support
Your EISL EASY ENERGY Shower System DX12004BL-A comes with a 3-year manufacturer's warranty. This warranty covers manufacturing defects under normal use and service.
For warranty claims, technical assistance, or replacement parts, please contact your retailer or EISL customer support directly. Keep your proof of purchase for warranty validation.
Contact Information: Please refer to the packaging or the EISL official website for the most current customer support contact details.
