1. Introduction
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your ANIIOKI A7 PRO Folding Electric Bike. Please read this manual thoroughly before your first ride to ensure proper assembly, safe usage, and optimal performance of your e-bike. Retain this manual for future reference.
2. Safety Information
Your safety is paramount. Always adhere to the following safety guidelines:
- Always wear a helmet and appropriate safety gear when riding.
- Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
- Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level.
- Do not operate the e-bike under the influence of alcohol or drugs.
- Be aware of your surroundings and ride defensively, especially in traffic.
- Avoid riding in adverse weather conditions or on slippery surfaces.
- Ensure the folding mechanism is securely locked before riding.
- Do not exceed the maximum load capacity of 350 lbs (approximately 158 kg).
3. Components Overview
Understand the key components of your ANIIOKI A7 PRO electric bike.

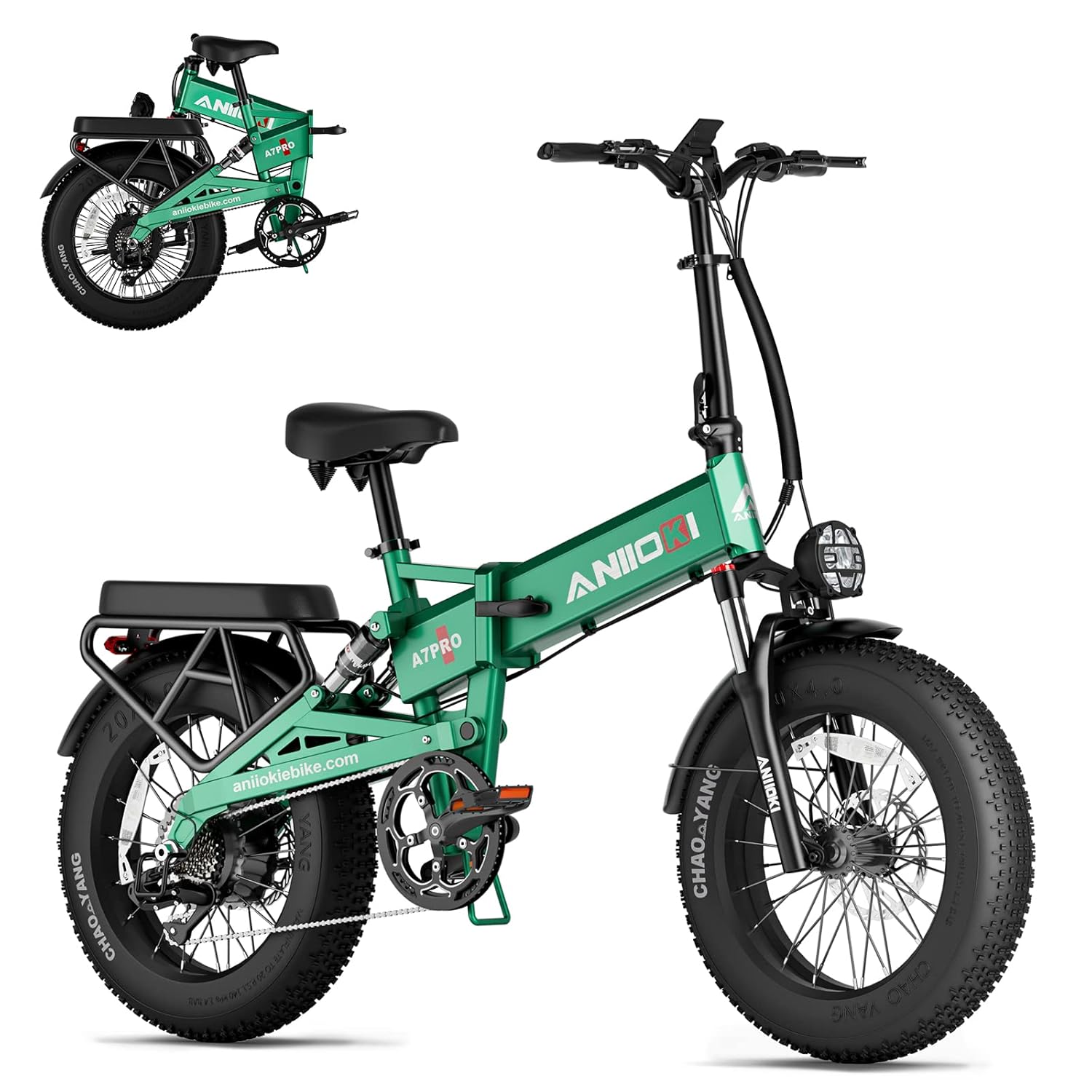

Figure 3.1: Overall view of the ANIIOKI A7 PRO Folding Electric Bike, showcasing its robust frame and fat tires.
3.1. Battery System
The e-bike is equipped with a 48V 20AH Samsung Li-ion battery, designed for safety and extended range. It is removable and comes with two keys for security.
Figure 3.2: Illustration of the 48V 20AH Samsung battery cells, highlighting its capacity and removable design. Provides 40-50 miles in pure electric mode and 60-80 miles in assist mode.
3.2. Motor and Drivetrain
Features a 750W brushless motor with a peak power of 1100W, delivering strong torque (80N.M) and speeds up to 32 MPH. The Shimano 8-speed derailleur ensures smooth gear shifting.
Figure 3.3: Detailed view of the 750W upgraded brushless motor, illustrating its internal components and power output capabilities.
3.3. Suspension System
Equipped with an aluminum alloy adjustable full suspension fork and dual shock absorbers under the saddle for a smoother ride over varied terrain.
Figure 3.4: Close-up of the unique practical design featuring rear dual shock absorbers, designed to maintain balance and reduce inertia for a safer and smoother ride.
3.4. Tires and Brakes
Features 20" x 4.0" fat tires with enhanced grip and wear resistance, suitable for various terrains. Hydraulic disc brakes provide swift and reliable stopping power.
Figure 3.5: View of the 20" x 4.0" fat tires and the aluminum alloy hydraulic front suspension fork, demonstrating suitability for urban, mountain, beach, and snow environments.
3.5. Intelligent LCD Display
The color LCD display provides real-time information such as battery level, speed, mileage, and error codes. It also includes a USB charging port.
Figure 3.6: Diagram of the intelligent color LCD display, showing various indicators like battery level, speed, error code, ODO, TRIP, MAX, AVG, and the USB charging port.
4. Setup and Assembly
Your ANIIOKI A7 PRO electric bike arrives approximately 90% assembled. Follow these steps for final assembly:
- Unpacking: Carefully remove the bike and all components from the packaging. Retain packaging materials in case of return.
- Handlebar Installation: Attach the handlebar to the stem, ensuring it is centered and tightened securely.
- Pedal Installation: Identify left (L) and right (R) pedals. Thread them into the crank arms by hand first, then tighten with a wrench. Note that the left pedal has a reverse thread.
- Front Wheel Installation (if detached): Secure the front wheel into the fork dropouts. Ensure the disc brake rotor is correctly aligned with the caliper.
- Seat Post Adjustment: Insert the seat post into the frame and adjust the height for comfortable riding. Secure with the quick-release lever.
- Battery Installation: Insert the battery into its compartment and lock it with the provided key.
- Tire Inflation: Inflate tires to the recommended pressure indicated on the tire sidewall.
- Pre-Ride Check: Before your first ride, double-check all bolts, quick releases, and connections for tightness. Test brakes and ensure the folding mechanism is fully engaged.
5. Operating Instructions
Your ANIIOKI A7 PRO offers multiple riding modes for versatile use.
5.1. Powering On/Off
- To power on the e-bike, press and hold the power button on the LCD display.
- To power off, press and hold the power button again.
5.2. Riding Modes
The e-bike supports 5 working modes:
- Pure Electric Mode: Engage the thumb throttle for motor-only propulsion.
- Pedal Assist Mode (PAS): The motor provides assistance as you pedal. Adjust the assist level (1-5) via the LCD display controls.
- Cycling Mode (Manual): Ride the bike like a traditional bicycle without motor assistance.
- Cruise Control: Activate this feature via the LCD display for consistent speed without continuous throttle input.
- Walk Boost Mode: Provides low-speed assistance for walking the bike, useful when pushing it uphill or through crowded areas.
5.3. Gear Shifting
Use the Shimano 8-speed derailleur to select appropriate gears for different terrains and speeds. Shift gears smoothly by pedaling lightly while shifting.
5.4. Battery Charging
- Connect the charger to the charging port on the battery (or directly to the bike if the battery is installed).
- Plug the charger into a standard wall outlet.
- The charging indicator on the charger will change color when fully charged (typically 5-6 hours for a full charge).
- Do not overcharge the battery. Disconnect the charger once charging is complete.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your e-bike.
- Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Lubrication: Lubricate the chain and other moving parts periodically with bicycle-specific lubricant.
- Tire Pressure: Check tire pressure before each ride and maintain it within the recommended range.
- Brake Inspection: Regularly inspect brake pads for wear and ensure brake levers provide firm and responsive braking. Adjust or replace as needed.
- Bolt Tightness: Periodically check all bolts and fasteners for tightness, especially on critical components like handlebars, wheels, and folding mechanisms.
- Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge it to 50-70% and recharge every 2-3 months.
- Professional Service: For complex repairs or adjustments, consult a qualified bicycle mechanic.
7. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on. | Battery not charged, battery not properly seated, power cable loose. | Charge battery, ensure battery is fully inserted and locked, check all cable connections. |
| Motor not assisting. | Low battery, PAS level set to 0, brake levers engaged, motor error. | Check battery level, increase PAS level, ensure brake levers are fully released, check LCD for error codes. |
| Brakes feel weak. | Worn brake pads, air in hydraulic system, misaligned caliper. | Inspect and replace brake pads, bleed hydraulic system (professional service recommended), adjust caliper alignment. |
| Unusual noises from drivetrain. | Dry chain, misaligned derailleur, loose components. | Lubricate chain, adjust derailleur, check for loose bolts. |
8. Specifications
Key technical specifications for the ANIIOKI A7 PRO Electric Bike.
Figure 8.1: Dimensions and weight specifications for the ANIIOKI A7 PRO, including recommended rider height and maximum load capacity.
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike |
| Model Name | ANIIOKI A7 PRO |
| Age Range (Description) | Adult |
| Brand | ANIIOKI |
| Number of Speeds | 8 |
| Colour | ANIIOKI-A7 PRO-Green |
| Wheel Size | 20 Inches |
| Frame Material | Aluminum |
| Suspension Type | Front, Dual |
| Special Feature | Foldable |
| Included Components | Brushless Motor |
| Brake Style | Disc (Hydraulic) |
| Item Weight | 32.61 kg (71.9 lbs) |
| Maximum Weight Recommendation | 350 Pounds (approx. 158 kg) |
| Battery | 48V 20AH Samsung Li-ion |
| Motor Power | 750W (Peak 1100W) |
| Max Speed | 32 MPH |
| Range (Pure Electric) | 40-50 miles |
| Range (Pedal Assist) | 60-80 miles |
| Charging Time | 5-6 hours |
| Recommended Height | 5'6"-6'5" |
9. Warranty and Support
ANIIOKI is committed to providing excellent customer service and technical support.
- Warranty: The battery, motor, controller, and charger are covered by a 1-year warranty.
- Technical Support: ANIIOKI offers professional lifetime technical support. For any issues or inquiries, please contact ANIIOKI customer service.
- Contact Information: Refer to the product packaging or the official ANIIOKI website for the most current contact details.
