1. Introduction
The WIWU Speedy Series 10,000mAh Power Bank is designed to provide reliable and efficient portable charging for your electronic devices. Its compact form factor and high-capacity battery make it an ideal companion for daily use and travel. This manual provides essential information on how to set up, operate, maintain, and troubleshoot your power bank.

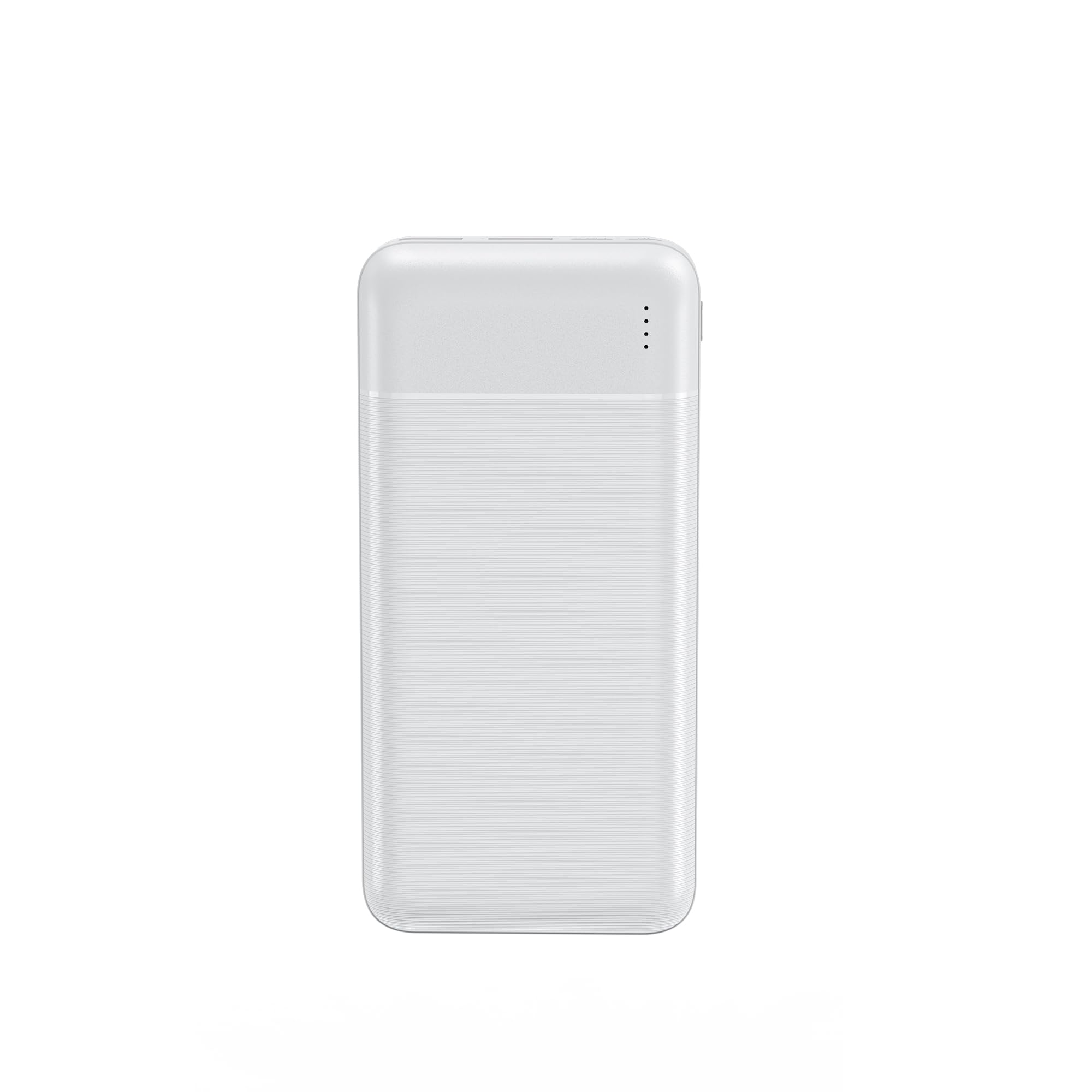

Image 1: Front view of the WIWU Speedy Series 10,000mAh Power Bank in white.
Key Features:
- High-capacity 10,000mAh battery ensures multiple device charges while on the go.
- Sleek and slim design for easy portability, fitting in your pocket or bag.
- Dual USB ports allow simultaneous charging of two devices.
- Features fast charging technology (20W PD & QC) to save time.
- LED indicators directly display battery status.
Image 2: The power bank shown in an airplane window, emphasizing its portability for travel.
2. Setup
2.1 Package Contents
Please check the package for the following items:
- WIWU Speedy Series 10,000mAh Power Bank
- USB Charging Cable
- User Manual
2.2 Initial Charging of the Power Bank
Before first use, fully charge the power bank. Connect the provided USB cable to the power bank's input port and a compatible USB wall adapter (not included). The LED indicators will illuminate to show charging progress. All LEDs will be solid when fully charged.
Image 3: The power bank connected to a wall adapter for charging.
2.3 Understanding LED Indicators
The power bank features LED lights to indicate the remaining battery capacity and charging status.
- Each LED typically represents a percentage of the battery charge (e.g., 4 LEDs = 100%, 3 LEDs = 75%, 2 LEDs = 50%, 1 LED = 25%).
- During charging, the LEDs will blink to show active charging and become solid when that charge segment is complete.
3. Operation
3.1 Charging Your Devices
To charge your electronic devices:
- Connect your device's charging cable to one of the power bank's output ports (USB-A or USB-C).
- Connect the other end of the cable to your device.
- The power bank will automatically begin charging your device.
You can charge up to two devices simultaneously using the available ports.
Image 4: The power bank simultaneously charging a smartphone and a tablet.
3.2 Fast Charging
This power bank supports 20W Power Delivery (PD) and Quick Charge (QC) technologies for rapid charging.
- For fast charging, ensure your device and charging cable are compatible with PD or QC standards.
- When a compatible device is connected, the power bank will automatically deliver fast charging speeds.
Image 5: A smartphone display indicating a fast charging status with a high percentage.
3.3 Checking Battery Level
Briefly press the power button (if available, or it might automatically show when a device is connected) to view the current battery level indicated by the LED lights.
4. Maintenance
Proper maintenance ensures the longevity and optimal performance of your power bank.
- Cleaning: Wipe the power bank with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, it is recommended to keep the power bank charged to about 50-75% to preserve battery health.
- Battery Care: Avoid fully discharging the power bank frequently. Do not expose the power bank to water or excessive moisture. Do not attempt to disassemble or modify the power bank.
5. Troubleshooting
If you encounter any issues with your power bank, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Power bank not charging. | Loose cable connection, faulty adapter/cable, power outlet issue. | Ensure secure connections. Try a different cable or wall adapter. Check the power outlet. |
| Device not charging from power bank. | Power bank is discharged, faulty cable, incompatible device, dirty device port. | Check power bank charge level. Try a different cable or power bank port. Clean device's charging port. |
| Slow charging. | Non-fast charging cable/device, multiple devices charging, high device usage. | Use PD/QC compatible cables and devices. Charge one device at a time for optimal speed. Avoid heavy device usage during charging. |
| LED indicators not working. | Completely discharged, internal fault. | Charge the power bank for a few minutes. If issue persists, contact customer support. |
6. Specifications
Detailed technical specifications for the WIWU Speedy Series Power Bank:
| Feature | Detail |
|---|---|
| Model Name | WIWU Speedy Series |
| Power Source | Battery Powered |
| Recommended Uses | Protection |
| Battery Cell Composition | Lithium Ion |
| Voltage | 5 Volts |
| Special Features | Fast Charging, Slim Design |
| Color | White |
| Battery Capacity | 10,000 mAh (Unrated) |
| Brand Name | WIWU |
| Connector Type | USB |
| Date First Available | November 9, 2023 |
| Item Model Number | 6936686407021 |
| Batteries | 1 Lithium Polymer battery required (included) |
| Product Dimensions | 20 x 10 x 18 cm |
| Item Weight | 200 grams |
7. Warranty and Support
The WIWU Speedy Series 10,000mAh Power Bank comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.
For technical support, warranty claims, or any product-related inquiries, please contact WIWU customer service through their official website or the retailer where you purchased the product. Keep your purchase receipt as proof of purchase for warranty services.
8. Product Overview Video
Watch this video for a visual guide on the features and usage of the WIWU Speedy Series Power Bank.
Video 1: An official product overview video demonstrating the WIWU Speedy Series Power Bank's design, charging capabilities, and portability. This video is provided by the seller and offers a comprehensive look at the product in action.
