Introduction
Welcome to the user manual for your new Tefal Easy Fry Essential Hot Air Fryer, model EY1308. This appliance is designed to provide a convenient and healthy way to prepare a variety of delicious meals with little to no oil. Its compact design, fast cooking capabilities, and energy-saving features make it an essential addition to any kitchen. Please read this manual thoroughly before first use to ensure safe and optimal operation.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons.
- Always place the appliance on a stable, heat-resistant surface, away from walls or other appliances, to allow sufficient air circulation.
- Do not immerse the main unit, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Close supervision is necessary when any appliance is used by or near children.
- The appliance generates heat and steam during use. Do not touch hot surfaces. Use handles or knobs.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not use accessories not recommended by the appliance manufacturer, as this may cause injuries.
Product Overview
The Tefal Easy Fry Essential Air Fryer EY1308 features a compact design with intuitive manual controls.
Components
- Main Unit: Houses the heating element and fan.
- Removable Basket: The primary cooking container.
- Removable Crisping Tray: Sits at the bottom of the basket to allow air circulation and fat drainage.
- Temperature Dial: Located on the top, used to set the cooking temperature.
- Timer Dial: Located on the top, used to set the cooking time.
Figure 1: Front view of the Tefal Easy Fry Essential Air Fryer, showing the main unit, handle, and control dials on top.

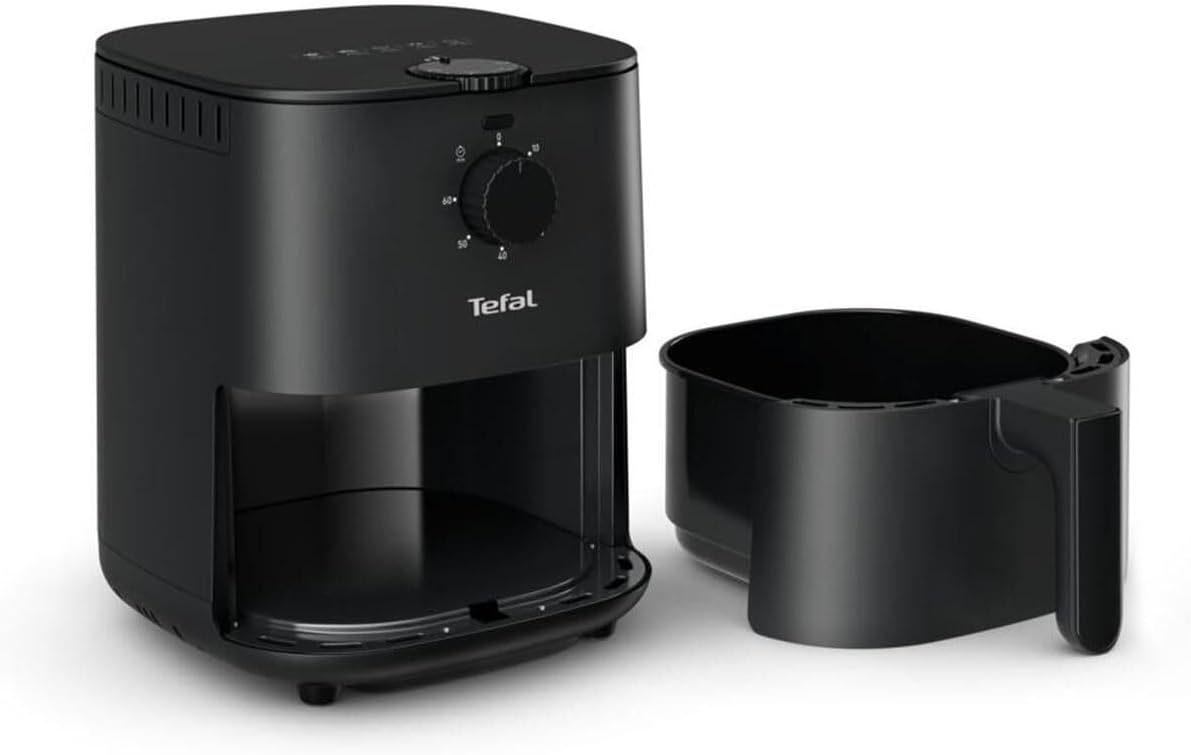

Figure 2: The air fryer with its removable cooking basket and crisping tray detached, illustrating the internal cavity.
Controls
The air fryer features two main manual controls:
- Temperature Dial: Turn this dial to select your desired cooking temperature, ranging from 80°C to 200°C. The top panel of the air fryer provides suggested temperatures for common food items.
- Timer Dial: Turn this dial to set the cooking duration, up to 60 minutes. The appliance will automatically shut off and emit an audible signal when the timer reaches zero.
Figure 3: Side view of the air fryer, highlighting the top panel with the temperature and timer dials, along with cooking suggestions.
Setup
- Unpacking: Remove all packaging materials, stickers, and labels from the appliance.
- Initial Cleaning: Before first use, clean the basket and crisping tray thoroughly with hot water, dish soap, and a non-abrasive sponge. The basket and tray are dishwasher safe. Wipe the inside and outside of the main unit with a damp cloth.
- Placement: Place the appliance on a stable, horizontal, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of free space on the back and sides, and 10 cm (4 inches) above the appliance to allow for proper air circulation.
- Power Connection: Plug the power cord into a grounded wall outlet.
Operating Instructions
General Operation
- Prepare Food: Place the food you wish to air fry into the removable basket. Do not overfill the basket to ensure even cooking.
- Insert Basket: Slide the basket back into the main unit until it clicks securely into place.
- Set Temperature: Turn the temperature dial to your desired cooking temperature. Refer to the cooking guide below for recommendations.
- Set Timer: Turn the timer dial to the required cooking time. The air fryer will begin heating immediately.
- Shaking/Turning Food: For many foods, especially fries or smaller items, it is recommended to shake or turn the food halfway through the cooking time to ensure even crisping. To do this, carefully pull out the basket, shake or turn the contents, and then slide the basket back in. The appliance will pause cooking when the basket is removed and resume when it is reinserted.
- Cooking Completion: When the set cooking time has elapsed, the timer will ring, and the appliance will automatically shut off.
- Remove Food: Carefully pull out the basket. Use heat-resistant tongs to remove the cooked food from the basket. Avoid tipping the basket directly to prevent oil from dripping onto the food.
- Cool Down: Allow the appliance to cool down completely before cleaning or storing.
Cooking Guide
The following table provides general guidelines for common food items. Cooking times and temperatures may vary based on food quantity, thickness, and desired crispiness.
| Food Item | Temperature | Time (Approx.) | Notes |
|---|---|---|---|
| Fresh Fries | 180°C (356°F) | 15-20 min | Shake basket halfway. |
| Frozen Fries | 180°C (356°F) | 15-20 min | Shake basket halfway. |
| Chicken Nuggets | 180°C (356°F) | 15-20 min | |
| Meat (e.g., Steak) | 180°C (356°F) | 15-20 min | Adjust for desired doneness. |
| Fish | 180°C (356°F) | 15-20 min | |
| Vegetables (e.g., Brussels Sprouts) | 180°C (356°F) | 15-20 min | Shake basket halfway. |
| Cake | 160°C (320°F) | 20-25 min | Use a suitable baking pan. |
| Pizza | 180°C (356°F) | 10-15 min | |
| Bread/Rolls | 160°C (320°F) | 10-15 min |
Figure 4: The air fryer basket containing a batch of perfectly cooked, golden-brown french fries.
Figure 5: A top-down view of the air fryer basket filled with fresh brussels sprouts, ready for air frying.
Cleaning and Maintenance
Regular cleaning of your air fryer will ensure its longevity and optimal performance.
- Unplug and Cool: Always unplug the appliance and allow it to cool down completely before cleaning.
- Clean Basket and Tray: The removable basket and crisping tray have a non-stick coating and are dishwasher safe. Alternatively, they can be cleaned with hot water, dish soap, and a non-abrasive sponge.
- Clean Interior: Wipe the interior of the appliance with a damp cloth. For stubborn residue, a small amount of mild dish soap can be used. Ensure no water enters the heating element area.
- Clean Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaning materials or scouring pads.
- Storage: Ensure all parts are clean and dry before storing the appliance in a cool, dry place.
Troubleshooting
If you encounter issues with your air fryer, consult the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; timer not set. | Ensure the power cord is securely plugged into a grounded outlet. Turn the timer dial to the desired cooking time. |
| Food is not cooked evenly. | Basket is overfilled; food not shaken. | Do not overfill the basket. For best results, cook food in smaller batches. Shake or turn food halfway through cooking. |
| Food is not crispy. | Temperature too low; cooking time too short. | Increase the temperature or extend the cooking time. Ensure food is not overcrowded in the basket. |
| White smoke coming from appliance. | Grease residue from previous use; fatty food. | Clean the basket and crisping tray thoroughly after each use. For very fatty foods, some smoke is normal. Ensure the crisping tray is properly inserted. |
Specifications
- Model: EY1308
- Capacity: 3.5 Liters / 600 g
- Power: 1400 Watts (Output Wattage: 1600 Watts)
- Voltage: 240 Volts
- Control Method: Manual (Dials)
- Material: Aluminum (Inner Material)
- Non-stick Coating: Yes
- Dishwasher Safe Parts: Basket and Crisping Tray
- Product Dimensions: 13.9 x 9.72 x 11.65 inches
- Item Weight: 7.66 pounds (3.48 Kilograms)
Warranty and Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Tefal website. If you require technical support, spare parts, or have any questions not covered in this manual, please contact Tefal customer service. Contact details can typically be found on the manufacturer's website or on the product packaging.
