Introduction
This manual provides detailed instructions for the safe and effective use of your Feit Electric FL500 Tactical LED Flashlight. Designed for durability and versatility, this flashlight features adjustable focus, multiple light modes, and a robust construction suitable for various applications.
Image: A four-pack of Feit Electric FL500 Tactical LED Flashlights, showcasing their compact design, included AAA batteries, and wristbands. The image highlights key features like 500 lumens, two light settings, sliding zoom focus, tactical strike bezel, impact resistance, and water resistance.
Package Contents
- Feit Electric FL500 Tactical LED Flashlight (Quantity: 4)
- AAA Batteries (Quantity: 12, 3 per flashlight)
- Wrist Bands (Quantity: 4)
Setup
1. Battery Installation
- Unscrew the tail cap of the flashlight by turning it counter-clockwise.
- Insert three (3) AAA batteries into the battery compartment, ensuring correct polarity (+/-) as indicated inside the flashlight.
- Screw the tail cap back on clockwise until securely tightened.
2. Attaching the Wristband
Thread the loop of the wristband through the small hole located on the tail cap of the flashlight. Secure the wristband by passing the larger end through the loop and pulling it tight. This helps prevent accidental drops.
Operating Instructions
1. Power On/Off and Mode Selection
Press the button on the tail cap to turn the flashlight on. Press the button again to cycle through the available light modes: High Beam (500 lumens) and Low Beam (170 lumens). Press the button a third time to turn the flashlight off.
Image: A person walking on a path through a dark forest, illuminated by the bright beam of a flashlight, demonstrating its effectiveness in low-light outdoor environments.
2. Adjustable Focus (Zoom Function)
The flashlight features a slide-to-focus mechanism. To adjust the beam from a wide floodlight to a narrow spotlight, simply slide the head of the flashlight forward or backward. This allows for versatile illumination depending on your needs.
Image: A diagram illustrating the flashlight's adjustable focus feature. It shows how sliding the flashlight head allows users to switch between a wide zoom (floodlight) and a narrow zoom (spotlight) beam.
3. Tactical Attack Bezel
The front of the flashlight is equipped with a scalloped striking bezel. This feature is designed for emergency situations, such as breaking glass. It also allows light to show when the flashlight is placed face down on a flat surface.

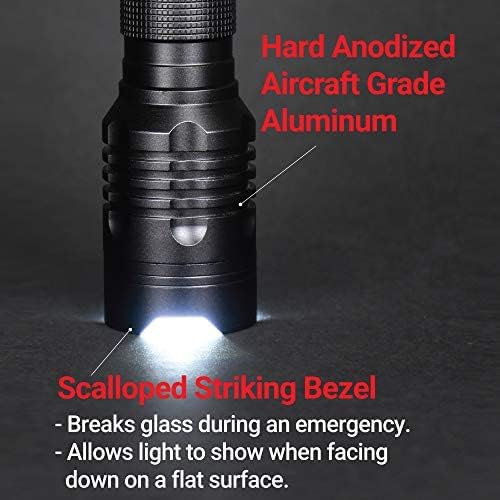

Image: A close-up view of the flashlight's head, highlighting the scalloped striking bezel and the durable hard anodized aircraft-grade aluminum material used in its construction.
Maintenance
1. Cleaning
Wipe the flashlight body with a soft, damp cloth as needed. Avoid using abrasive cleaners or solvents, as these may damage the finish.
2. Battery Replacement
When the light output diminishes, replace all three AAA batteries with new ones. Refer to the "Battery Installation" section for instructions.
3. Water and Impact Resistance
The FL500 flashlight is designed to be water and impact resistant. While it can withstand splashes and minor drops, it is not intended for prolonged submersion in water or severe impacts. Ensure the tail cap is securely tightened to maintain water resistance.
Troubleshooting
- Flashlight does not turn on:
- Check if batteries are inserted correctly with the correct polarity.
- Ensure batteries are new and fully charged.
- Verify the tail cap is fully tightened.
- Light output is dim:
- Replace old batteries with new ones.
- Ensure the lens is clean and free of obstructions.
- Beam does not adjust:
- Ensure the flashlight head is free to slide. Check for any debris or damage preventing movement.
Specifications
| Feature | Detail |
|---|---|
| Model Number | FL500AAA |
| Light Source Type | LED |
| Brightness (High) | 500 Lumens |
| Brightness (Low) | 170 Lumens |
| Run Time (Low Beam) | Up to 9 hours 45 minutes |
| Light Range (High Beam) | Up to 170 meters |
| Power Source | 3 x AAA Batteries (included) |
| Material | Hard Anodized Aircraft-Grade Aluminum |
| Special Features | Adjustable Focus, Tactical Attack Bezel, Water Resistant, Impact Resistant |
| Product Dimensions | 1.18"D x 1.18"W x 4.53"H |
| Weight | 1.54 pounds (for 4-pack) |
| Color | Black |
Image: A visual representation of the flashlight's dimensions, indicating a length of 4.6 inches and a head diameter of 1.3 inches.
Additional Information
For further assistance or product inquiries, please visit the official Feit Electric website or contact their customer support.
This flashlight is suitable for various activities including home use, walking, hiking, camping, and emergency situations.
Image: A person standing next to a glowing tent under a clear, starry night sky, using the flashlight to illuminate the vast outdoor environment, highlighting its utility for camping and outdoor activities.
