Introduction
The Camco Eaz-Lift ReCurve R6 is a weight distribution hitch designed to enhance the towing experience for campers and RVs. This system features adaptive sway control, which helps maintain stability and control while towing. It works by distributing the trailer's tongue weight more evenly across the axles of both the tow vehicle and the trailer, reducing sag and improving overall handling.
This manual provides essential information for the proper setup, operation, and maintenance of your ReCurve R6 hitch to ensure safe and efficient towing.
Image: A black pickup truck towing a white travel trailer on a highway, demonstrating the Eaz-Lift ReCurve R6 hitch's function in maintaining a level tow.
Safety Information
Always prioritize safety when installing and operating your weight distribution hitch. Failure to follow these guidelines can result in serious injury or property damage.
- Read the Entire Manual: Before installation or use, thoroughly read and understand all instructions and warnings in this manual.
- Verify Compatibility: Ensure the hitch's weight ratings (tongue weight and gross trailer weight) are compatible with your tow vehicle and trailer. Do not exceed the lowest-rated component of your towing system.
- Professional Installation Recommended: If you are unsure about any part of the installation process, seek assistance from a qualified professional.
- Regular Inspection: Before each trip, inspect all hitch components for wear, damage, or loose fasteners. Replace any damaged parts immediately.
- Proper Loading: Always load your trailer correctly, ensuring proper tongue weight distribution.
- Test Brakes: After connecting, test the trailer brakes and ensure all lights are functioning.
- Adjust Sway Control: Understand how to properly engage and disengage the adaptive sway control feature based on driving conditions.
Package Contents
The Camco Eaz-Lift ReCurve R6 Weight Distribution Hitch kit includes the following components:
- Hitch Head Assembly with 2-inch Hitch Ball
- Adjustable Shank
- Two Spring Bars (for 600-800 lb. tongue weight)
- Two Sway Control Brackets
- Lift Handle
- All necessary bolts, nuts, washers, pins, and clips for assembly
- Hex Key for adjustments
Image: A complete view of all components included in the Eaz-Lift ReCurve R6 weight distribution hitch kit, neatly arranged for identification.
Setup
Proper setup is crucial for the safe and effective operation of your weight distribution hitch. This section outlines the general steps for installation. Refer to the detailed instructions provided with your product packaging for specific measurements and torque specifications.
General Installation Guidelines:
- Prepare Vehicle and Trailer: Park the tow vehicle and trailer on a level surface. Ensure the trailer is level and supported by its tongue jack.
- Install Hitch Ball: Secure the 2-inch hitch ball onto the hitch head assembly. Ensure it is tightened to the manufacturer's specifications.
- Mount Hitch Head to Shank: Attach the hitch head assembly to the adjustable shank using the provided bolts and nuts. Adjust the height of the hitch head to achieve a level trailer when connected.
- Insert Shank into Receiver: Insert the adjustable shank into your tow vehicle's receiver hitch and secure it with a hitch pin and clip.
- Connect Trailer: Lower the trailer coupler onto the hitch ball and secure it.
- Install Spring Bars: Attach the spring bars to the hitch head. The top-loading design provides more ground clearance and simplifies installation.
- Attach Sway Control Brackets: Mount the sway control brackets to the trailer frame. These brackets will engage with the spring bars to provide adaptive sway control.
- Adjust Weight Distribution: Use the lift handle to tension the spring bars, distributing the weight evenly. Adjust until the tow vehicle and trailer are level.
- Final Checks: Double-check all fasteners for proper torque. Ensure safety chains are connected and all lights are working.
Image: A detailed close-up of the Eaz-Lift ReCurve R6 hitch assembly, illustrating the connection point between the trailer and the tow vehicle, with spring bars engaged.
Image: A side profile of the Eaz-Lift ReCurve R6 hitch, highlighting its structural components and how the spring bars connect to the hitch head.
Operating Instructions
Adaptive Sway Control:
The ReCurve R6 features adaptive sway control, which automatically adjusts based on your driving conditions. This system is designed to provide stability during straight-line towing and to disengage when turning, allowing for smoother maneuverability.
- Automatic Engagement: The sway control system is active during normal driving to counteract trailer sway.
- Automatic Disengagement: When making turns, the system is designed to automatically disengage, preventing binding and allowing for easier cornering.
- Manual Override: In certain situations, such as driving on icy roads or in very tight maneuvers, you may wish to manually disengage the sway control completely. This can be done using the ON/OFF switch located on the hitch head.

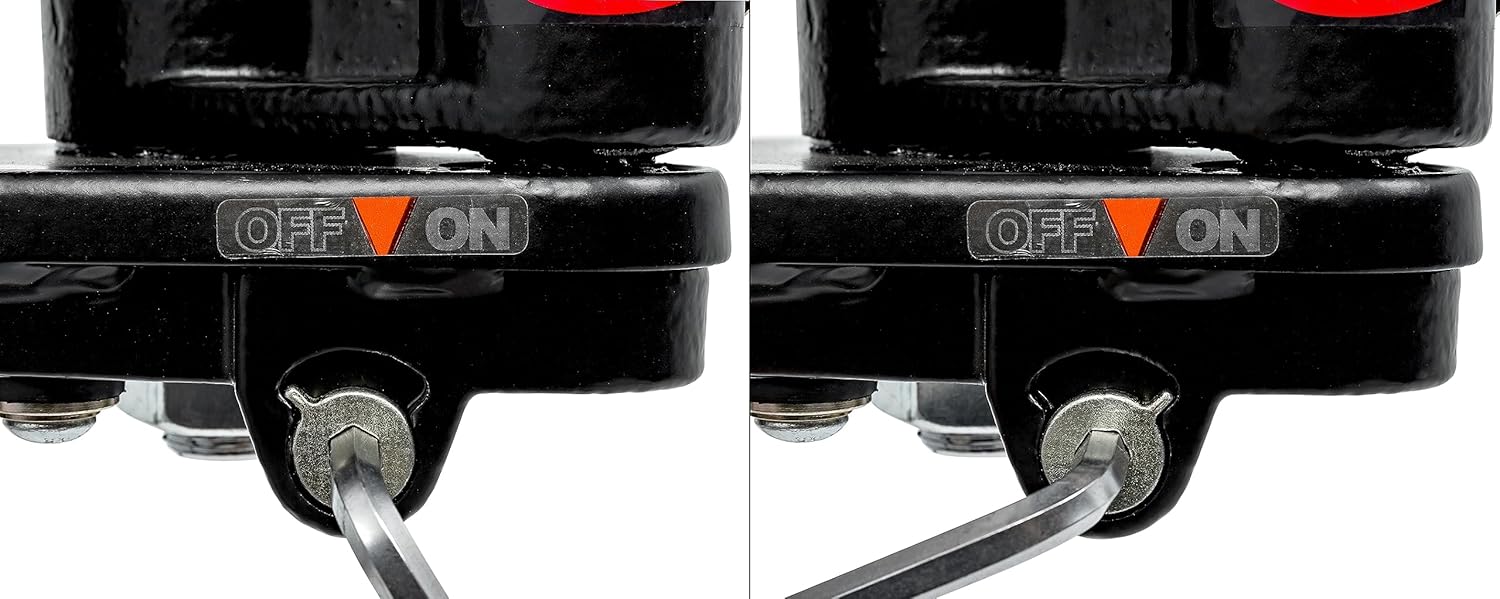

Image: A close-up view of the ON/OFF switch for the adaptive sway control, indicating how to manually engage or disengage the feature using a hex key.
Connecting and Disconnecting:
- Connecting: Ensure the hitch ball is properly greased. Lower the trailer coupler onto the ball, secure the coupler latch, and insert the safety pin. Attach safety chains and the trailer's electrical connection. Finally, use the lift handle to engage the spring bars and distribute weight.
- Disconnecting: Park on a level surface. Disengage the spring bars using the lift handle. Disconnect safety chains and electrical connections. Raise the trailer tongue jack to lift the coupler off the hitch ball.
Maintenance
Regular maintenance ensures the longevity and safe operation of your Eaz-Lift ReCurve R6 hitch.
- Lubrication: Periodically lubricate the hitch ball and the pivot points of the spring bars with appropriate grease to reduce friction and wear.
- Inspection: Before each trip, visually inspect all components for signs of wear, cracks, bends, or corrosion. Pay close attention to the hitch head, shank, spring bars, and sway control mechanism.
- Fastener Torque: Regularly check and re-torque all bolts and nuts to the manufacturer's specified values. Loose fasteners can compromise the hitch's performance and safety.
- Cleaning: Keep the hitch clean from dirt, mud, and road salt. Clean with mild soap and water, then dry thoroughly.
- Storage: When not in use, store the hitch in a dry place to prevent rust and corrosion.
Troubleshooting
This section addresses common issues you might encounter with your weight distribution hitch.
- Excessive Trailer Sway:
- Cause: Improper weight distribution, insufficient spring bar tension, or sway control disengaged.
- Solution: Re-adjust spring bar tension to achieve proper weight distribution. Ensure the adaptive sway control is engaged (ON position). Verify trailer loading for correct tongue weight.
- Difficulty Turning/Binding:
- Cause: Sway control not disengaging automatically during turns or manually engaged when it should be off.
- Solution: Check the sway control mechanism for proper function. If necessary, manually disengage the sway control for tight maneuvers. Ensure pivot points are lubricated.
- Uneven Vehicle/Trailer Level:
- Cause: Incorrect hitch head height or insufficient/excessive spring bar tension.
- Solution: Re-adjust the hitch head height on the shank. Adjust spring bar tension until both the tow vehicle and trailer are level.
- Noise (Creaking/Groaning):
- Cause: Lack of lubrication at friction points (hitch ball, spring bar pivots, sway control).
- Solution: Apply appropriate grease to all moving and friction points as part of regular maintenance.
Specifications
Key specifications for the Camco Eaz-Lift ReCurve R6 Weight Distribution Hitch:
| Feature | Specification |
|---|---|
| Model Number | 48779-A |
| Maximum Tongue Weight | 800 lb. |
| Gross Trailer Weight Rating | 8,000 lb. |
| Spring Bar Tongue Weight Range | 600-800 lb. |
| Hitch Ball Size | 2-inch |
| Hitch Ball Rating | 6,000 lb. |
| Product Dimensions | 27.94 x 87 x 29.21 cm |
| Item Weight | 454 g |
| Material | Blend (Heavy-duty steel construction) |
| Finish Type | Powder Coated |
Image: A detailed view of the 2-inch hitch ball, clearly displaying its 6,000 lb. rating, which is included with the ReCurve R6 kit.
Warranty and Support
For specific warranty information and customer support regarding your Camco Eaz-Lift ReCurve R6 Weight Distribution Hitch, please refer to the documentation included with your purchase or visit the official Camco website. General return policies may apply as per the retailer's terms.
If you have questions about installation, operation, or troubleshooting that are not covered in this manual, please contact Camco customer service for assistance.
Contact Information: Refer to your product packaging or the official Camco website for the most current customer support details.
