1. Introduction
Thank you for choosing the VGR V-320 5-in-1 Electric Head Shaver and Grooming Kit. This versatile device is designed to provide a comprehensive grooming experience, featuring multiple detachable attachments for various needs including head shaving, hair trimming, nose hair trimming, and facial cleansing. Please read this manual carefully before use to ensure proper operation, maintenance, and safety.
Image 1: VGR V-320 5-in-1 Electric Head Shaver and Grooming Kit main unit.
2. Product Features
- 5D Floating Shaving Head: Equipped with precision rotary blades that adapt to facial and head contours for a smooth and close shave.
- 5-in-1 Multifunctional Grooming: Includes a hair clipper with 3-5-7 mm guide combs, electric shaver head, sideburns trimmer, nose hair trimmer, and facial cleansing brush.
- USB Fast Charging & LED Display: Offers 120 minutes of shaving time after a 2-hour USB quick charge. The smart LED display shows usage and remaining time.
- Wet & Dry Shave: IPX6 waterproof rating allows for comfortable dry shaving or refreshing wet shaving with foam or gel, even in the shower.
- Easy Cleaning: The shaver can be rinsed directly under tap water for convenient cleaning.
Image 2: Overview of the VGR V-320's 5-in-1 functionality with various attachments.
3. Package Contents
Verify that all items are present in the package:
- VGR V-320 Main Shaver Unit
- Electric Shaver Head (5D Floating)
- Hair Clipper Head
- Sideburns Trimmer Head
- Nose Hair Trimmer Head
- Facial Cleansing Brush Head
- 3 Guide Combs (3mm, 5mm, 7mm) for Hair Clipper
- USB Charging Cable
- Cleaning Brush
- Lubricating Oil
- User Manual
Image 3: Complete contents of the VGR V-320 grooming kit.
4. Setup
4.1 Initial Charging
- Before first use, fully charge the device.
- Connect the USB charging cable to the shaver's charging port and plug the other end into a USB power adapter (not included) or a computer USB port.
- The LED display will indicate charging status. A full charge takes approximately 2 hours.
- Once fully charged, the shaver provides up to 120 minutes of cordless operation.

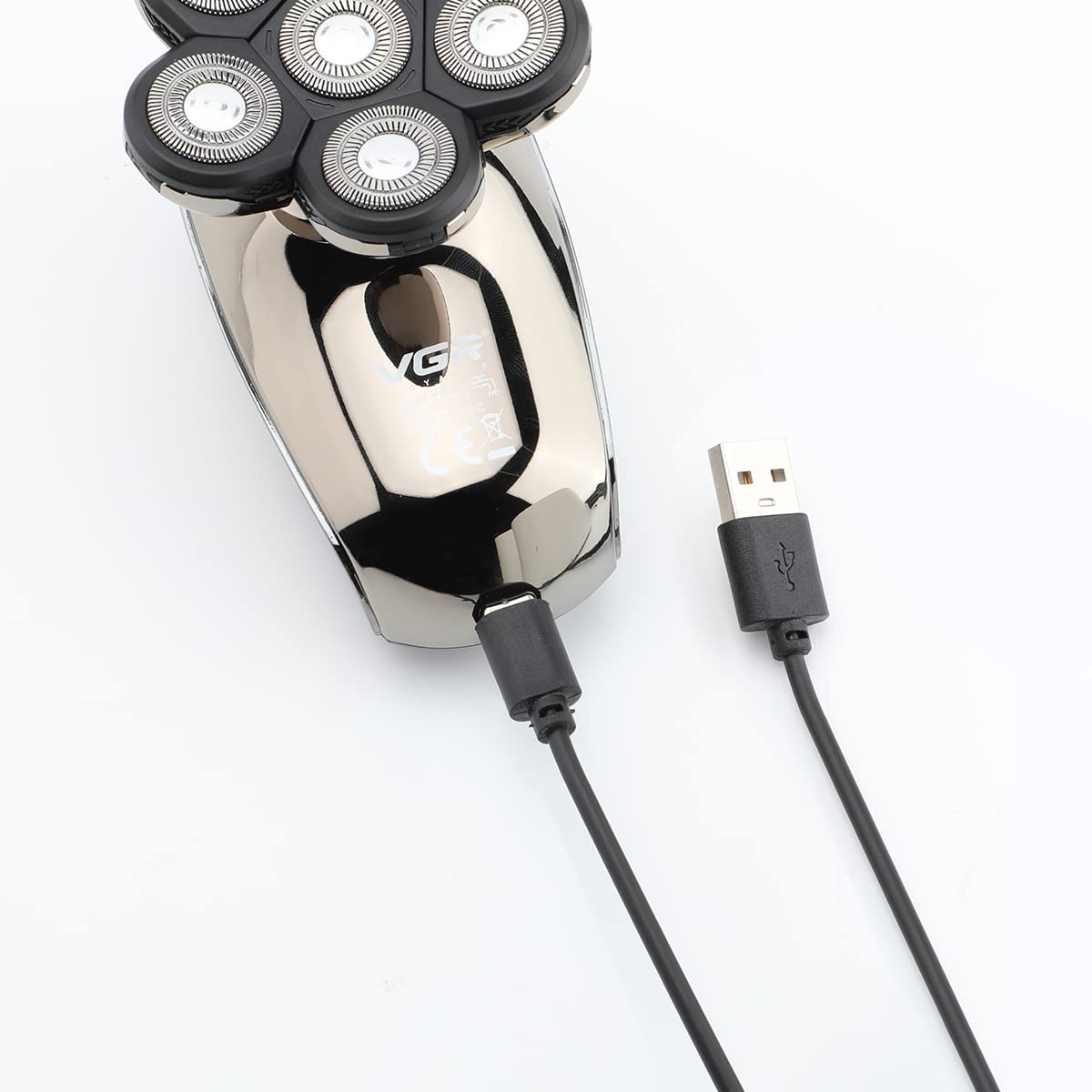

Image 4: USB charging connection for the VGR V-320.
4.2 Attaching/Detaching Heads
- To attach a head, align the desired attachment with the main unit and press firmly until it clicks into place.
- To detach a head, gently pull it upwards while holding the main unit firmly.
5. Operating Instructions
5.1 Power On/Off
Press the power button located on the front of the shaver to turn it on or off.
5.2 Using the Electric Shaver Head
- For optimal results when shaving a bald head, first trim hair to less than 5 mm using the hair clipper attachment.
- Move the shaver in small, circular motions over the skin.
- The 5D floating heads will adjust to the contours of your head and face.
- Can be used for both wet and dry shaving.
Image 5: Demonstrating the VGR V-320 shaver in use for head shaving.
5.3 Using the Hair Clipper Head
- Attach the hair clipper head to the main unit.
- Select a guide comb (3mm, 5mm, or 7mm) and attach it to the clipper head for desired hair length.
- Move the clipper against the direction of hair growth for an even trim.
5.4 Using Other Attachments
- Sideburns Trimmer: Use for precise trimming and shaping of sideburns and beard lines.
- Nose Hair Trimmer: Gently insert the trimmer into the nostril or ear canal to remove unwanted hair.
- Facial Cleansing Brush: Use with your preferred facial cleanser to gently exfoliate and clean the skin.
6. Maintenance and Cleaning
6.1 Cleaning the Shaver
- Turn off the shaver before cleaning.
- Detach the shaving head.
- Rinse the shaving head and the main unit under running tap water. The IPX6 waterproof design allows for easy rinsing.
- Use the provided cleaning brush to remove any stubborn hair clippings from the blades and internal components.
- Allow all parts to air dry completely before reassembling or storing.

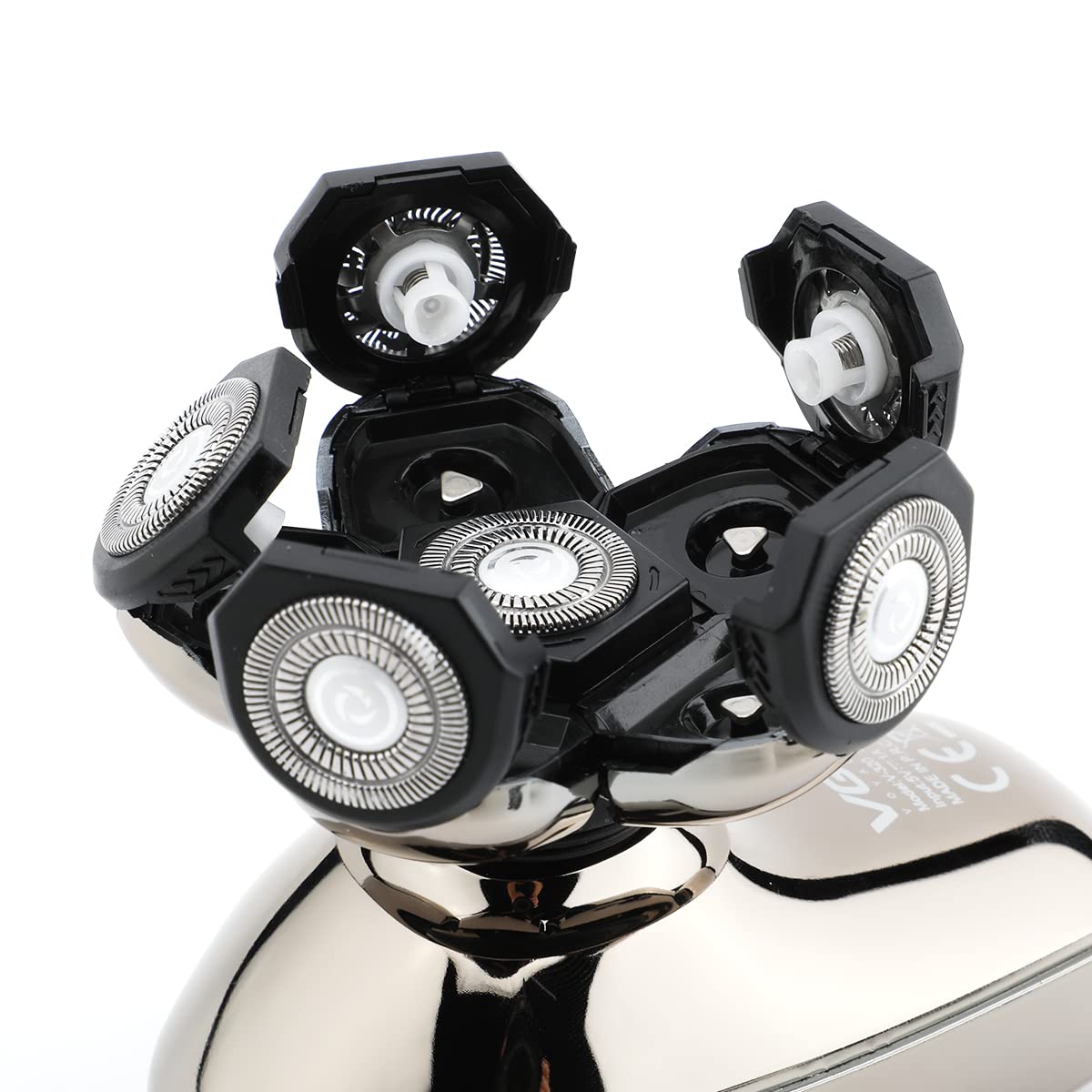

Image 6: Detached shaver head showing individual blades for thorough cleaning.
6.2 Lubrication
Apply a small drop of lubricating oil (provided) to the blades of the shaver and clipper heads periodically (e.g., once a month or after several uses) to maintain optimal performance and extend blade life. Run the shaver for a few seconds to distribute the oil.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shaver does not turn on. | Battery is low or depleted. | Charge the shaver for at least 2 hours. |
| Poor shaving performance / pulling hair. | Blades are dull or clogged with hair. | Clean the blades thoroughly. Apply lubricating oil. Consider replacing the shaving head if performance does not improve. |
| Attachments fall off easily. | Attachment not securely fastened. | Ensure the attachment is aligned correctly and pressed firmly until it clicks into place. |
| LED display not working. | Device malfunction. | Contact customer support if charging and power functions are otherwise normal. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | V-320 |
| Power Source | Battery Operated (Lithium Ion) |
| Battery Life | Up to 120 minutes |
| Charging Time | Approx. 2 hours |
| Waterproof Rating | IPX6 |
| Blade Material | Stainless Steel |
| Item Weight | 350 g |
| Product Dimensions (LxWxH) | 17 x 16 x 8 cm |
| Included Components | Main unit, 5 attachment heads, 3 guide combs, USB cable, cleaning brush, oil |
Image 7: LED display indicating battery and charging status.
9. Warranty and Support
9.1 Warranty Information
The VGR V-320 Electric Head Shaver and Grooming Kit comes with a 12-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.
9.2 Customer Support
For any questions, concerns, or warranty claims, please contact VGR customer support through your retailer or the official VGR website. Please have your purchase receipt and product model number (V-320) ready when contacting support.
