LITFAD Pine Wood Platform Bed Instruction Manual

1. Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Adult Assembly Required: This product requires adult assembly. Ensure all parts are present and undamaged before beginning.
• Use Proper Tools: Use only the tools specified in the assembly instructions. Do not overtighten screws or bolts, as this may damage the wood.
• Weight Capacity: Do not exceed the maximum weight capacity of 1100 lbs (approximately 500 kg). Overloading may cause structural failure and injury.
• Level Surface: Assemble and use the bed on a flat, level surface to prevent wobbling and ensure stability.
• Regular Inspection: Periodically check all bolts and screws to ensure they remain tight. Retighten as necessary.
• Keep Away from Children: Small parts can be a choking hazard. Keep assembly hardware out of reach of children.
• Ventilation: Allow for adequate ventilation during and after assembly to dissipate any new furniture odors.

2. Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Headboard
• Bed Frame Side Rails (2)
• Bed Frame End Rails (2)
• Center Support Beam(s)
• Wooden Slats
• Storage Drawers (if included with your model)
• Assembly Hardware (screws, bolts, washers, Allen wrench)
• Instruction Manual (this document)

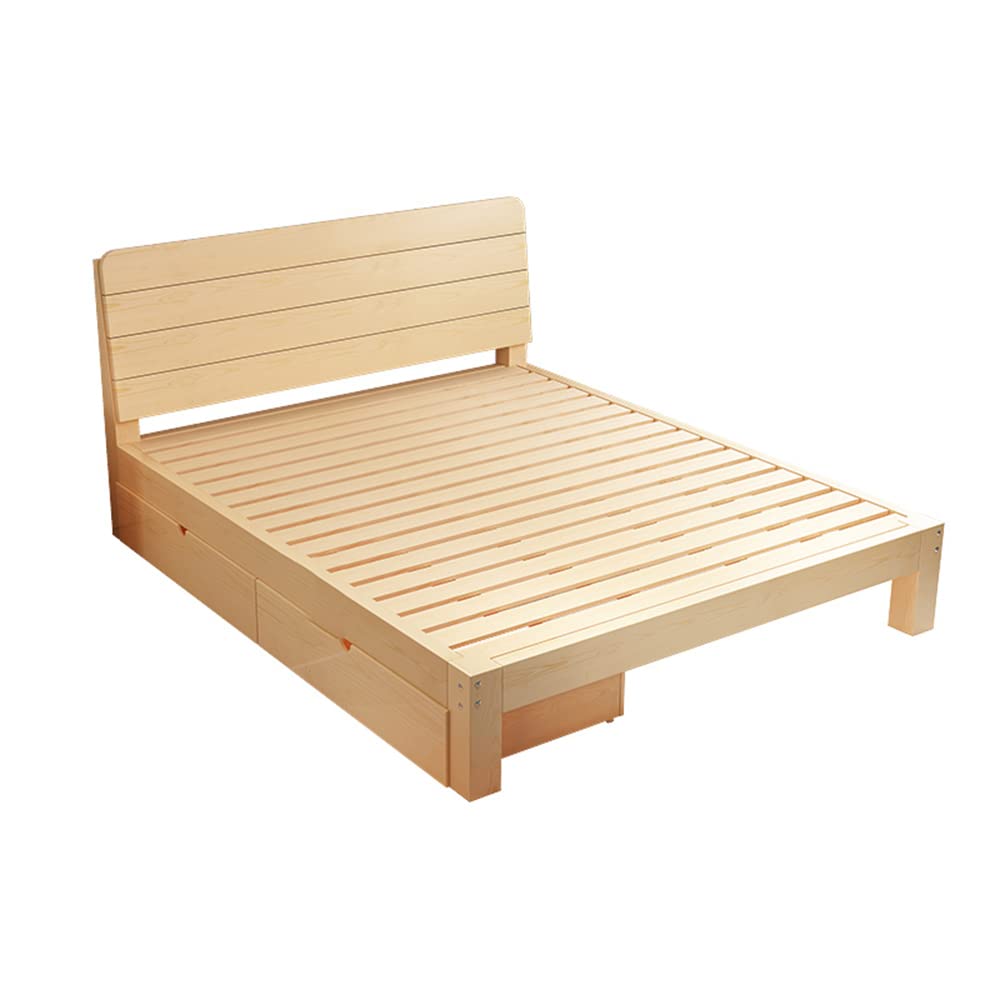

Figure 2.1: Overview of the LITFAD Pine Wood Platform Bed. This image shows the complete bed frame with headboard and integrated storage drawers, providing a visual reference for the assembled product.

3. Setup & Assembly

Follow these steps carefully to assemble your LITFAD Pine Wood Platform Bed. It is recommended to have two adults for assembly.

3.1 Unpacking and Preparation

1. Clear a spacious area for assembly.
2. Carefully unpack all components and place them on a soft, clean surface to prevent scratches.
3. Identify all parts against the package contents list.

3.2 Assembling the Bed Frame

1. Attach the side rails to the headboard and footboard using the provided bolts and an Allen wrench. Ensure all connections are secure but do not fully tighten yet.
2. Insert the center support beam(s) into the designated slots or brackets on the side rails.
3. Once the main frame is loosely assembled, gently place it in its final desired position.
4. Fully tighten all bolts and screws on the bed frame. Do not overtighten.

Figure 3.1: Detail of a bed frame corner joint. This image illustrates how the bed frame components connect, showing the secure fastening points for stability.

3.3 Installing the Wooden Slats

1. Place the wooden slats evenly across the bed frame, ensuring they rest securely on the support ledges.
2. Some slats may have pre-drilled holes for optional attachment to the frame. If so, use the provided screws to secure them.
3. Ensure there is even spacing between the slats for optimal mattress support and ventilation.

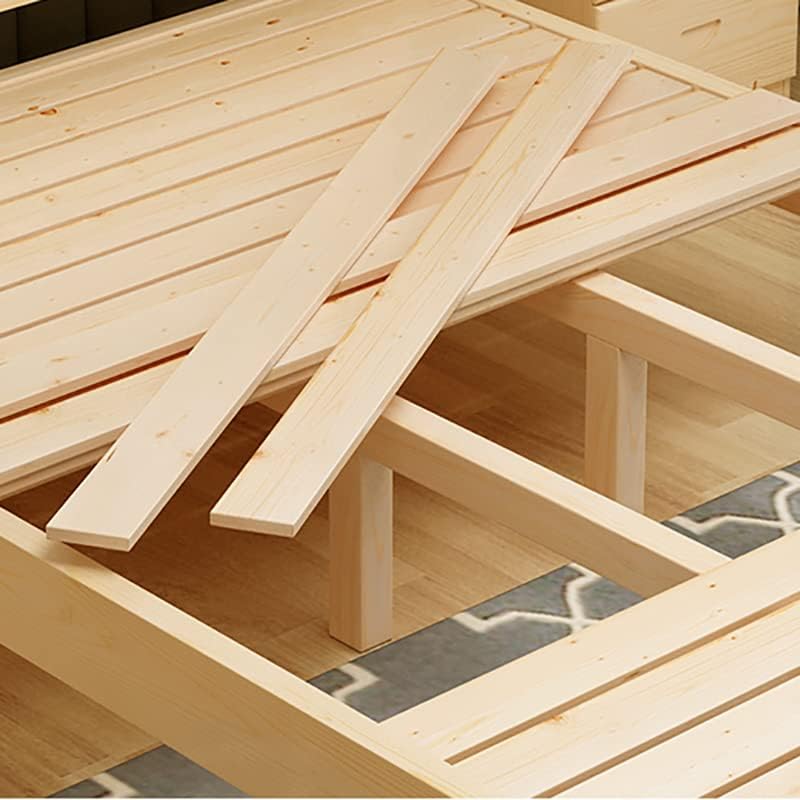

Figure 3.2: Installation of wooden slats. This image demonstrates how the individual wooden slats are positioned and secured onto the bed frame, forming the mattress support.

3.4 Installing Storage Drawers (if applicable)

1. If your model includes storage drawers, assemble them according to their separate instructions, if provided.
2. Slide the assembled drawers into the designated spaces under the bed frame.

4. Usage

Your LITFAD Pine Wood Platform Bed is designed for comfort and durability. Here are some guidelines for proper use:

• Mattress Compatibility: This platform bed is designed to be used without a box spring. Place your mattress directly on the wooden slats.
• Weight Distribution: Distribute weight evenly across the bed surface. Avoid concentrating heavy loads in one small area.
• Storage Drawers: Utilize the integrated storage drawers for lightweight items such as bedding, clothing, or books. Do not overload the drawers.
• Movement: When moving the bed, lift it rather than dragging it to prevent damage to the frame and your flooring.

5. Maintenance

Proper care will extend the life and appearance of your pine wood platform bed.

• Cleaning: Wipe the wood surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, which can damage the wood finish.
• Dusting: Regularly dust the bed frame with a dry, soft cloth to prevent dust buildup.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause the wood to fade or change color over time.
• Humidity Control: Maintain a consistent humidity level in your room. Extreme changes in humidity can cause wood to expand, contract, or crack.
• Hardware Check: Periodically check and retighten all assembly hardware (bolts, screws) to ensure the bed remains stable and secure.

6. Troubleshooting

If you encounter any issues with your bed, refer to the following common problems and solutions:

• Wobbling or Instability:
  • Ensure all bolts and screws are fully tightened.
  • Verify the bed is on a level surface. Adjust if necessary.
  • Check that all frame components are correctly aligned.
• Squeaking Noises:
  • Retighten all hardware. Loose connections are a common cause of squeaking.
  • Check if slats are properly seated and not rubbing against the frame.
  • Consider placing felt pads between slats and the frame if squeaking persists.
• Drawers Not Sliding Smoothly:
  • Ensure drawers are not overloaded.
  • Check for any obstructions in the drawer tracks.
  • Verify that the drawers were assembled correctly.

If these solutions do not resolve the issue, please contact LITFAD customer support.

7. Specifications

8. Warranty & Support

LITFAD stands behind the quality of its products. For specific warranty information, please refer to the documentation included with your purchase or visit the official LITFAD website.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact LITFAD customer support:

• Website: Visit the LITFAD Store on Amazon
• Email: Refer to your purchase invoice for contact details.
• Phone: Refer to your purchase invoice for contact details.

Please have your model number (LT1002068FCSS) and purchase date ready when contacting support.
