Product Overview
The kadision LED Wall Pack is a versatile outdoor lighting fixture designed for commercial, industrial, and residential applications. It features adjustable wattage settings (100W, 120W, 150W) and an integrated dusk-to-dawn photocell for automatic operation. Constructed with a durable aluminum casing and a tempered borosilicate glass lens, it is built to withstand various weather conditions.
Figure 1: Front view of the kadision LED Wall Pack.
Safety Information
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other hazards. Keep this manual for future reference.
- Ensure power is disconnected at the circuit breaker before installation or maintenance.
- Installation should be performed by a qualified electrician in accordance with local electrical codes.
- Do not modify the fixture in any way.
- Do not operate the fixture with damaged wiring or components.
- This fixture is rated for 120-277V AC. Verify your power supply voltage before connecting.
Package Contents
- 1 x kadision LED Wall Pack Fixture
- Mounting Accessories (screws, wire nuts, mounting plate)
- Instruction Manual
Figure 2: Included mounting accessories and product dimensions.
Installation Instructions
- Step 1: Prepare for Installation
Ensure the power supply to the installation area is turned off at the circuit breaker. Detach the back plate of the fixture by loosening the screws. Knock out appropriate holes on the back plate for wiring and mounting. - Step 2: Secure Back Plate and Wire Connections
Secure the back plate to the desired mounting surface using the provided screws. Connect the electrical wires: Black (L) to Live, White (N) to Neutral, and Green (GND) to Ground. For 0-10V dimming (optional), connect Purple (DIM+) and Pink (DIM-). - Step 3: Seal and Prepare for Re-attachment
Pull out the rubber plug at the water leakage hole to ensure proper drainage and sealing. - Step 4: Re-attach Front Cover
Carefully re-attach the front cover to the secured back plate and tighten all screws to ensure a secure and weather-tight seal. Restore power at the circuit breaker.
Figure 3: Detaching the back plate and preparing knockout holes.
Figure 4: Wiring diagram and securing the back plate.
Operating Instructions
Wattage Adjustment
The kadision LED Wall Pack features a selectable wattage switch, allowing you to choose between 100W, 120W, and 150W output. This switch is located inside the fixture. Adjust the switch to your desired wattage before sealing the fixture.
Figure 5: Location of the 3-wattage option switch.
Dusk-to-Dawn Photocell

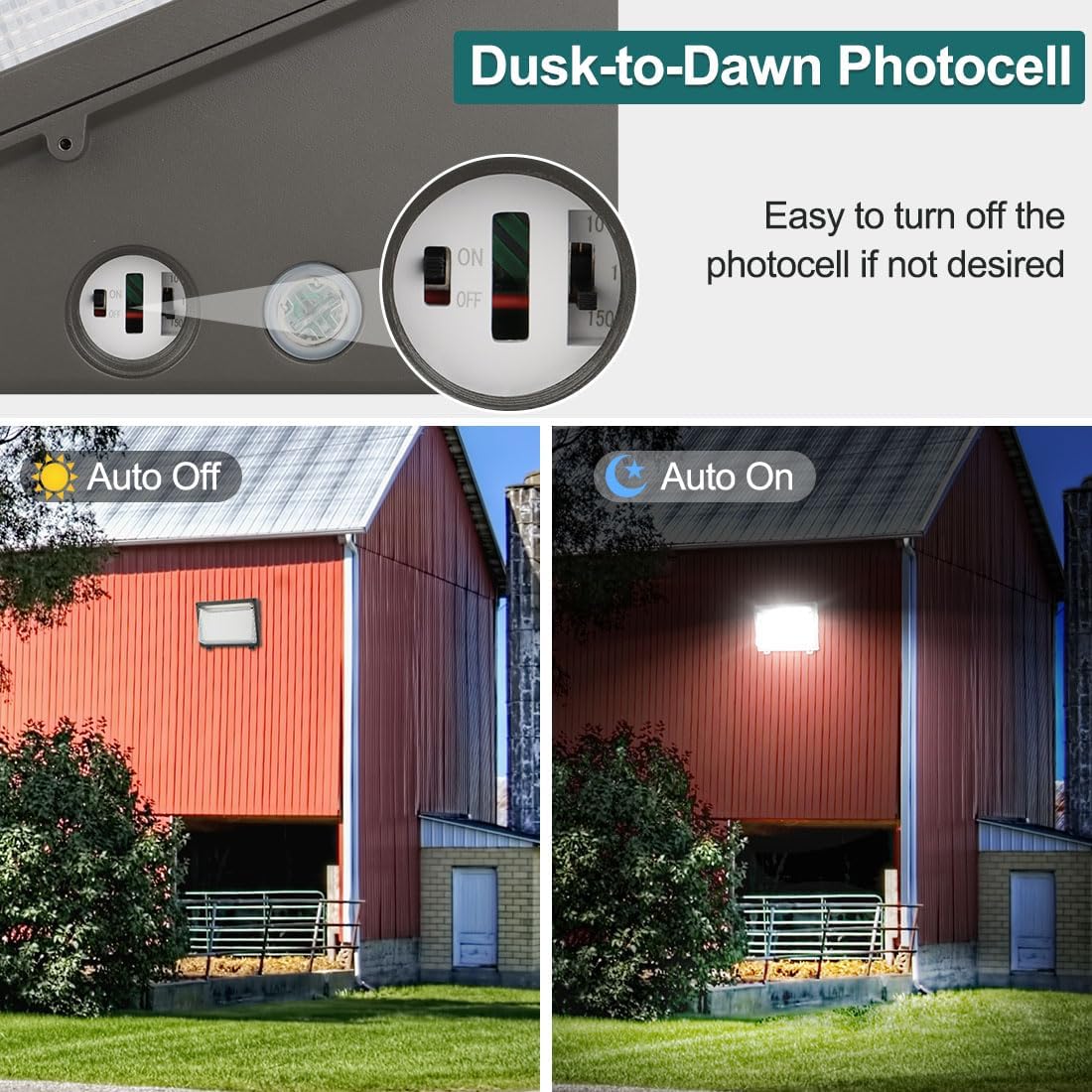

This fixture includes a built-in photocell that automatically turns the light on at dusk and off at dawn. To disable the photocell and enable manual control, set the photocell switch to the "OFF" position. This switch is also located inside the fixture.
Figure 6: Location of the photocell ON/OFF switch.
Maintenance
The kadision LED Wall Pack requires minimal maintenance. Periodically inspect the fixture for any signs of damage or loose connections. Clean the lens with a soft, damp cloth to ensure optimal light output. Do not use abrasive cleaners or solvents.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; Loose wiring; Faulty fixture. | Check circuit breaker. Verify wiring connections. Contact customer support if issue persists. |
| Light stays on during the day. | Photocell switch is OFF; Photocell obstructed; Photocell malfunction. | Ensure photocell switch is ON. Clear any obstructions from the photocell sensor. |
| Light flickers. | Unstable power supply; Loose wiring. | Consult an electrician to check power supply stability. Re-check wiring connections. |
Specifications
- Model: 150W LED Wall Pack (Adjustable 100W/120W/150W)
- Wattage: 100W / 120W / 150W (Selectable)
- Lumen Output: Up to 19,500 lm (at 150W)
- Color Temperature: 5000K
- Input Voltage: 120-277V AC
- Dimming: 0-10V Dimmable (dimmer not included)
- Photocell: Integrated Dusk-to-Dawn (On/Off switchable)

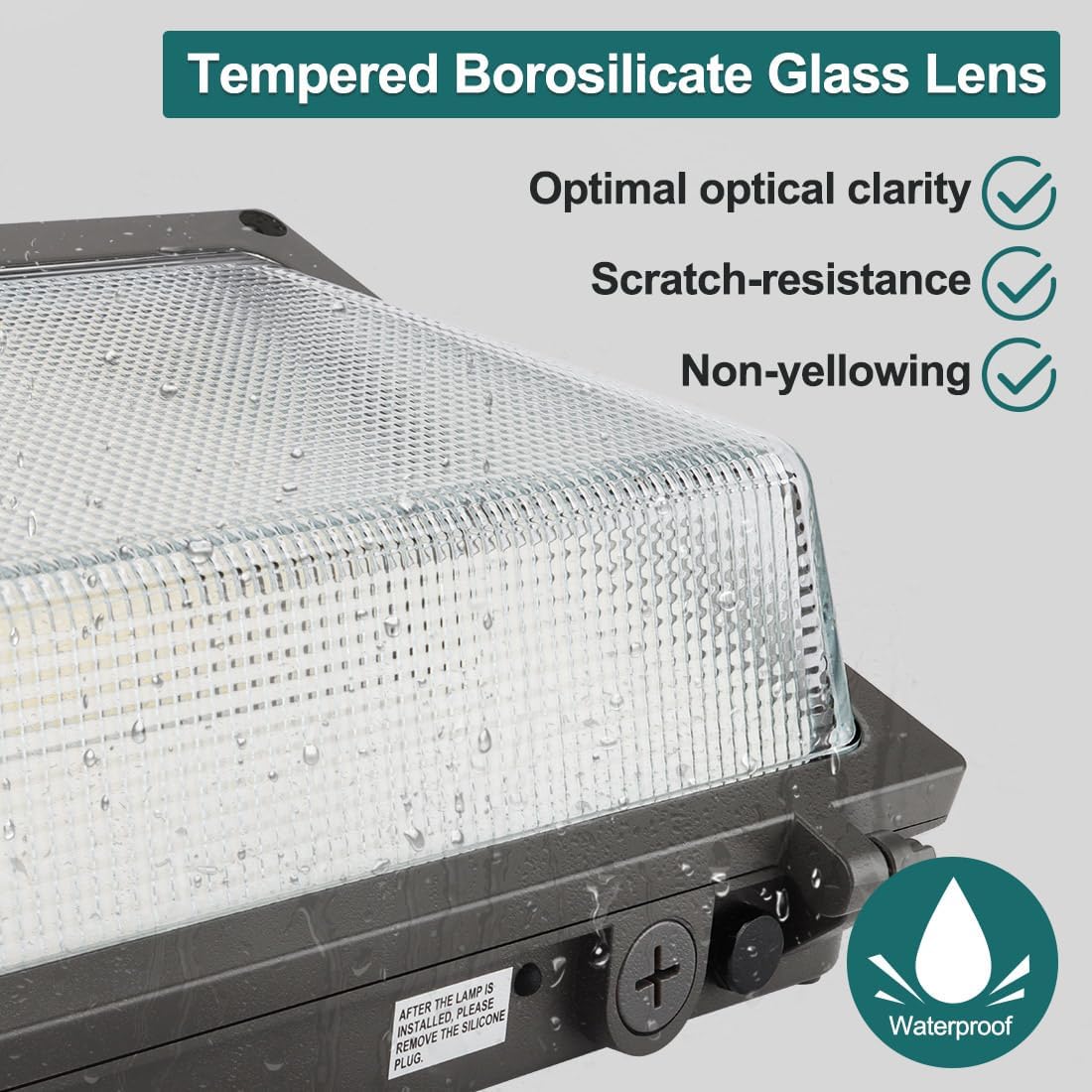

- Material: Aluminum Housing, Tempered Borosilicate Glass Lens
- IP Rating: IP65 (Waterproof)
- Lifespan: 50,000 hours
- Dimensions: 33 x 13.6 x 25.4 cm (13 x 5.35 x 10 inches)
- Certifications: ETL/cETL Listed
Warranty and Support
kadision products are designed for durability and performance. For warranty information or technical support, please contact kadision customer service. Refer to your purchase documentation for specific warranty terms.
Contact Information: Please visit the official kadision website or refer to your product packaging for the most up-to-date contact details.
