Eureka Forbes Stick Vac NXT 600W Upright & Handheld Vacuum Cleaner User Manual

1. Introduction

Thank you for choosing the Eureka Forbes Stick Vac NXT 600W Upright & Handheld Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and retain it for future reference.

Image 1.1: The Eureka Forbes Stick Vac NXT 600W in its upright configuration.

2. Safety Instructions

To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance. Read all instructions before using this vacuum cleaner.

• Ensure the power supply voltage matches the rating label on the appliance.
• Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material (e.g., chlorine bleach, ammonia, drain cleaner).
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.

3. Package Contents

Carefully unpack your vacuum cleaner and check that all items are present and in good condition. If any items are missing or damaged, contact Eureka Forbes customer service.

• Main Vacuum Unit (Motor and Dust Cup)
• Extension Tube
• Floor Brush
• Crevice Tool
• Upholstery Brush
• User Manual

Image 3.1: Included accessories for varied cleaning needs.

4. Assembly

The Eureka Forbes Stick Vac NXT can be assembled in two configurations: Upright Stick Vacuum and Handheld Vacuum.

4.1. Upright Stick Vacuum Assembly

1. Insert the extension tube into the main vacuum unit until it clicks securely into place.
2. Attach the floor brush to the other end of the extension tube, ensuring it is firmly connected.
3. Ensure the dust cup is properly installed on the main unit.

Image 4.1: The vacuum cleaner configured for upright use.

4.2. Handheld Vacuum Assembly

1. Detach the extension tube from the main vacuum unit by pressing the release button (if applicable) and pulling.
2. Attach the desired accessory (crevice tool or upholstery brush) directly to the main vacuum unit until it clicks into place.

Image 4.2: The vacuum cleaner configured for handheld use with an attachment.

5. Operating Instructions

5.1. Powering On/Off

• Plug the power cord into a suitable electrical outlet. The vacuum cleaner features a 16-meter long cord for extended reach.
• Press the power button (located on the main unit) to turn the vacuum cleaner ON.
• Press the power button again to turn the vacuum cleaner OFF.

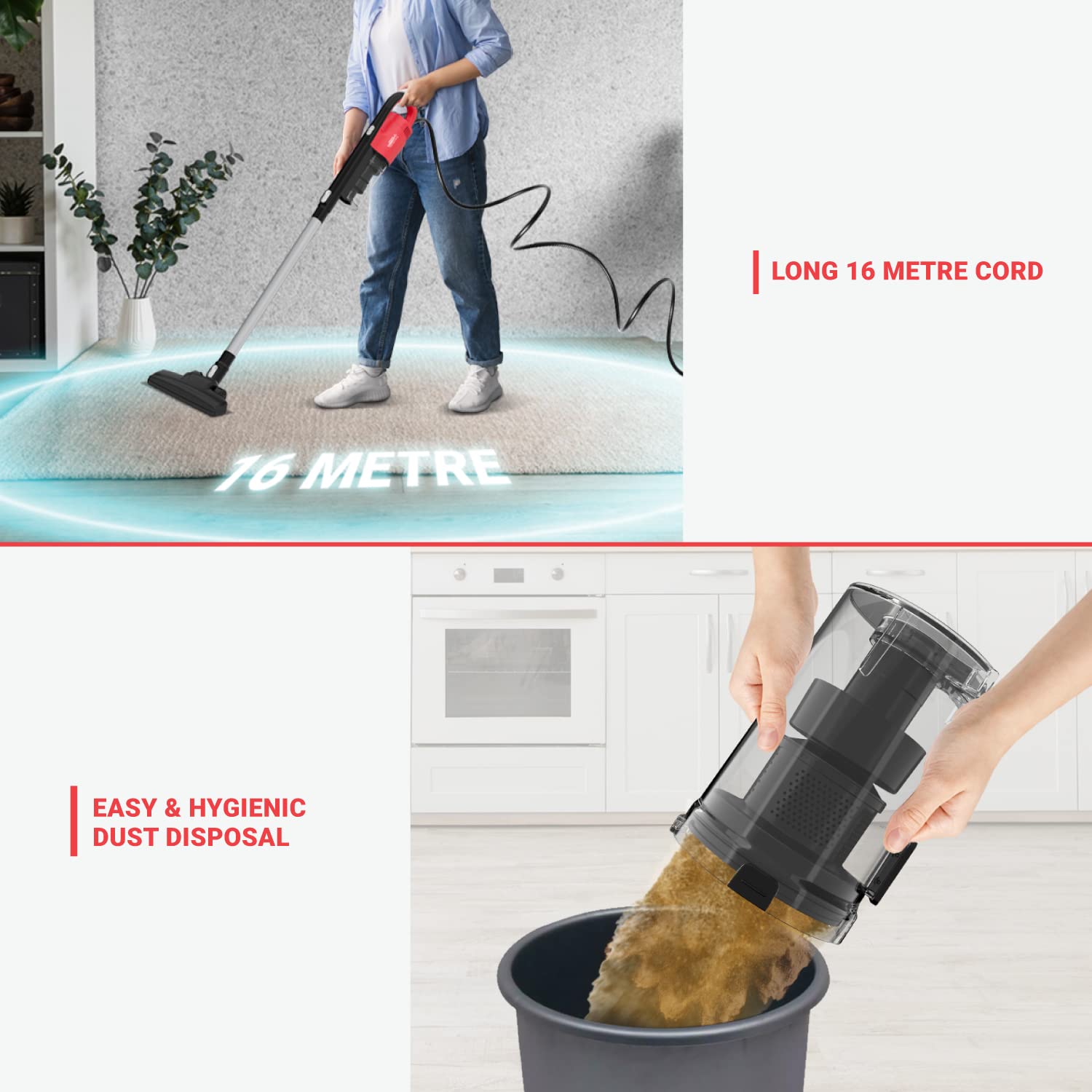

Image 5.1: The vacuum cleaner in operation, demonstrating the reach of its 16-meter cord.

5.2. Using the Upright Stick Vacuum

This configuration is ideal for cleaning floors and carpets.

• Ensure the floor brush is attached.
• Gently push and pull the vacuum cleaner across the surface to be cleaned.
• For optimal performance on carpets, move the vacuum slowly to allow the powerful 600W motor to effectively lift dirt.

Image 5.2: Effective deep cleaning on carpeted surfaces.

5.3. Using the Handheld Vacuum

This configuration is suitable for cleaning upholstery, car interiors, stairs, and hard-to-reach areas.

• Attach the crevice tool for narrow gaps or the upholstery brush for fabric surfaces.
• Hold the main unit firmly and guide the attachment over the area to be cleaned.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.

6.1. Emptying the Dust Cup

Empty the dust cup when the dirt reaches the MAX fill line or after each use.

1. Ensure the vacuum cleaner is unplugged from the power outlet.
2. Press the dust cup release button (if applicable) and remove the dust cup from the main unit.
3. Position the dust cup over a waste bin.
4. Open the bottom lid of the dust cup to release the collected dirt.
5. Close the lid securely and reattach the dust cup to the main unit.

Image 6.1: Easy and hygienic dust disposal process.

6.2. Cleaning the HEPA Filter

The HEPA filter should be cleaned regularly to maintain suction power. It is recommended to clean it after every 3-5 uses, or more frequently depending on usage.

1. Ensure the vacuum cleaner is unplugged.
2. Remove the dust cup as described above.
3. Carefully remove the HEPA filter from the dust cup.
4. Tap the filter gently over a waste bin to remove loose dust.
5. If necessary, rinse the filter under cool running water. Do not use detergent or hot water.
6. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use the vacuum cleaner with a wet filter.
7. Reassemble the filter and dust cup, then reattach to the main unit.

7. Troubleshooting

Before contacting customer service, please refer to the following troubleshooting guide for common issues.

8. Specifications

9. Warranty and Support

For warranty information, service requests, or technical support, please contact Eureka Forbes customer service. Details can typically be found on the product packaging or the official Eureka Forbes website.

You can visit the official Eureka Forbes store for more information: Eureka Forbes Store

Please have your model number (FCDSTKVAC0000) and purchase date available when contacting support.
