THEGA Multi-Functional Electric Rice Cooker & Skillet User Manual

1. Introduction

Thank you for purchasing the THEGA Multi-Functional Electric Rice Cooker & Skillet. This appliance is designed for versatile cooking, including steaming, boiling, stewing, sautéing, and frying. Please read this manual thoroughly before operation to ensure safe and efficient use.

Image 1.1: The THEGA Multi-Functional Electric Rice Cooker with its included accessories, including the steamer basket, power cord, and various utensils.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions carefully before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• The appliance features double temperature control protection: automatic power-off when water dries out or ultra-high temperature is detected. Wait for the inner temperature to return to normal before reheating.

3. Product Components

Familiarize yourself with the parts of your THEGA Multi-Functional Electric Rice Cooker & Skillet.

• Main Pot: Non-stick inner layer made of 304 stainless steel.
• Glass Lid: Transparent lid for monitoring cooking progress.
• Steamer Basket: For steaming food (included with "With Steamer" models).
• Control Knob: Rotary knob for power and heating mode selection (Off, Lower, Upper, Steamboat).
• Power Cord: Detachable power cord.
• Accessories: Bamboo shovel, fishing spoon, chopsticks, fork, soup spoon, tablespoon, bowl, cleaning cloth (may vary).

Image 3.1: Detail of the control knob and main pot structure.

4. Setup

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Before first use, wash the inner pot, steamer basket, and lid with warm soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the appliance on a stable, flat, heat-resistant surface, away from water sources and direct heat. Ensure adequate ventilation around the unit.
4. Connect Power: Insert the power cord into the appliance's power inlet, then plug the other end into a standard 110V electrical outlet.

5. Operating Instructions

This appliance offers various cooking functions controlled by the rotary knob.

5.1 Basic Operation

1. Ensure the appliance is properly set up and plugged in.
2. Add desired ingredients and liquid to the inner pot. Do not overfill.
3. Place the glass lid securely on the pot.
4. Turn the control knob to select the desired heating mode:
   • Off: Appliance is powered off.
   • Lower: Low heat setting, suitable for simmering or keeping food warm.
   • Upper: High heat setting, suitable for boiling, frying, or quick cooking.
   • Steamboat: Continuous high heat for hot pot style cooking.
5. Monitor cooking progress through the transparent lid.
6. Once cooking is complete, turn the control knob to "Off" and unplug the appliance.

Image 5.1: Adjusting the control knob for desired heating mode.

5.2 Steaming Function

1. Add an appropriate amount of water to the inner pot (ensure it does not touch the bottom of the steamer basket).
2. Place the steamer basket into the inner pot.
3. Arrange food items (e.g., dumplings, vegetables) in the steamer basket.
4. Cover with the glass lid.
5. Turn the control knob to "Upper" or "Steamboat" to bring water to a boil and generate steam.
6. Steam until food is cooked to desired tenderness.
7. Carefully remove the steamer basket using heat-resistant gloves.

Image 5.2: Using the steamer basket for cooking.

Image 5.3: The appliance in use, steaming food.

5.3 Hot Pot / Simmering Function

1. Add broth or water and desired ingredients (e.g., vegetables, meat, seafood) to the inner pot.
2. Turn the control knob to "Steamboat" for continuous high heat, or "Lower" for gentle simmering.
3. Allow ingredients to cook.

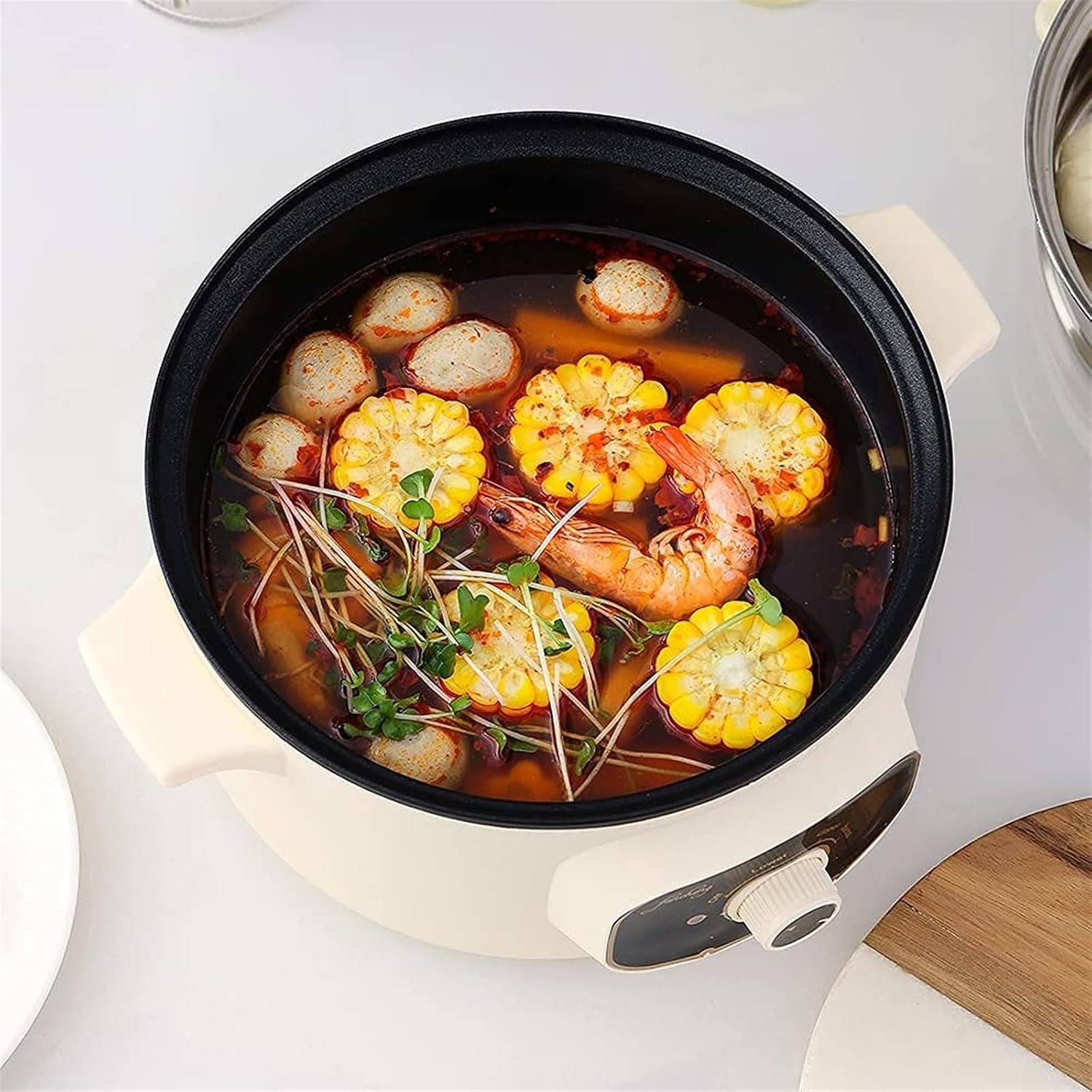

Image 5.4: Inner pot prepared for hot pot or simmering.

6. Care and Maintenance

Proper care ensures the longevity and performance of your appliance.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Inner Pot and Steamer Basket: Wash the non-stick inner pot and steamer basket with warm, soapy water using a soft sponge or cloth. Avoid abrasive cleaners or metal scouring pads to protect the non-stick coating. Rinse thoroughly and dry completely.
3. Glass Lid: Wash the glass lid with warm, soapy water. Rinse and dry.
4. Exterior: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit or power cord in water or any other liquid.
5. Storage: Store the appliance in a clean, dry place when not in use.

7. Troubleshooting

If you encounter issues with your appliance, refer to the following table:

8. Specifications

9. Warranty and Support

For any questions or concerns regarding your THEGA Multi-Functional Electric Rice Cooker & Skillet, please contact customer service.

Customer Service: If you have any questions, please contact us. We aim to reply within 10 hours and provide high-quality products and satisfactory services.

Note: Specific warranty details may vary. Please refer to your purchase documentation or contact the seller for precise warranty terms.
