AMZCHEF 4-Zone Built-in Induction Cooktop

1. Important Safety Information

Please read this manual thoroughly before installing or using your AMZCHEF induction cooktop. Keep these instructions for future reference. Incorrect installation or use can cause personal injury or property damage. Always follow basic safety precautions, including:

• Electrical Safety: Ensure the cooktop is correctly installed by a qualified person and connected to a suitable power supply (220V, 7000W total). Do not use extension cords or adapters.
• Heat Warning: The cooktop surface will be hot after use due to residual heat. Do not touch until it has cooled down.
• Child Safety: This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised. Keep children away from the cooktop during operation and when it is cooling. Utilize the child safety lock feature.
• Cookware Compatibility: Only use magnetic induction-compatible cookware (iron, cast iron, enameled iron, or stainless steel with a magnetic base). Non-magnetic cookware will not heat.
• Overheat Protection: The cooktop is equipped with an overheat protection system that will automatically shut down the unit if excessive temperatures are detected.
• Automatic Shutdown: The cooktop will automatically turn off if left unattended for an extended period or if no cookware is detected.

Image 1: AMZCHEF Induction Cooktop highlighting key safety features such as timer, child safety lock, automatic shutdown, over-temperature protection, and residual heat indicator.

2. Product Overview

The AMZCHEF 4-Zone Built-in Induction Cooktop features a sleek black polished crystal glass surface with four independent cooking zones. It offers precise temperature control and various safety functions for an efficient cooking experience.

• Four Cooking Zones: Two 2000W zones and two 1500W zones, allowing for simultaneous cooking.
• 9 Power Levels: Adjustable power settings from 1 to 9 for diverse cooking needs, from gentle simmering to rapid boiling.
• Touch Control: Intuitive slider touch controls for easy operation.
• 99-Minute Timer: Set cooking times for individual zones.

Image 2: The AMZCHEF 4-Zone Induction Cooktop, illustrating the layout of the four cooking zones and their respective maximum power outputs.

3. Installation Instructions

This induction cooktop is designed for built-in surface mounting. Professional installation is recommended to ensure proper electrical connection and fit.

1. Countertop Preparation: Ensure your countertop has a cutout with the dimensions of 560mm (width) x 490mm (depth). The minimum clearance around the cooktop must be maintained as per local regulations.
2. Ventilation: Ensure adequate ventilation space beneath the cooktop for proper heat dissipation.
3. Electrical Connection: Connect the cooktop to a dedicated 220V power supply circuit. The total power consumption is 7000W. Consult a qualified electrician for wiring.
4. Placement: Carefully lower the cooktop into the prepared cutout, ensuring it sits flush with the countertop surface.

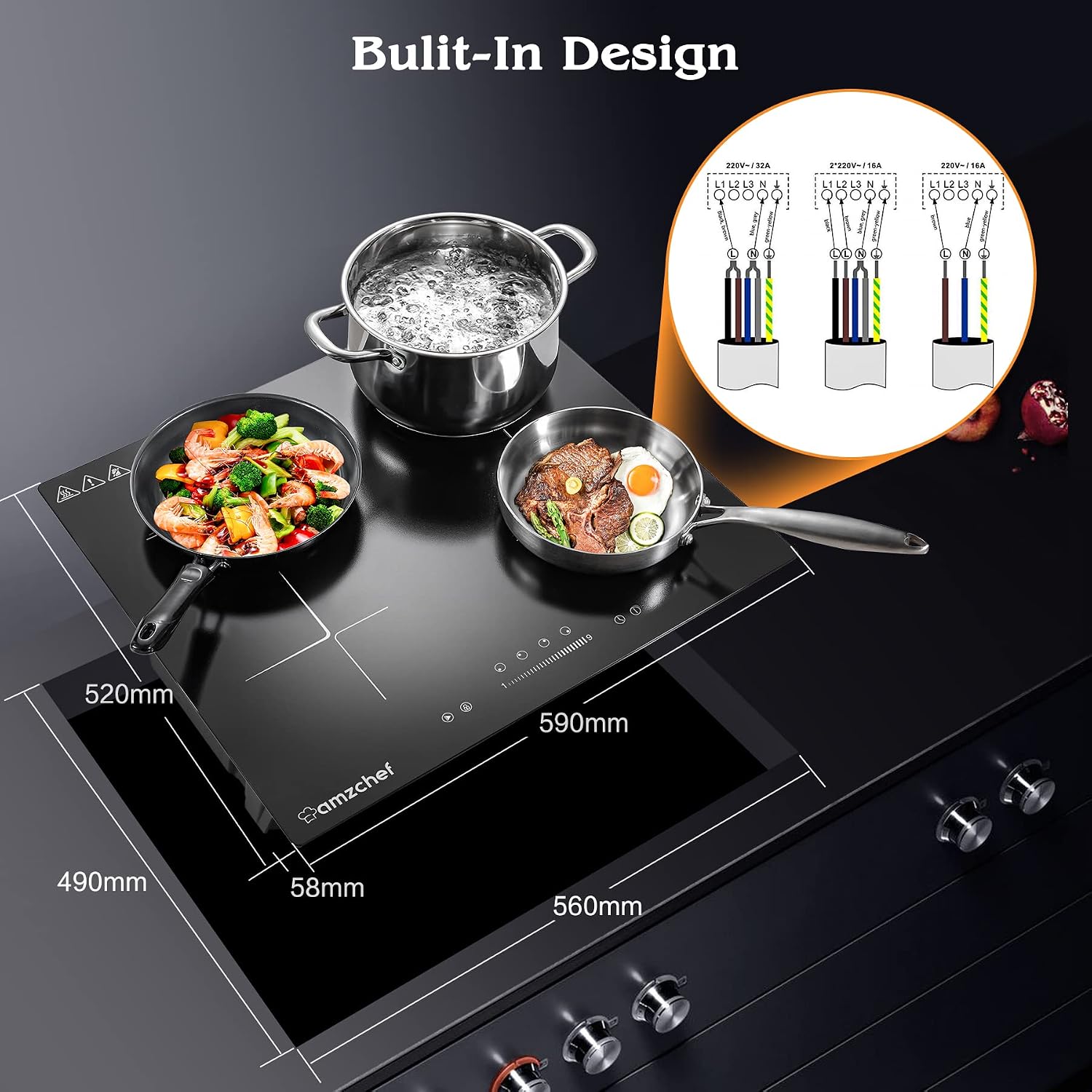

Image 3: Built-in design specifications, including dimensions (520mm x 590mm x 58mm) and electrical connection diagrams for the cooktop.

4. Operating Instructions

The AMZCHEF induction cooktop features intuitive touch controls. Ensure your cookware is induction-compatible before use.

4.1 Power On/Off

• To turn on, touch the power symbol (O) on the control panel. The display will show "--".
• To turn off, touch and hold the power symbol for a few seconds.

4.2 Selecting a Cooking Zone and Adjusting Power

• Place an induction-compatible pot or pan on the desired cooking zone.
• Touch the corresponding zone selection button.
• Use the slider control to adjust the power level from 1 (low) to 9 (high).

Image 4: The touch control panel with the 9-speed precision control slider, demonstrating how to adjust power levels for cooking.

4.3 Timer Function

• After selecting a cooking zone and power level, touch the timer button (CLOCK ICON).
• Use the slider or +/- buttons to set the desired cooking time (1 to 99 minutes).
• The timer will count down, and the zone will automatically turn off when the time expires.

Image 5: Visual representation of the cooktop's integrated timer function.

4.4 Child Safety Lock

• To activate the child lock, touch and hold the lock symbol (LOCK ICON) for a few seconds. The control panel will be locked, preventing accidental operation.
• To deactivate, touch and hold the lock symbol again until it unlocks.

Image 6: The child safety lock icon, representing the feature that prevents unintended use.

4.5 Pause Function

• To pause cooking, touch the pause button (PAUSE ICON). All active zones will temporarily stop heating.
• Touch the pause button again to resume cooking with the previous settings.

Image 7: The pause function icon, allowing temporary interruption of cooking.

5. Maintenance and Cleaning

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your induction cooktop.

1. Cool Down First: Always ensure the cooktop surface has completely cooled down before cleaning. The residual heat indicator (H) will turn off when it is safe to touch.
2. Daily Cleaning: Wipe the ceramic glass surface with a soft, damp cloth and mild detergent after each use.
3. Stubborn Stains: For tougher stains, use a specialized ceramic hob cleaner. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch or damage the surface.
4. Spills: Clean up spills immediately, especially sugary liquids, to prevent them from hardening and damaging the surface.

Image 8: The high-quality black polished crystal glass surface, demonstrating its easy-to-clean, scratch-proof, and impact-resistant properties.

6. Troubleshooting

If you encounter any issues with your AMZCHEF induction cooktop, refer to the following common troubleshooting steps. If the problem persists, contact customer support.

6.1 Residual Heat Indicator

After cooking, the display for a zone may show "H". This indicates that the zone is still hot due to residual heat. Do not touch the surface until the "H" disappears.

Image 9: The 'H' symbol on the display, signifying that the cooking zone retains residual heat and should not be touched.

7. Specifications

8. Warranty and Support

AMZCHEF is committed to providing high-quality products and excellent customer service.

• Warranty: This AMZCHEF induction cooktop comes with a two-year warranty from the date of purchase, covering manufacturing defects.
• Technical Support: We offer lifetime technical support for all our products.
• Customer Service: For any issues or inquiries, please contact our service team. We aim to respond within 24 hours. Refer to your purchase documentation for specific contact details.
