DARKBEAM UV Flashlight B14 User Manual
Model: B14 | Brand: DARKBEAM
Important Safety Information
WARNING: For your safety, please do not look directly at the UV light for a long time. Direct exposure to UV light can cause eye damage.
CAUTION: Charger that supplies more than 2A should NOT be used with this device.
Product Overview
The DARKBEAM B14 UV Flashlight is a powerful 20W ultraviolet light designed for various detection and curing applications. It features a 365nm filtered UV light, a USB-C rechargeable battery, and a durable aluminum alloy construction.
Figure 1: DARKBEAM UV Flashlight B14 and included USB-C charging cable.
Key Features:
- Upgraded 4-Core UV Light Bead: 20W high power, 480mW radiant intensity, 365nm wavelength.
- Filtered UV 365nm Light: Equipped with a hard toughened black filter optical lens to filter out visible purple light, providing purer invisible ultraviolet light.
- USB-C Rechargeable: Built-in high-capacity rechargeable battery (6+ hours runtime) with a convenient Type-C charging port.
- Switch Power Indicator: Red light indicates low battery, green light indicates fully charged.
- Durable Construction: Aluminum alloy body with non-slip mesh, IPX64 waterproof rating.
What's in the Box
- DARKBEAM UV Flashlight B14
- USB-C Cable & Adapter
- UV Glasses (for eye protection)
- Cloth Cover
- Hand Strap
- Rechargeable Battery (pre-installed)
Figure 2: Included accessories: UV flashlight, USB-C cable, adapter, UV glasses, cloth cover, and hand strap.
Setup
Initial Charging:
- Before first use, fully charge the flashlight.
- Locate the USB-C charging port on the flashlight.
- Connect the included USB-C cable to the flashlight and a compatible USB power source (e.g., adapter, power bank, laptop) within 5V/2A.
- The power indicator light will show red during charging. It will turn green when fully charged.

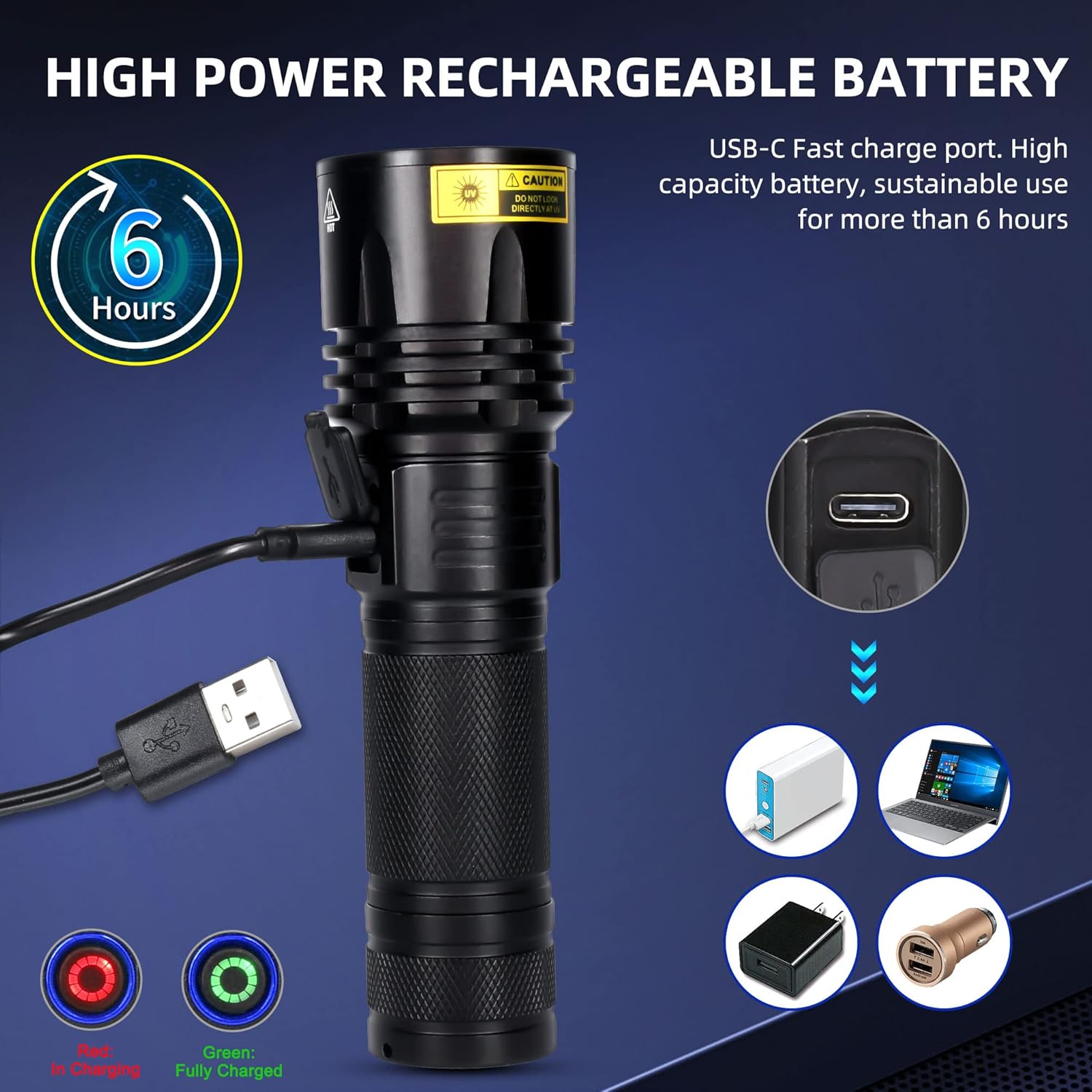

Figure 3: Connecting the USB-C charging cable to the flashlight.
Attaching the Hand Strap:
Thread the hand strap through the loop at the tail cap of the flashlight to secure it for portable use.
Wearing UV Glasses:
Always wear the provided UV glasses when operating the flashlight to protect your eyes from direct UV exposure.
Operating Instructions
Power On/Off:
Press the power button located on the side of the flashlight to turn it on or off.
Figure 4: Operating the power button on the flashlight.
Understanding 365nm UV Light:
The 365nm UV light is largely invisible to the naked eye. It will not appear as bright as a standard flashlight or a 395nm UV light. Its effectiveness is observed when it illuminates items containing fluorescent agents, security codes, or watermarks, causing them to glow with a blue-violet light.

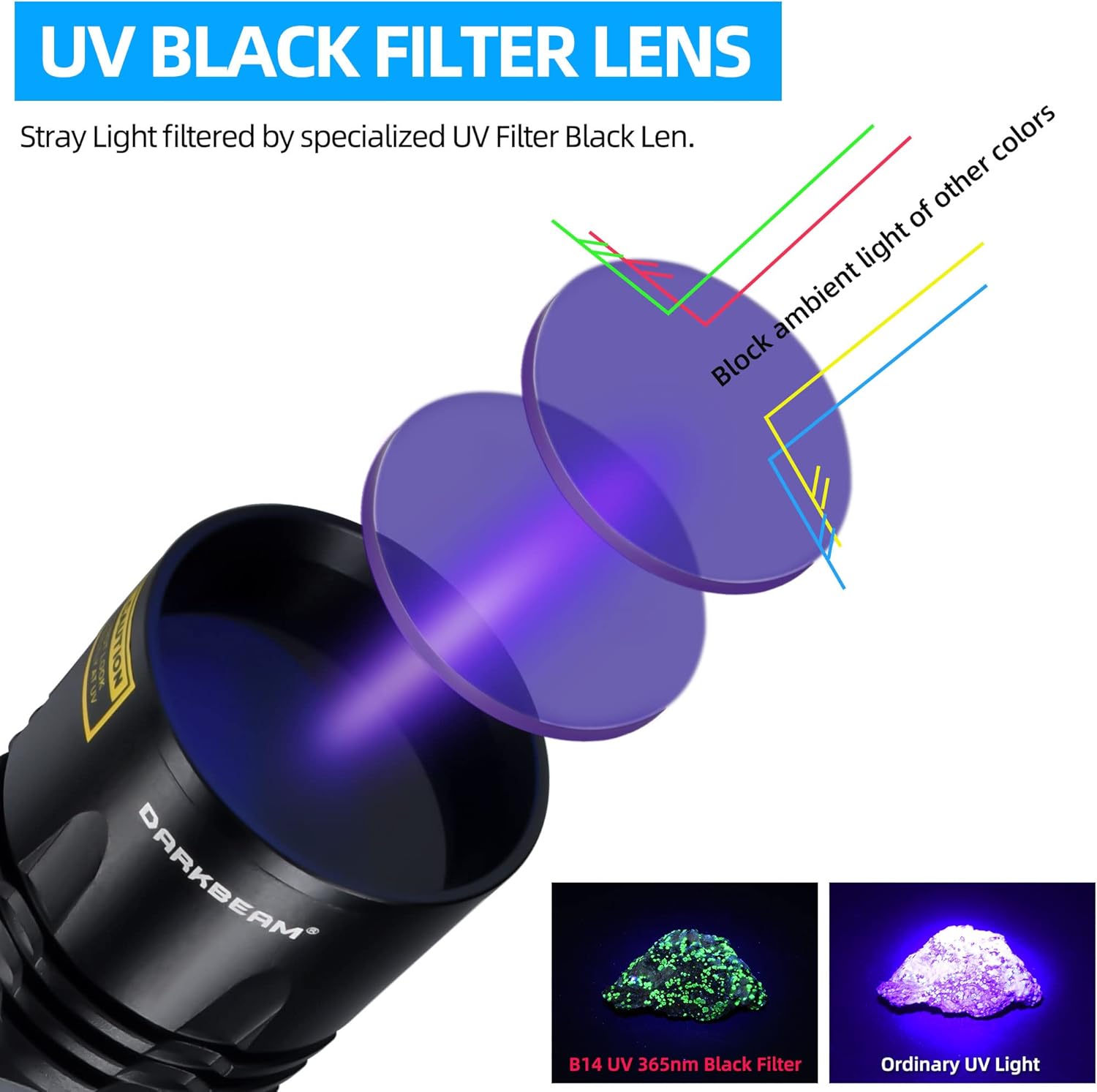

Figure 5: The specialized UV black filter lens blocks ambient light, allowing only the pure 365nm UV light to pass through for clearer detection.
Common Applications:
- Pet Urine and Stain Detection: Ideal for locating dried pet urine and other invisible stains on carpets, furniture, and other surfaces.
- Mineral and Gemstone Identification: Used to identify fluorescent minerals and authenticate gemstones.
- Banknote and Document Verification: Reveals security features on currency, passports, and other official documents.
- Resin Curing: Suitable for curing UV reactive adhesive agents and resins.
- Leak Detection: Can be used with fluorescent dyes to detect leaks in automotive systems (e.g., engine oil, A/C, water tanks).
- Hotel Hygiene Inspection: Helps identify unclean areas in hotel rooms.
- Scorpion Hunting: Scorpions fluoresce under UV light, making them easier to spot.
Figure 6: Examples of the flashlight's diverse applications, from pet stain detection to banknote verification.
Figure 7: The flashlight being used to detect fluorescent leaks in an engine compartment.
Maintenance
Cleaning:
Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the lens is clean for optimal performance.
Storage:
Store the flashlight in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the battery is partially charged (around 50%) to prolong its lifespan.
Water Resistance:
The flashlight has an IPX64 waterproof rating, meaning it is resistant to water splashes and humid conditions. It is NOT suitable for submersion in water, swimming, or showering.

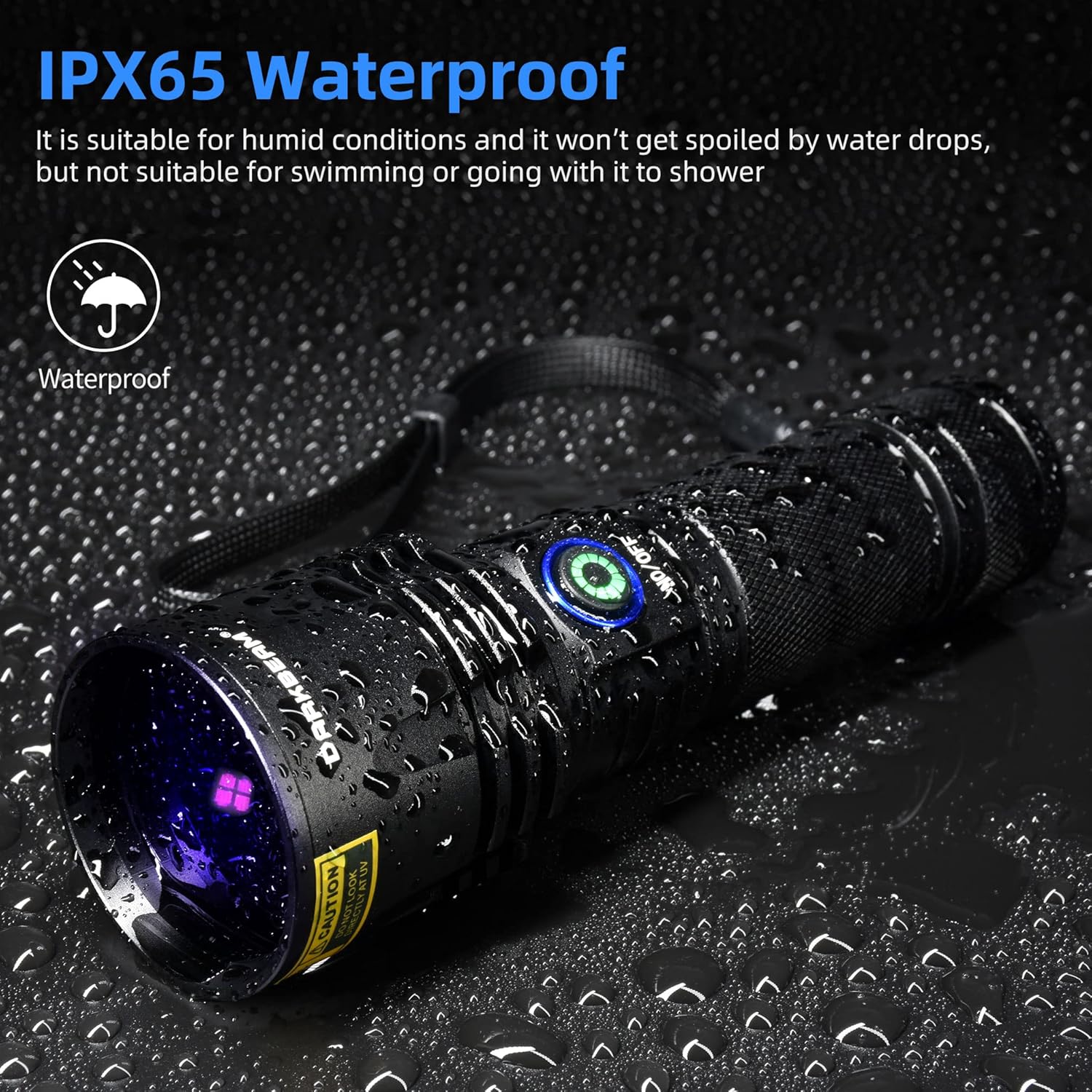

Figure 8: The flashlight is designed to withstand water splashes, but not full submersion.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Battery is depleted. | Charge the flashlight using the provided USB-C cable until the indicator light turns green. |
| Light appears dim or not bright enough. | This is a 365nm UV light, which is largely invisible to the naked eye. | The light is designed to illuminate fluorescent materials, not to provide visible illumination. Its effectiveness is seen when it reacts with target substances. |
| Charging indicator light does not turn green. | Charging cable or adapter issue; battery not fully charged. | Ensure the USB-C cable is securely connected. Try a different USB power source (within 5V/2A). Allow sufficient time for charging (up to 6 hours for a full charge). |
| Flashlight gets warm during use. | Normal operation for high-power LED devices. | This is normal. The aluminum body helps dissipate heat. If it becomes excessively hot, turn it off and allow it to cool. |
Specifications
- Model: B14
- Light Source: Upgraded 4-core UV LED
- Wavelength: 365nm
- Power: 20W
- Radiant Intensity: 480mW
- Material: Aluminum Alloy
- Dimensions: 1.73"D x 1.74"W x 1.31"H (Product Dimensions)
- Weight: 8.9 ounces (252 Grams)
- Battery: 1 Lithium Ion (included)
- Runtime: Approximately 6 hours (on high power mode)
- Charging Port: USB-C (5V/2A max input)
- Water Resistance: IPX64
- Included Components: Flashlight, Battery, UV glasses, Cloth cover, Hand strap, USB cable & Adapter
Warranty and Support
Warranty:
DARKBEAM provides a 180-Day Money Back Guarantee and a One Year Guarantee for this product. For any questions or issues, please contact DARKBEAM customer support.
Customer Support:
For prompt support and effective solutions, please contact DARKBEAM directly. They aim to provide a 24-hour response.
Manufacturer: DARKBEAM
Email: darkbeamcontact@163.com
EU Representative: eVatmaster Consulting GmbH
Address: Bettinastr.30, 60325 Frankfurt am Main, Germany
Contact: contact@evatmaster.com
UK Representative: EVATOST CONSULTING LTD
Address: Office 101, 32 Threadneedle Street, London, United Kingdom, EC2R 8AY
Contact: contact@evatost.com
