Blum 71B3550 Hinge Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the Blum 71B3550 110 Degree Overlay Soft-Closing Screw On Hinge. This hinge is designed for cabinet doors, offering a 110-degree opening angle and integrated soft-closing functionality for quiet and smooth operation.

Please read these instructions carefully before proceeding with installation to ensure proper function and longevity of the product.

2. Product Features

• Soft-Closing Function (BLUMOTION): Ensures cabinet doors close quietly and smoothly, preventing slamming. This system adapts to various closing speeds and includes overload safety.
• 110 Degree Opening Angle: Provides ample access to cabinet contents.
• 2-Way Adjustable: Allows for precise alignment and customization of the cabinet door position after installation.
• Demountable Design: Facilitates quick and easy removal of the cabinet door for cleaning or other purposes without disassembling the hinge from the cabinet.
• Durable Steel Construction: Manufactured from steel for reliability and long-term performance.
• Screw-On Installation: A common and secure method for attaching hinges to cabinetry.

3. Components Included

Each order includes one (1) Blum 71B3550 Hinge.

Note: Installation screws are not included and must be purchased separately.

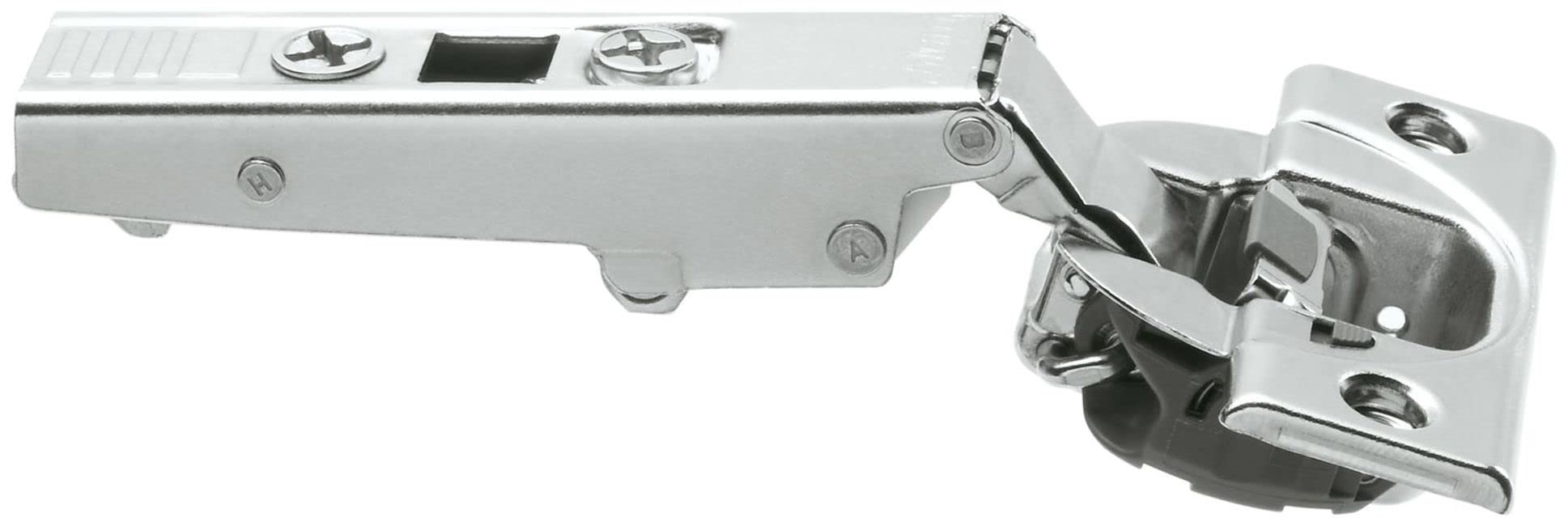

Image of the Blum 71B3550 110 Degree Overlay Soft-Closing Screw On Hinge. This image displays the hinge in its closed position, highlighting its compact design and screw-on mounting plate.

4. Setup and Installation

The Blum 71B3550 hinge is designed for screw-on installation. Ensure you have appropriate wood screws for your cabinet material before beginning.

Required Tools:

• Drill with appropriate drill bits (for pilot holes and hinge cup bore)
• Screwdriver (manual or power)
• Measuring tape or ruler
• Pencil

Installation Steps:

1. Prepare Cabinet Door: If not already present, bore a 1-3/8 inch (35mm) diameter cup hole into the cabinet door at the desired hinge location. The cup depth should be 1/2 inch (12.7mm). Ensure the bore distance (distance from the edge of the door to the center of the cup hole) is between 3mm and 7mm, as specified for this hinge.
2. Attach Hinge to Door: Insert the hinge cup into the bored hole on the cabinet door. Secure the hinge to the door using appropriate screws through the pre-drilled holes on the hinge cup.
3. Mark Cabinet Frame: Position the cabinet door against the cabinet frame or side panel where it will be installed. Use a pencil to mark the locations for the mounting plate screws on the cabinet frame. The mount centers for this hinge are 1-3/4 inches (44.5mm).
4. Attach Mounting Plate: Drill pilot holes at the marked locations on the cabinet frame. Secure the hinge mounting plate to the cabinet frame using appropriate screws.
5. Attach Door to Cabinet: Align the hinge arm with the mounting plate and engage the hinge mechanism. This hinge is demountable, allowing for easy attachment and detachment.
6. Adjust Hinge: Use the 2-way adjustment screws on the hinge to align the cabinet door precisely. Adjustments can typically be made for side-to-side and depth alignment.

For optimal performance, ensure all screws are tightened securely but do not overtighten.

5. Operation

The Blum 71B3550 hinge provides a smooth and controlled opening and closing experience for your cabinet doors.

• Opening: The hinge allows the cabinet door to open up to 110 degrees, providing full access to the cabinet interior.
• Soft-Closing (BLUMOTION): When closing the cabinet door, the integrated BLUMOTION mechanism will engage, gently slowing the door's movement and ensuring it closes silently and softly without slamming. This feature is automatic and requires no user intervention during normal operation.

The BLUMOTION system is designed to adapt to various door weights and closing speeds, providing consistent soft-closing performance.

6. Maintenance

The Blum 71B3550 hinge requires minimal maintenance to ensure long-lasting performance.

• Cleaning: Wipe the hinges periodically with a soft, damp cloth to remove dust and grime. Avoid using abrasive cleaners or solvents, as these can damage the finish or internal mechanisms.
• Lubrication: The hinge mechanisms are designed for maintenance-free operation and typically do not require lubrication. If squeaking occurs, a small amount of silicone-based lubricant can be applied to the pivot points, but avoid spraying directly into the soft-close mechanism.
• Screw Tightness: Periodically check that all mounting screws are secure. Loose screws can affect door alignment and hinge performance.
• Demounting Doors: The demountable feature allows for easy removal of cabinet doors. To remove a door, disengage the hinge arm from the mounting plate (specific method may vary slightly, often involving a lever or button on the hinge). Reattach by aligning and re-engaging the hinge.

7. Troubleshooting

If you encounter issues with your Blum 71B3550 hinge, consider the following common solutions:

• Door Not Closing Properly:
  • Check for obstructions within the cabinet opening.
  • Ensure all hinge mounting screws are tight.
  • Adjust the hinge for proper alignment using the adjustment screws.
• Door Sagging or Misaligned:
  • Tighten all mounting screws on both the door and cabinet frame.
  • Utilize the 2-way adjustment screws on the hinge to correct the door's position (side-to-side, depth).
• Soft-Closing Not Functioning:
  • Ensure the hinge is correctly installed and not binding.
  • Check for any debris or foreign objects obstructing the soft-close mechanism.
  • The BLUMOTION system has overload safety; ensure the door is not excessively heavy or closing with extreme force.

If problems persist after attempting these solutions, consider consulting a professional or contacting Blum customer support.

8. Specifications

9. Warranty and Support

Warranty information for the Blum 71B3550 Hinge was not provided in the product data. Please refer to the official Blum website or contact your retailer for specific warranty terms and conditions.

For technical support or further assistance, please visit the official Blum website or contact their customer service department. Contact details were not available in the provided product information.
