VGR

VGR V-107 Professional 11-in-1 Grooming Kit

Instruction Manual

Product Overview

The VGR V-107 Professional 11-in-1 Grooming Kit is a versatile and comprehensive tool designed for precision beard, hair, and body styling. This kit features an IPX6 waterproof body, a long-lasting 150-minute runtime, and convenient USB recharging. With its 5 interchangeable heads and LED display, it offers a comfortable and efficient grooming experience for various needs.

VGR V-107 Professional 11-in-1 Grooming Kit with all accessories laid out

Image: Complete VGR V-107 Grooming Kit showing the main trimmer unit, various interchangeable heads, guide combs, charging cable, cleaning brush, and oil.

Video: An overview of the VGR V-107 Professional 11-in-1 Grooming Kit, highlighting its key features and components.

Key Features:

  • 11-in-1 Grooming Kit: Includes 5 interchangeable heads for diverse grooming needs (beard, hair, body styling).
  • Stainless Steel Blades: Durable and skin-friendly blades ensure a smooth and precise trimming experience.
  • IPX6 Waterproof: Fully washable design allows for convenient cleaning under running water.
  • 150-Minute Runtime: Powered by a long-lasting lithium battery, providing up to 150 minutes of cordless use on a 2-hour charge.
  • Corded and Cordless Use: Offers flexibility to be used with or without the charging cord.
  • LED Display: Clearly shows battery percentage and charging status.
  • USB Rechargeable: Universal USB charging for easy and efficient power on the go.
  • Low Noise Operation: Designed for a comfortable grooming experience with minimal noise.
  • Adjustable Guide Combs: Comes with 6 guide combs (3mm to 12mm) for various trimming lengths.
  • Ergonomic Design: Lightweight, sleek, and travel-friendly with a comfortable grip.

Package Contents

Your VGR V-107 Grooming Kit package includes the following items:

  • 1x Trimmer Main Unit
  • 1x Interchangeable Shaver Head
  • 1x Interchangeable Precision Trimmer Head
  • 1x Interchangeable Nose & Ear Trimmer Head
  • 1x Interchangeable Design Trimmer Head
  • 6x Guide Combs (various sizes)
  • 1x USB Charging Cable
  • 1x Cleaning Brush
  • 1x Blade Oil
  • 1x Storage Base
  • 1x Instruction Manual
VGR V-107 Grooming Kit box and its contents

Image: The VGR V-107 Grooming Kit box opened, displaying the main trimmer unit, various heads, combs, and accessories neatly arranged inside.

Video: A detailed unboxing and demonstration of the VGR V-107 Grooming Kit, showing each component and how they fit together.

Initial Setup

Charging the Trimmer:

  1. Before first use, fully charge the trimmer for approximately 2 hours.
  2. Connect the USB charging cable to the trimmer's charging port and plug the other end into a compatible USB power source (e.g., computer, laptop, power bank, or USB wall adapter).
  3. The LED display will show the battery percentage, indicating the charging status. A full charge provides up to 150 minutes of cordless use.
  4. The trimmer can be used while charging if needed.
VGR V-107 Trimmer being charged via USB cable

Image: A hand plugging the USB charging cable into the VGR V-107 trimmer, illustrating the convenient USB charging feature.

Attaching/Changing Heads:

  1. Ensure the trimmer is turned off before attaching or detaching any heads.
  2. To attach a head, align the head with the main unit and gently push until it clicks into place.
  3. To detach a head, hold the main unit firmly and pull the head upwards with a slight force.

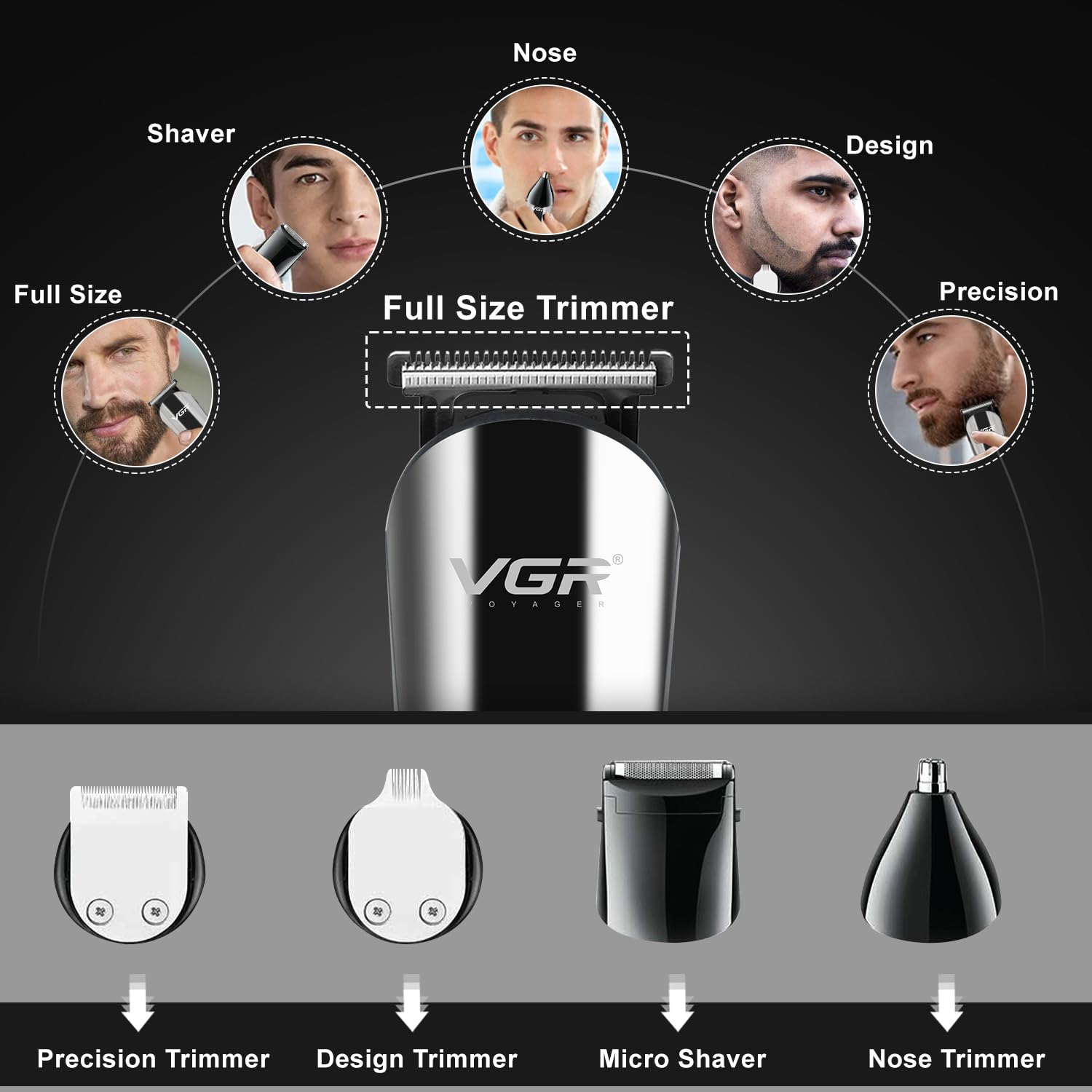

VGR V-107 Trimmer with various interchangeable heads

Image: The VGR V-107 trimmer showcasing its five interchangeable heads: Full Size Trimmer, Precision Trimmer, Shaver, Design Trimmer, and Nose Trimmer.

Operation Guide

General Use:

  • Press the ON/OFF button to turn the trimmer on or off.
  • The LED display will show the current battery level.
  • For optimal performance, ensure the blades are clean and lightly oiled before each use.
VGR V-107 Trimmer LED Smart Display showing battery and lock indicators

Image: Close-up of the VGR V-107 trimmer's LED Smart Display, indicating battery percentage, travel lock status, and plug-in indicator.

Using Different Heads:

  • Full Size Trimmer: Ideal for defining hair around the neckline and sideburns, and for general hair trimming.
  • Precision Trimmer: Use for defining straight or curved lines and edges for detailed styling.
  • Shaver: For a close, smooth shave on smaller areas or to finish edges.
  • Design Trimmer: Perfect for personalized beard and hair art, and all sorts of modeling.
  • Nose & Ear Trimmer: Safely and comfortably removes unwanted nose and ear hair.

Using Guide Combs:

  • Select the appropriate guide comb for your desired hair length. The kit includes 6 guide combs ranging from 3mm to 12mm.
  • Attach the chosen guide comb securely to the full-size trimmer head.
  • For the full-size trimmer, you can adjust the length up to 12mm with the guide comb inserted.
  • For the precision trimmer, use the 3-6mm guide comb for specific lengths.
  • Always start with a longer comb if you are unsure, and gradually reduce the length until you achieve your desired style.
VGR V-107 Trimmer with various guide combs and their lengths

Image: The VGR V-107 trimmer demonstrating the use of different guide combs, showing the various lengths from 0.5-10mm adjustable comb to 12mm fixed combs.

Care and Maintenance

Cleaning:

  • The VGR V-107 is IPX6 waterproof, allowing for easy cleaning.
  • After each use, turn off the trimmer and detach the head.
  • Use the provided cleaning brush to remove any loose hairs from the blades and the trimmer body.
  • Rinse the detachable head and the blades under running water. Ensure no water enters the main unit's charging port if not fully sealed.
  • Wipe all parts dry with a soft cloth before reassembling or storing.
VGR V-107 Trimmer being rinsed under running water, highlighting its IPX6 waterproof feature

Image: The VGR V-107 trimmer being cleaned under running water, demonstrating its IPX6 waterproof capability for easy maintenance.

Blade Care:

  • The trimmer features self-sharpening stainless steel blades for long-lasting sharpness.
  • Apply a small drop of the provided blade oil to the blades after every few uses, especially after rinsing with water.
  • Turn the trimmer on for a few seconds to allow the oil to distribute evenly. This helps maintain blade performance and prevents rust.

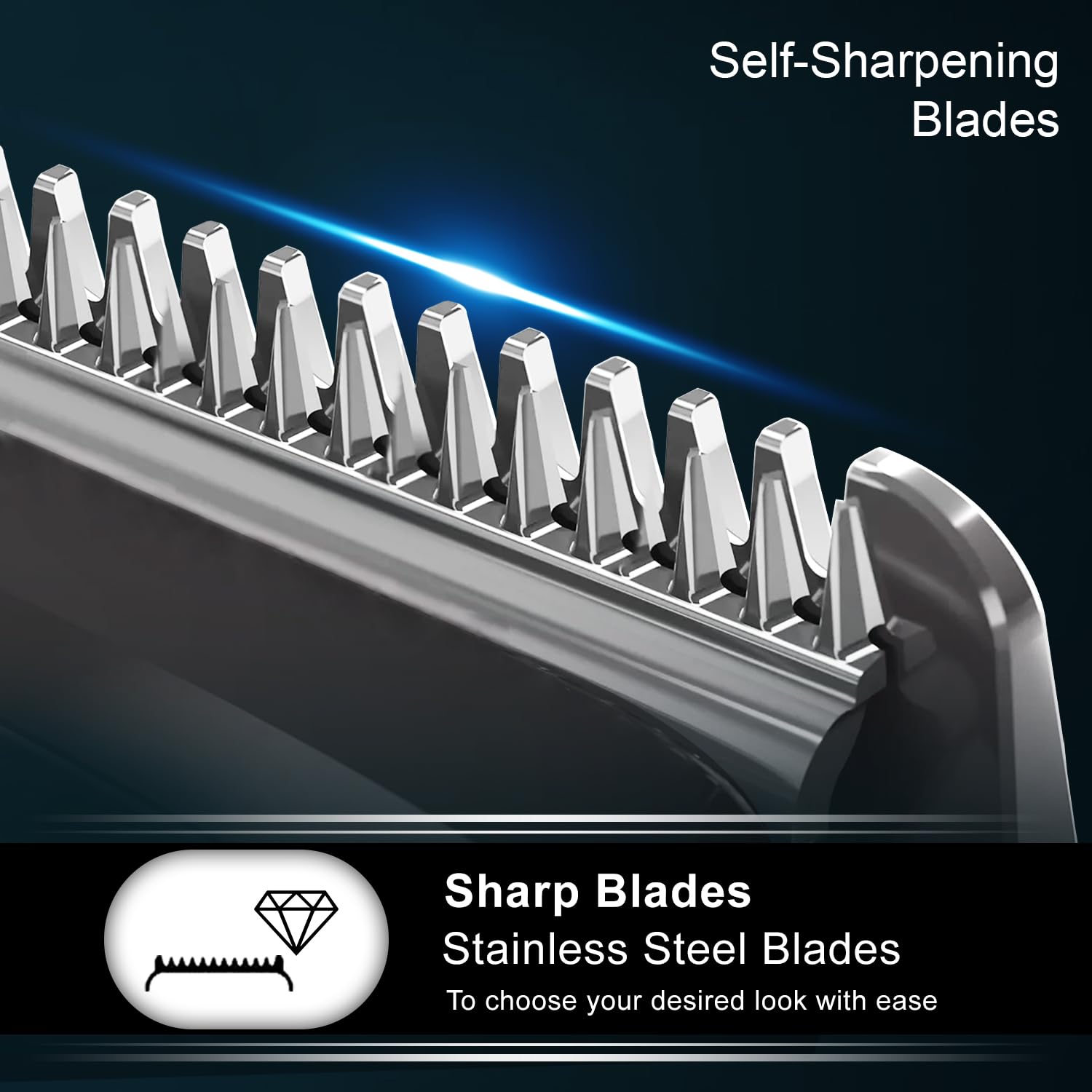

Close-up of VGR V-107 Trimmer's self-sharpening stainless steel blades

Image: A close-up view of the VGR V-107 trimmer's sharp, self-sharpening stainless steel blades, designed for precise and smooth cutting.

Storage:

  • Store the trimmer and its accessories in the provided storage base or a dry, cool place away from direct sunlight and moisture.
  • Keep out of reach of children.

Troubleshooting

ProblemPossible CauseSolution
Trimmer does not turn on.Low battery; Travel lock engaged.Charge the trimmer fully; Press and hold the ON/OFF button for 3 seconds to disengage travel lock.
Poor cutting performance.Blades are dull or clogged; Insufficient oiling.Clean the blades thoroughly; Apply blade oil as per maintenance instructions.
Trimmer makes unusual noise.Blades are not properly aligned or oiled.Ensure the head is securely attached; Apply blade oil.
Battery not charging.Charging cable or adapter faulty; Improper connection.Check cable and adapter; Ensure secure connection to trimmer and power source.

Technical Specifications

FeatureDetail
Model NumberV-107
BrandVGR
Power SourceBattery Powered (USB Rechargeable)
Battery TypeLithium Ion
Charging TimeApprox. 2 hours
RuntimeApprox. 150 minutes
Waterproof RatingIPX6
Blade MaterialStainless Steel
Item Weight138 g
Dimensions (LxWxH)17 x 4 x 4.5 cm
Country of OriginChina

Warranty and Customer Support

Your VGR V-107 Professional 11-in-1 Grooming Kit comes with a standard brand warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official VGR website.

Customer Support:

For any product-related queries, technical assistance, or support, please contact VGR customer care:

Customer support is available from 10:00 AM to 6:00 PM, Monday to Saturday.
