Aesfee AF-8086 Electric 6D Rotary Head Shaver User Manual

1. Introduction

Thank you for choosing the Aesfee AF-8086 Electric 6D Rotary Head Shaver. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new shaver. Please read it thoroughly before first use and retain it for future reference.

2. Product Features

• 6D Rotary Shaving Heads: Independent 6-head system designed to follow the contours of your head and face for a smooth shave.
• Wet & Dry Shave: Suitable for both dry shaving and wet shaving with foam or gel.
• IPX7 Waterproof: Fully washable design for easy cleaning under running water.
• LCD Display: Shows available shaving time, cleaning reminder, and travel lock status.
• Travel Lock: Prevents accidental activation during travel or storage.
• Type-C Fast Charging: Convenient USB Type-C charging with up to 90 minutes of cordless operation after a 1.5-hour charge.
• Powerful Motor: Enhanced motor for efficient and quick shaving.

3. Safety Instructions

• Do not use the shaver if it is damaged or if the shaving heads are broken.
• Keep the charging cable away from heated surfaces.
• Ensure the charging port is dry before connecting the Type-C cable.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not immerse the charging adapter in water.
• Only use the provided charging cable or a certified Type-C cable for charging.

4. Package Contents

• Aesfee AF-8086 Electric 6D Rotary Head Shaver
• USB Type-C Charging Cable
• Cleaning Brush
• Protective Cap
• User Manual

5. Setup

5.1 Charging the Shaver

Before first use, fully charge the shaver. Connect the Type-C charging cable to the shaver's charging port and the other end to a USB power source (e.g., computer, power bank, or wall adapter). The LCD display will show the charging status. A full charge takes approximately 1.5 hours and provides up to 90 minutes of shaving time.

Figure 1: Type-C Fast Charging for the Aesfee AF-8086 Shaver.

6. Operating Instructions

6.1 Power On/Off

Press the power button once to turn the shaver on. Press it again to turn it off.

6.2 Shaving Technique (Wet & Dry)

The Aesfee AF-8086 shaver can be used for both dry and wet shaving. For optimal results, ensure your skin is clean.

• Dry Shave: For a quick shave, use the shaver on dry skin.
• Wet Shave: For a more comfortable and smoother shave, apply shaving foam or gel to your skin before shaving.

Move the shaver in small, circular motions over the skin, applying gentle pressure. The 6D floating heads will adapt to the contours of your head and face.

Figure 2: Illustrating the versatility of wet and dry shaving with the Aesfee AF-8086.

Figure 3: The Aesfee AF-8086 is designed for both head and face shaving.

Figure 4: Detailed view of the efficient 6D floating heads.

6.3 LCD Display Functions

The integrated LCD display provides important information:

• Battery Indicator: Shows the remaining available shaving time in minutes.
• Cleaning Reminder: An icon will appear to remind you when it's time to clean the shaver heads.
• Travel Lock Indicator: Shows when the travel lock is active.

Figure 5: The smart LED display provides key operational information.

6.4 Travel Lock

To activate the travel lock, press and hold the power button for 3 seconds. The travel lock icon will appear on the LCD display. To deactivate, press and hold the power button for another 3 seconds.

7. Maintenance

7.1 Cleaning the Shaver

Regular cleaning ensures optimal performance and hygiene. The shaver is IPX7 waterproof, allowing for easy cleaning.

1. Turn off the shaver.
2. Open the shaving head assembly.
3. Rinse the shaving heads and the shaver body under running tap water. For a more thorough clean, you can turn the shaver on briefly while rinsing.
4. Use the provided cleaning brush to remove any stubborn hair particles.
5. Allow the shaver heads to air dry completely before closing the assembly or storing.

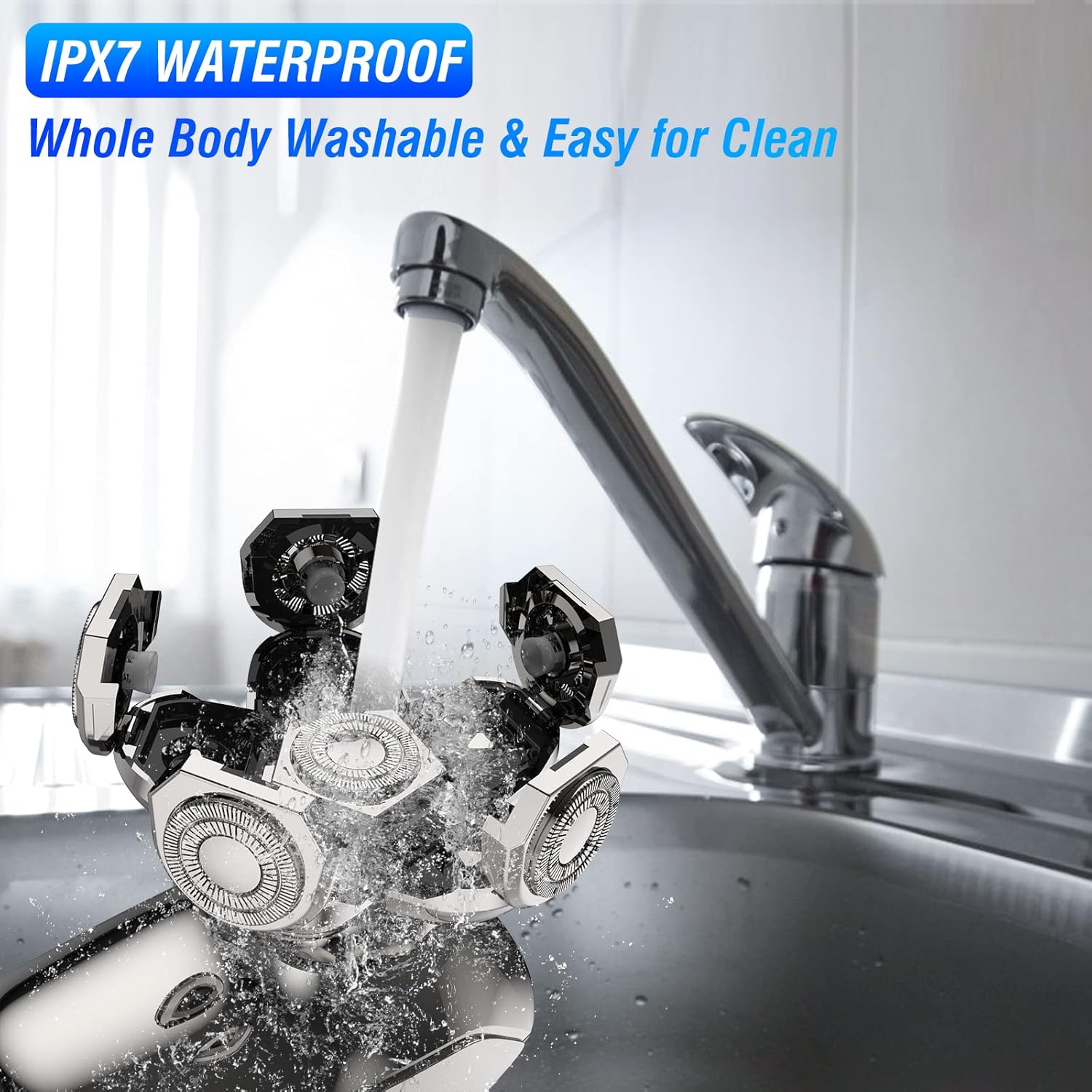

Figure 6: Cleaning the Aesfee AF-8086 shaver under running water.

7.2 Blade Care

The precision steel blades are designed for durability. For optimal shaving performance, it is recommended to replace the shaving heads every 6-12 months, depending on usage. Replacement heads can be purchased separately from authorized retailers.

8. Troubleshooting

9. Specifications

10. Warranty and Support

Aesfee products are manufactured with quality and reliability in mind. For warranty information, technical support, or replacement parts, please refer to the contact information provided with your purchase or visit the official Aesfee website. Please retain your proof of purchase for warranty claims.
