Amig 4RBX Door Handle Set Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Amig 4RBX Door Handle Set. This set includes stainless steel handles with a round rosette, designed for both interior and exterior doors. Its modern and simple design ensures comfortable use and aesthetic integration with various decor styles. Please read these instructions carefully before installation and retain them for future reference.

Safety Information

• Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
• Ensure all components are securely fastened to prevent injury or product damage.
• Keep small parts out of reach of children to avoid choking hazards.
• If you are unsure about any step of the installation process, consult a qualified professional.

Package Contents

Verify that all components are present before beginning installation:

• 2 x Door Handles (Matte Silver Stainless Steel)
• 2 x Round Rosettes
• 2 x Europrofile Keyhole Rosettes
• 1 x Square Spindle (8 mm)
• Installation Screws and Hardware

Image: All components of the Amig 4RBX door handle set, including handles, rosettes, and the square spindle.

Setup and Installation

The Amig 4RBX door handle set is reversible and can be installed on both right and left-hand doors. Follow these steps for proper installation:

1. Prepare the Door: Ensure your door is pre-drilled with the necessary holes for the handle spindle and mounting screws. The handle is designed for an 8 mm square spindle.
2. Insert the Spindle: Insert the square spindle through the latch mechanism in the door.
3. Attach the Handles: Place one handle onto the spindle on one side of the door, ensuring the rosette is flush against the door surface. Repeat for the second handle on the opposite side.
4. Secure the Rosettes: Position the round rosettes over the handle bases. The rosettes typically have screw holes that align with the mounting points on the handle base or door.
5. Install Keyhole Rosettes: If your door requires a keyhole, place the Europrofile keyhole rosettes over the keyhole opening, aligning them with the handle rosettes.
6. Fasten with Screws: Use the provided screws to securely fasten both handles and rosettes to the door. Tighten screws firmly but do not overtighten to avoid damaging the door or hardware.
7. Test Operation: Once installed, test the handles to ensure smooth operation of the latch mechanism. The handle should return to its horizontal position when released.

Image: Exploded view illustrating the assembly of the door handle set components.

Operating Instructions

To operate the Amig 4RBX door handle:

• Opening the Door: Press the handle downwards to retract the latch bolt. Pull or push the door open.
• Closing the Door: Release the handle, allowing the latch bolt to extend. Push the door closed until the latch engages with the strike plate.
• Locking/Unlocking (if applicable): If your door features a Europrofile lock, use the appropriate key to lock or unlock the mechanism through the keyhole rosette.

Maintenance

To ensure the longevity and appearance of your Amig 4RBX door handle set:

• Cleaning: Clean the handles and rosettes regularly with a soft, damp cloth. Avoid using abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the matte stainless steel finish.
• Lubrication: Periodically check the internal latch mechanism and lubricate with a silicone-based spray if the handle action becomes stiff. Do not apply lubricant directly to the exterior finish.
• Tightening: Over time, screws may loosen. Periodically check and tighten all mounting screws to ensure the handles remain secure.

Troubleshooting

If you encounter issues with your Amig 4RBX door handle set, refer to the following common solutions:

• Handle is Loose: Check and tighten all mounting screws on both rosettes. Ensure the square spindle is properly seated.
• Handle Does Not Return to Horizontal Position: This may indicate an issue with the internal spring mechanism of your door's latch or lock. Ensure the spindle is not binding and the handle is installed correctly. Lubricate the latch mechanism if necessary.
• Door Does Not Latch Properly: Verify that the strike plate on the door frame is correctly aligned with the latch bolt. Adjust the strike plate if needed.
• Difficulty Turning Key (if applicable): Ensure the key is fully inserted and the lock cylinder is clean. Apply a graphite-based lubricant specifically designed for locks if the key is stiff.

Specifications

Detailed specifications for the Amig 4RBX Door Handle Set:

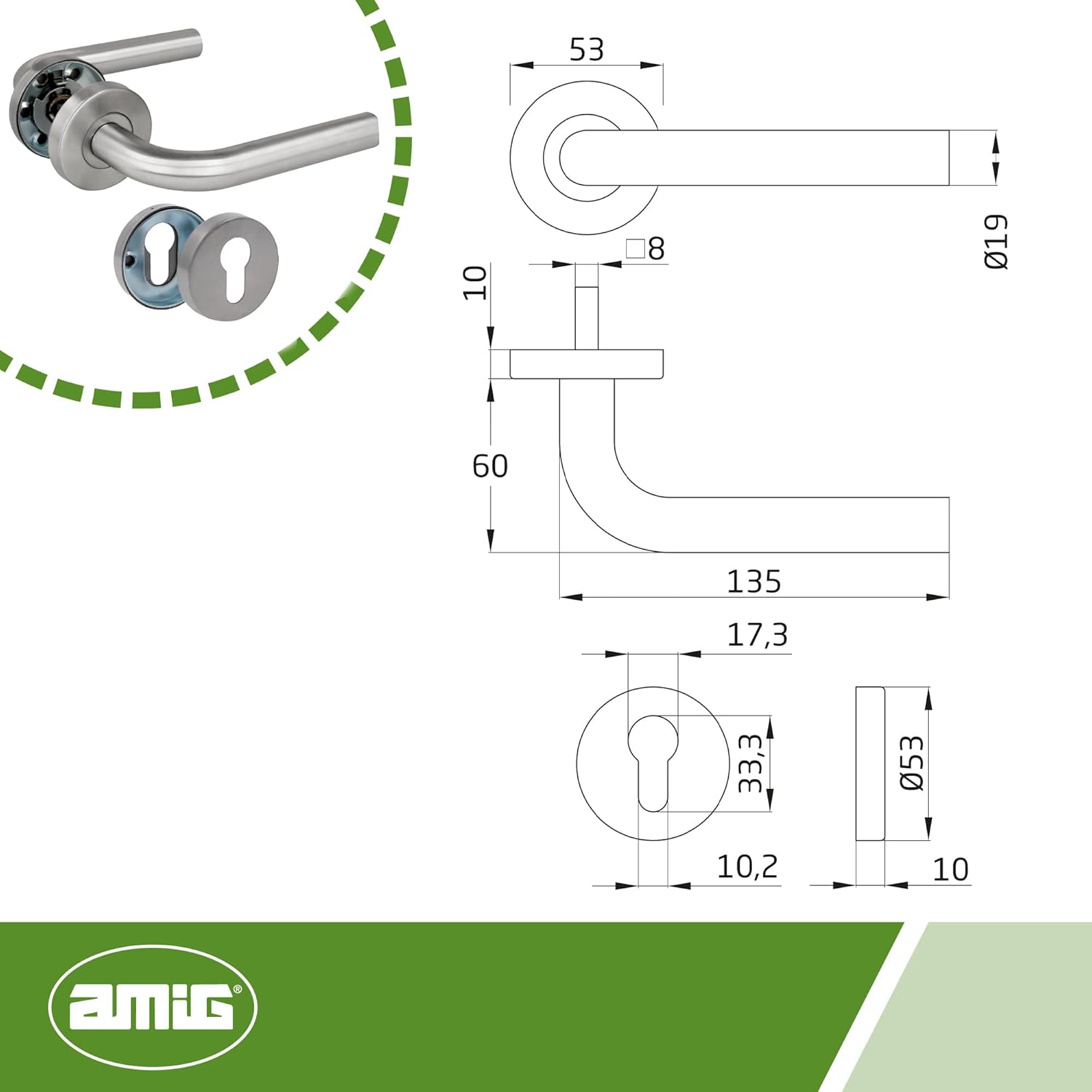

Image: Technical diagram showing key dimensions of the handle and rosette components.

Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Amig directly through their official website. Amig has over 80 years of experience manufacturing and distributing high-quality hardware products.
