JOYWISE NC1 Wireless Earbuds Instruction Manual

Introduction

Thank you for choosing JOYWISE NC1 Wireless Earbuds. These earbuds are designed to provide a superior audio experience with advanced features for your daily listening needs. Please read this manual carefully to ensure proper use and to maximize the product's performance.

Key Features:

• Active Noise Cancellation: Built-in ANC microphones achieve up to 30 dB noise cancellation, blocking 90% of background noise for immersive audio.
• Enhanced Call Performance: Each earbud features 2 microphones (total 4) with algorithms for accurate voice pickup and external noise isolation, ensuring clear calls.
• Transparency Mode: Allows you to hear your surroundings and communicate easily without removing earbuds or pausing music.
• Bluetooth 5.3: Advanced technology for faster transmission speeds and stable, easy connections with auto-pairing after the first connection.
• Long Battery Life: Up to 7 hours playtime (50% volume) on a single charge, with an additional 23 hours from the charging case (30 hours total). 5 hours playtime in ANC mode.

What's in the Box

Your JOYWISE NC1 Wireless Earbuds package includes the following items:

• JOYWISE NC1 Wireless Earbuds (Left and Right)
• Charging Case
• USB-C Charging Cable
• Extra Eartips (various sizes for optimal fit)
• User Manual

Image: JOYWISE NC1 Wireless Earbuds, charging case, and accessories.

Setup

1. Initial Charging

Before first use, fully charge your earbuds and charging case. Connect the provided USB-C cable to the charging port on the case and a compatible USB power source. The LED indicators on the case will show charging status.

2. Wearing the Earbuds

Select the eartips that provide the most comfortable and secure fit for your ears. Gently insert each earbud into your ear canal and twist slightly to ensure a snug fit. Proper fit is crucial for optimal sound quality and noise cancellation.

3. Bluetooth Pairing

1. Ensure your device's Bluetooth is turned on.
2. Open the charging case. The earbuds will automatically enter pairing mode (indicated by flashing LED lights).
3. On your device, search for "NC1" in the Bluetooth device list and select it to connect.
4. Once connected, the earbuds will indicate successful pairing.

After the first successful connection, the earbuds will auto-pair with your device when the charging case is opened.

Image: Illustration of JOYWISE NC1 Earbuds with Bluetooth 5.3 technology for stable connectivity.

Operating Instructions

1. Power On/Off

• Power On: Open the charging case, and the earbuds will automatically power on.
• Power Off: Place the earbuds back into the charging case and close the lid. They will automatically power off.

2. Touch Controls

The JOYWISE NC1 earbuds feature intuitive touch controls on each earbud:

• Play/Pause Music: Single tap on either earbud.
• Next Song: Double tap on the right earbud.
• Previous Song: Double tap on the left earbud.
• Volume Up: Triple tap on the right earbud.
• Volume Down: Triple tap on the left earbud.
• Answer/End Call: Single tap on either earbud.
• Reject Call: Press and hold either earbud for 2 seconds.
• Activate Voice Assistant: Press and hold either earbud for 2 seconds (when not on a call).

3. Active Noise Cancellation (ANC) & Transparency Mode

• Switch Modes: Press and hold the touch panel on either earbud for 2 seconds to cycle between Active Noise Cancellation, Transparency Mode, and Normal Mode.
• Active Noise Cancellation: Reduces external noise for an immersive audio experience.
• Transparency Mode: Allows ambient sounds to pass through, keeping you aware of your surroundings.

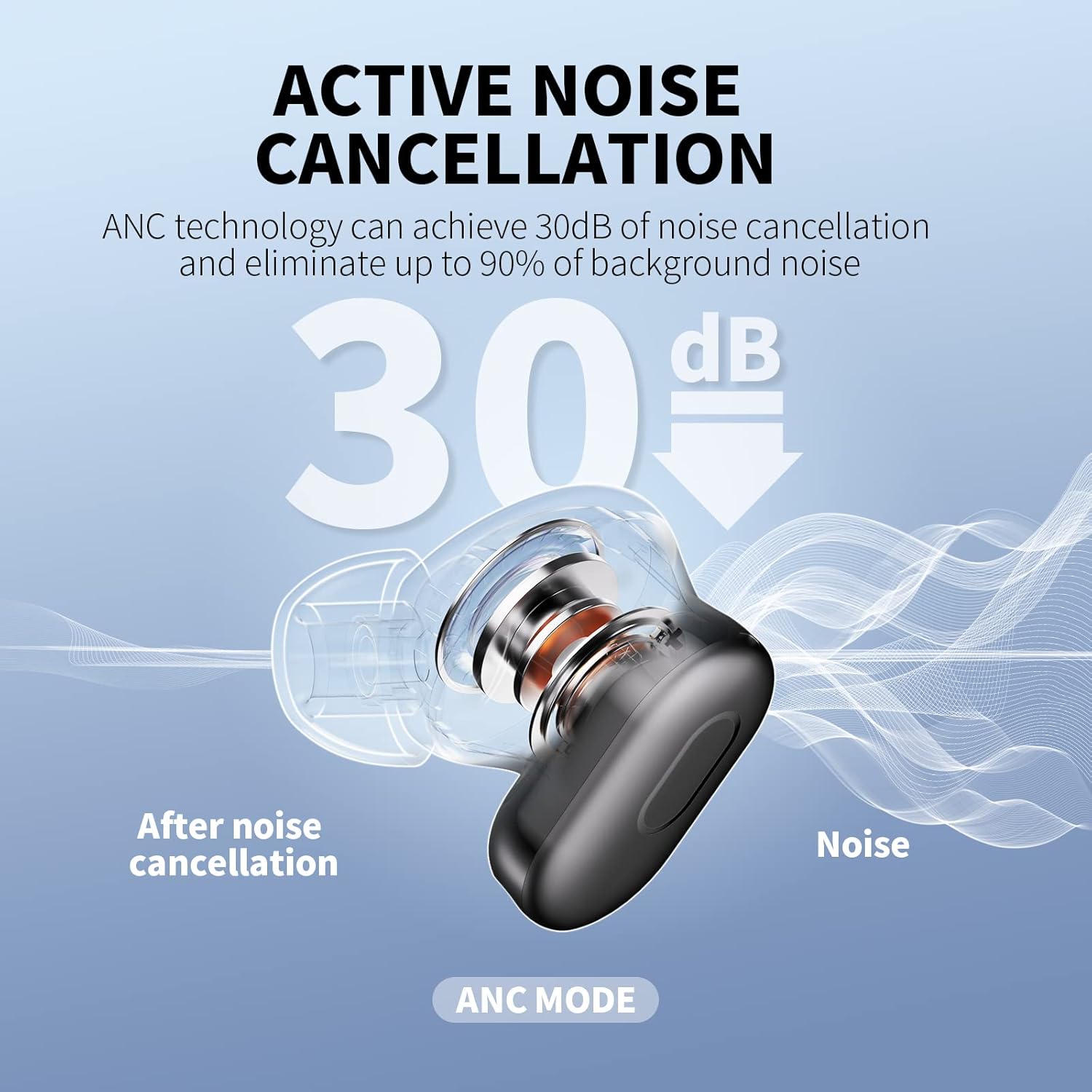

Image: Diagram illustrating the 30dB active noise cancellation feature of JOYWISE NC1 Earbuds.

Image: A woman smiling while wearing JOYWISE NC1 Earbuds, demonstrating the Transparency Mode feature.

Charging

The JOYWISE NC1 earbuds offer extended playtime with their charging case.

• Earbud Playtime: Up to 7 hours on a single charge (at 50% volume).
• ANC Playtime: Up to 5 hours in Active Noise Cancellation mode.
• Total Playtime: Up to 30 hours with multiple charges from the charging case.
• Charging the Case: Use the provided USB-C cable to charge the case. The LED display on the case indicates the battery level.

Image: Visual representation of JOYWISE NC1 Earbuds and charging case, highlighting 30 hours of total playtime.

Maintenance

To ensure the longevity and optimal performance of your JOYWISE NC1 Wireless Earbuds, follow these maintenance guidelines:

• Cleaning: Regularly clean the earbuds and charging case with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Eartips: Remove and clean the eartips periodically with mild soap and water. Ensure they are completely dry before reattaching.
• Storage: Store the earbuds in their charging case when not in use to protect them from dust and damage.
• Water Resistance: The earbuds are IPX6 waterproof, protecting them from sweat and light splashes. Avoid submerging them in water.

Troubleshooting

If you encounter any issues with your JOYWISE NC1 Wireless Earbuds, try the following solutions:

• No Sound: Ensure earbuds are charged, properly paired, and volume is adjusted on both the earbuds and your device.
• Pairing Issues: Turn off Bluetooth on your device, place earbuds back in the case, close and reopen the case to re-enter pairing mode, then try pairing again. If issues persist, reset the earbuds (refer to the quick guide for specific reset instructions).
• Intermittent Connection: Ensure earbuds are within the 10-meter Bluetooth range of your device and there are no significant obstructions.
• Call Quality: Ensure both earbuds are worn during calls for optimal microphone performance.

Specifications

Warranty and Support

Your JOYWISE NC1 Wireless Earbuds are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your package or contact JOYWISE customer support.

For any questions, technical assistance, or support needs, please visit the official JOYWISE website or contact their customer service team. Each item has a unique code that we verify before shipping, ensuring product authenticity.
