1. Introduction
The Lamomo 12V 5m White LED Strip Light is a versatile and bright lighting solution designed for various indoor and outdoor applications. Featuring 600 super bright LEDs, this strip provides uniform 6000K daylight white illumination with a wide 120-degree projection. Its flexible silicone construction ensures durability, low heat emission, and IP65 waterproof protection, making it safe and adaptable for many environments.
2. Safety Information
- Power Supply: An adapter is NOT included. A DC 12V 3A-5A output power supply is recommended for optimal performance and safety. Ensure the power supply matches the strip's voltage requirements.
- Heat Emission: The LED strip operates with low heat emission, making it safe to touch for both children and adults.
- Material Safety: Constructed from safe silicone material, the strip will not ignite even when exposed to fire, enhancing safety.
- Installation: Always disconnect power before installation or maintenance. Ensure all connections are secure to prevent electrical hazards.
- Water Resistance: The strip is IP65 waterproof, suitable for use in damp environments or under light rain. However, it is not designed for submersion in water.
3. Package Contents
Please verify that all items are present in the package:
- 1 x Lamomo 12V 5m White LED Strip Light
- Mounting Clips (quantity as per accessory pack)
- Screws (quantity as per accessory pack)
- Connection Wires (quantity as per accessory pack)
Note: The power adapter is NOT included and must be purchased separately.
4. Setup and Installation
Follow these steps for proper installation:
- Plan Your Layout: Determine the desired path for your LED strip. Ensure the surface is clean, dry, and smooth for optimal adhesion and mounting.

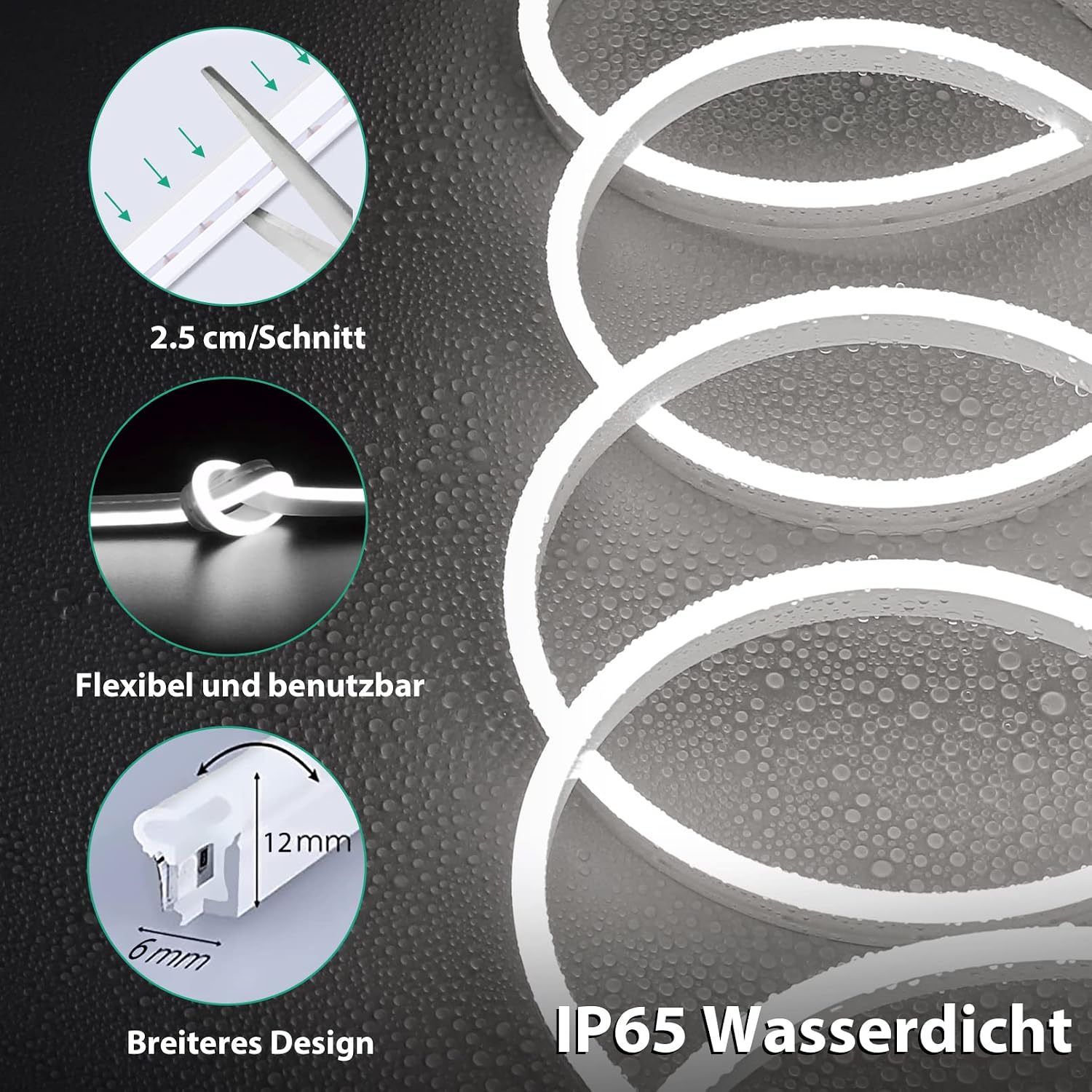

- Cut to Length (Optional): If a shorter length is required, the LED strip can be cut every 2.5 cm. Look for the designated cutting marks (usually between black wires) on the strip. Use sharp scissors to ensure a clean cut.
- Prepare Connections: If cutting, you may need to re-establish connections using the provided connection wires. Ensure polarity is correct (+ to + and - to -).
- Mount the Clips: Securely mount the provided clips to your desired surface using the screws. Space the clips evenly to support the LED strip along its length.
- Install the LED Strip: Gently press the LED strip into the mounted clips, ensuring it is firmly seated.
- Connect to Power: Connect the LED strip to a compatible DC 12V power supply (not included). Ensure the power supply is off before making connections.
5. Operating Instructions
Once installed and connected to a suitable 12V DC power supply, the Lamomo LED strip light will illuminate when power is supplied. Operation typically involves controlling the power supply via an external switch or controller (not included with the strip).
6. Maintenance
To ensure the longevity and optimal performance of your LED strip light:
- Cleaning: Gently wipe the surface of the LED strip with a soft, dry cloth to remove dust or dirt. For stubborn marks, a slightly damp cloth can be used, but ensure the strip is completely dry before reconnecting power.
- Connection Check: Periodically inspect all electrical connections to ensure they remain secure and free from corrosion.
- Environmental Care: While IP65 waterproof, avoid prolonged exposure to extreme weather conditions or direct submersion in water.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| LED strip does not light up. | No power supply; incorrect connection; faulty power adapter. | Ensure power supply is connected and turned on. Check all connections for correct polarity (+/-). Test with a different 12V DC power adapter if available. |
| LED strip flickers. | Unstable power supply; loose connection; faulty strip section. | Verify the power supply provides stable 12V DC output. Check all connections for tightness. If only a section flickers, that part of the strip might be damaged. |
| Only part of the LED strip lights up. | Damage to a section; improper cut; faulty connection after a cut. | Inspect the unlit section for visible damage or improper cuts. Recheck connections at the last working segment. |
| Light is not uniform or appears dim. | Insufficient power supply; voltage drop over long distance; comparison with other LED types. | Ensure your power supply meets the recommended 3A-5A output. For very long runs, consider injecting power at both ends if possible. Note that Lamomo silicone strips are designed for uniform light, but comparisons to other types may vary. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Lamomo |
| Model | B0BBF98Z7R |
| Voltage | 12 Volts DC |
| Length | 5 meters (16.4 feet) |
| Number of LEDs | 600 |
| Color Temperature | 6000K (Daylight White) |
| Beam Angle | 120 degrees |
| Waterproof Rating | IP65 |
| Material | Silicone |
| Cuttable Interval | Every 2.5 cm |
| Power Consumption | 48 Watts |
| Item Weight | 460 grams |
| Energy Efficiency Class | F (EPREL Database Link) |
9. Warranty and Support
Specific warranty information for this product is not available in the provided data. For any product-related inquiries, technical support, or warranty claims, please contact Lamomo customer service through the retailer where the product was purchased.
