IAGREEA Humidifier User Manual

1. Introduction

Thank you for choosing the IAGREEA Ultrasonic Cool Mist Humidifier. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new humidifier. Please read it thoroughly before use and retain it for future reference.

This humidifier is designed to effectively moisturize dry air, creating a comfortable atmosphere in spaces up to 452 sq. ft. It features a quiet operation, sleep mode, 5L large capacity, auto shut-off, 3-level mist setting, and an essential oil tray for aromatherapy.

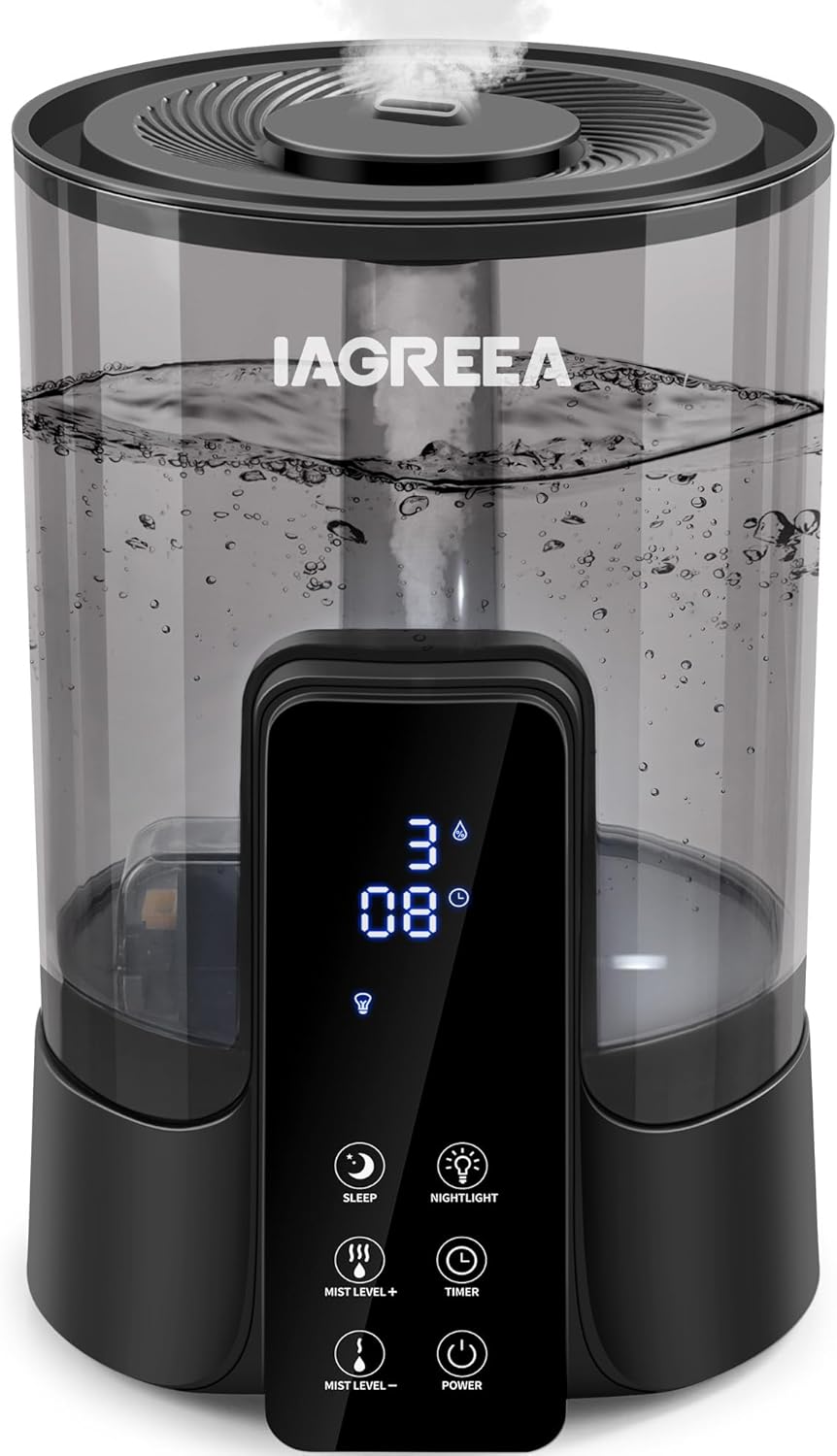

Figure 1.1: IAGREEA Ultrasonic Cool Mist Humidifier.

2. Safety Information

To ensure safe operation, always adhere to the following precautions:

• Do not place the humidifier on carpets or unstable surfaces.
• Always unplug the humidifier before cleaning or refilling.
• Do not immerse the base unit in water or other liquids.
• Keep out of reach of children and pets.
• Use only clean, purified water. Do not add water into the mist tube directly.
• Do not block the air inlet or mist outlet.
• If the humidifier is damaged, do not operate it. Contact customer support.

3. Package Contents

Upon opening the package, verify that all items listed below are present and in good condition:

• 1 × 5L Ultrasonic Top-Fill Humidifier
• 1 × Cleaning Brush
• 1 × Aroma Box (Pre-Installed)
• 1 × User Manual

4. Product Overview

Familiarize yourself with the components of your humidifier:

Figure 4.1: Humidifier Components and Control Panel.

• Mist Nozzle: Rotates 360° to direct mist.
• 5L Water Tank: Transparent tank for water storage.
• Control Panel: Touch-sensitive interface for operation.
• Aromatherapy Box: Small tray for essential oils.
• Display Icons: Indicate mist level, timer, water shortage, and night light status.
• Buttons: Sleep, Nightlight, Timer, Mist Level +, Mist Level -, Power.

5. Setup

1. Unpack: Carefully remove the humidifier and all accessories from the packaging.
2. Placement: Place the humidifier on a flat, stable, and water-resistant surface, away from direct sunlight or heat sources. Ensure it is at least 6 inches (15 cm) away from walls and furniture.
3. Fill Water Tank:
   • Remove the top lid of the humidifier.
   • Pour purified water directly into the water tank. Do not exceed the MAX fill line.
   • Alternatively, the entire water tank can be removed for filling.
   • Do NOT add water into the mist tube.


   Figure 5.1: Two-Way Quick Top Fill for the Water Tank.

4. Power Connection: Plug the power cord into a standard electrical outlet. The display will light up briefly.

6. Operating Instructions

The humidifier features a touch control panel for easy operation.

1. Power On/Off: Touch the Power button to turn the humidifier on or off.
2. Mist Level Adjustment:
   • Touch Mist Level + to increase the mist output.
   • Touch Mist Level - to decrease the mist output.
   • There are 3 mist levels: Level 1 (120ML/H), Level 2 (200ML/H), and Level 3 (300ML/H).


   Figure 6.1: Adjustable Mist Levels.

3. Sleep Mode:
   • Touch the Sleep button to activate Sleep Mode.
   • In Sleep Mode, the display will turn off to ensure a dark environment.
   • Touch any button to wake up the screen.


   Figure 6.2: Sleep Mode for undisturbed rest.

4. Nightlight Function:
   • Touch the Nightlight button to turn the nightlight on or off.
   • The nightlight provides a soft illumination.
5. Timer Setting:
   • Touch the Timer button to set the operating time.
   • The timer can be set from 1 to 8 hours. The humidifier will automatically shut off when the set time expires.
6. Aromatherapy Function:
   • Locate the yellow aromatherapy box on the side of the humidifier.
   • Pull out the aromatherapy box.
   • Add a few drops of your preferred essential oil onto the sponge pad inside the box.
   • Slide the aromatherapy box back into its slot.
   • Enjoy the diffused aroma.


   Figure 6.3: Essential Oil Tray and 360° Rotatable Nozzle.

7. 360° Rotatable Nozzle: Adjust the direction of the mist by rotating the nozzle on top of the humidifier.

7. Maintenance

Regular cleaning is crucial for optimal performance and hygiene.

1. Daily Maintenance:
   • Unplug the humidifier.
   • Empty any remaining water from the tank and base.
   • Wipe the tank and base dry with a clean cloth.
2. Weekly Cleaning:
   • Unplug the humidifier.
   • Remove the water tank from the base. The design allows for easy detachment.
   • Clean all crevices of the humidifier effortlessly with the included small brush.
   • For mineral buildup, fill the water tank with a mixture of equal parts white vinegar and water. Let it soak for 30 minutes, then rinse thoroughly.
   • Wipe down the base and transducer with a soft cloth dampened with vinegar solution, then rinse with clean water.
   • Ensure all parts are completely dry before reassembling.


   Figure 7.1: Detachable design for easy cleaning.

3. Aromatherapy Box Cleaning:
   • Remove the aromatherapy box.
   • Clean the sponge pad with mild soap and water, or replace it if necessary.
   • Ensure the box is dry before reinserting.

8. Troubleshooting

9. Specifications

10. Warranty and Support

IAGREEA stands behind the quality of its products. For warranty information, technical support, or any inquiries regarding your humidifier, please contact IAGREEA customer service through the retailer's platform or the official IAGREEA website.

Please retain your proof of purchase for warranty claims.
