Introduction
The Rapoo M650 is a portable dual-mode wireless mouse designed for versatile connectivity and comfortable use. It supports Bluetooth 3.0, Bluetooth 5.0, and 2.4G USB receiver connections, allowing seamless switching between multiple devices. Its silent click design and high-precision tracking engine enhance productivity in various environments.
Image: The Rapoo M650 wireless mouse in rose pink, showcasing its compact design and the accompanying USB receiver.
Setup Guide
1. Unpacking and Battery Installation
The Rapoo M650 mouse comes with one pre-installed AA battery. To activate the mouse, locate the battery compartment, typically under a magnetic top cover. Remove the protective pull tab from the battery to establish power connection.
Image: The underside of the Rapoo M650 mouse with the top cover removed, revealing the AA battery compartment and the storage slot for the USB receiver.
2. Connecting via 2.4G USB Receiver
- Remove the USB receiver from its storage slot inside the mouse.
- Insert the USB receiver into an available USB port on your computer or device.
- Turn on the mouse using the ON/OFF switch located on the underside. The mouse should automatically connect to your device.
3. Connecting via Bluetooth (BT 3.0/5.0)
- Turn on the mouse using the ON/OFF switch on the underside.
- Press and hold the Bluetooth pairing button (often located on the underside or top of the mouse) for approximately 3 seconds until the indicator light flashes, indicating pairing mode.
- On your device (laptop, tablet, smartphone), navigate to the Bluetooth settings.
- Search for available devices and select "RAPOO M650" (or similar) from the list to pair.
- Follow any on-screen prompts to complete the pairing process.
Video: This video demonstrates the multi-mode wireless connection capabilities of the Rapoo M650 mouse, including Bluetooth pairing and switching between devices.
4. Switching Between Connected Devices
The Rapoo M650 supports connection to up to three devices simultaneously (one via 2.4G USB receiver, two via Bluetooth). To switch between connected devices, short press the dedicated switch button on the mouse (usually on the underside or top). The indicator light will change to show which channel is active.

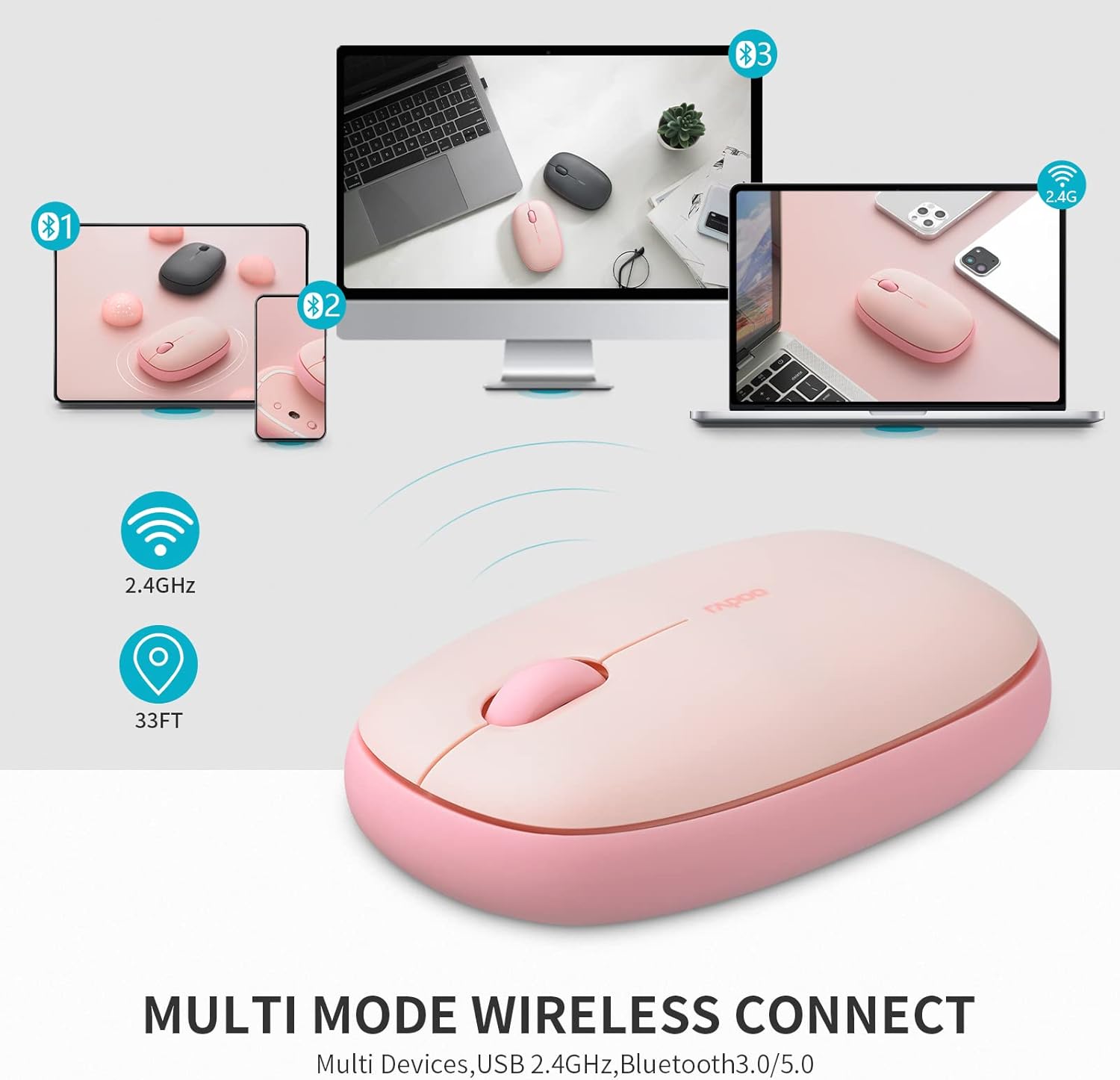

Image: A visual representation of the Rapoo M650 mouse's multi-device connectivity, illustrating its ability to connect to a laptop, tablet, and smartphone via 2.4G and Bluetooth.
Operating Instructions
1. Basic Functions
- Left Click: Primary selection and activation.
- Right Click: Accesses contextual menus.
- Scroll Wheel: Scrolls vertically through documents and web pages.
2. Silent Click Design
The Rapoo M650 features silent switches, significantly reducing click noise. This allows for a quieter working environment, minimizing distractions for both the user and those nearby.
Image: A person using the Rapoo M650 mouse, emphasizing its quiet operation due to the silent click design.
3. High-Precision Tracking
Equipped with a 1300 DPI optical tracking engine, the M650 provides precise cursor control. It is designed to work effectively on various surfaces, including leather, cloth, paper, and wood, often eliminating the need for a mouse pad.
Image: The Rapoo M650 mouse shown on different surfaces like wood, fabric, and paper, illustrating its high-precision optical tracking capabilities without a mouse pad.
4. Ergonomic Design
The mouse features an ergonomic, slim, and pebble-shaped design that fits comfortably in the hand, reducing fatigue during extended use. Its ambidextrous design makes it suitable for both left and right-handed users.
Image: A diagram illustrating the dimensions of the Rapoo M650 mouse and a hand holding it, highlighting its ergonomic and slim design.
Maintenance
1. Battery Replacement
The Rapoo M650 uses one AA battery, providing up to 9 months of battery life under normal conditions. When the mouse's performance degrades or the indicator light suggests low power, replace the AA battery. To do so, gently remove the magnetic top cover, replace the old battery with a new AA battery, and reattach the cover.
2. Cleaning
To maintain optimal performance and appearance, regularly clean the mouse. Use a soft, dry cloth to wipe the exterior. For stubborn dirt, a slightly damp cloth can be used, ensuring no moisture enters the internal components. The anti-fingerprint and sweat-proof outer shell simplifies cleaning.
Troubleshooting
- Mouse not responding: Ensure the mouse is turned on and the battery has sufficient charge. Check if the USB receiver is securely plugged in or if Bluetooth is properly paired.
- Connection issues: For 2.4G connection, try plugging the USB receiver into a different USB port. For Bluetooth, unpair and re-pair the mouse with your device. Ensure no other wireless devices are causing interference.
- Intermittent tracking: Clean the optical sensor on the underside of the mouse. Ensure you are using the mouse on a suitable surface; avoid highly reflective or transparent surfaces.
- Difficulty switching devices: Ensure you are pressing the switch button correctly and holding it for the appropriate duration if required for pairing.
Specifications
| Feature | Detail |
|---|---|
| Model | M650 |
| Connectivity Technology | Bluetooth 3.0/5.0, 2.4G Wireless |
| Movement Detection Technology | Optical |
| DPI | 1300 |
| Battery Type | 1 AA Battery (included) |
| Battery Life | Up to 9 months |
| Product Dimensions | 2.36 x 1.18 x 4.33 inches |
| Item Weight | 1.76 ounces |
| Special Features | Multi-device connectivity, Silent clicks, Ergonomic design |
Warranty and Support
Rapoo provides a one-year warranty for the M650 mouse. Additionally, a 30-day return and refund or replacement policy is offered. For support or warranty claims, please refer to the official Rapoo website or contact their customer service.
