Blitzshark 12V Kids Ride on Car Licensed Toyota Tacoma Instruction Manual

1. Important Safety Information

Read all instructions carefully before assembling and operating the Blitzshark 12V Kids Ride on Car. Failure to follow these safety guidelines may result in serious injury or property damage.

• Adult Supervision Required: This product is intended for children aged 3 years and up. Constant adult supervision is mandatory during operation.
• Weight Limit: Do not exceed the maximum load capacity of 66 lbs (30 kg).
• Protective Gear: Always ensure the child wears appropriate safety gear, including a helmet, knee pads, and elbow pads.
• Operating Environment: Operate the vehicle only on flat, level surfaces. Avoid slopes, stairs, public roads, and areas near water or other hazards.
• Seat Belt Use: Always ensure the three-point seat belt is securely fastened before operation.
• Battery Safety: Only use the provided charger and battery. Do not modify the electrical system. Keep the battery away from heat and moisture.
• Emergency Stop: Parents can use the 2.4G remote control's emergency brake button to immediately stop the car for safety.

2. Product Overview

The Blitzshark 12V Kids Ride on Car is a licensed Toyota Tacoma electric vehicle designed for children aged 3 and up. It features a powerful 12V dual motor system, spring suspension, and multiple entertainment options.

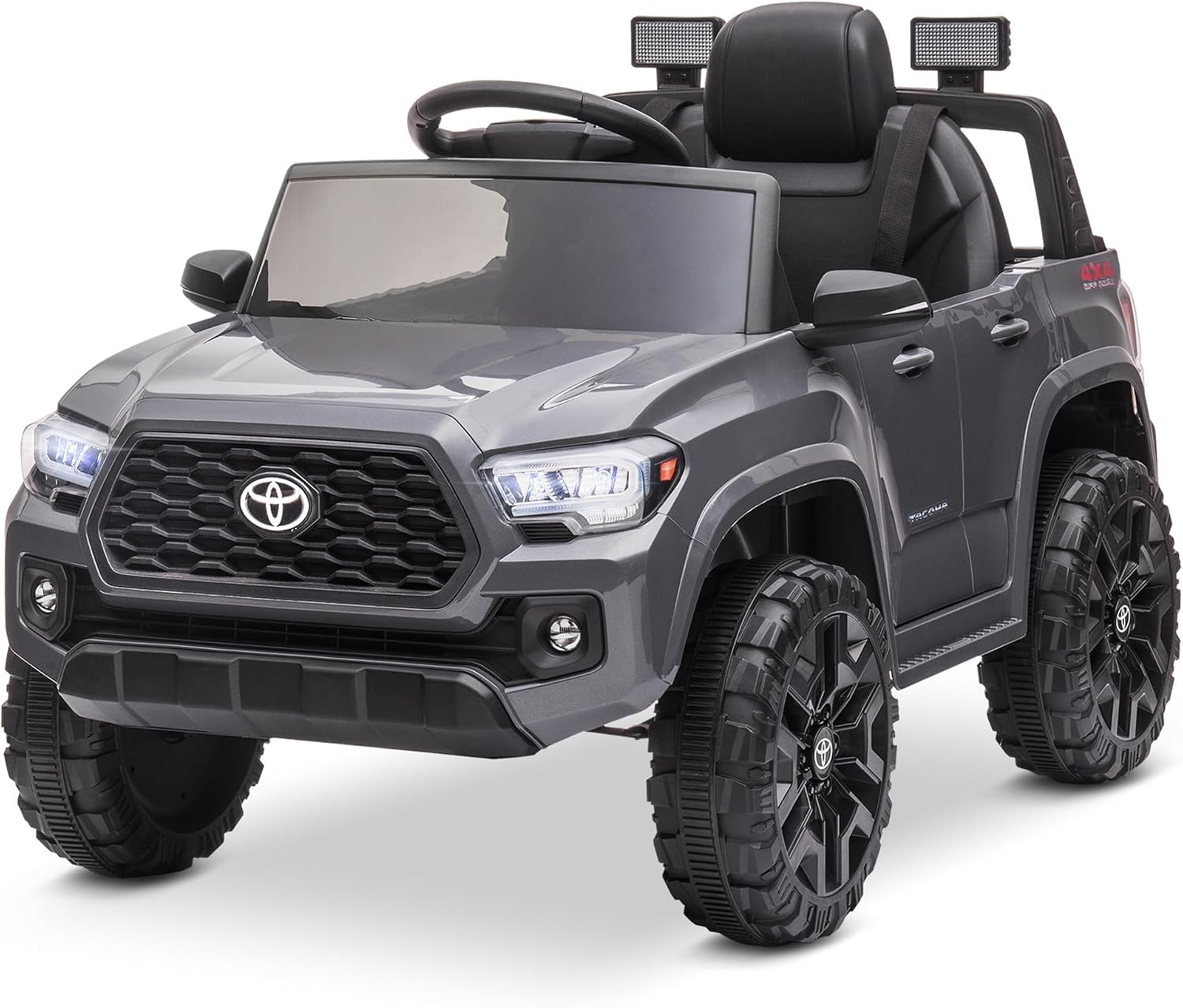

Figure 2.1: Front view of the grey Blitzshark 12V Kids Ride on Toyota Tacoma Car, highlighting its realistic design and large wheels.

Figure 2.2: A child seated in the Blitzshark Toyota Tacoma, illustrating the vehicle's suitable speed range of 1.2-2.5 MPH for safe driving.

3. Setup and Assembly

Please read the product instruction carefully before installation. Refer to the video for visual guidance.

3.1 Unpacking and Initial Preparation

1. Carefully remove all components from the packaging.
2. Verify all parts are present against the parts list in the included manual.
3. Turn the car body over to access the underside for initial assembly steps.
4. Cut off any straps securing components with a suitable tool.

3.2 Rear Axle and Wheel Installation

1. Remove the nut and washer from the rear axle.
2. Insert the rear axle through the rear motors and car body.
3. Install the rear wheels (left/right), washer, and M8 nut onto the rear axle.
4. Install the wheel cover on the wheel.

3.3 Front Axle and Wheel Installation

1. Remove the nuts from the front axle.
2. Remove the nut from the steering axle and rotate the steering axle to the correct position.
3. Insert the front axle into the square tube and secure it with 2 M8 nuts.
4. Remove the nut and washer from the front axle.
5. Install the front wheels (left/right), washer, M8 nut on the front axle, and install the wheel cover on the wheel.

3.4 Steering Wheel and Accessories Installation

1. Take off the screw of the steering wheel.
2. Turn the car body over again.
3. Install the steering wheel into the hole of the steering axle, then tighten the screw into the steering wheel.
4. Install the wind deflector to the car body.
5. Install the rearview mirror (left/right) to the car body.
6. Install the seat to the car body and secure with 2 screws.
7. Snap the backrest into the seat correctly and secure with 2 screws.
8. Install the two rear lamps to the lamp holder and then install them into the car body.

3.5 Battery Connection

1. Open the charging door.
2. Connect the main power wires.
3. Ensure all connections are secure before closing the charging door.

5. Operating Instructions

The Blitzshark 12V Kids Ride on Car offers dual driving modes for versatile play.

4.1 Dual Driving Modes

• Kids Manual Operation: Children can independently operate the car using the steering wheel and foot pedal. This mode allows for direct control and enhances driving skills.
• Parental Remote Control: For younger children or for added safety, parents can use the 2.4G remote control to steer, accelerate, and brake the vehicle. The remote control features an emergency brake button for immediate stopping.

Figure 4.1: Illustration of the dual driving modes, showing both manual operation by the child and remote control by a parent.

4.2 Multimedia Functions

The central control panel includes a digital display and various functions for an enhanced driving experience:

• Wireless Music Player: Connect your device to play music.
• FM Radio: Tune into your favorite radio stations.
• Bright Headlights: Functional headlights for visibility and realism.
• Horn: Activate the horn for interactive play.

Figure 4.2: A child standing next to the vehicle, highlighting the wireless music player, LED headlights, three-point seat belt, and storage space.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your ride-on car.

• Cleaning: Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid direct water spray.
• Battery Care: Charge the battery fully after each use and at least once a month during storage to prolong its lifespan. Do not overcharge.
• Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture. If storing for extended periods, disconnect the battery.
• Inspection: Periodically check all screws, nuts, and electrical connections to ensure they are secure. Inspect tires for wear and tear.

6. Troubleshooting

If you encounter issues with your ride-on car, refer to the following common problems and solutions:

7. Specifications

• Model Number: SRK-T39L
• Overall Size (L x W x H): 39.8 x 24.4 x 24.4 inches
• Wheel Diameter: 10.4 inches
• Seat Length: 15.75 inches
• Maximum Load: 66 lbs (30 kg)
• Recommended Age: 3 years and up
• Power Configuration: 12V dual motors
• Playtime: Approximately 1-2 hours (varies with load, speed, road surface & temperature)
• Features: Remote Control, Digital Display, Spring Suspension, Storage Space, Music & FM Radio, Bright Headlights, Horn, Three-point Seat Belts, Lockable Doors.

Figure 7.1: Key dimensions and specifications of the Blitzshark 12V Kids Ride on Car.

8. Warranty and Support

For detailed warranty information, please refer to the official user guide PDF or contact Blitzshark customer support.

• Official User Guide (PDF): Download PDF Manual
• Blitzshark Store: Visit the Blitzshark Store on Amazon
• Manufacturer: Blitzshark
